5.5x2.1mm Female to USB Adapter Cable (15cm) | Type-C, Micro USB, USB-A
5.5x2.1mm Female to USB Adapter Cable (15cm) | Type-C, Micro USB, USB-A
Couldn't load pickup availability
Short Product Description
Short Product Description
Convert your standard DC power supply into a versatile USB power source with our 5.5x2.1mm Female to USB Adapter Cable. Measuring a flexible 15cm in lengthand rated for 1-2A of current, this passive pigtail adapter is available in three options:Type-C (Male), Micro USB (Male), or USB-A (Female). Perfect for powering Raspberry Pi boards, Arduino projects, and USB LED lights.(Warning: This is a passive pass-through cable with no PD/QC negotiation chips. Voltage IN = Voltage OUT). Sun Cheong Computer Co. Ltd.has over 20 years of IT expertise. Visit our Sham Shui Po physical store for instant pickup and expert DIY technical advice!
Key Features
Key Features
- Universal 5.5x2.1mm Input: Accepts the industry's most common DC barrel jack, making it easy to repurpose existing power supplies.
- Three Output Options: Choose between Type-C (Male), Micro USB (Male), or USB-A (Female) to match your specific device.
- Strain-Relief Pigtail: The 15cm flexible cable prevents rigid leverage, protecting your device's delicate USB ports from snapping.
- 1-2A Current Rating: Built with quality copper wiring to safely handle 1A to 2A of continuous current for stable power delivery.
- Passive Pass-Through: No soldering or software required. Pure physical connection (Voltage IN = Voltage OUT).
- Compact & Portable: Lightweight and easy to carry, making it an essential adapter for any IT technician's toolkit.
Full Product Description
Full Product Description
Instantly Convert DC Barrel Jacks to USB Power
Do you have a reliable 5V power adapter with a standard 5.5x2.1mm barrel plug, but your new development board or smart device requires a USB connection? The 5.5x2.1mm to USB Adapter Cable bridges that gap instantly. Instead of buying a brand-new power supply, this simple plug-and-play adapter allows you to reuse your existing high-quality DC adapters to power modern USB-C, Micro USB, or standard USB-A devices.
Flexible 15cm Pigtail Design
Solid, one-piece plastic adapters create a rigid lever that sticks out of your device. If the cable gets bumped, that leverage can easily snap the fragile USB port right off your motherboard. Our 15cm flexible pigtail design absorbs accidental tugs and bends, significantly reducing mechanical strain and protecting your expensive Raspberry Pi or microcontroller from physical damage.
💡 Pro Tip from Our Technicians
"CRITICAL WARNING: This is a passive adapter cable—it only changes the physical shape of the plug; it DOES NOT convert or regulate voltage. If you plug a 12V or 24V DC adapter into this cable and connect it to your smartphone or Raspberry Pi, it will instantly fry your device! You must ensure your power adapter outputs exactly 5V. If you are unsure about your power supply's voltage or need help building a safe power circuit for your DIY project, drop by our Sham Shui Po store. Our team at Sun Cheong Computer Co. Ltd. will use a multimeter to test your gear on the spot!"
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Input Connector | 5.5mm (Outer Diameter) x 2.1mm (Inner Diameter) Female |
| Option 1 (Output) | USB Type-C (Male) |

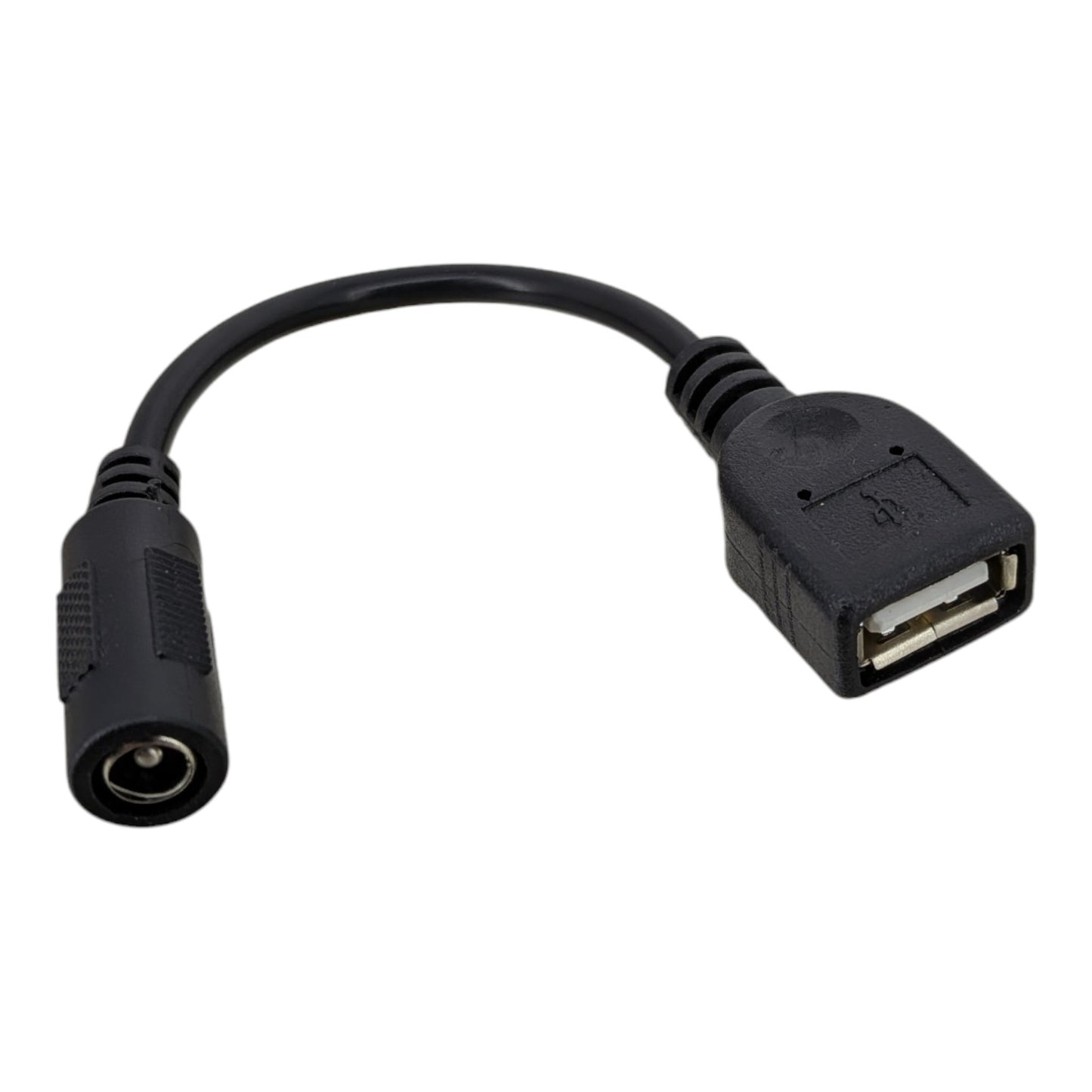

| Option 2 (Output) | USB Type-A (Female) |
| Option 3 (Output) | Micro USB (Male) |
| Cable Length | Approx. 15 cm (5.9 inches) |
| Rated Current | 1A - 2A |
| Voltage Conversion | None (Passive pass-through only. Input Voltage = Output Voltage) |
| PD / QC Support | No negotiation chips included. Raw power delivery only. |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Can I use a 12V power adapter with this cable to fast-charge my Type-C phone?Absolutely NOT. While Type-C ports can handle 12V or 20V, they require a PD chip to negotiate that voltage safely. This cable is passive. If you input 12V, 12V of raw power will go straight into your phone and permanently destroy it. You must only use a 5V power adapter if your device expects 5V.
- Is this cable capable of transferring data?No. This adapter cable is wired for power transmission only (VBUS and GND). It will not allow you to transfer data between a computer and a smartphone or microcontroller.
- Which option should I choose for a Raspberry Pi 4?The Raspberry Pi 4 uses a USB Type-C port for power. Therefore, you should select Option 1: 5.5x2.1mm Female to Type-C Male. (Note: Ensure your 5V power supply can deliver at least 3A for a Pi 4, though this cable is rated optimally for 1-2A continuous use).
Target Users / Applications
Target Users / Applications
- Raspberry Pi & Arduino Makers: Powering development boards from standard 5V wall-wart power supplies instead of USB ports.
- CCTV Installers: Tapping into a centralized 5V DC power distribution box to run a USB-powered security camera or microphone.
- Custom LED Lighting Builders: Converting 5V barrel jack power supplies to run USB-A powered LED strip lights or desk lamps.
