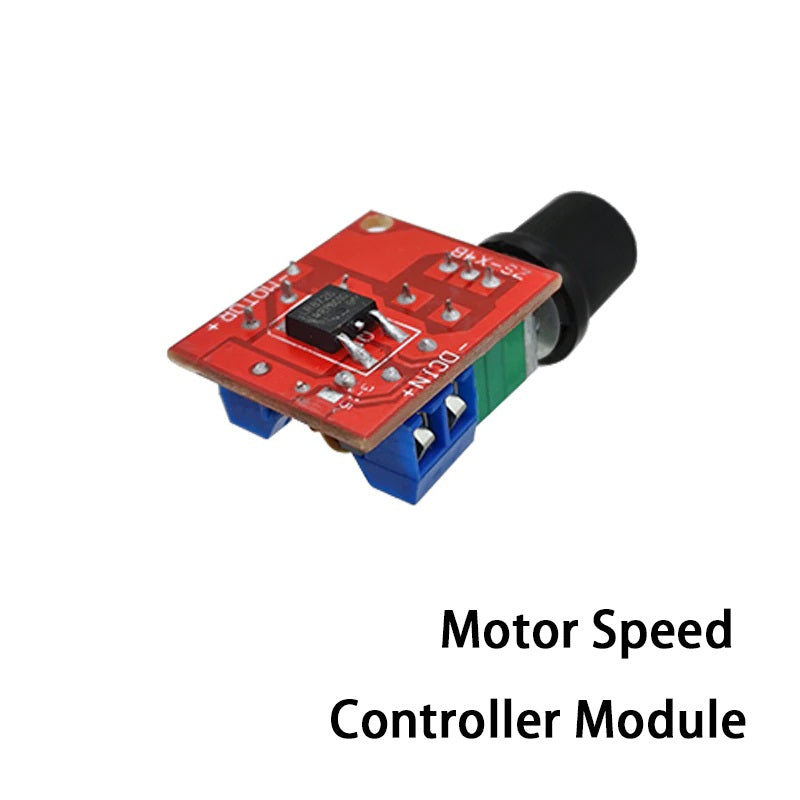

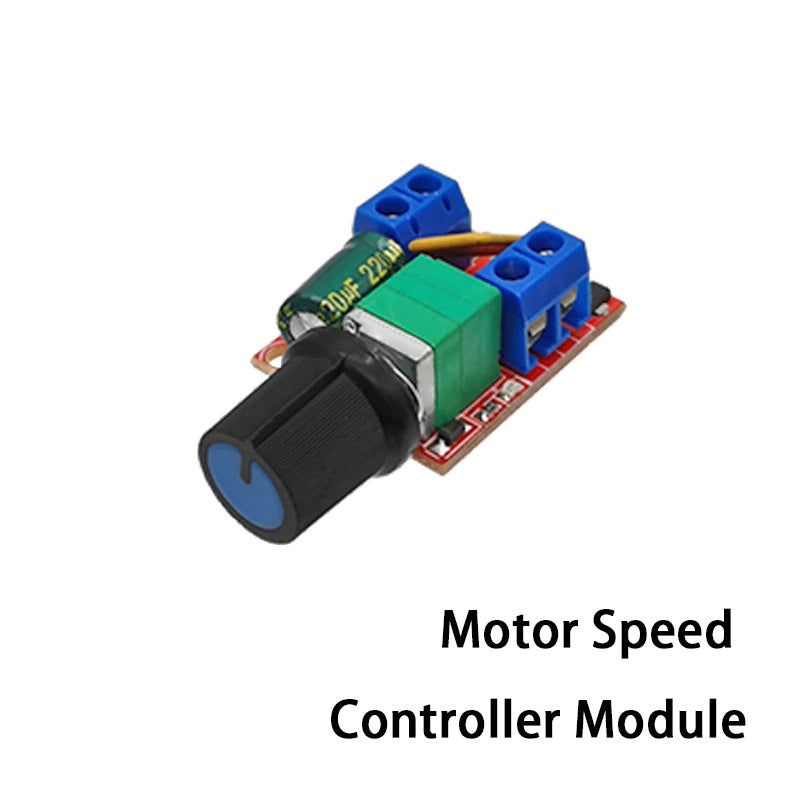

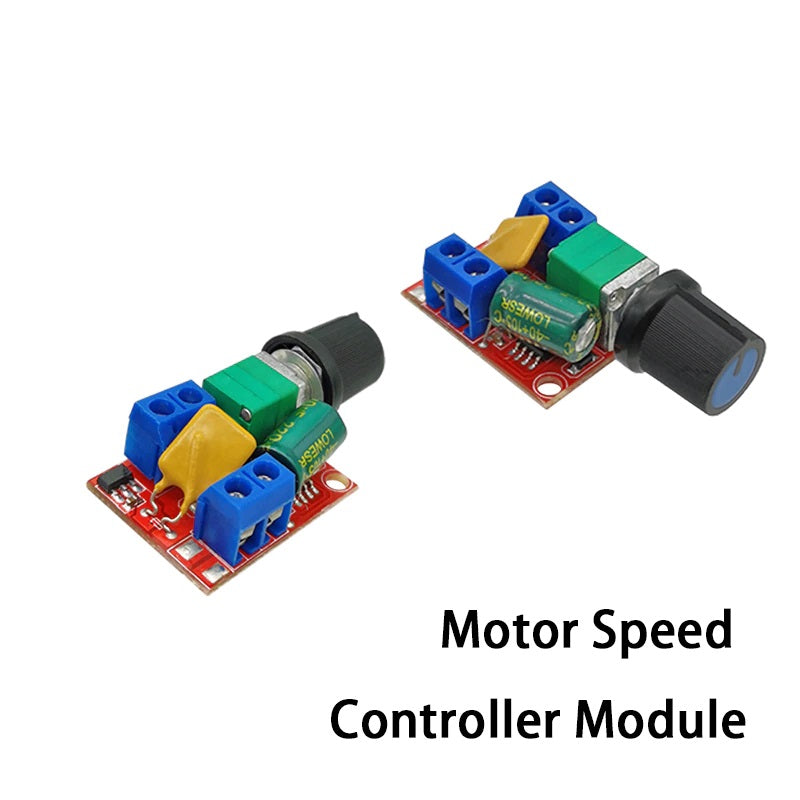

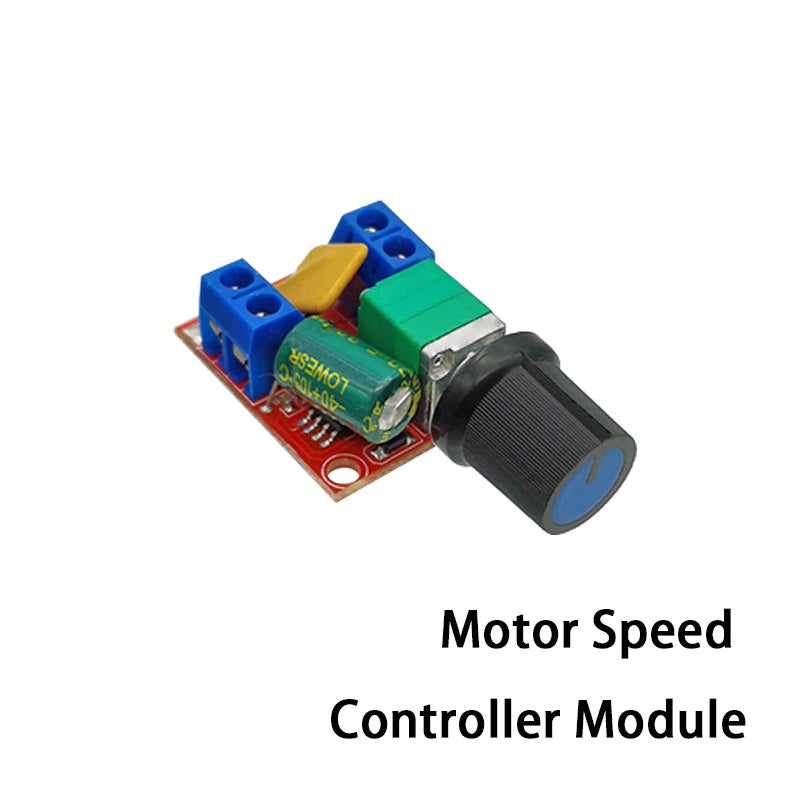

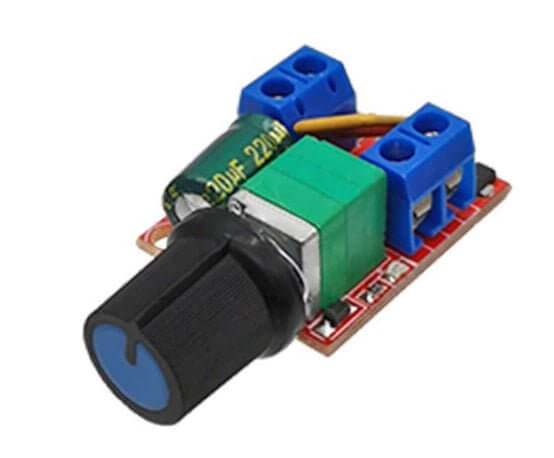

DC 5-35V 5A PWM Motor Speed Controller Module with Potentiometer

Take precise control of your DC motor's speed with this compact and efficient PWM motor speed controller module. Designed for a wide range of applications, this module allows you to easily adjust the speed of DC motors from 5V to 35V, handling up to 90W of power.

Key Features:

• Wide Voltage Compatibility: Operates with DC power input from 5V to 35V, making it versatile for various projects (e.g., 12V, 24V motors).
• High Power Handling: Controls motors up to 90W, suitable for a variety of small to medium-sized DC motors.
• Efficient PWM Control: Utilizes Pulse Width Modulation (PWM) to provide smooth and precise speed regulation from 1% to 100% duty cycle, minimizing power loss.
• Low Quiescent Current: Draws only 0.015A in standby mode, ensuring efficient power usage.
• Compact Design: Small footprint (30mm x 24mm x 15mm without handle) for easy integration into your projects.
• Integrated Potentiometer: Conveniently adjust motor speed with the built-in rotary potentiometer.
• Easy to Use: Simple wiring with clear DC IN and MOTOR terminals for quick setup.

Technical Specifications:

• Working Voltage: DC 5V - 35V
• Control Power: Max 90W
• Quiescent Current: 0.015A (standby)
• PWM Duty Cycle: 1% - 100%
• PWM Frequency: 10 kHz
• Dimensions (L x W x H): 30mm x 24mm x 15mm (without potentiometer handle)

Applications:

Ideal for controlling the speed of small DC motors in:

• Robotics projects
• DIY fan speed control
• Pump speed adjustment
• Electric drill speed regulation
• Model trains and cars
• Educational electronics kits
