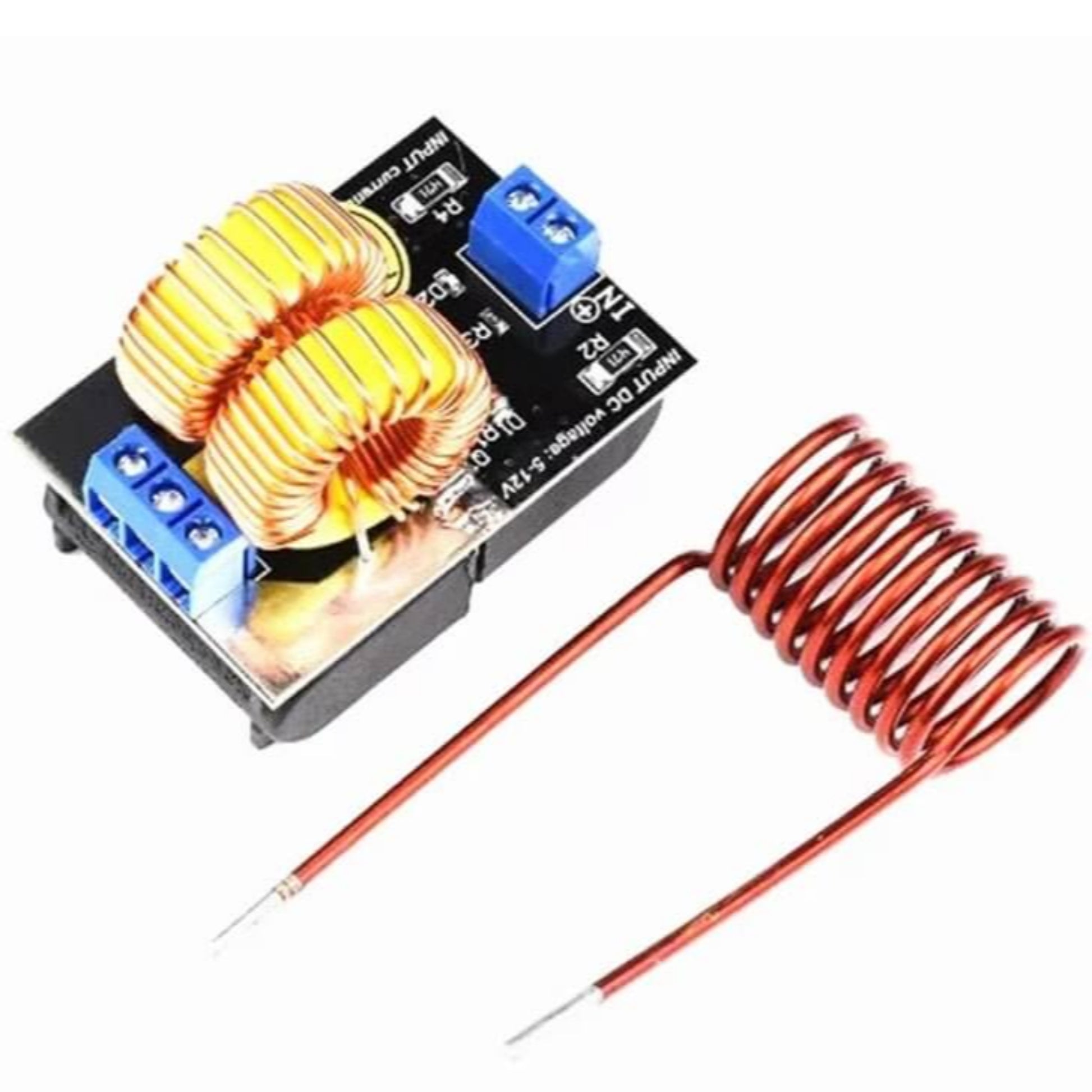

ZVS Induction Heating Module 5-12V with Coil

This compact ZVS (Zero Voltage Switching) heating power supply module is ready to drive rapid eddy-current heating up to 120W at 12V. Ideal for Arduino and other DC-powered DIY applications, it includes a precision-wound copper coil for efficient heat transfer. Ensure correct wiring and solder joints before powering. For optimal performance, position the heated object so its width is between 1/3 and 1/2 of the coil’s inner diameter (maximum 2/3).

Key Specifications:

• Input Voltage: DC 5–12V
• Maximum Output Power: 120W (at 12V)
• Module Dimensions: 55 × 40 × 20 mm
• Coil Dimensions: 75 mm length × 28 mm width
• Total Weight: 119 g

Features:

• Zero-Voltage-Switching design for minimal switching losses
• Ready-to-use kit with module and coil included
• Simple DC input (5–12V) – operates from USB-power banks to Li-ion packs
• High-efficiency eddy-current heating for metals
• Arduino-friendly for integration into custom projects
