4K 100M HDMI Extender 60M over RJ45 Ethernet Cat5e/6 cable HDMI USB Extender Transmitter Receiver kit
Specifications:
Length of CAT-5E/CAT-6 cable between Rx and TX: up to 100 meters
HDMI input and output : 4K/1080p/720p/576p/576i/480p/480i
Support audio format: DTS/Dolby/LPCM
Max bandwidth: 340MHz
Max baud rate: 10.2Gbps
Input HDMI cable distance: ≤15m AWG26 HDMI standard cable
Output HDMI cable distance: ≤15m AWG26 HDMI standard cable
TX Max working current: 350mA
RX Max working current : 200mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55℃)

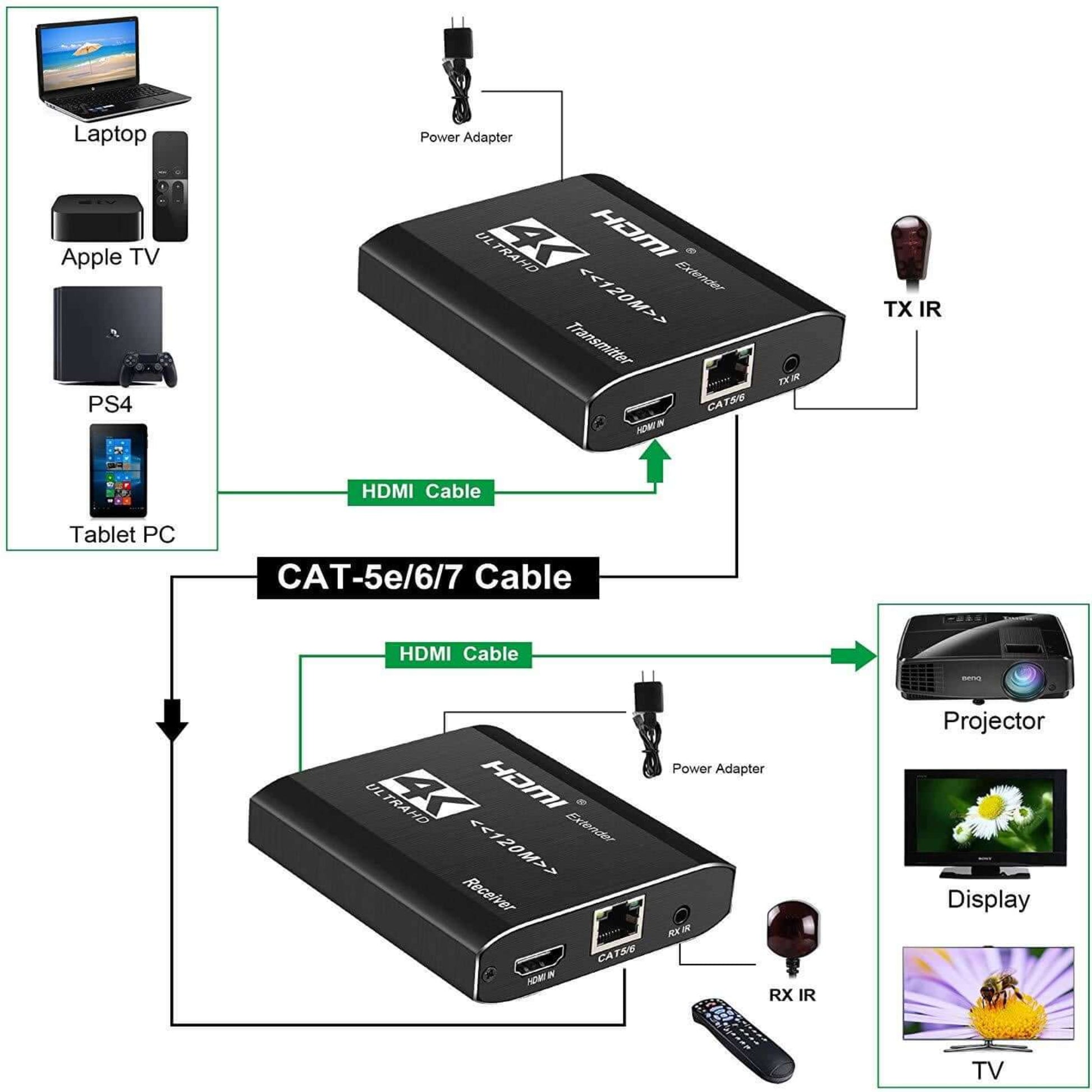

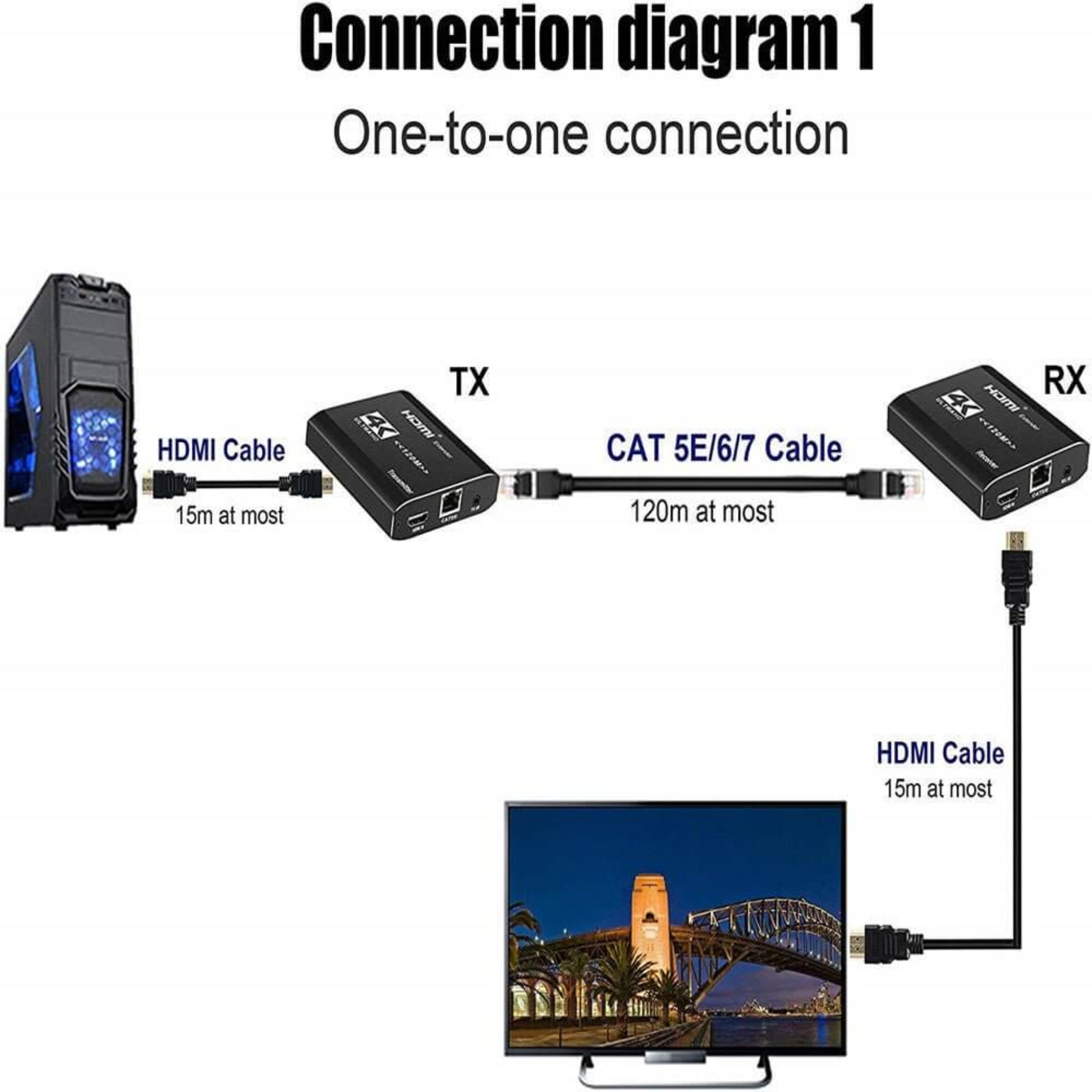

Connection and operation:

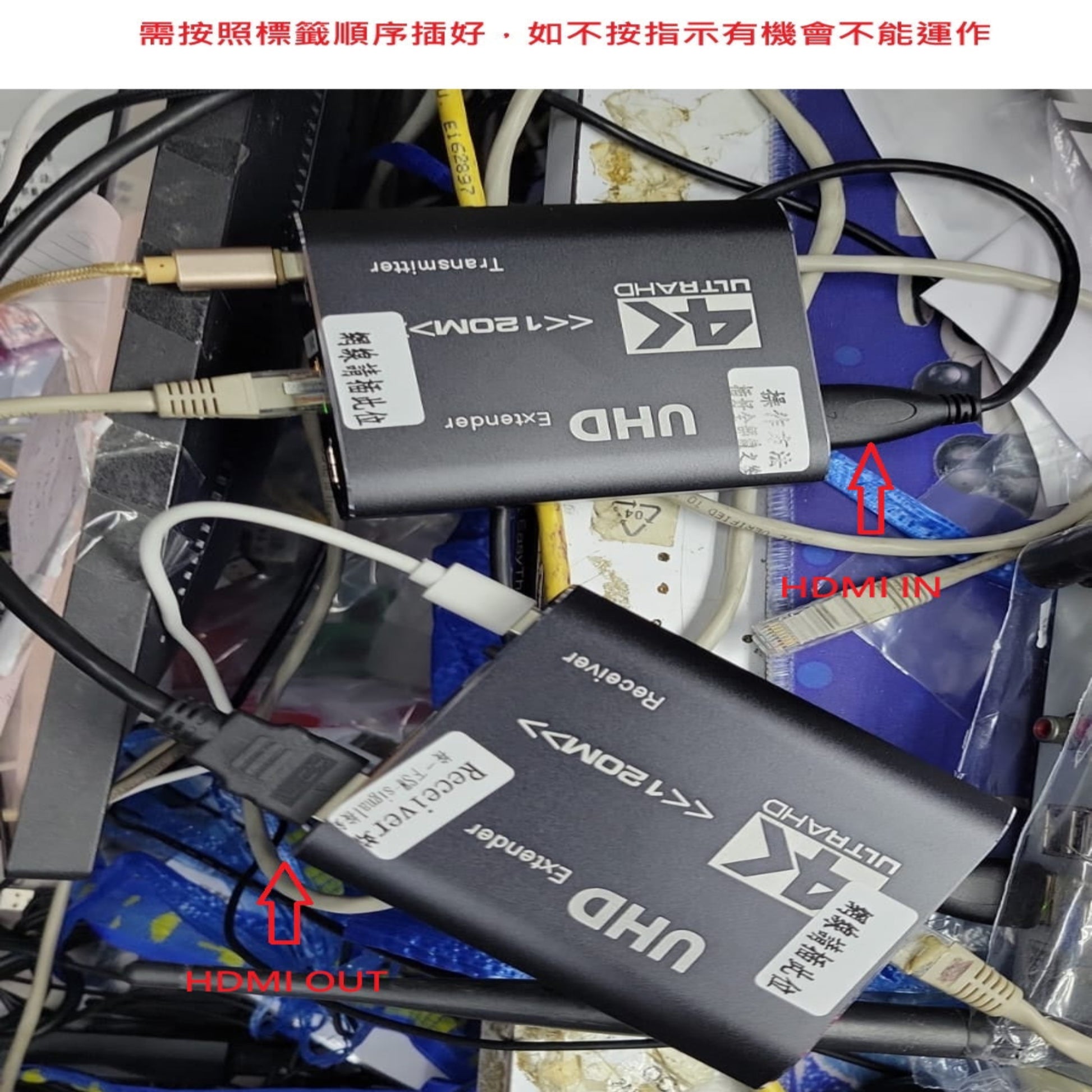

1.Connect hDMI source device with transmitter by one HDMI cable, the cable max length is 15 meters.
2.Connect HDMI display device with receiver by one HDMI cable, the cable max length is 15 meters.
3.Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 100 meters.
4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.
5.Connect the power supply to the TX and RX.
6.LED indicator:When a signal is input to work, steady blue light.
The package includes:

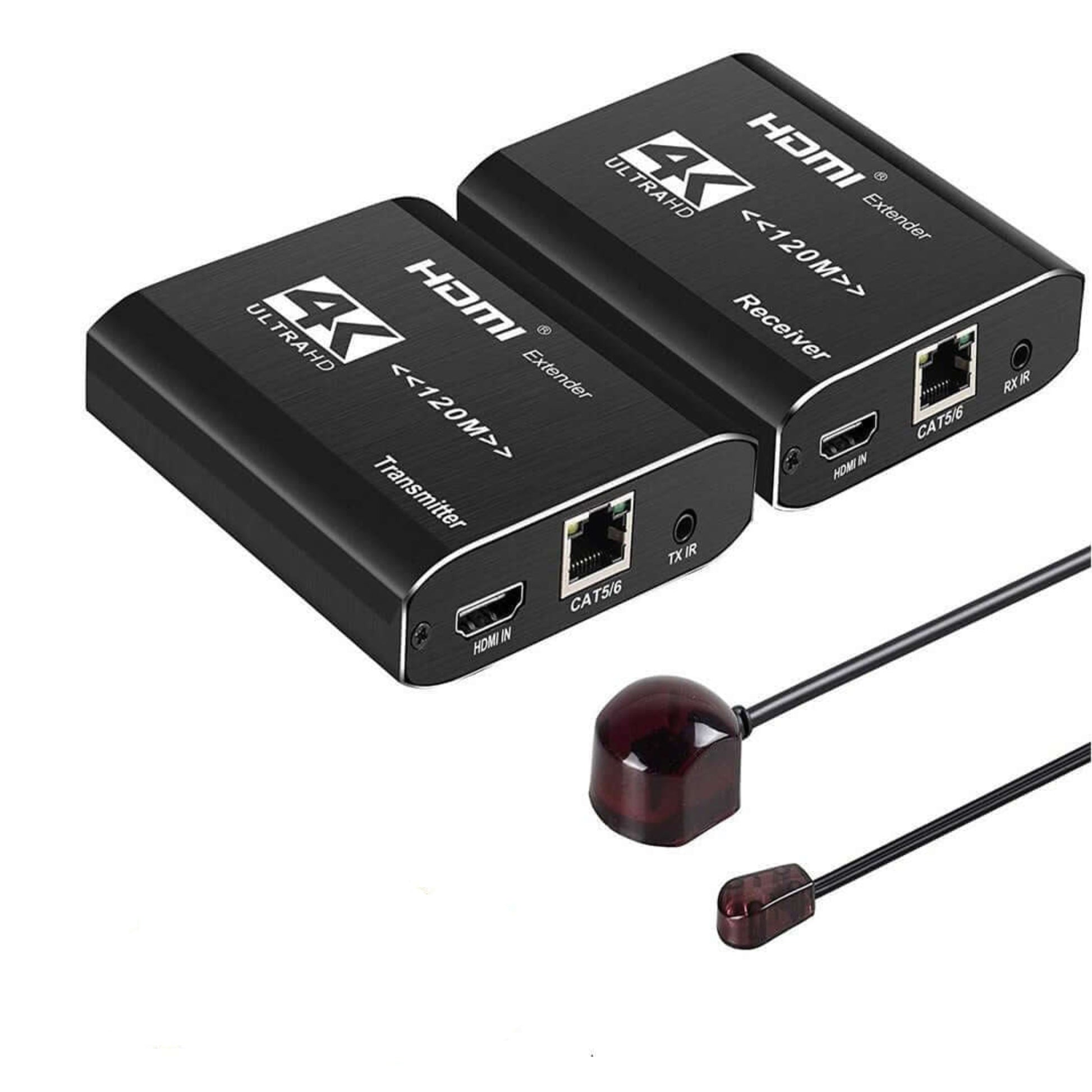

1. Transmitter 1PCS
2. Receiver 1PCS
3. IR cable 1PCS
4. 5V/1A Power adapter 2PCS (UK Plug)
5. User Manual 1PCS
