48V PoE Injector + Adjustable 5V/9V/12V PoE Splitter Kit

Power Non-PoE Devices Remotely

Easily extend power to devices in locations without a nearby electrical outlet. This PoE (Power over Ethernet) Injector and Splitter kit allows you to send both power and data over a single Ethernet cable up to 100 meters (328 feet).

This kit is the perfect solution for powering your non-PoE devices such as IP cameras, wireless access points (APs), routers, or optical network terminals (ONTs) exactly where you need them, not just where the plug is.

Key Features:

• Selectable DC Output: The PoE splitter features an adjustable voltage switch, providing four common outputs to match your device's power requirements:
  • DC 5V / 2.5A
  • DC 7.5V / 2.5A
  • DC 9V / 2A
  • DC 12V / 1.8A

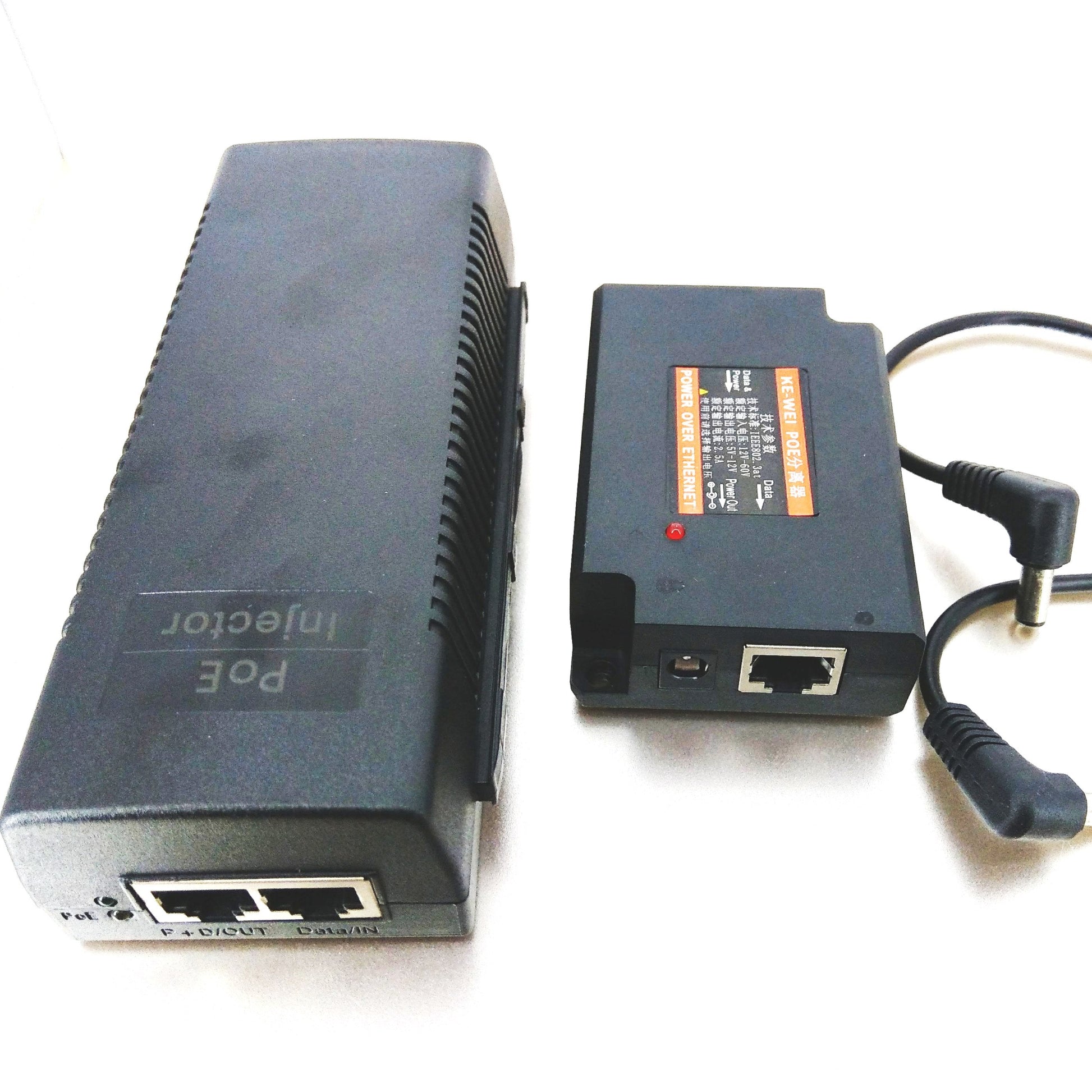

• Complete Kit: Includes both the PoE Injector (power supply) and the PoE Splitter (voltage converter).
• LED Status Indicators: Easily check the power status at a glance.
• Long-Distance Power: Transmit power and data up to 100 meters. (Note: For best performance, use high-quality Cat5e or Cat6 pure copper cables).
• Plug and Play: Simple setup with no configuration required.

How It Works:

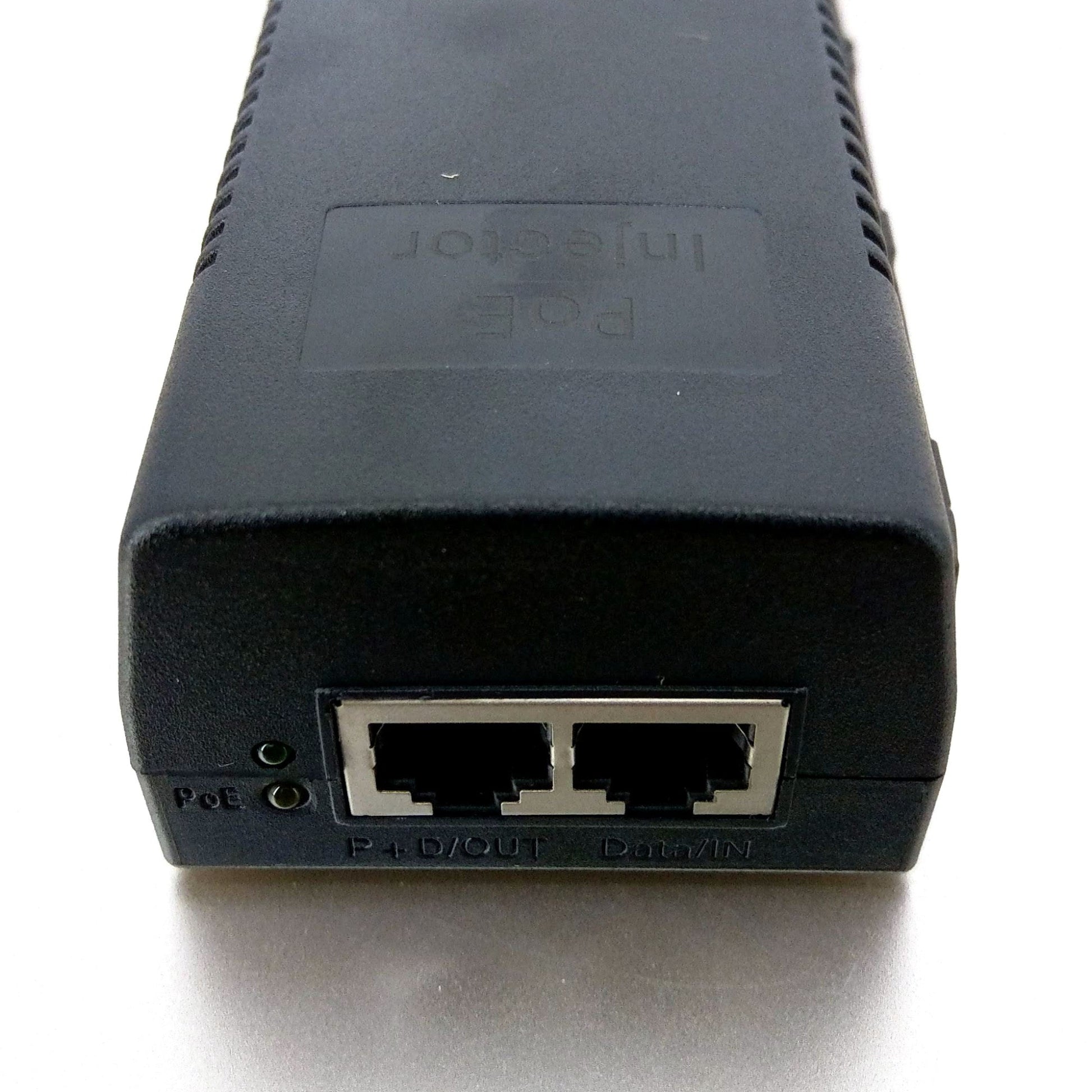

1. Injector (at the source): Connect the Injector to your main network (e.g., router/switch) via the "Data/IN" port and plug it into a wall outlet.
2. Ethernet Cable (not included): Run a single Ethernet cable from the Injector's "P+D/OUT" port to your remote device location.
3. Splitter (at the device): Connect the Ethernet cable to the Splitter's input. Select the correct voltage (5V, 7.5V, 9V, or 12V) on the splitter, then plug its Ethernet output and DC power plug into your non-PoE device.

Specifications:

• PoE Injector (Model PSE-480080):
  • Input: 100-240V ~ 50/60Hz, 0.8A
  • Output: 48V / 0.8A
• PoE Splitter (Model POE5971AT):
  • Output: 5V, 7.5V, 9V, or 12V (Selectable)
  • Power: Up to 16W
• Data Rate: 10/100Mbps
• PoE Pinout: Power (Pins 4,5,7,8), Data (Pins 1,2,3,6) - (Passive PoE Mode B)

What's in the Box:

• 1 x PoE Injector (Model PSE-480080)
• 1 x PoE Splitter (Model POE5971AT)
• 1 x Power Cord
