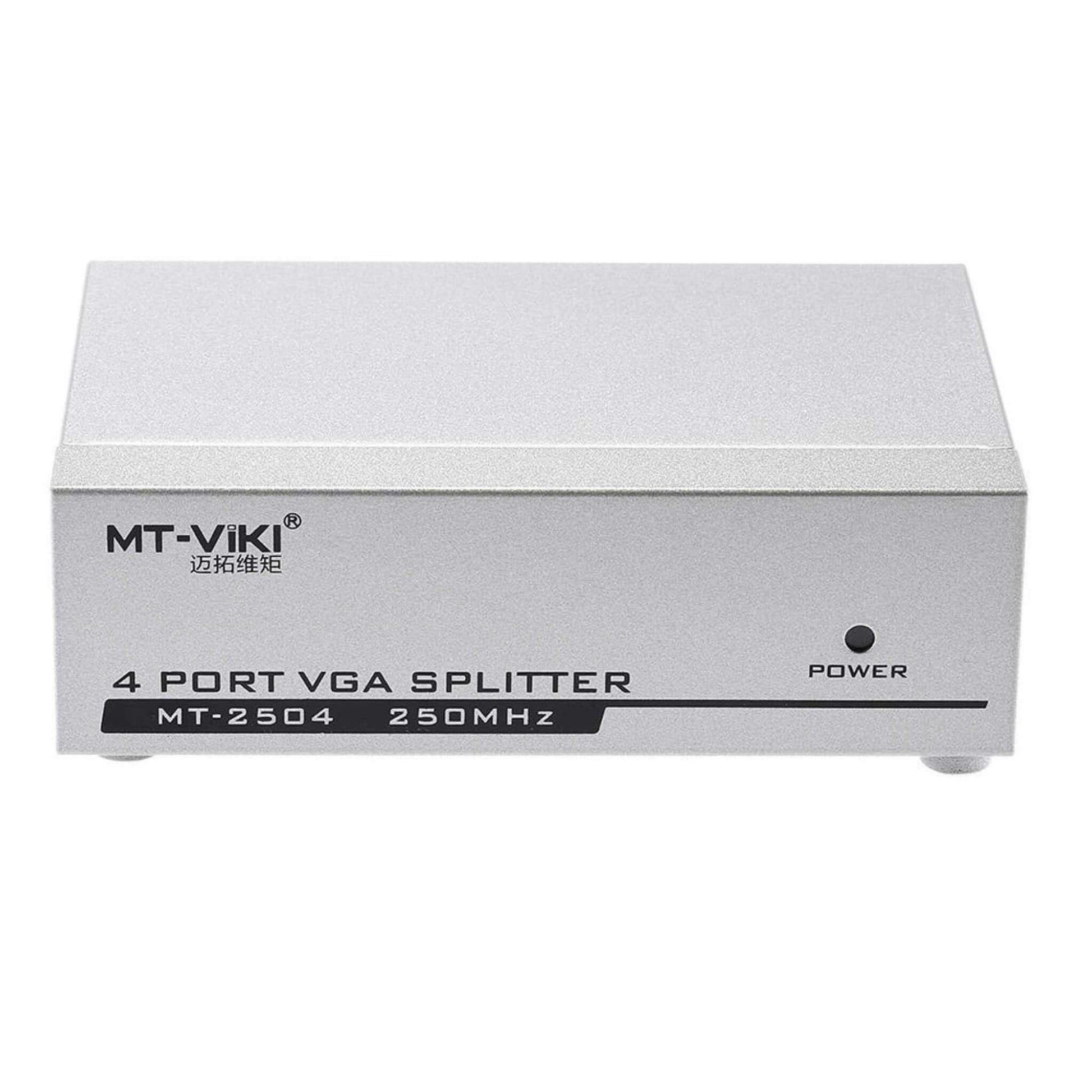

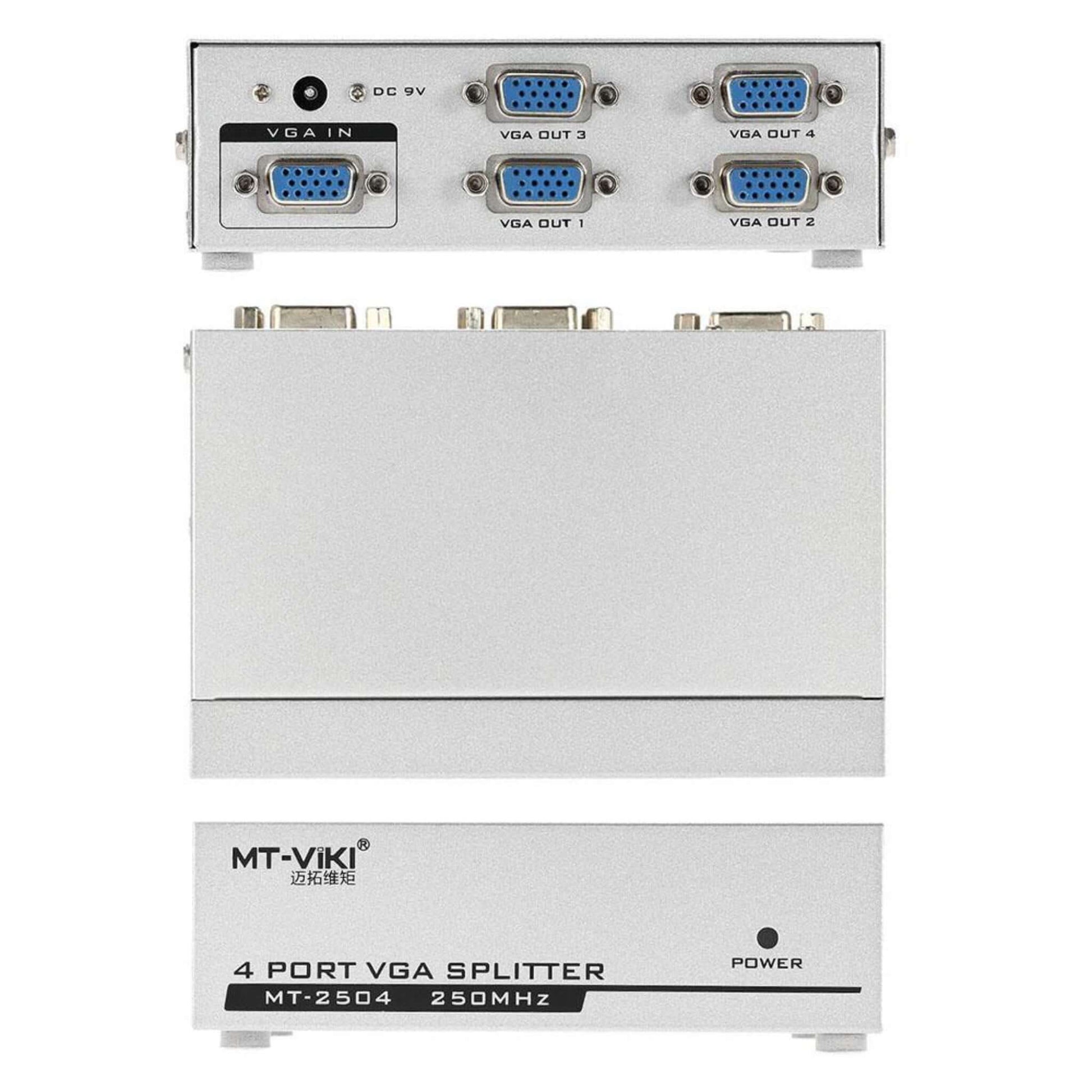

MT-VIKI MT-2504 4-Port VGA Splitter - High Resolution 1920x1440

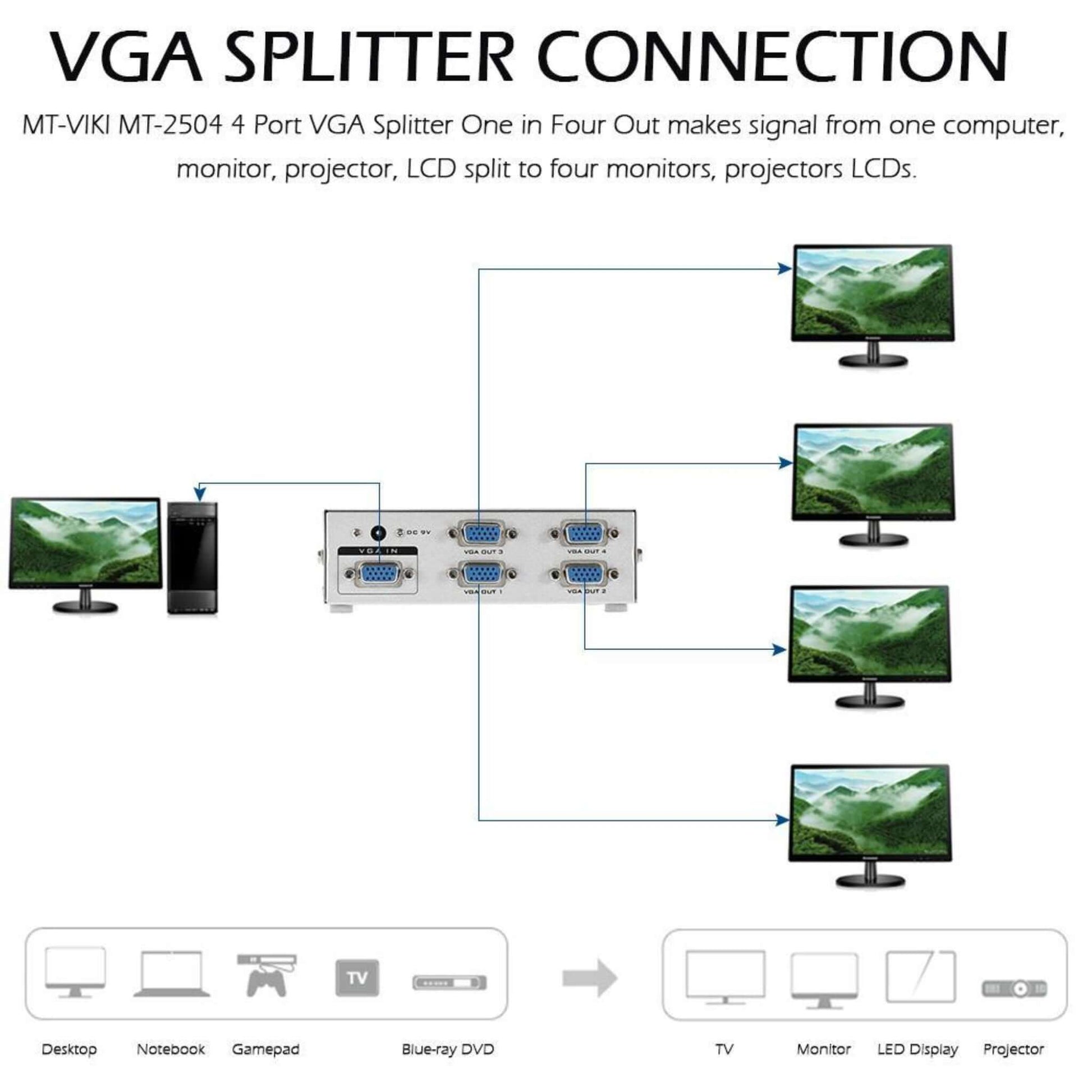

The MT-VIKI MT-2504 is a high-resolution VGA splitter designed to distribute a single VGA signal from your computer to four separate monitors, projectors, or LCD displays. With support for resolutions up to 1920x1440 and a video bandwidth of 250MHz, it delivers crisp and clear images over distances up to 30 meters. This splitter is perfect for professional applications such as large screen projection systems, multimedia conferences, ticket offices, and more. Its plug-and-play design ensures easy setup, complete with a power adapter and user manual for your convenience.

Key Features

• Splits one VGA input to four VGA outputs
• Supports high resolution up to 1920x1440
• 250MHz video bandwidth for superior image quality
• Transmission distance up to 30 meters
• Plug and play, no drivers needed
• Compatible with monitors, projectors, LCDs, and more

Specifications

• Model: MT-2504

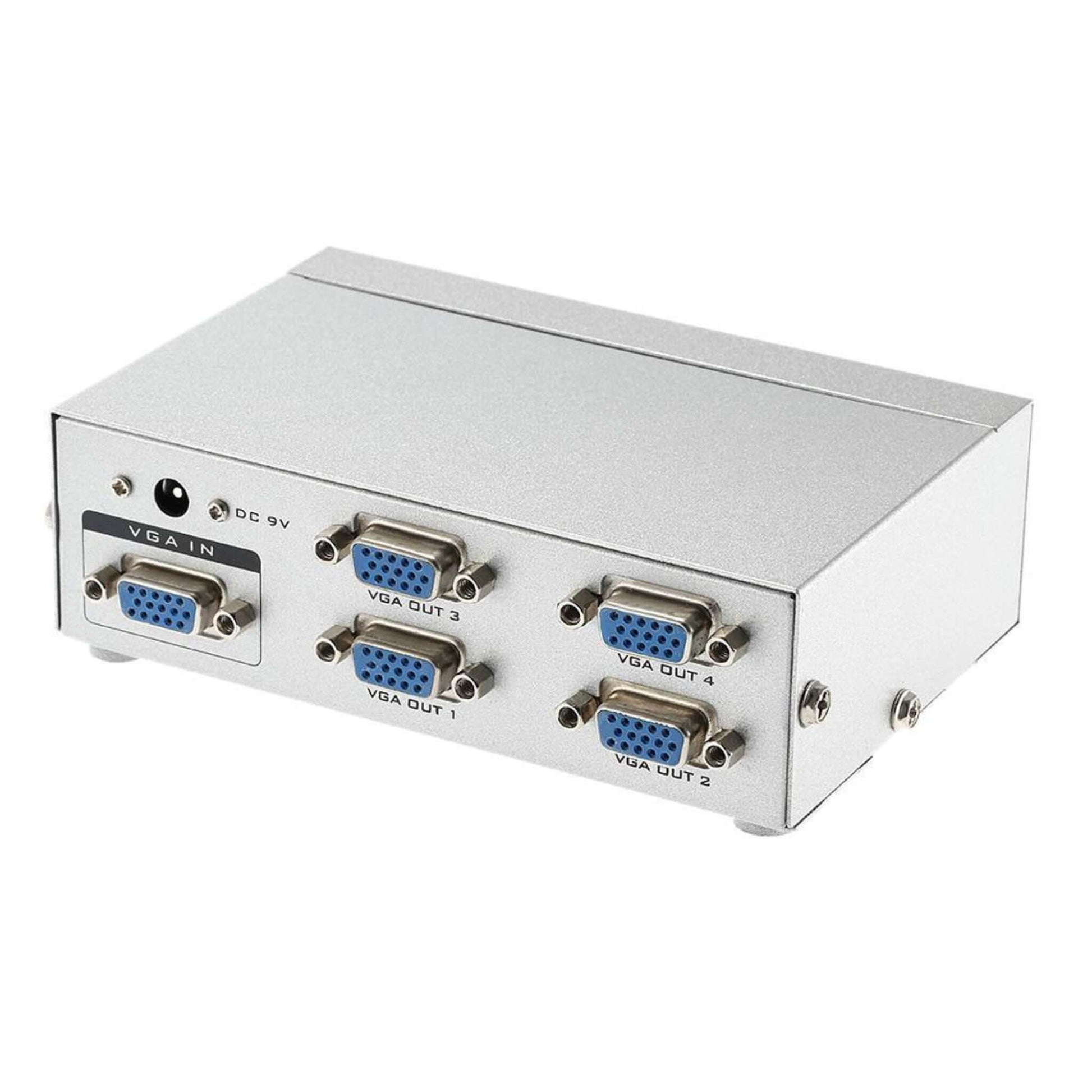

• Input Connector: 1 x VGA 15-pin HD Female
• Output Connectors: 4 x VGA 15-pin HD Female
• Resolution: 1920 x 1440
• Video Bandwidth: 250MHz
• Transmission Distance: 30 meters
• Power Supply: DC 9V
• Input Level: 0.5-1Vp-p
• Input Resistance: 75ohm
• HV Channel Input Level: 0.7-5Vp-p
• Horizontal Frequency: 30-100KHz
• Field Frequency: 43-120Hz
• Output Input Compatibility: TTL
• Main Item Size: 13 x 8.4 x 4 cm (5.12 x 3.31 x 1.57 in)
• Main Item Weight: 317g (11.19 oz)
• Package Size: 22.5 x 11 x 5 cm (8.86 x 4.33 x 1.97 in)
• Package Weight: 460g (16.23 oz)

Package Includes

• 1 x VGA Splitter
• 1 x Power Adapter
• 1 x User Manual (English)

Applications

• Large screen projection systems
• Electrochemistry setups
• Commanding and controlling systems
• Multimedia conferences
• Ticket offices
• And more
