4-Channel HDMI Live Stream Switcher with Type-C Capture

Professional Multi-Camera Streaming, Simplified.

Elevate your live productions with our 4-Channel HDMI Live Stream Switcher. Designed for everything from high-energy esports tournaments and professional interviews to online courses and corporate events, this switcher gives you the power to create dynamic, engaging content with ease. Seamlessly switch between up to four HDMI sources in crisp 1080P@60Hz resolution and stream directly to your audience.

Unlock Professional Productions

• Multi-Camera Magic: Connect up to four cameras, laptops, or media players. Our switcher intelligently adapts to each input source, allowing you to focus on creating a compelling narrative.
• Direct to Computer Streaming: The integrated Type-C USB 3.0 port acts as a video capture card. Your computer will recognize it as a webcam, enabling plug-and-play streaming with popular software like OBS, vMix, and more, without needing extra hardware.
• Professional Audio Control: Don't let poor audio ruin your stream. With dedicated Mic and Line inputs, you can mix external audio sources directly into your program. The mixed audio can be embedded into the final HDMI output or sent to an external sound system via the Line Out port.

Intuitive Control at Your Fingertips

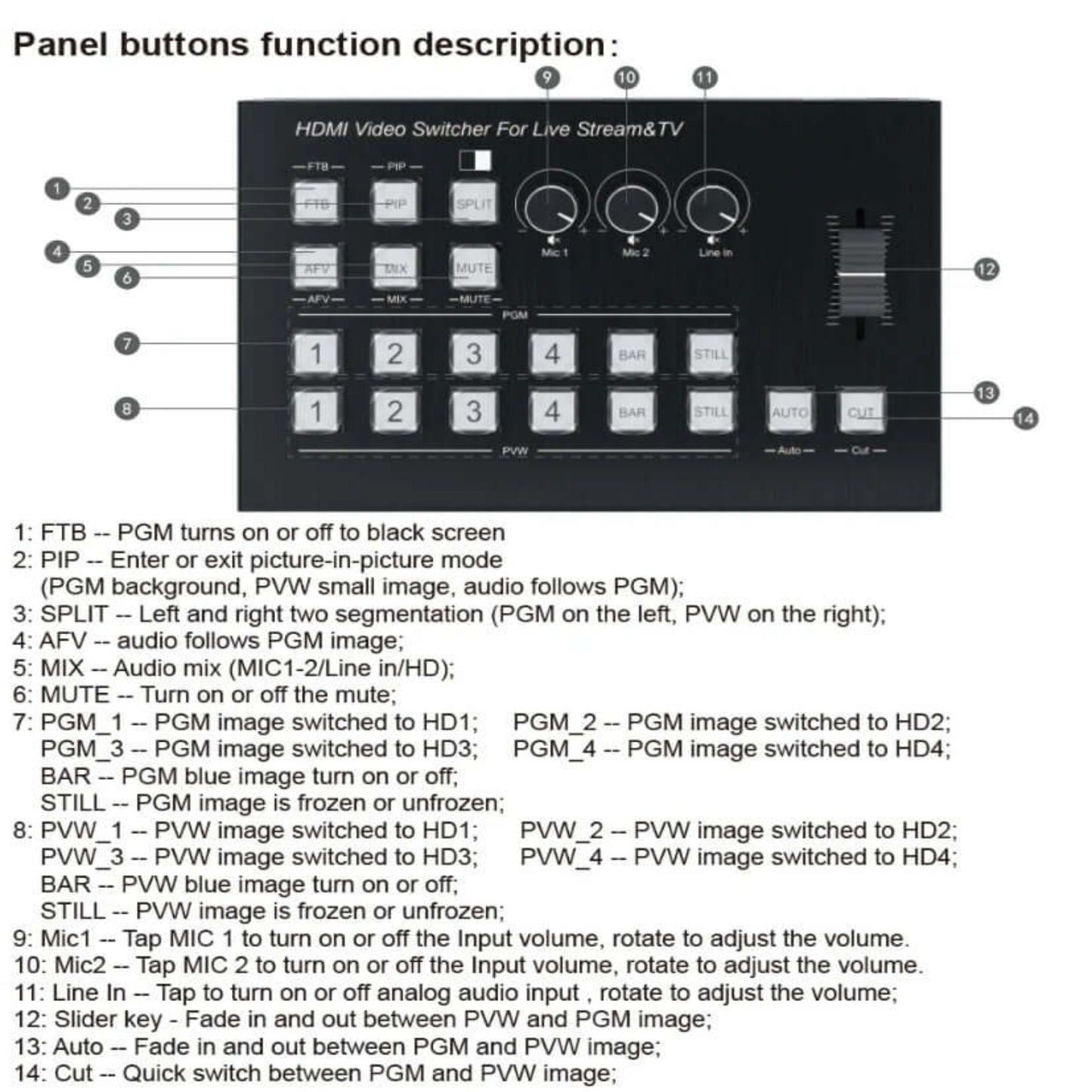

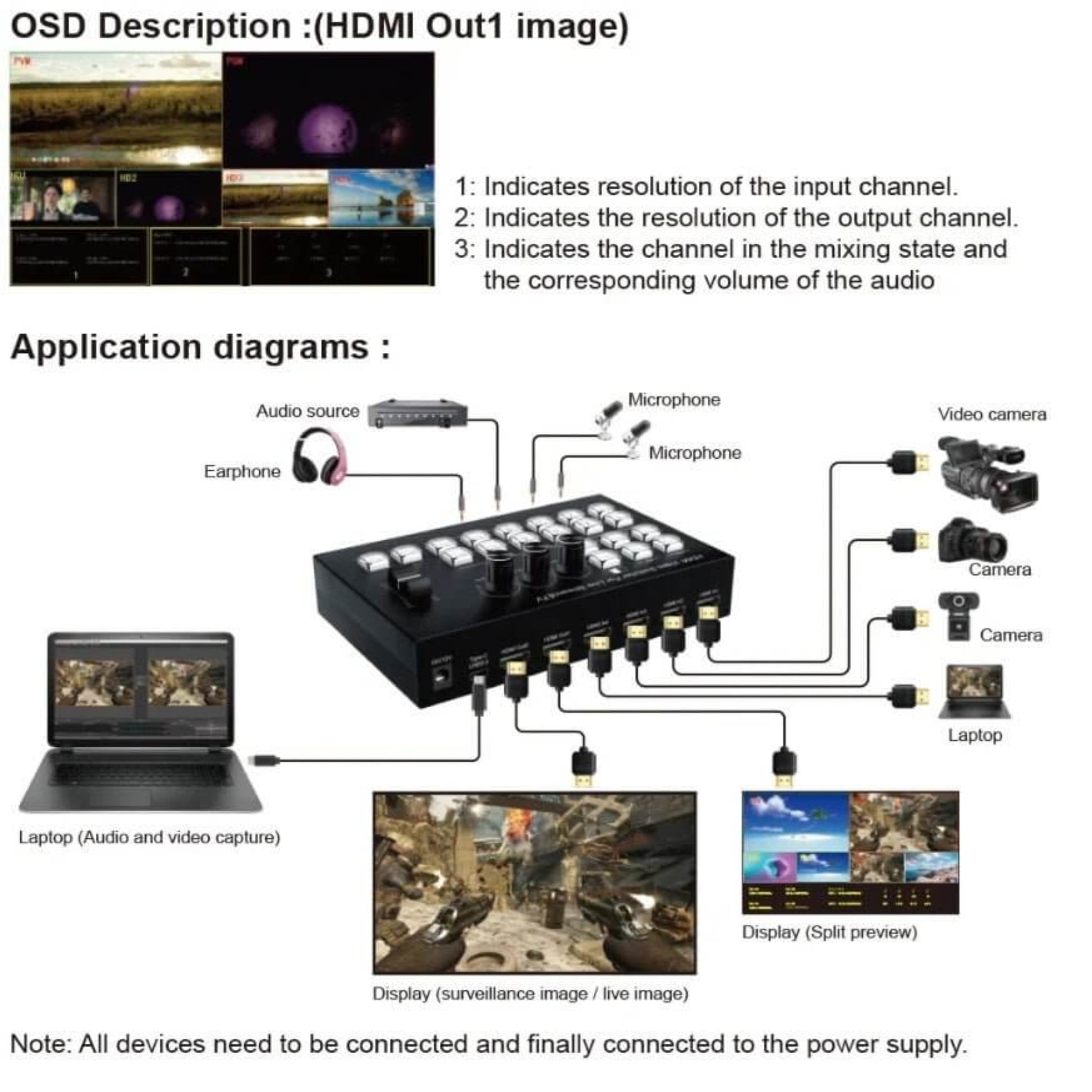

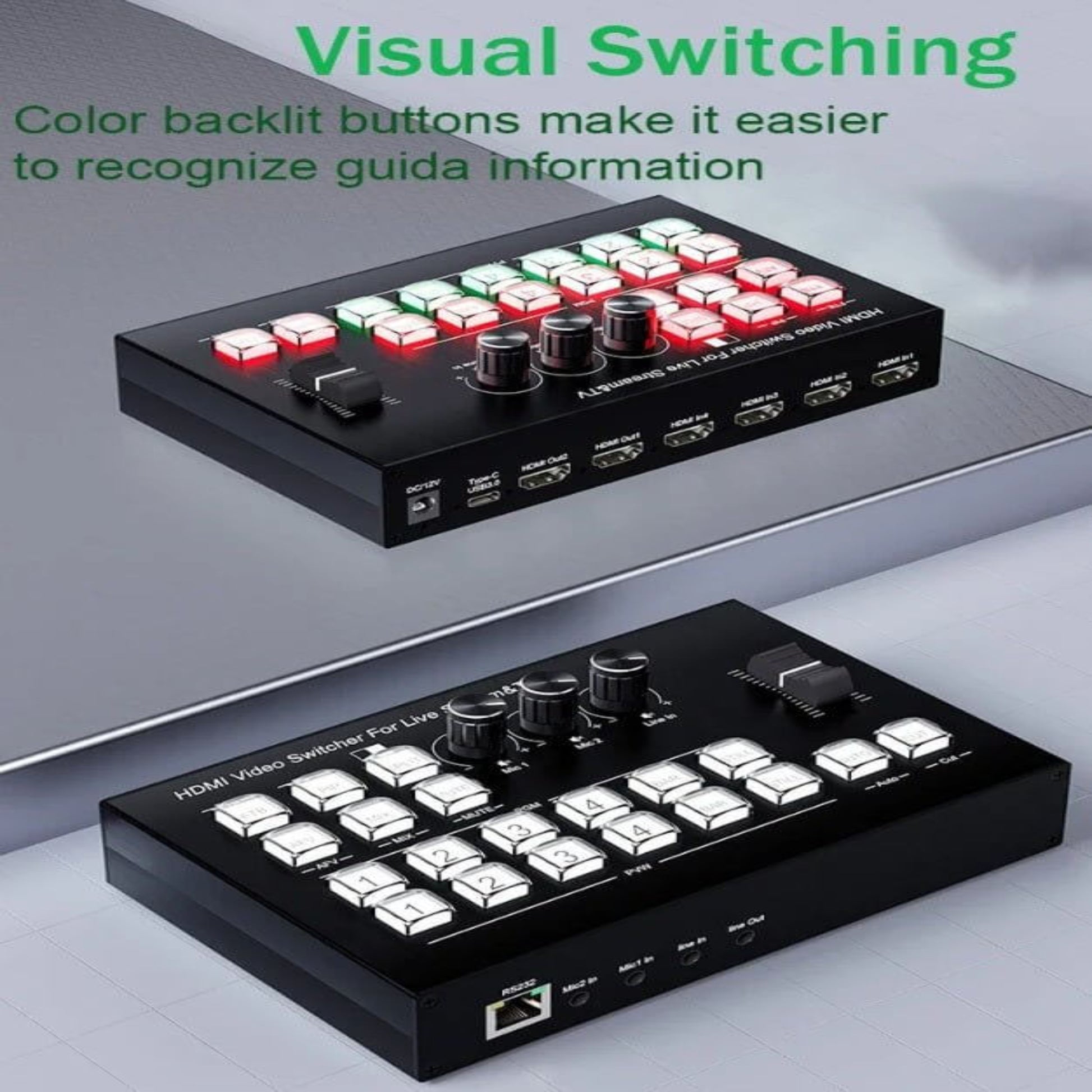

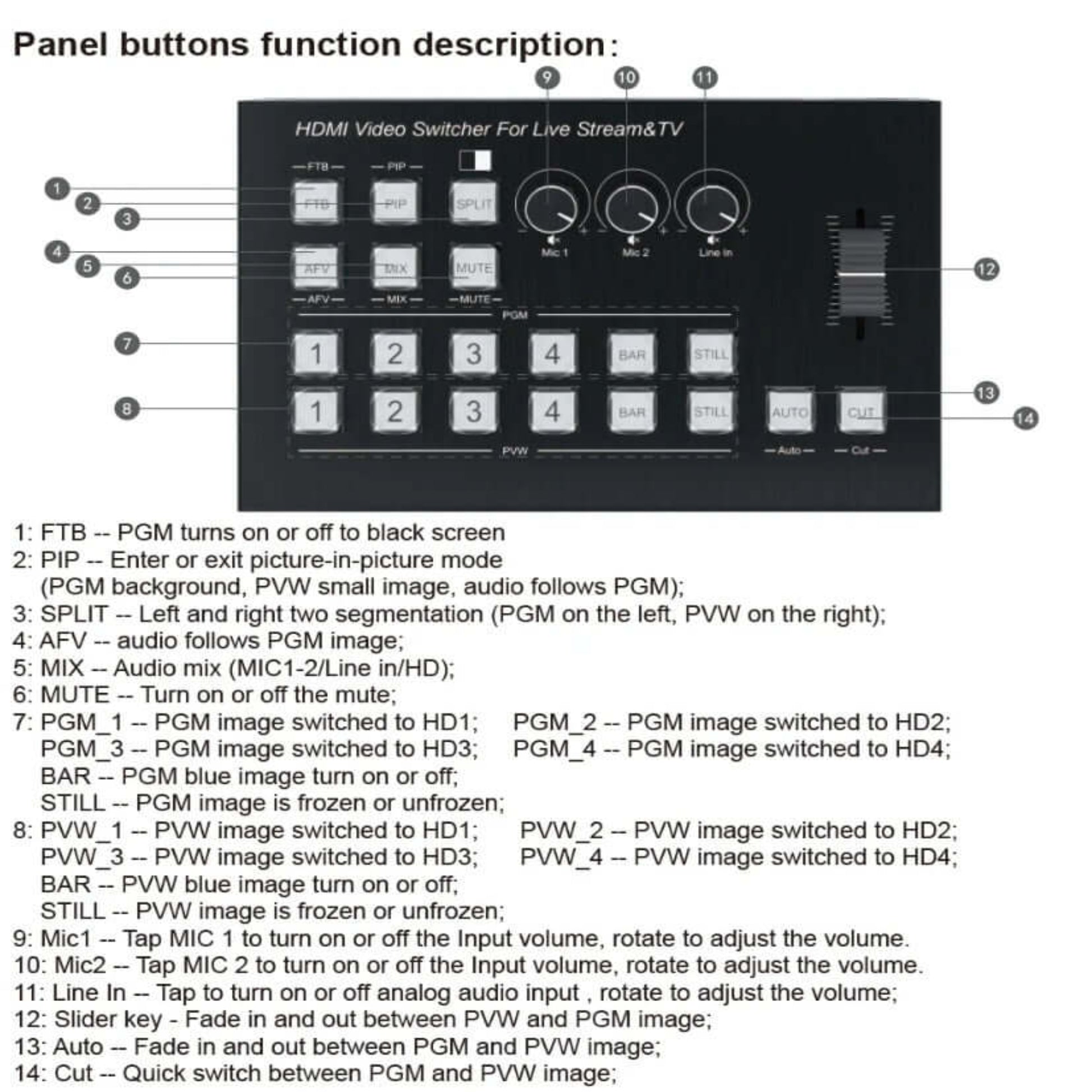

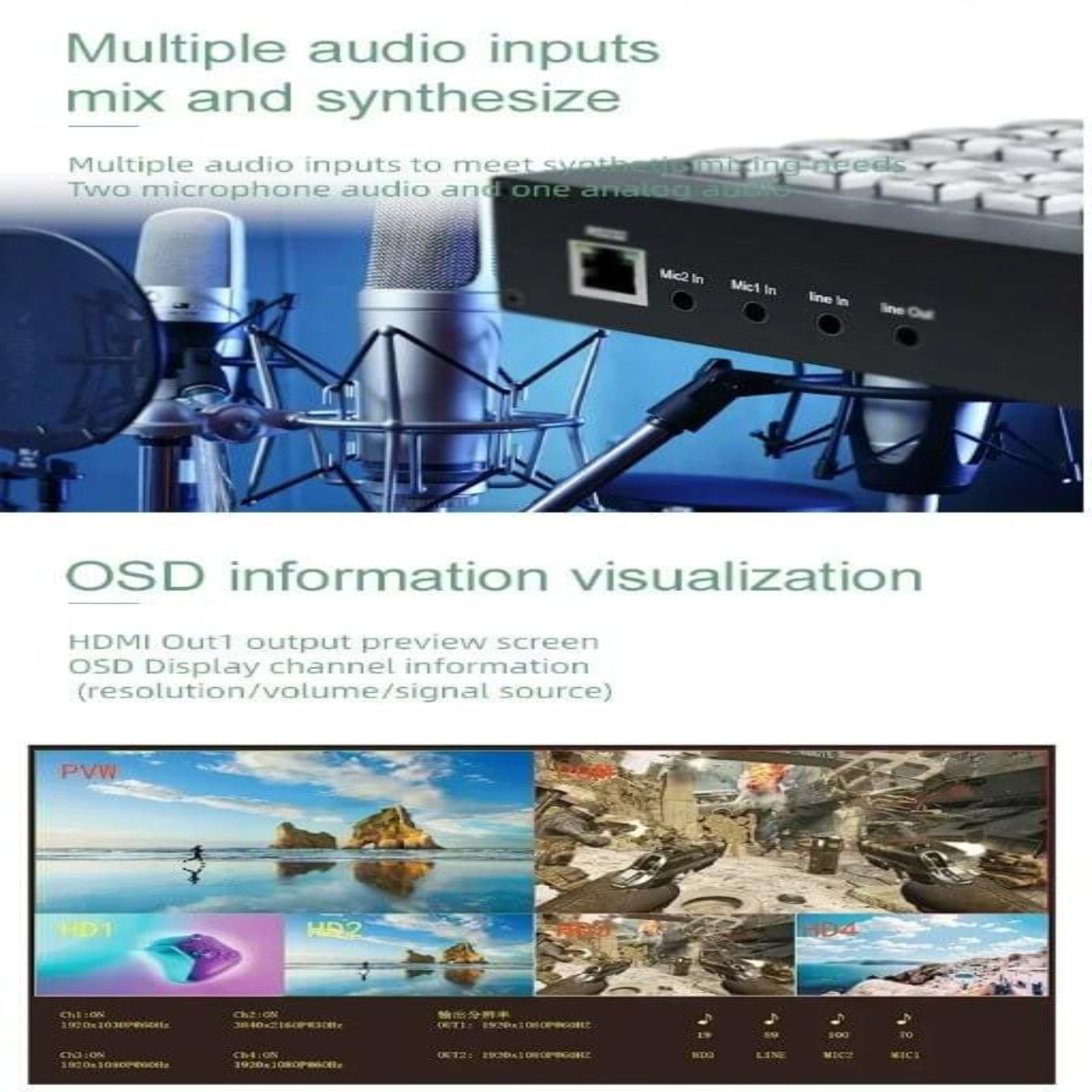

This switcher is built for live action. High-quality, backlit buttons provide clear visual feedback, while the smooth T-bar allows for professional-grade transitions between your Program (PGM) and Preview (PVW) feeds. Monitor all your sources, audio levels, and output settings directly on your screen with the helpful On-Screen Display (OSD).

Key Features:

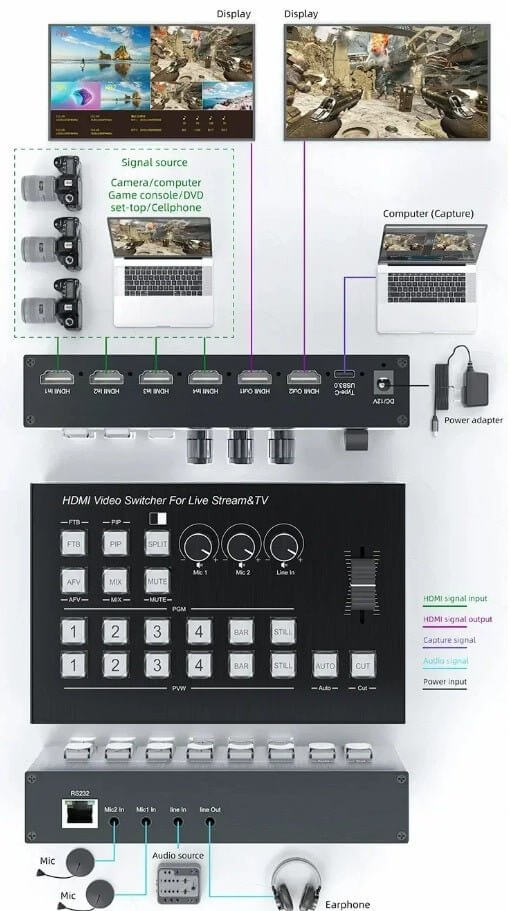

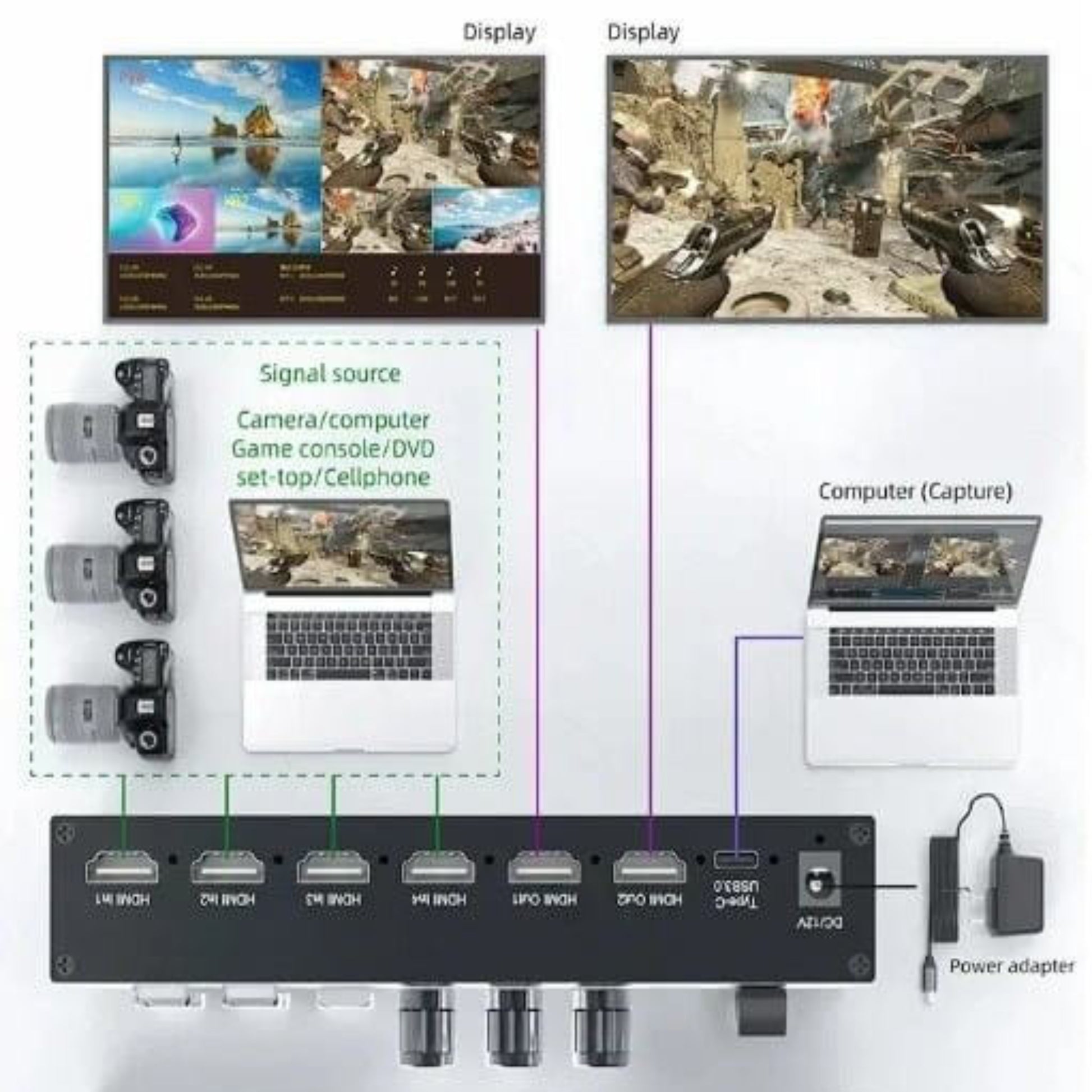

• 4 x HDMI Inputs & 2 x HDMI Outputs: Versatile connectivity for multiple sources and displays (e.g., main program and multiview).
• Picture-in-Picture (PIP) & Split Screen: Display two sources at once—perfect for interviews, presentations, and gameplay.
• Full HD 1080p@60Hz: Delivers a clear, smooth, and professional video signal for both input and output.
• Power-Off Memory: Saves your last-used settings automatically, so you can start your next production right where you left off.

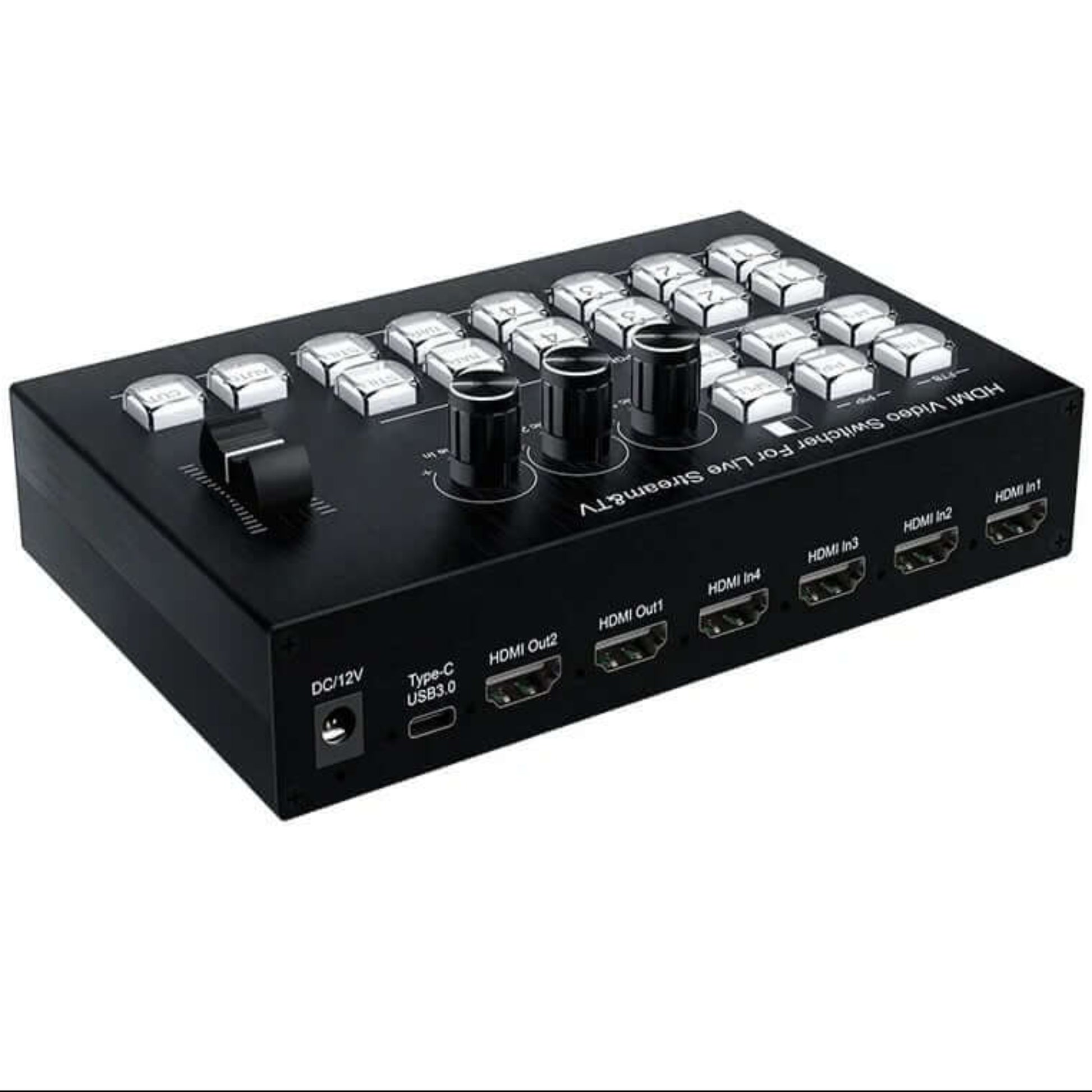

• Durable & Compact: A robust metal chassis built for reliability, with a small footprint perfect for any desk or mobile setup.

What's in the Box?

• 1 x 4-Channel HDMI Video Switcher
• 1 x Type-C to USB-A 3.0 Cable (1m)
• 1 x DC/12V Power Adapter
• 1 x User Manual

Technical Specifications:

• HDMI Input/Output Resolution: 1080P@60Hz
• Type-C Capture Format: YUY2, JPEG
• Audio Format: PCM
• Max Bandwidth: 148.5MHz
• Max Transmission Rate: 1.65 x 3Gbps
• Input/Output Cable Length: ≤15m (using AWG26 HDMI standard cable)
• Power: DC/12V 2A
• Dimensions: 180 x 115 x 52 (mm)

Important Note: For best performance, please ensure all connected devices use standard, native HDMI interfaces. The use of signal converters (e.g., DisplayPort to HDMI) is not supported and may cause compatibility issues.
