Is the 3362P 10K potentiometer compatible with standard breadboards?

Yes, the 3362P 10K Precision Potentiometer features standard pin spacing that fits perfectly into standard 2.54mm pitch breadboards. This makes it an ideal component for rapid prototyping and testing circuits before final soldering.

What is the difference between a 3362P single-turn and a 3296W multi-turn potentiometer?

The 3362P 10K Trimpot is a single-turn potentiometer, meaning you can sweep from 0 to 10K Ohms in about one nearly full rotation (approx. 270 degrees), which is great for quick adjustments. A 3296W is a multi-turn potentiometer that requires many rotations to cover the same range, offering higher precision but slower adjustment.

How do I wire this 10K trimpot for an Arduino project?

To wire the 3362P 10K Trimpot as a voltage divider for an Arduino, connect one of the outer pins to the 5V output, the other outer pin to GND, and the middle pin (the wiper) to your analog input pin (e.g., A0) or the contrast pin of an LCD.

Can I buy these 10K potentiometers in bulk at your Sham Shui Po store?

Absolutely! Sun Cheong Computer Co. Ltd. keeps a massive inventory of electronic components, including the 3362P 10K Precision Potentiometer. You can order online and pick up bulk quantities instantly at our Sham Shui Po physical store for your school or commercial projects.

What tool do I need to adjust the resistance on this 3362P trimpot?

You can easily adjust the resistance of the 3362P 10K Trimpot using a standard small flathead or Phillips-head precision screwdriver. The top dial features a cross-slot design that accommodates both tool types securely.

3362P 10K Ohm Trimpot (5-Pack) | Single-Turn Potentiometer

Name: 3362P 10K Ohm Trimpot (5-Pack) | Single-Turn Potentiometer
Brand: Sun Cheong Computer Company Limited
SKU: 21PS001774
Price: 12.0 HKD
Availability: InStock

Short Product Description

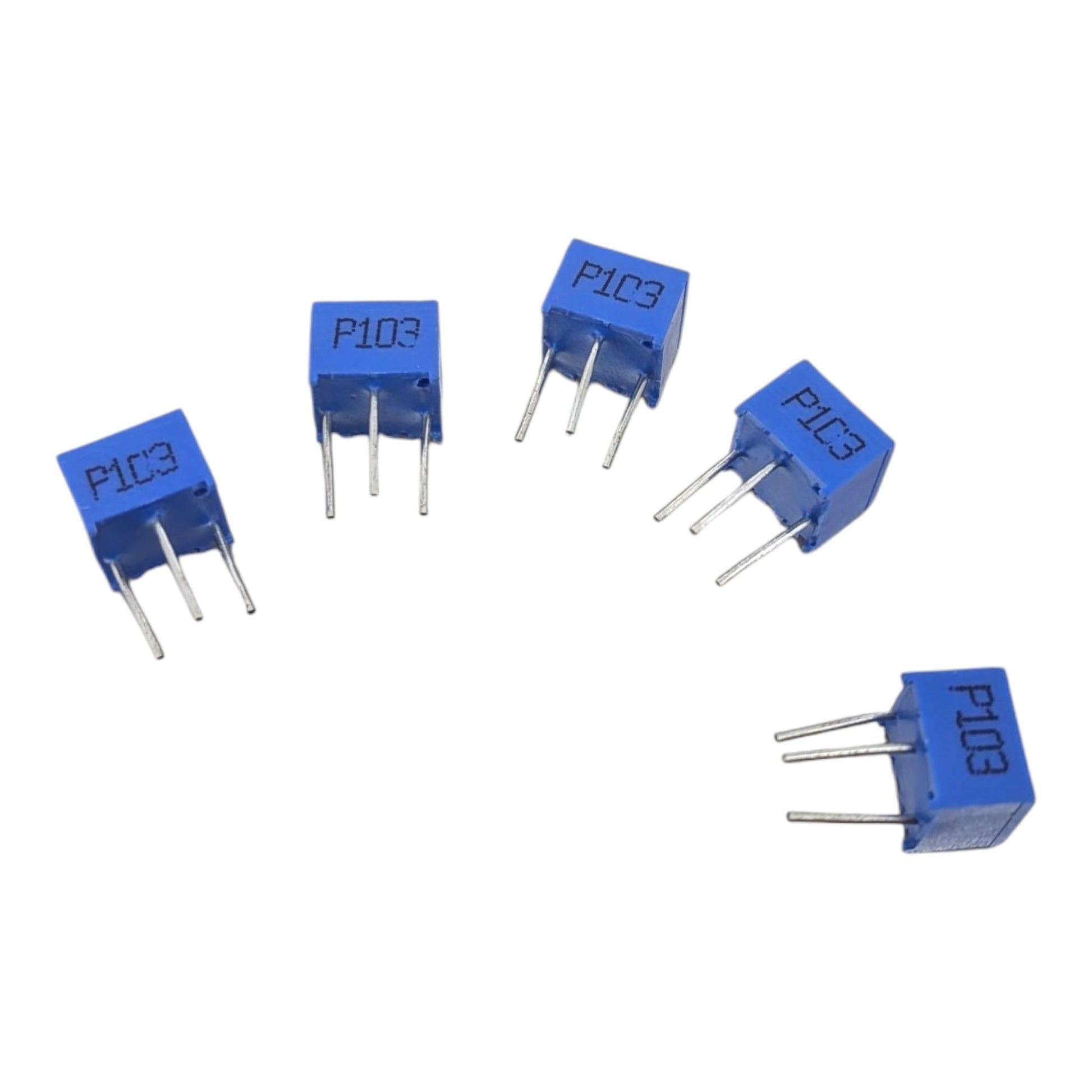

Need precise voltage control for your custom circuits? The3362P 10K Ohm Precision Potentiometer (5-Pack)is a reliable, single-turn variable resistor designed for breadboards and PCB mounting. Measuring just 1.1cm x 1.2cm x 0.7cm, this compact trimpot (marked "103") is perfect for adjusting LCD contrast, tuning op-amps, and building Arduino STEM projects. Stop waiting weeks for online component deliveries! 新昌電腦有限公司 (Sun Cheong Computer Co. Ltd.) has over 20 years of electronic component expertise. Visit our Sham Shui Po physical store for instant pickup and expert DIY wiring advice!

Key Features

Convenient 5-Pack: Includes five 3362P 10K potentiometers, providing excellent value and backups for multiple DIY projects.
Single-Turn Adjustment: Features a standard cross-slot dial for quick, single-turn resistance tuning using a small flathead or Phillips screwdriver.
Breadboard Friendly: Standard pin spacing allows for effortless plug-and-play installation on prototyping breadboards.
Compact Footprint: Measuring only 1.1cm x 1.2cm x 0.7cm, it saves valuable space on crowded PCBs and custom enclosures.
Clear Value Marking: Clearly labeled with the "103" industry code, making it easy to identify the 10K Ohm value in your component bin.
Instant Store Pickup: Don't let a missing resistor stall your project; grab this 5-pack instantly at our Sham Shui Po retail location.

Full Product Description

Precise Voltage Control for DIY Circuits

The 3362P 10K Ohm Precision Potentiometer provides accurate and stable resistance adjustment for your electronic prototypes. Whether you are a STEM student building an Arduino sensor network or an audio hobbyist tuning a custom amplifier, a reliable variable resistor is essential. This single-turn trimpot allows you to quickly dial in the exact voltage or signal level required, ensuring your custom circuits operate flawlessly without signal jitter.

Standard Breadboard & PCB Compatibility

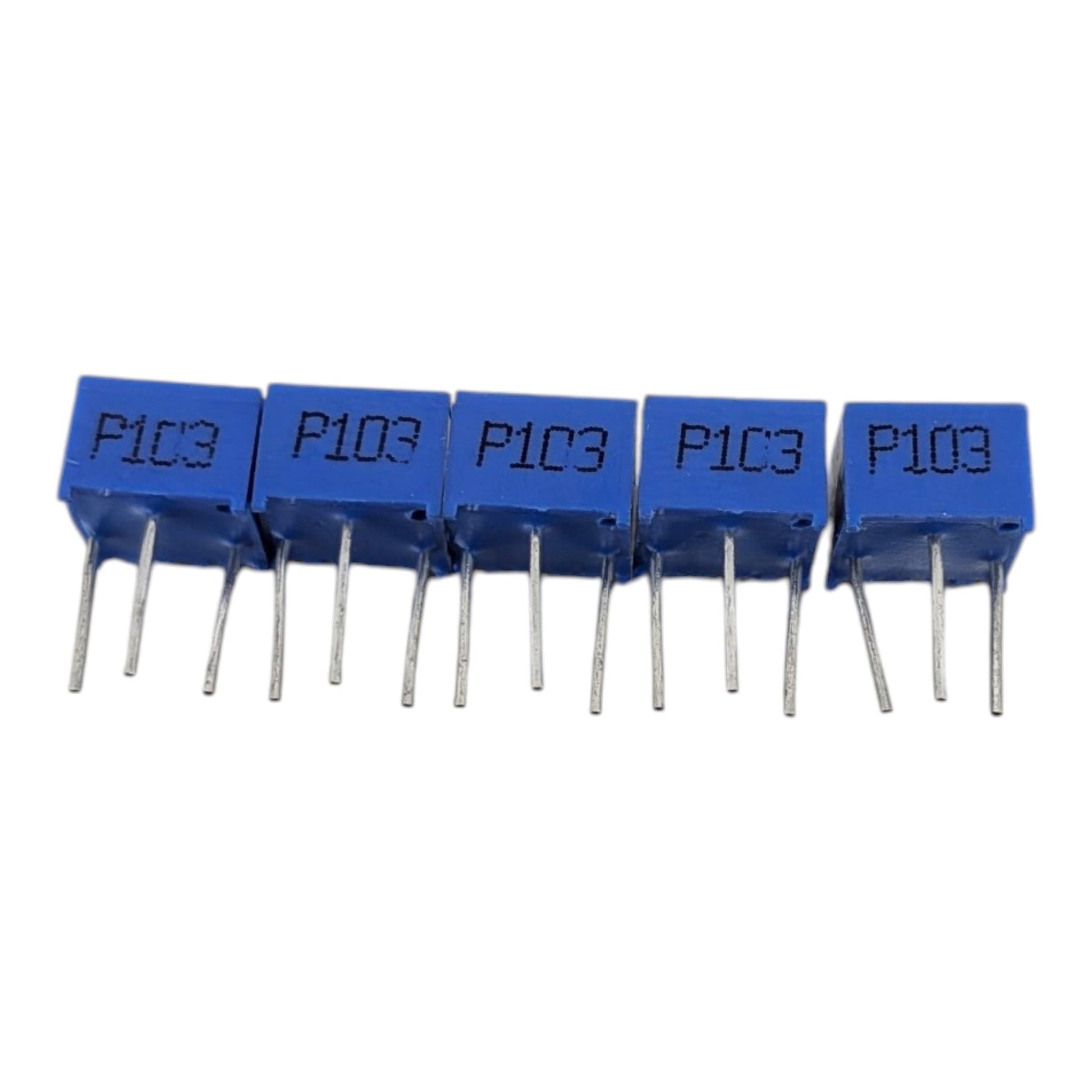

Integrating the 3362P 10K Trimpot into your workflow is incredibly easy. Designed with standard through-hole pins, it snaps perfectly into standard 2.54mm pitch breadboards for rapid prototyping. Once your circuit design is finalized, the sturdy metal pins can be easily soldered directly onto a printed circuit board (PCB) for a permanent, secure connection.

💡 Pro Tip from Our Technicians

"If you are new to electronics, you might wonder why this 10K potentiometer has '103' printed on the blue casing. The '103' is a standard electronic code meaning 10 followed by 3 zeros (10,000 Ohms or 10K)! When wiring this for an Arduino LCD screen contrast adjustment, connect the two outer pins to 5V and GND, and connect the middle pin (the wiper) to the V0 pin on your LCD. If you are building a complex STEM project and need help calculating voltage dividers, drop by our Sham Shui Po store! Our team at 新昌電腦有限公司 (Sun Cheong Computer Co. Ltd.) loves helping makers debug their circuits."

Technical Specifications

Component Type: Single-Turn Precision Potentiometer (Trimpot)
Model Series: 3362P
Resistance Value: 10K Ohms (Marked as 103 / P103)
Quantity: 5 Pieces per pack
Dimensions: 1.1cm x 1.2cm x 0.7cm
Mounting Style: Through-hole (Breadboard and PCB compatible)

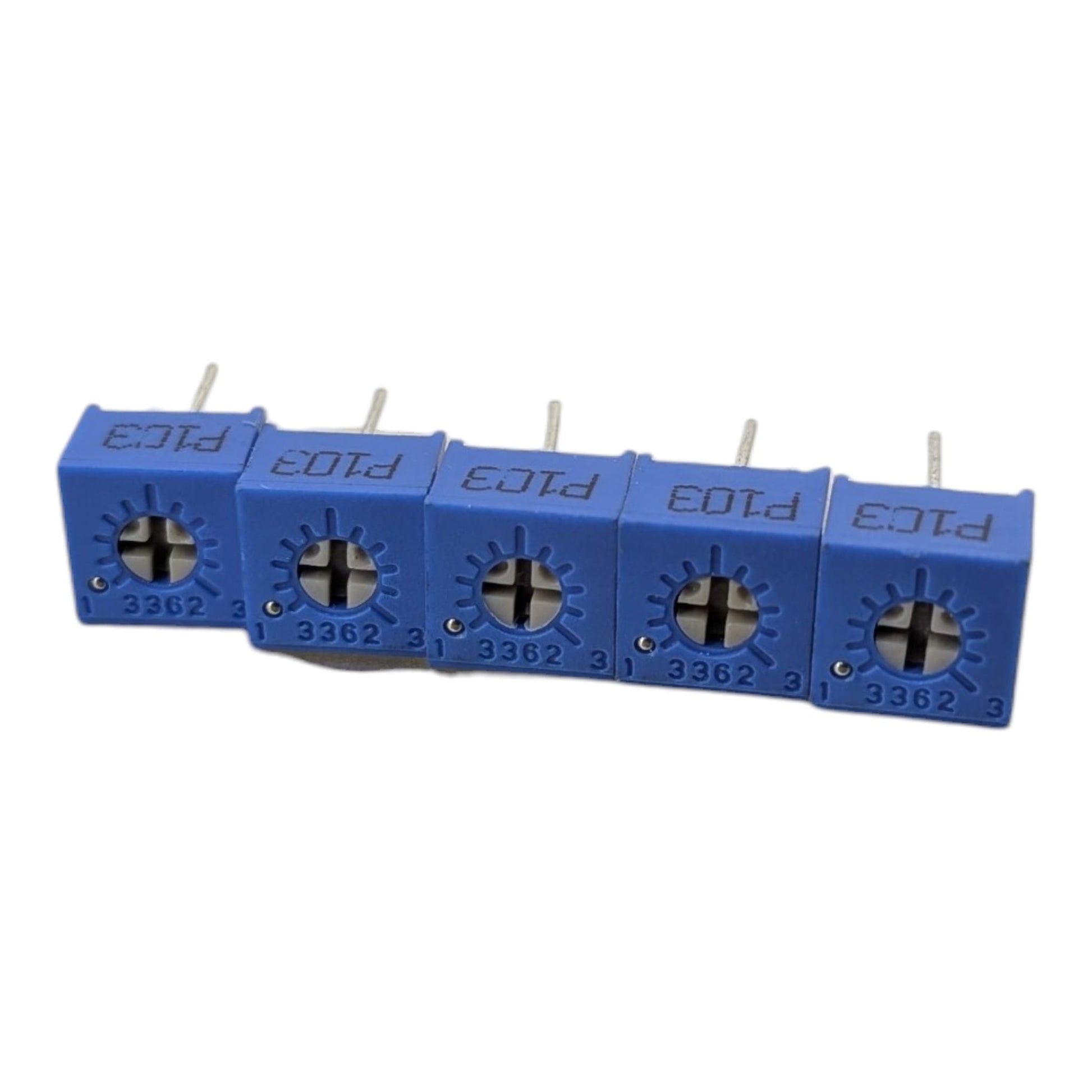

Adjustment Type: Top Adjust (Cross-slot)

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Is the 3362P 10K potentiometer compatible with standard breadboards?Yes, the 3362P 10K Precision Potentiometer features standard pin spacing that fits perfectly into standard 2.54mm pitch breadboards. This makes it an ideal component for rapid prototyping and testing circuits before final soldering.
What is the difference between a 3362P single-turn and a 3296W multi-turn potentiometer?The 3362P 10K Trimpot is a single-turn potentiometer, meaning you can sweep from 0 to 10K Ohms in about one nearly full rotation (approx. 270 degrees), which is great for quick adjustments. A 3296W is a multi-turn potentiometer that requires many rotations to cover the same range, offering higher precision but slower adjustment.
How do I wire this 10K trimpot for an Arduino project?To wire the 3362P 10K Trimpot as a voltage divider for an Arduino, connect one of the outer pins to the 5V output, the other outer pin to GND, and the middle pin (the wiper) to your analog input pin (e.g., A0) or the contrast pin of an LCD.
Can I buy these 10K potentiometers in bulk at your Sham Shui Po store?Absolutely! Sun Cheong Computer Co. Ltd. keeps a massive inventory of electronic components, including the 3362P 10K Precision Potentiometer. You can order online and pick up bulk quantities instantly at our Sham Shui Po physical store for your school or commercial projects.
What tool do I need to adjust the resistance on this 3362P trimpot?You can easily adjust the resistance of the 3362P 10K Trimpot using a standard small flathead or Phillips-head precision screwdriver. The top dial features a cross-slot design that accommodates both tool types securely.

Target Users / Applications

STEM Educators & Students: Using 10K trimpots to teach voltage division, analog sensor reading, and LCD contrast tuning in Arduino classroom kits.
DIY Audio Modders: Replacing fixed resistors with adjustable 10K trimpots to fine-tune gain levels or bias currents in custom headphone amplifiers.
PCB Repair Technicians: Replacing faulty or burnt-out single-turn potentiometers on legacy industrial control boards and power supply modules.
