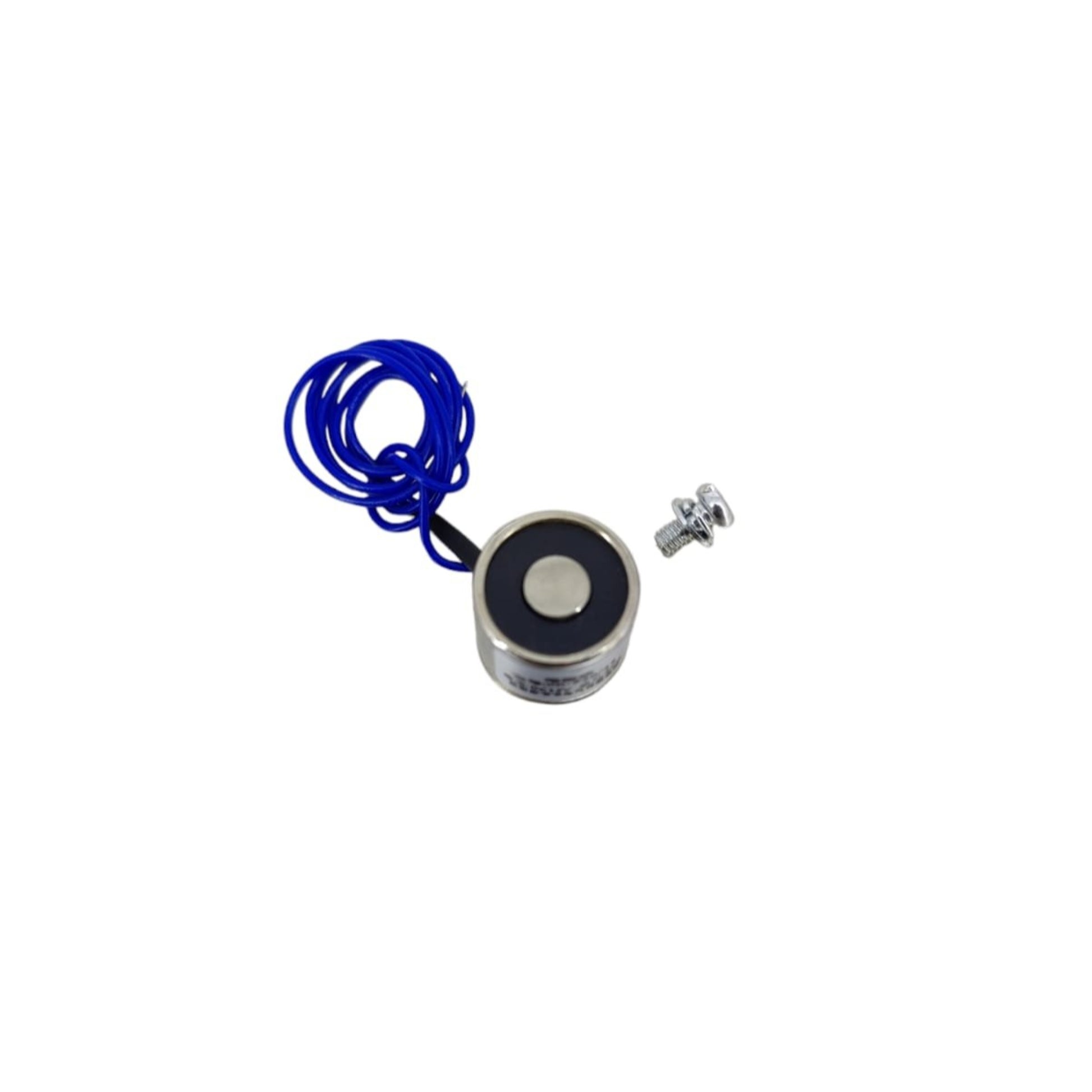

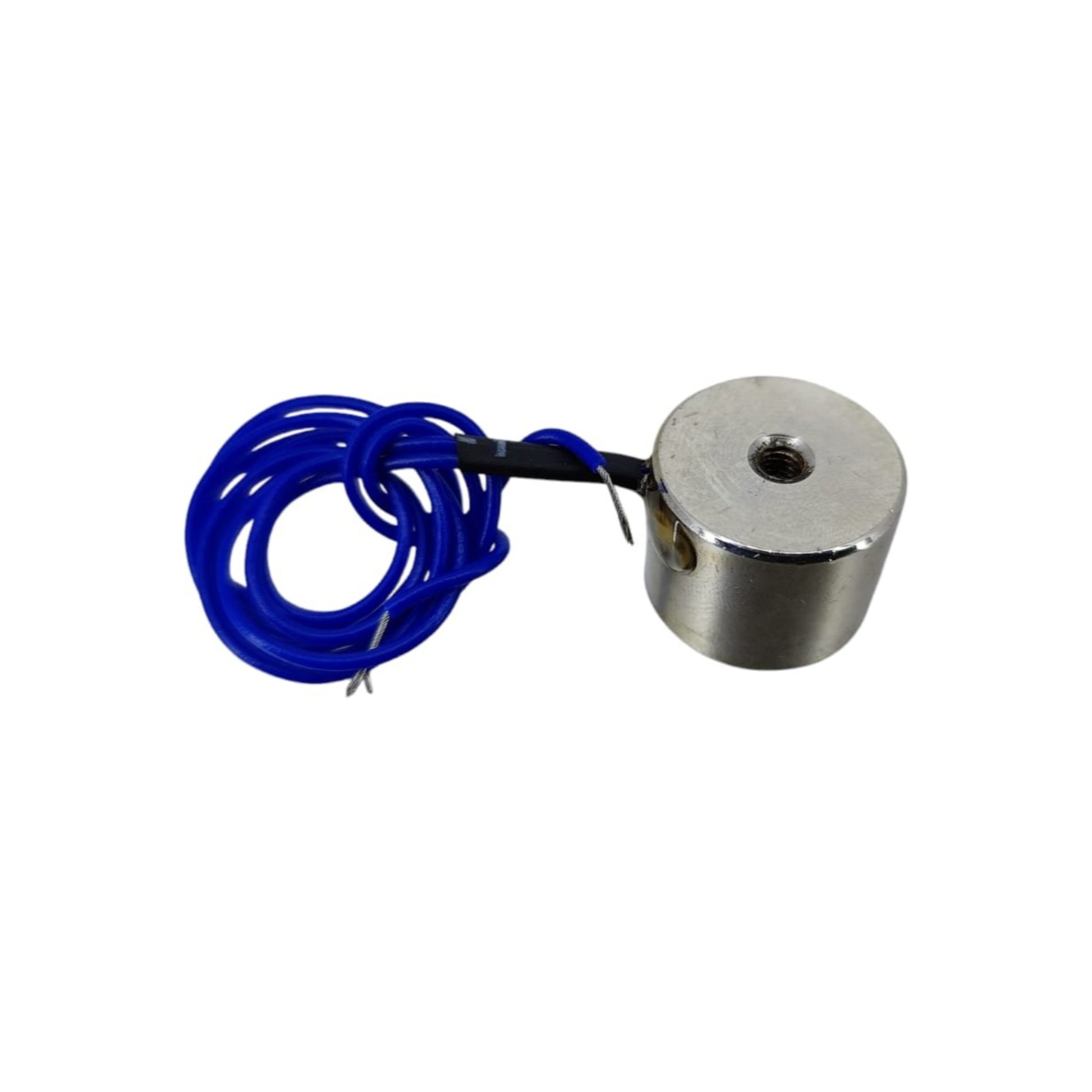

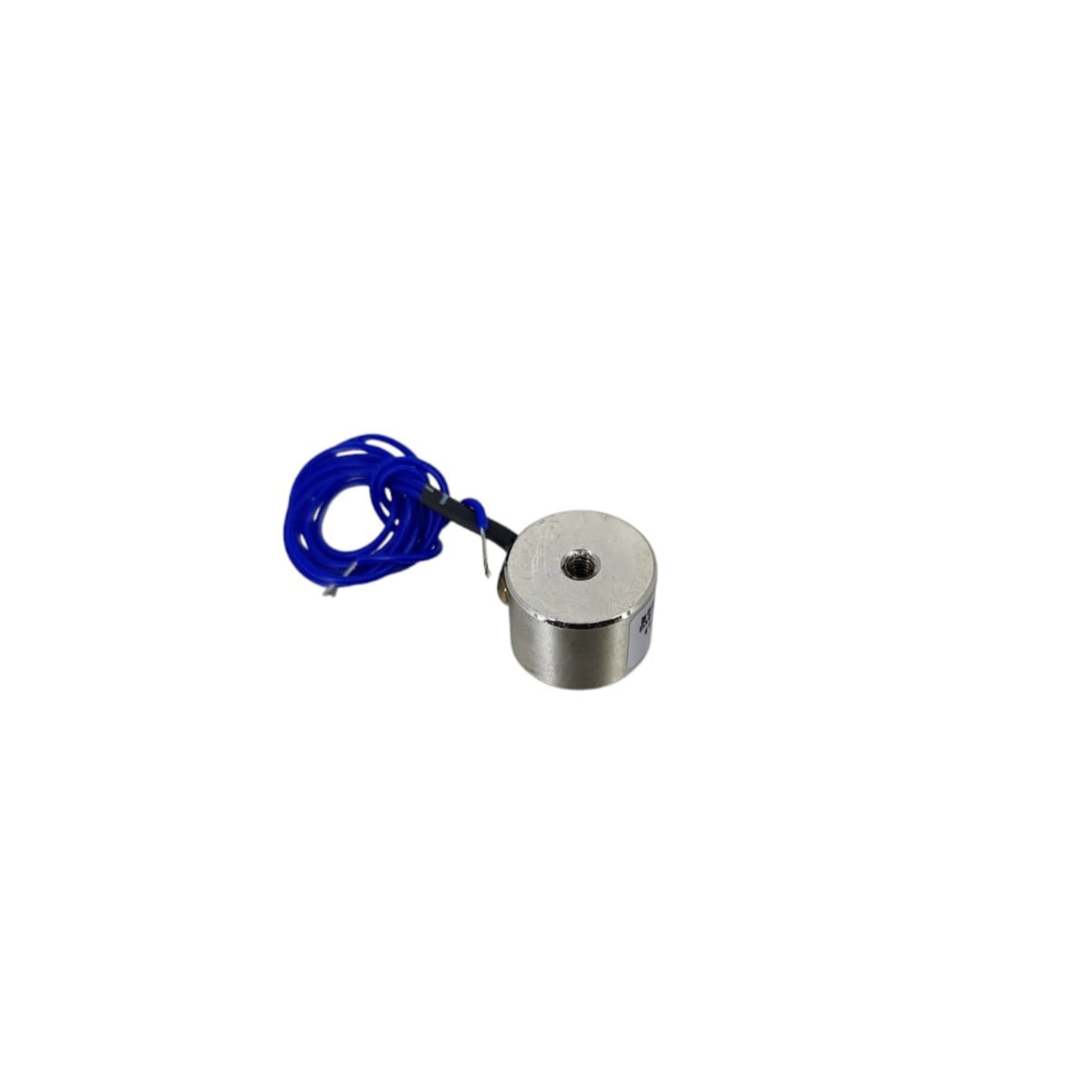

KK-P20/15 DC 12V 3kg Suction Electromagnet for Automation

Boost your automation projects with the reliable KK-P20/15 DC 12V suction electromagnet. This compact and efficient device offers a powerful 3kg holding force, making it perfect for precise holding, lifting, and sorting tasks in a variety of automated applications. Safe, energy-saving, and easy to control, it's the ideal component for your mechanical and electronic projects.

Key Features & Applications:

• Powerful & Reliable Holding Force: Securely holds objects up to 3kg, ensuring stability and control in your operations.
• Energy-Saving Design: With a low power consumption of just 2.5W, it is highly efficient for continuous use.
• Versatile Applications: Widely used in automation, including assembly lines, sorting machines, robotic arms, and laboratory equipment.
• Easy to Control: Suction power can be adjusted by varying the voltage within the rated range, allowing for remote operation.
• Durable Build: Made from high-quality metal for a long-lasting and reliable performance in demanding environments.

Technical Specifications:

• Model: KK-P20/15
• Holding Force: 3 kg (kilograms)
• Voltage: 12V DC
• Current: 0.2 A
• Power: 2.5 W
• Size: Diameter 2cm, Height 1.5cm
• Working Temperature:
  • Static: -10℃ to 100℃ (short-term up to 120℃)
  • Dynamic: -20℃ to 80℃ (short-term up to 100℃)
