25cm Multifunctional PCB Ruler - Electronic Measuring Tool

25cm Multifunctional PCB Ruler - Electronic Measuring Tool

πŸ”₯ 24 soldβ€’βœ“ In stock
HK$19.00
HK$19.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

This 25cm Multifunctional PCB Ruler is more than just a precise measuring instrument; it's an indispensable companion for electronic design, repair, and learning. It integrates crucial reference information commonly used in PCB design, streamlining your workflow and boosting efficiency.

Why Choose Our Multifunctional PCB Ruler?

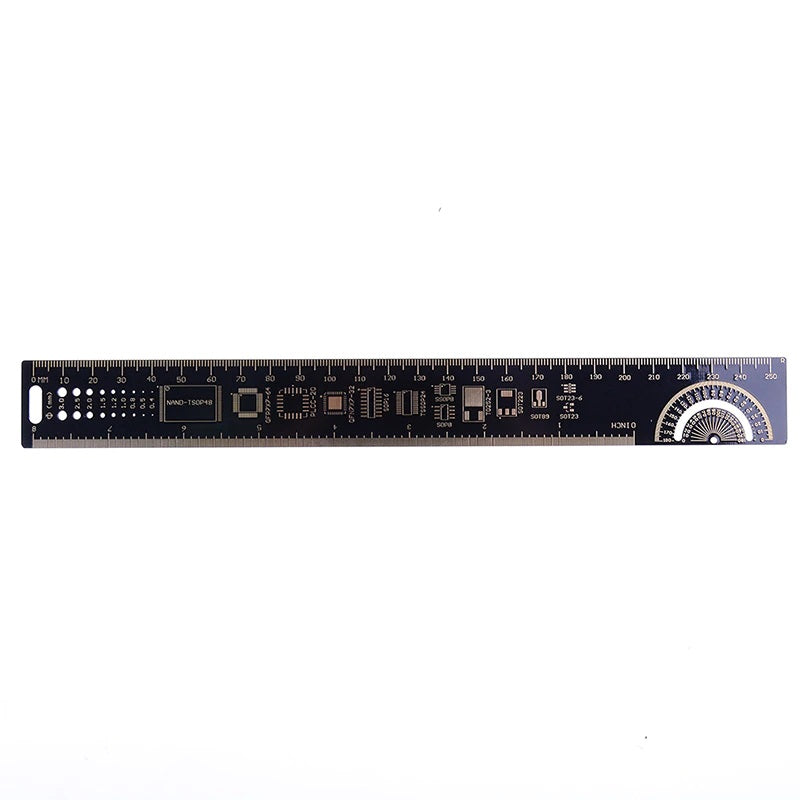

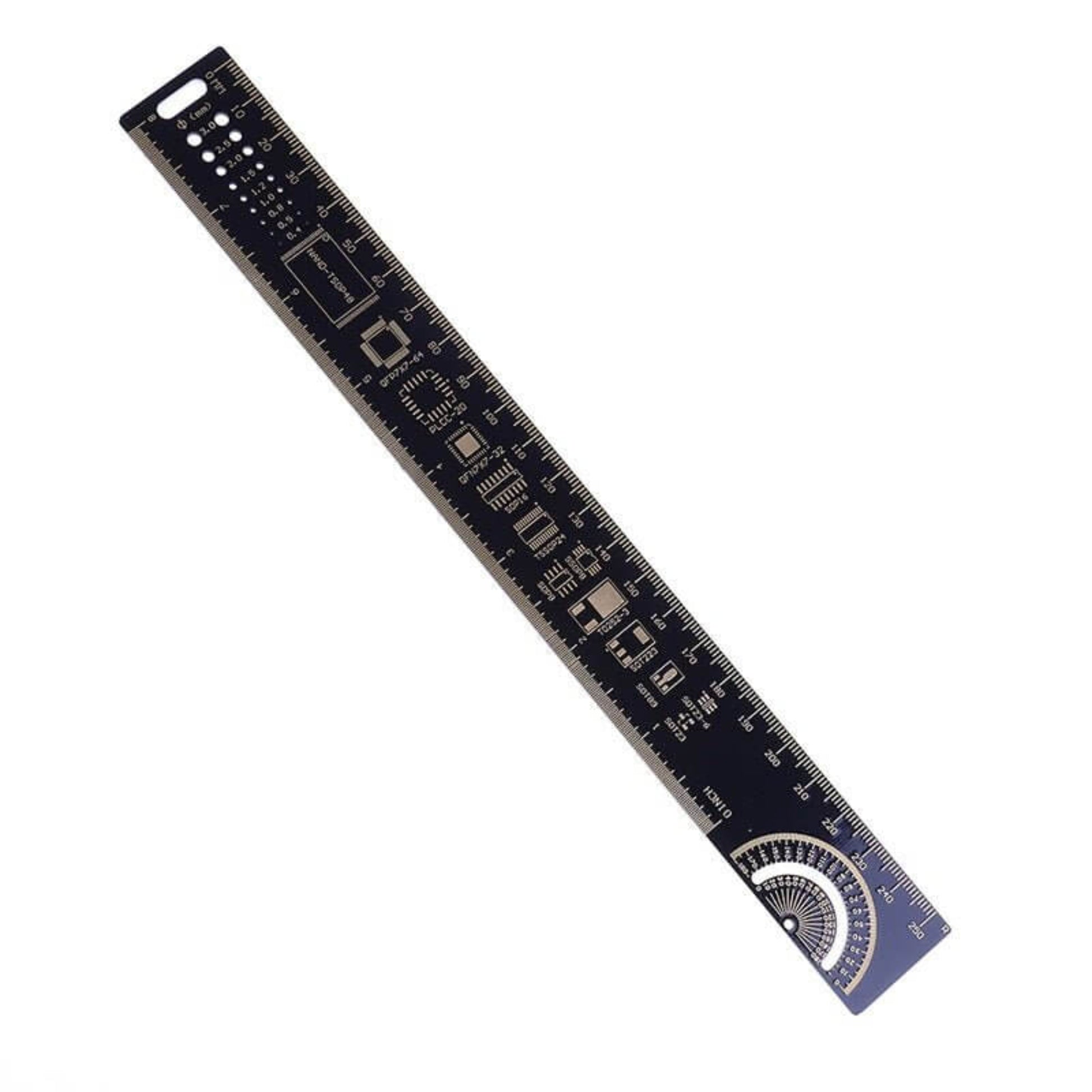

  • All-in-One Functionality: Beyond basic millimeter and inch measurements, this ruler features an angle gauge, common IC pin spacing tables, resistor and capacitor chip package references, standard drill diameter guides, and line width size references.
  • Precision & Durability: Crafted from high-quality FR-4 gold-plated PCB material, it offers a smooth, wear-resistant, and high-hardness surface, ensuring long-term accuracy and reliability.
  • Clear & Readable: All information is clearly printed on the PCB surface for quick and easy reference.
  • Convenient Design: Includes a slot for hanging, making storage and access simple.

Product Functions & Reference Information:

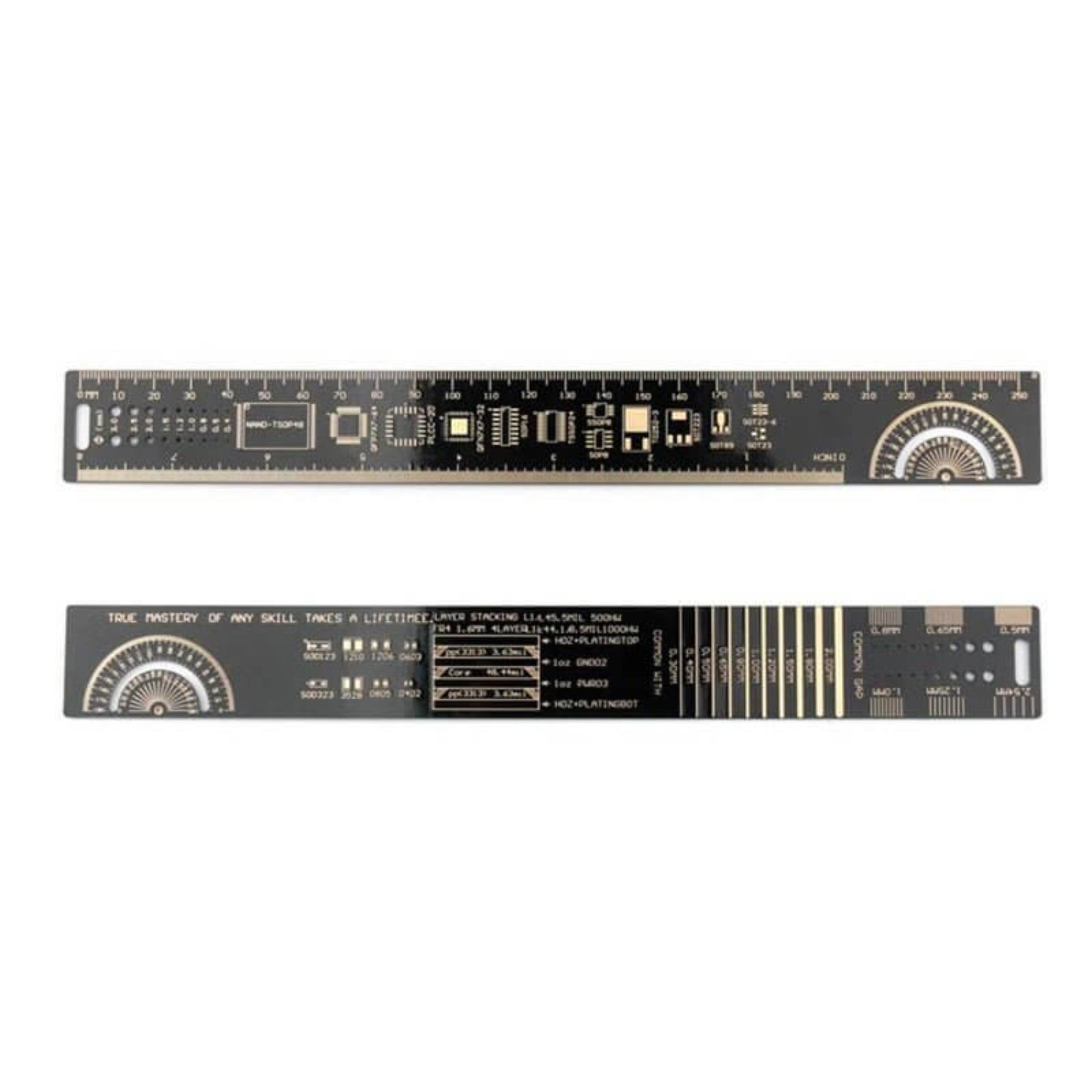

Front Side Specifications:

  • Measuring Length: 25 cm (10 inches)

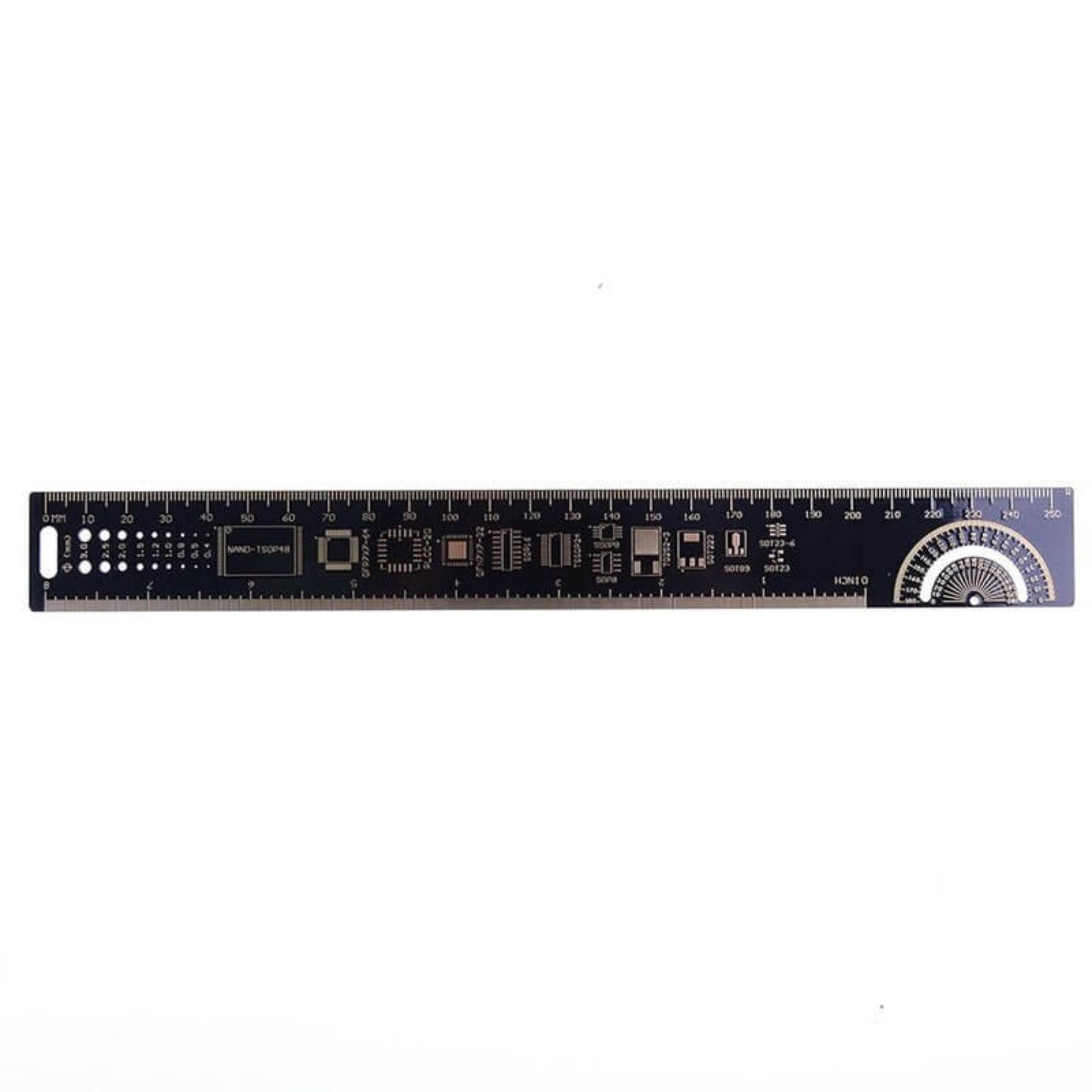

  • Commonly Used IC Package Types:
    • NAND_FLASH_TSOP48
    • QFP7X7-64
    • PLCC-20
    • SOP16
    • TSSOP24
    • SSOP8
    • SOP8
  • Commonly Used CHIP Component Packages:
    • TO252-3, SOT223, SOT89-3
    • SOT23-6, SOT23-3
    • SOD123, SOD323
    • 1210, 3528, 1206, 0805, 0603, 0402
    • TO92
  • Common Bore Diameter Reference Dimensions (Unit: mm):
    • 3.0, 2.5, 2.0, 1.5, 1.0, 0.8, 0.5, 0.4
  • Special Feature: Straightedge hanging slot

Back Side Specifications:

  • Common Line Width Reference (Unit: mm)
  • Angle Measurement: 180-degree protractor
  • Device, IC Pin Spacing Table (Unit: mm):
    • 0.5, 0.65, 0.8, 1.0, 1.25, 2.54

Package Included:

  • 1 x 25cm Multifunctional PCB Ruler
