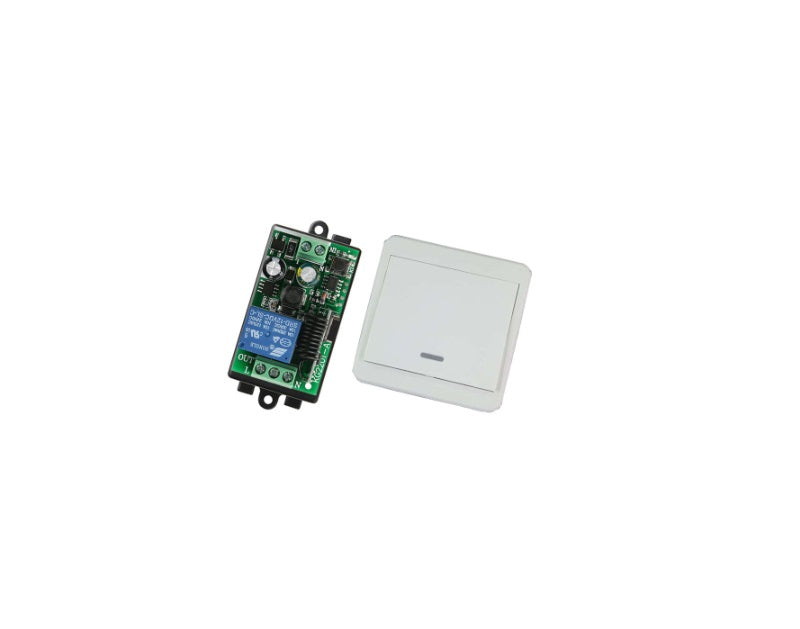

220v 433MHZ RF Remote Control Switch

433MHz RF Remote Control Switch AC 110V 220V 240V 85V-260V Light Lamp LED Bulb Wireless Switches Corridor Room Wall Panel Switch

Working Voltage: AC85V-260V

( AC85V AC100V AC110V AC120V AC220V AC230V AC240V AC260V all is ok )

Working Frequency: 433MHZ

Quiescent Current: less than 10mA

Working Temperature: -10'c-+60'C

Receiving sensitivity :-105dBm

Working Distance: 10-100m

Modulation Mode：Superheterodyne

Max Load : 10A Relay have 10A Relay, Resistive load≤5A,Inductive load≤3A

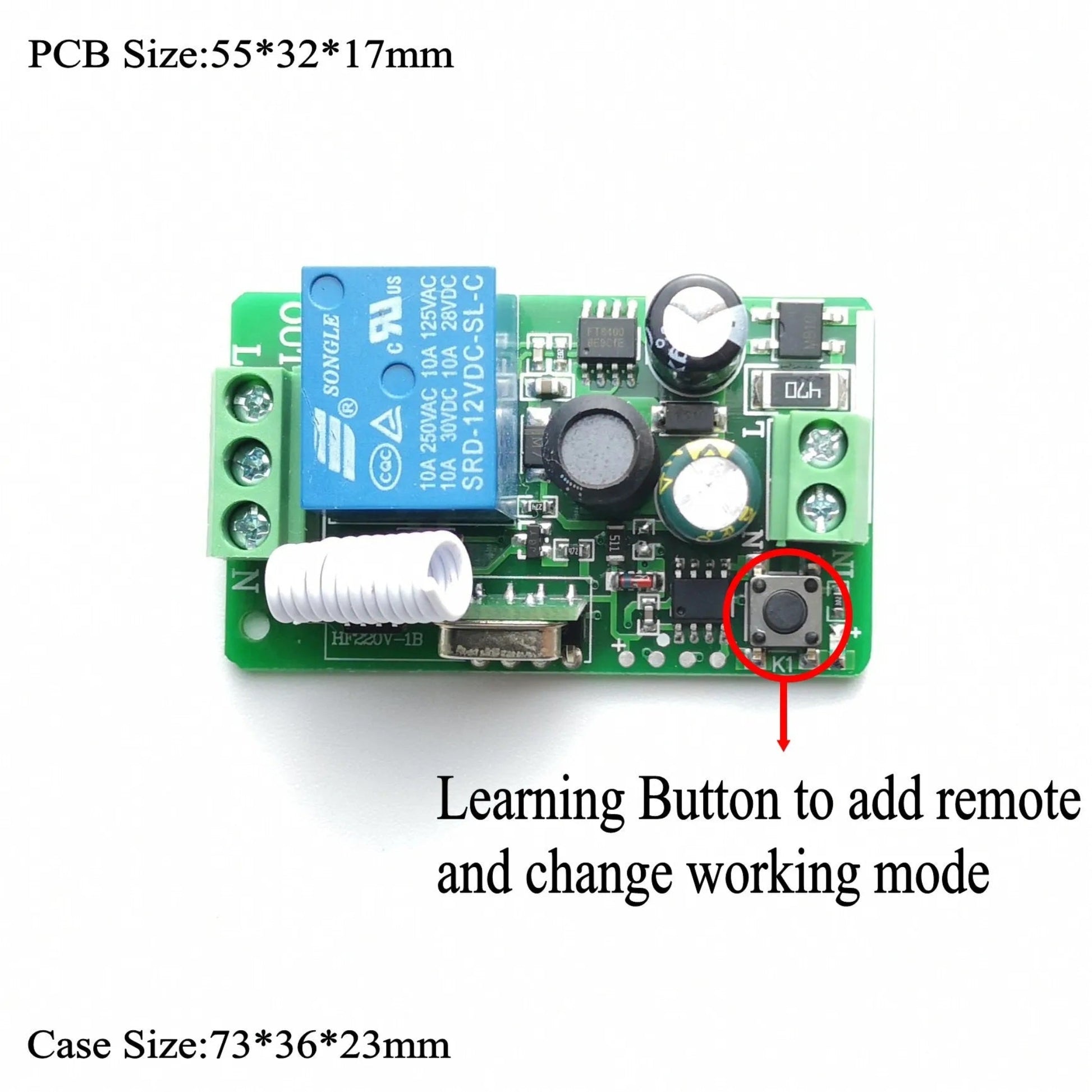

Matching Mothod: Learning Button to add transmitter

Working Mode: Momentary /Toggle /Latched /Momentary delay off 5s/10s/15s

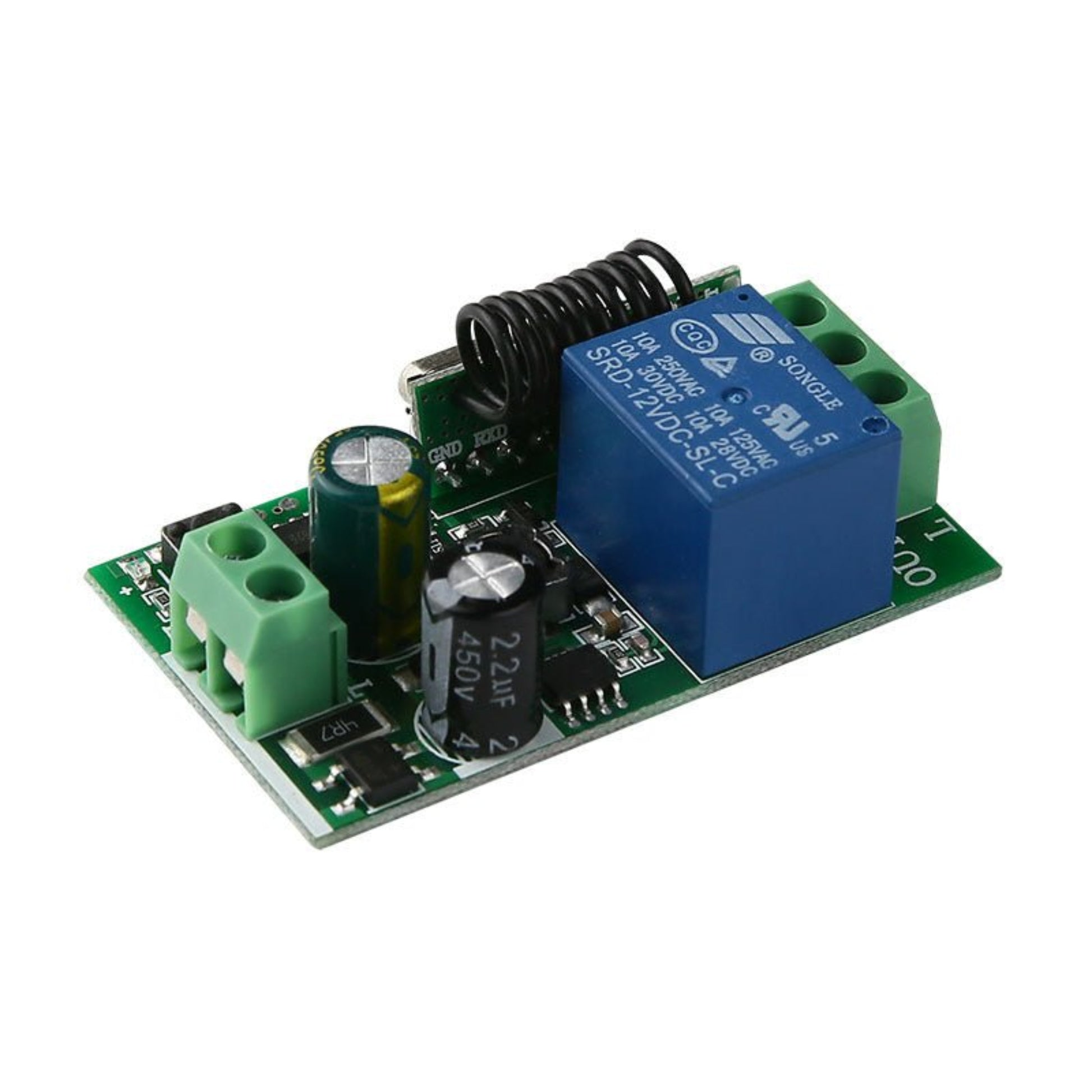

Board Size：55mm*32mm*17mm

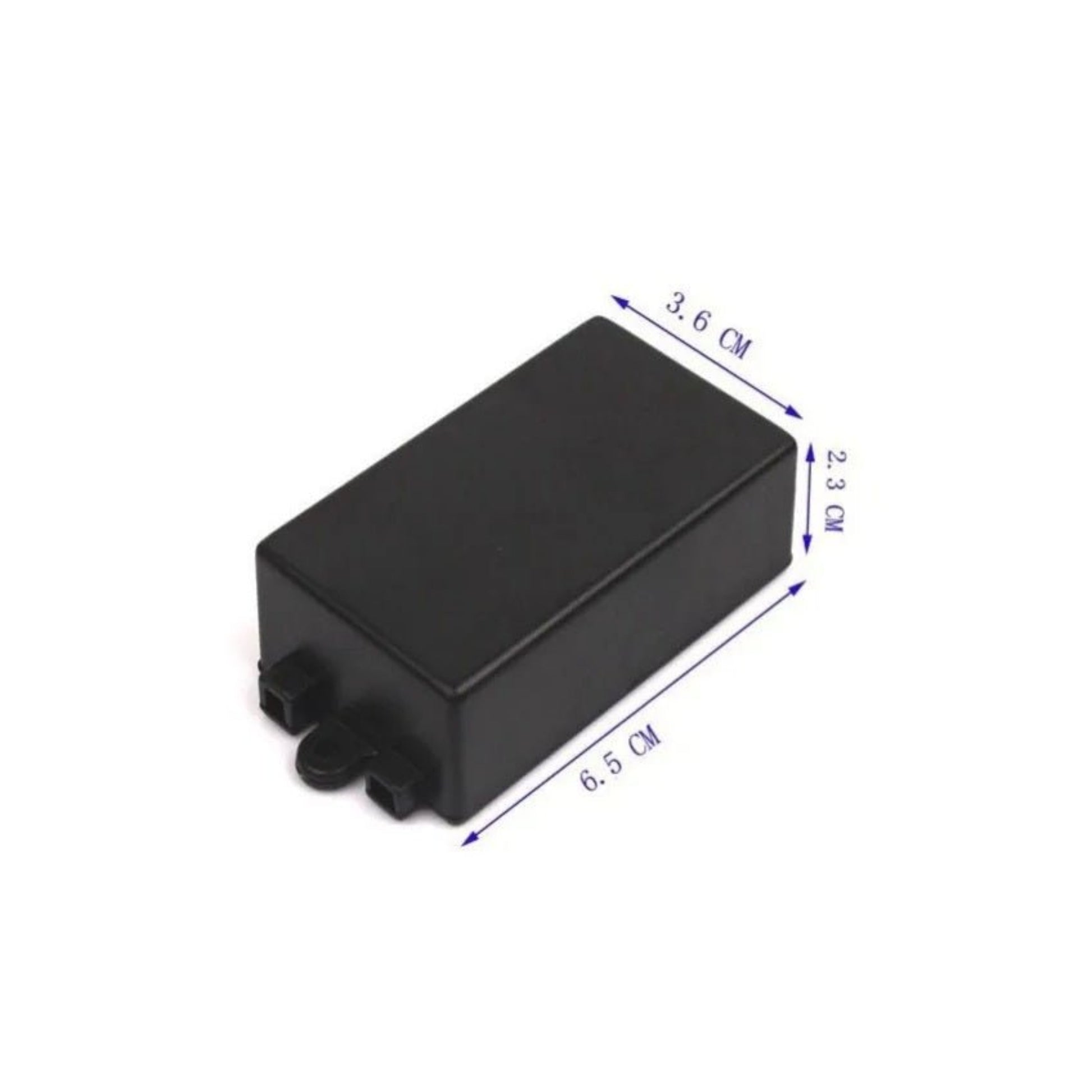

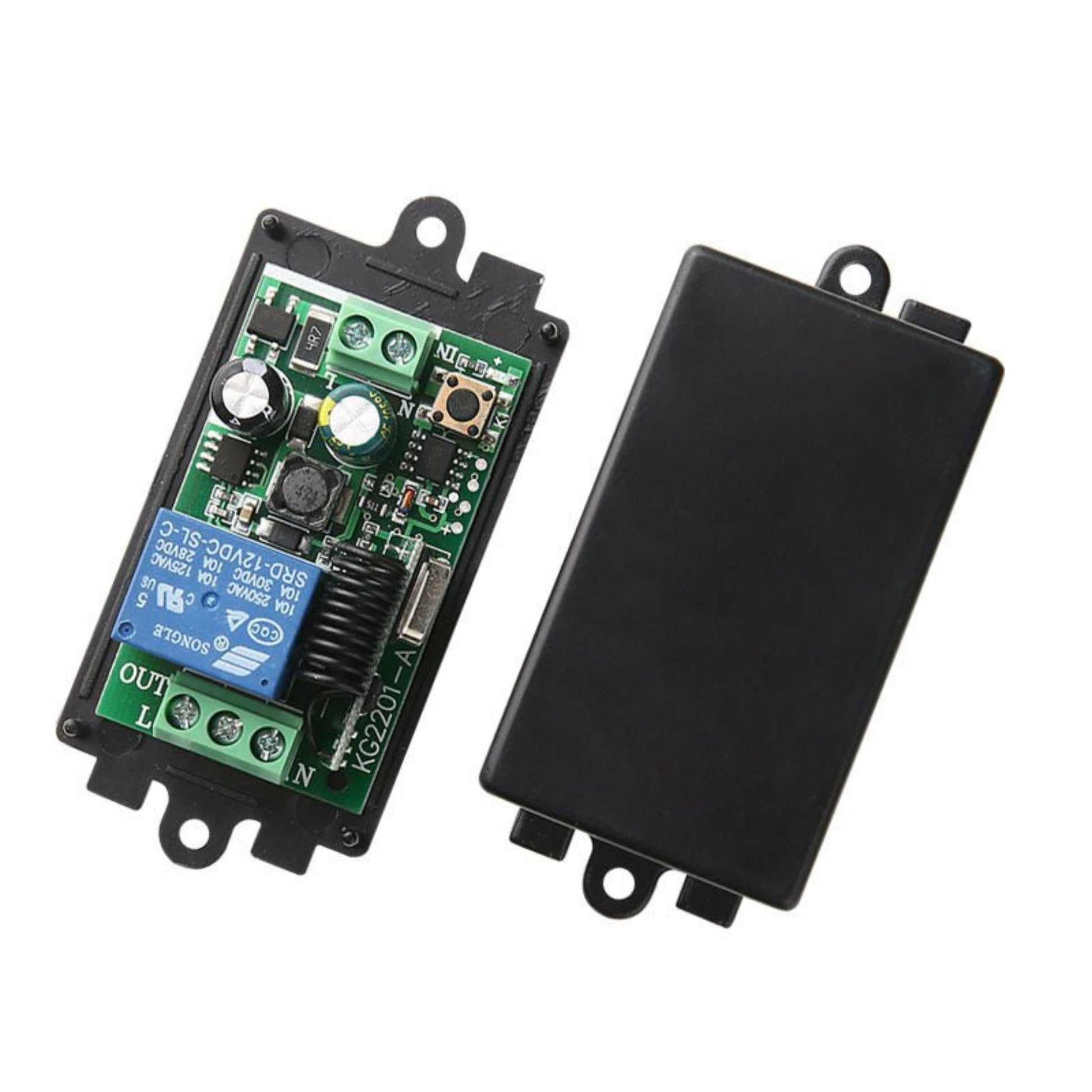

Case Size： 73mm*36mm*23mm

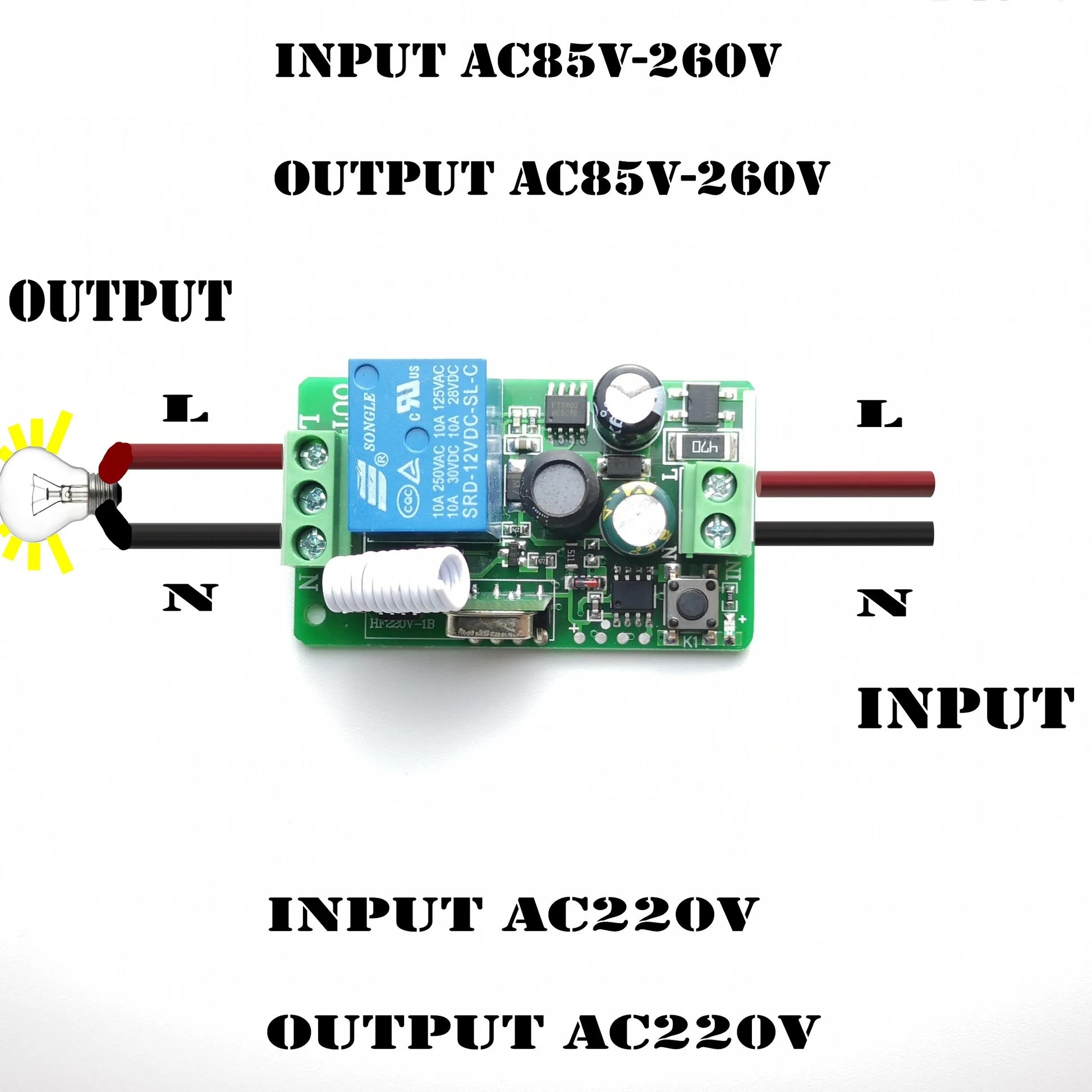

Wiring

IN

L------Input AC85V-260V Live Wire (L)

N-----Input AC85V-260V Neutral Wire (N)

OUT

L------Ouput AC85V-260V Live Wire (L)

N-----Output AC85V-260V Neutral Wire (N)

Momentary----- Press and Hold---ON, Release----OFF

Toggle-------Press one time ----ON. Press it again ----OFF

Latched--------Press A ----ON, Press B-----OFF

Momentary 5s/10s/15s ---------Press and Hold---ON, Release 5s/10s/15s Delay -----OFF

Learning Code

Input AC85V-260V for Receiver to work ,

Momentary-----Press the learning button for 1 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Toggle-----------Press the learning button for 2 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Latched---------Press the learning button for 3 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Momentary 5s/10s/15s time Delay OFF------

Press the learning button for 4/5/6 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Clearing Code

Input AC85V-260V for Receiver to work ,press the learning button for 8 times, LED indicator flash for 6 times, code have cleared.

(Note: if you need change working mode, turn off the power ,and turn on again to clear the code and re-learn again)

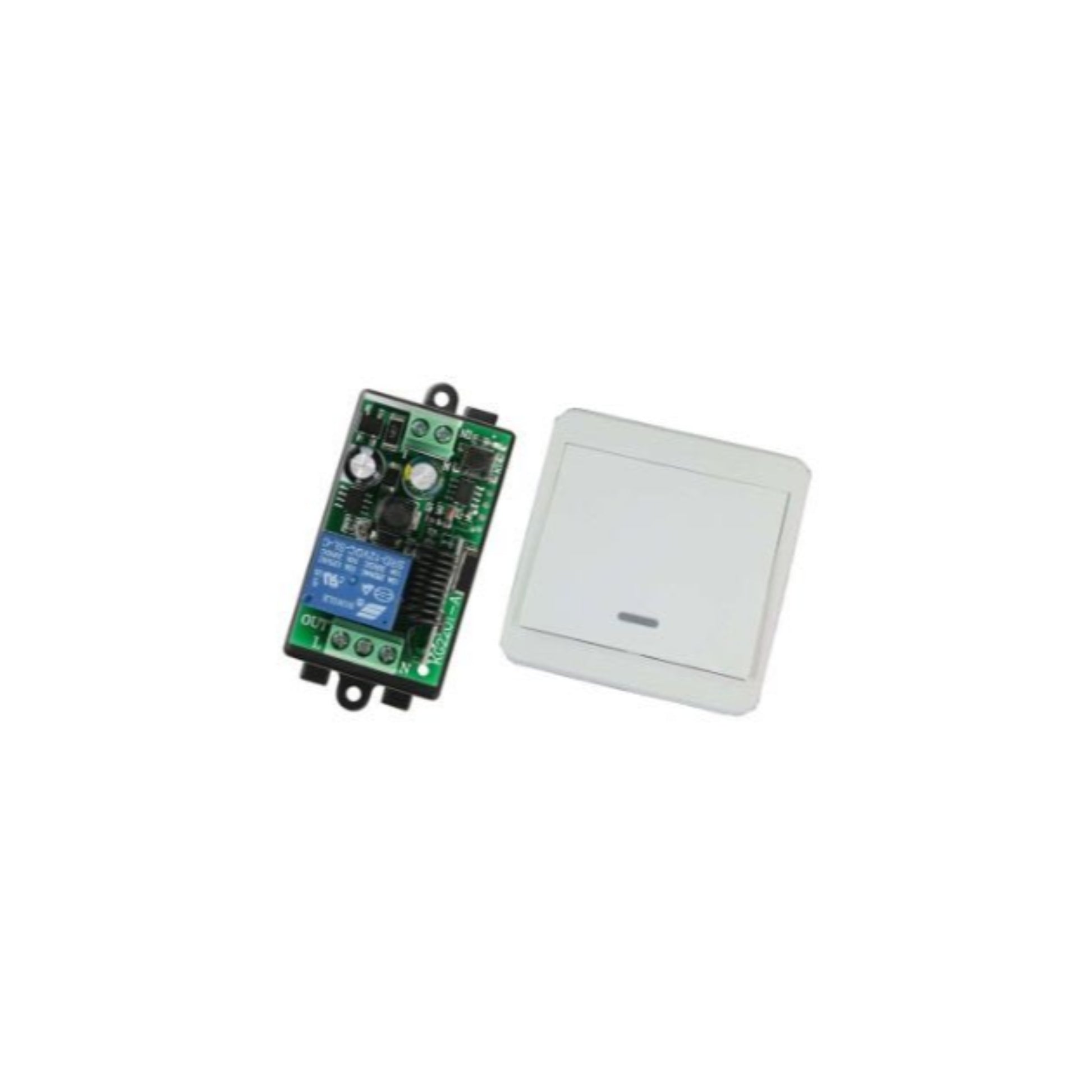

Package Included:

220v Recevier Module x 1

86 Remote Switch Panel x 1
