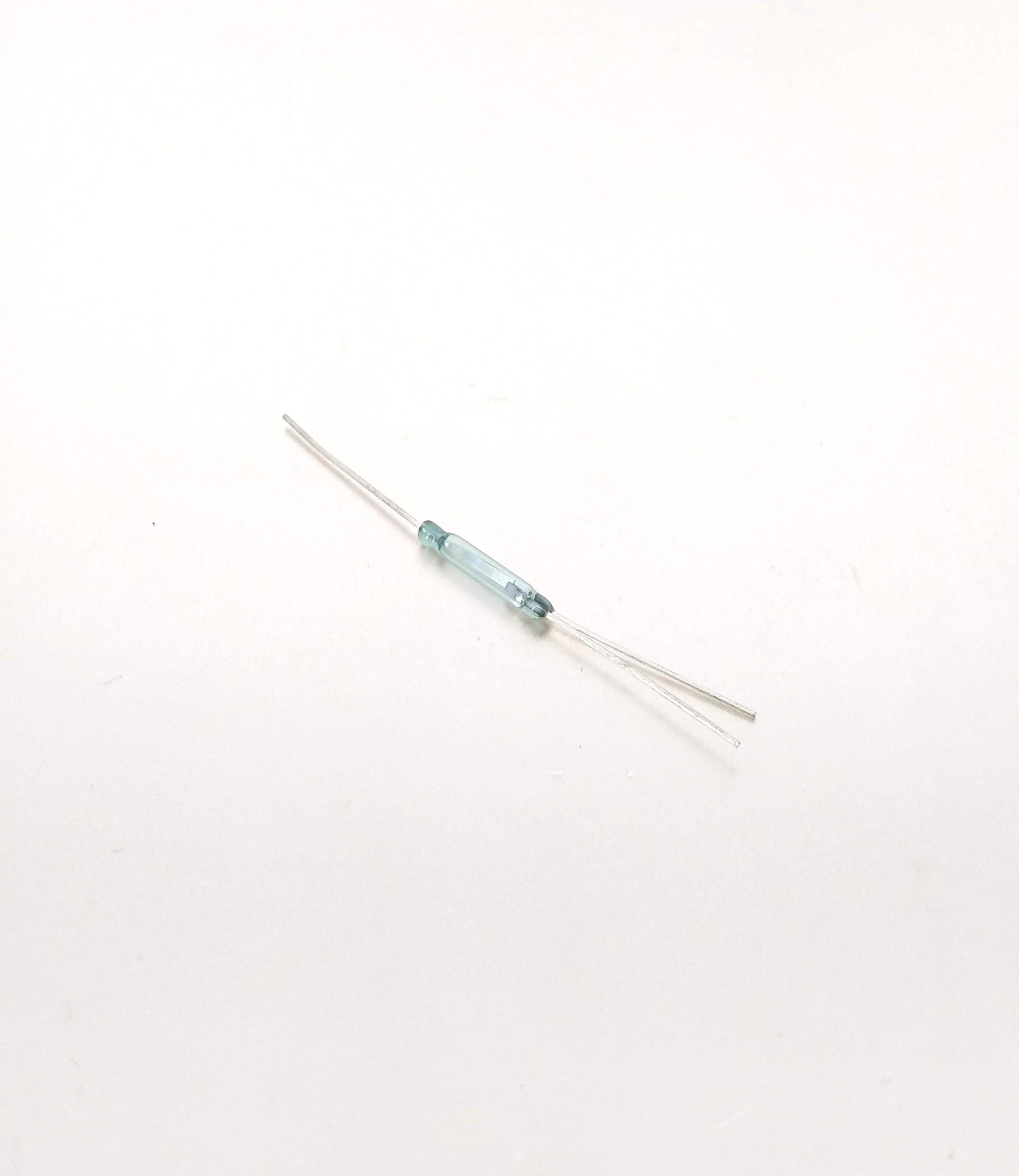

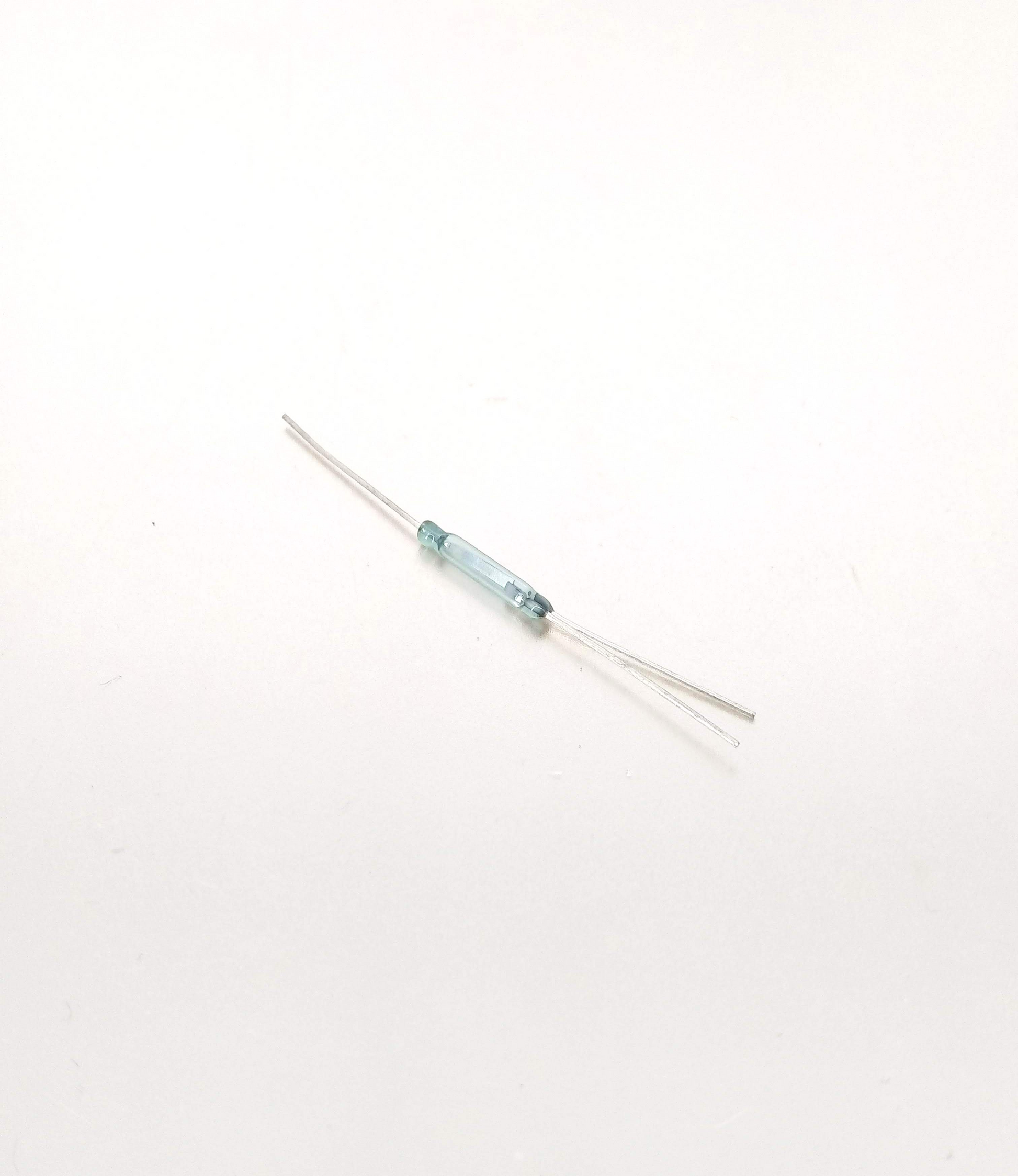

2.5*14mm Reed Switch 3 Pin Magnetic Switch Normally Open Normally Closed Conversion DC 60V 4W NO NC
2.5*14mm Reed Switch 3 Pin Magnetic Switch Normally Open Normally Closed Conversion DC 60V 4W NO NC
Regular price
HK$10.00
Regular price
Sale price
HK$10.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
Specifications:
Maximum power: 4W
Maximum switching voltage: 60VDC/VAC
High voltage: 60VDC/VAC
Maximum switching current: 0.25A
Maximum load current: 0.5A
Maximum contact resistance: 115M
Minimum insulation resistance: 2x107/2x109
Action time: 0.25ms
Bounce time: 0.05ms
Response frequency: 3000Hz
Sensitive value: 10 ~ 20AT
The minimum value reset Min: 5FT
Maximum contact capacitance: 2.0PF
