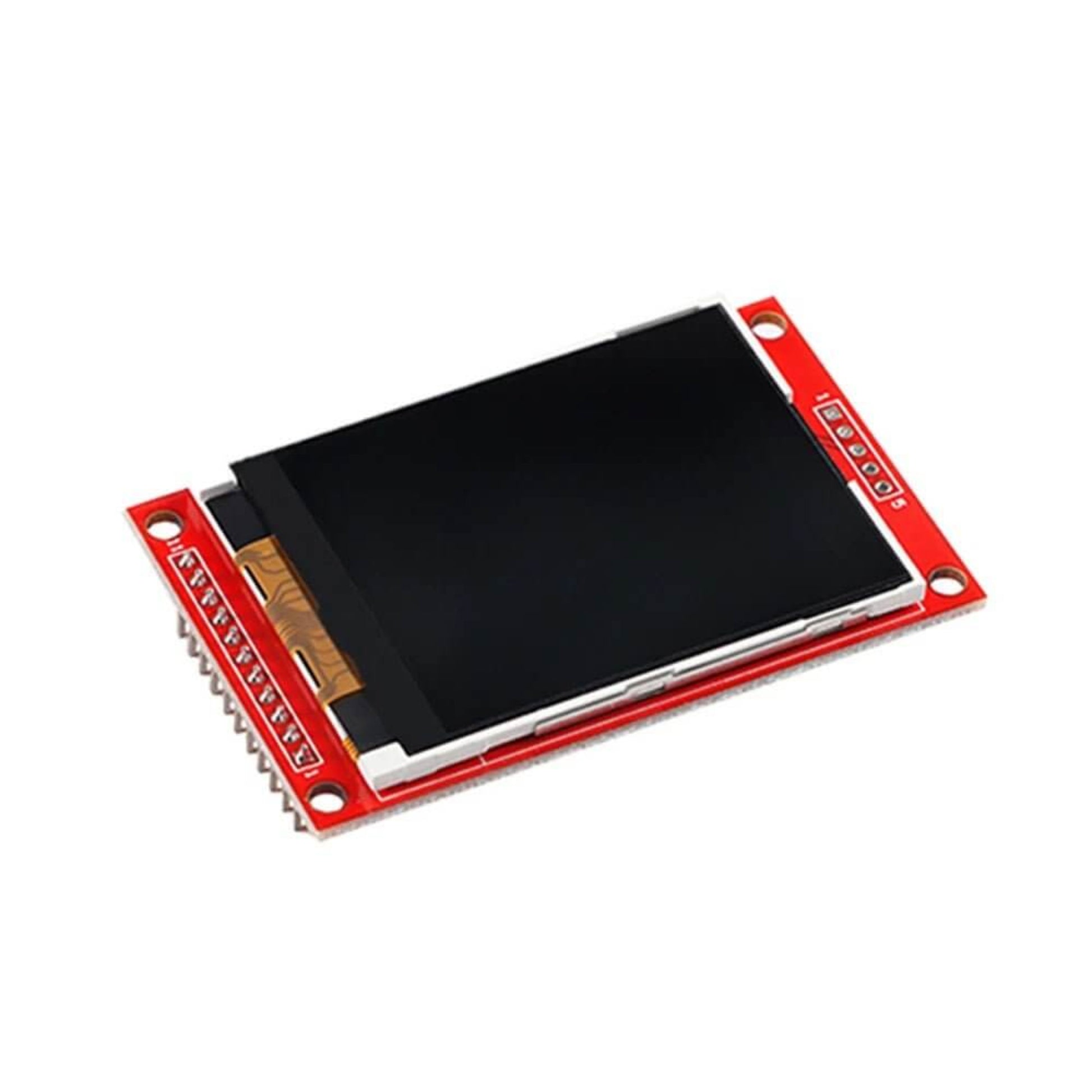

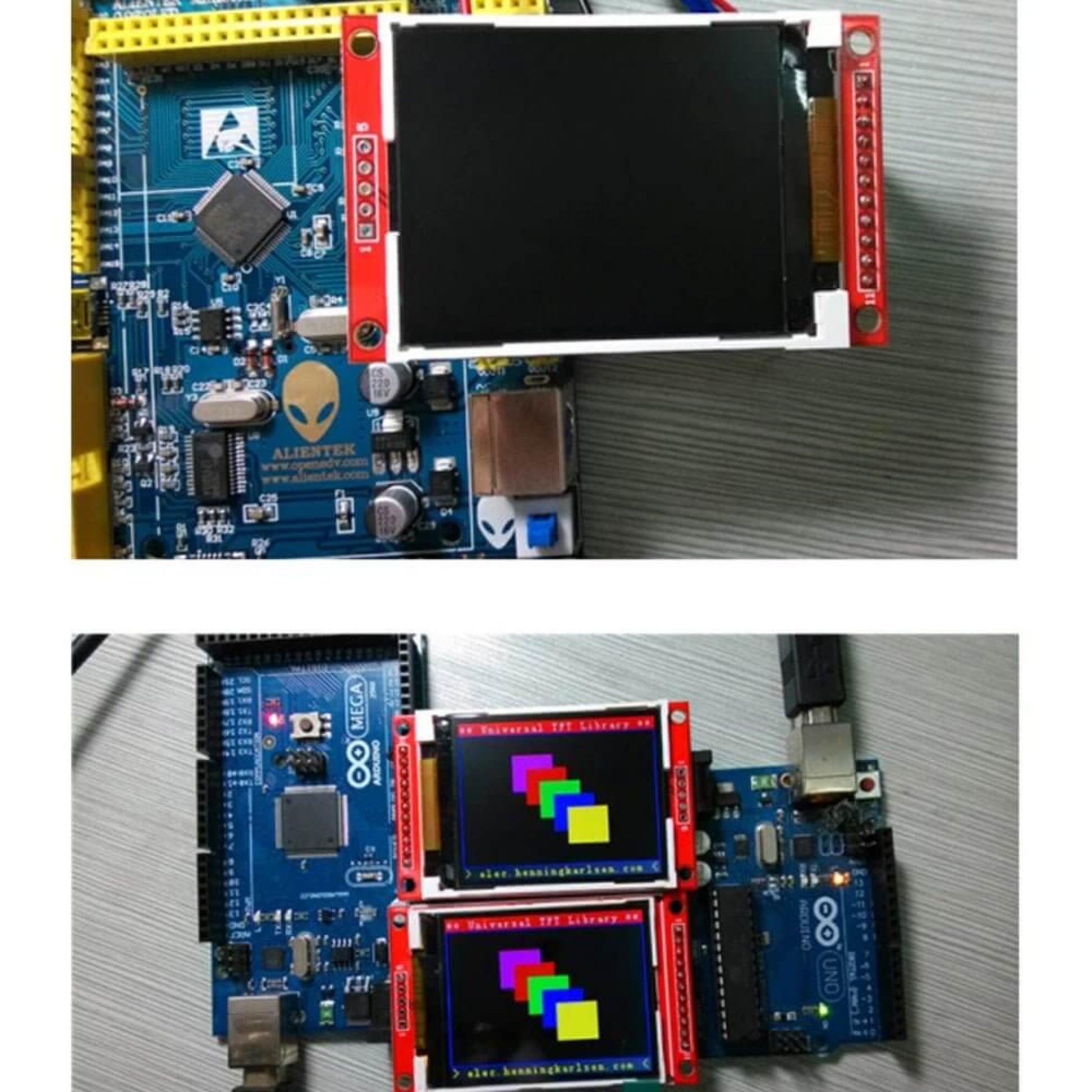

2.2 Inch 2.2" TFT LCD Color Screen Display Module 176*220 SPI Serial Port ILI9225 Drive Compatible with UNO Mega2560 Mini Monitor For Arduino
Feature:
2.2-inch color screen, support 16BIT RGB 65K color display, display rich colors
Features:
176X220 resolution, clear display
Using SPI serial bus, it only needs a few I0s to light up
Display with SD card slot for convenient function expansion
Provide low-level libraries and rich C51 and STM32 platform sample programs
long-term stable work
Specification:
Driver chip: IL19225
Resolution "176*220 (Pixel)
Module interface: 4-wire SPl interface
Backlight: 3 White Led
Effective display area: 34.85x43.56 (mm)

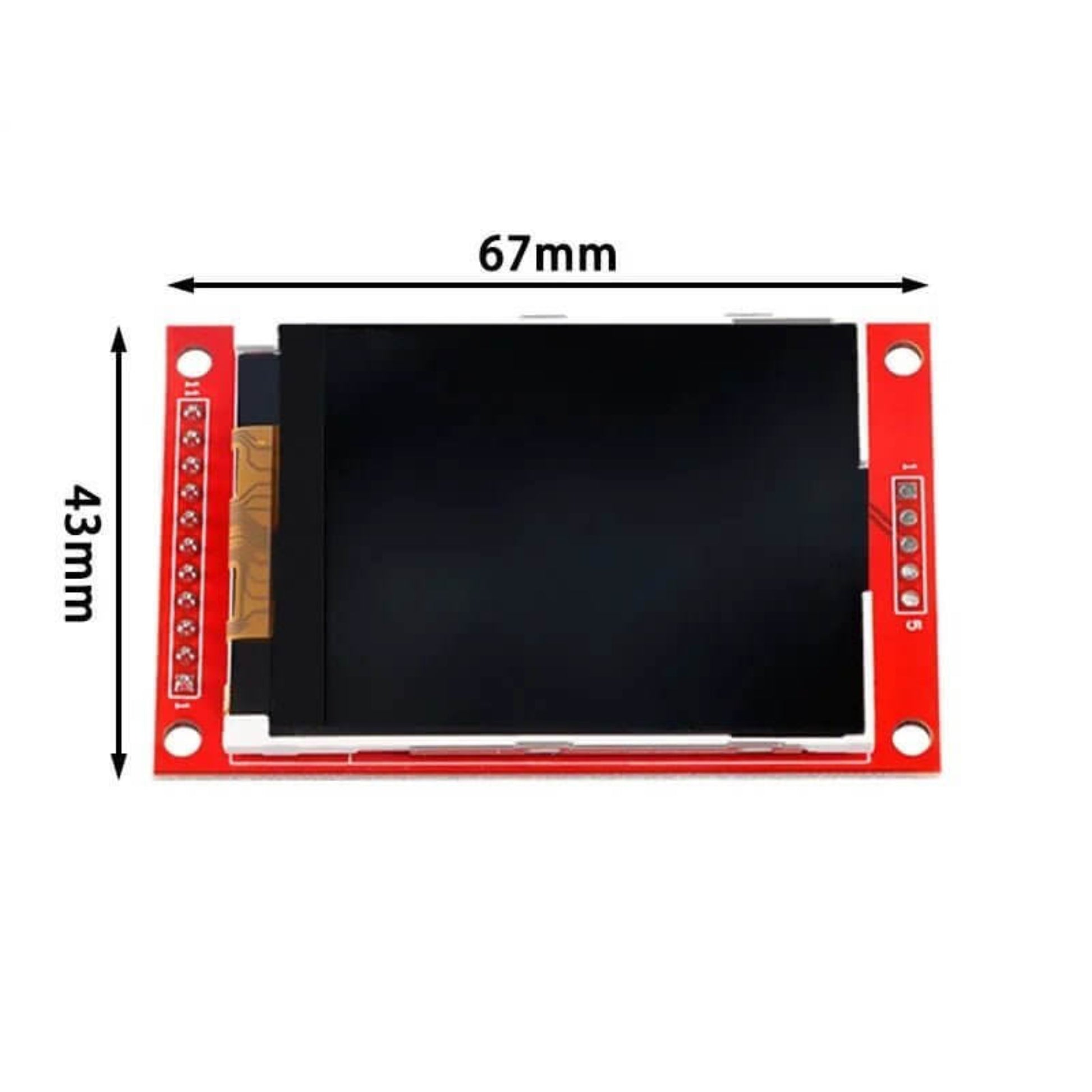

Module PCB size: 42.46x67.20 (mm)
Working temperature:-20℃~60c
Storage temperature: -30℃~70c
Working voltage: 5V/3.3v
Power consumption: TBD
Weight (with packaging): 23 (g)

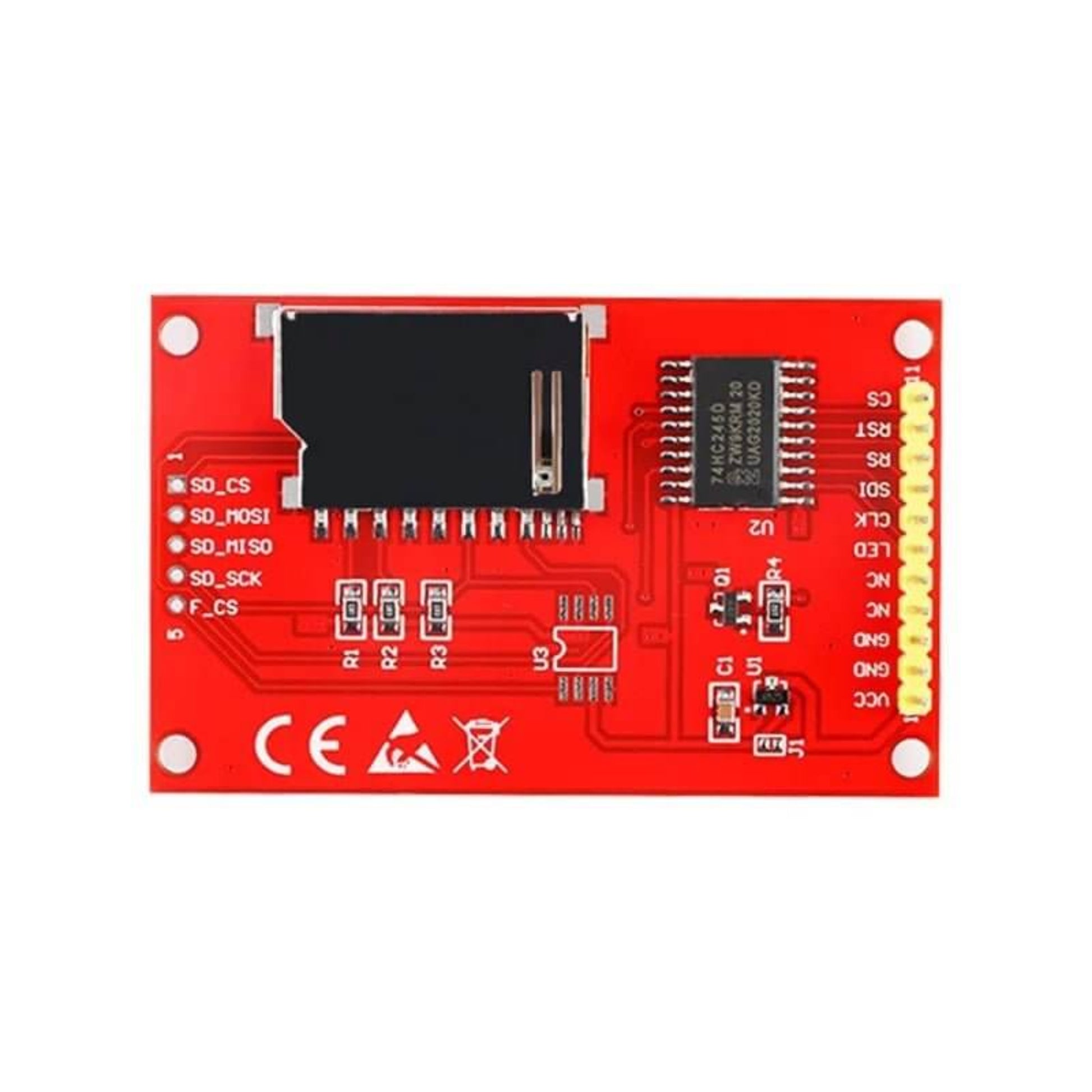

Interface definition:
vcc LCD power supply is positive (3.3V~5v)
GND: LCD power supply ground
GND: LCD power supply ground
NC: undefined, reserved
NC: undefined, reserved
LED: Backlight control, high-level lighting, if no control is required, connect to 3.3V for constant light
CLK: LCD screen SPI bus clock signal
SDI: LCD screen SPI bus write data signal
RS: LCD screen register/data selection signal, low level: register, high level: data
RST: LCD reset signal, low level reset
cs: LCD chip select signal, low level enable
