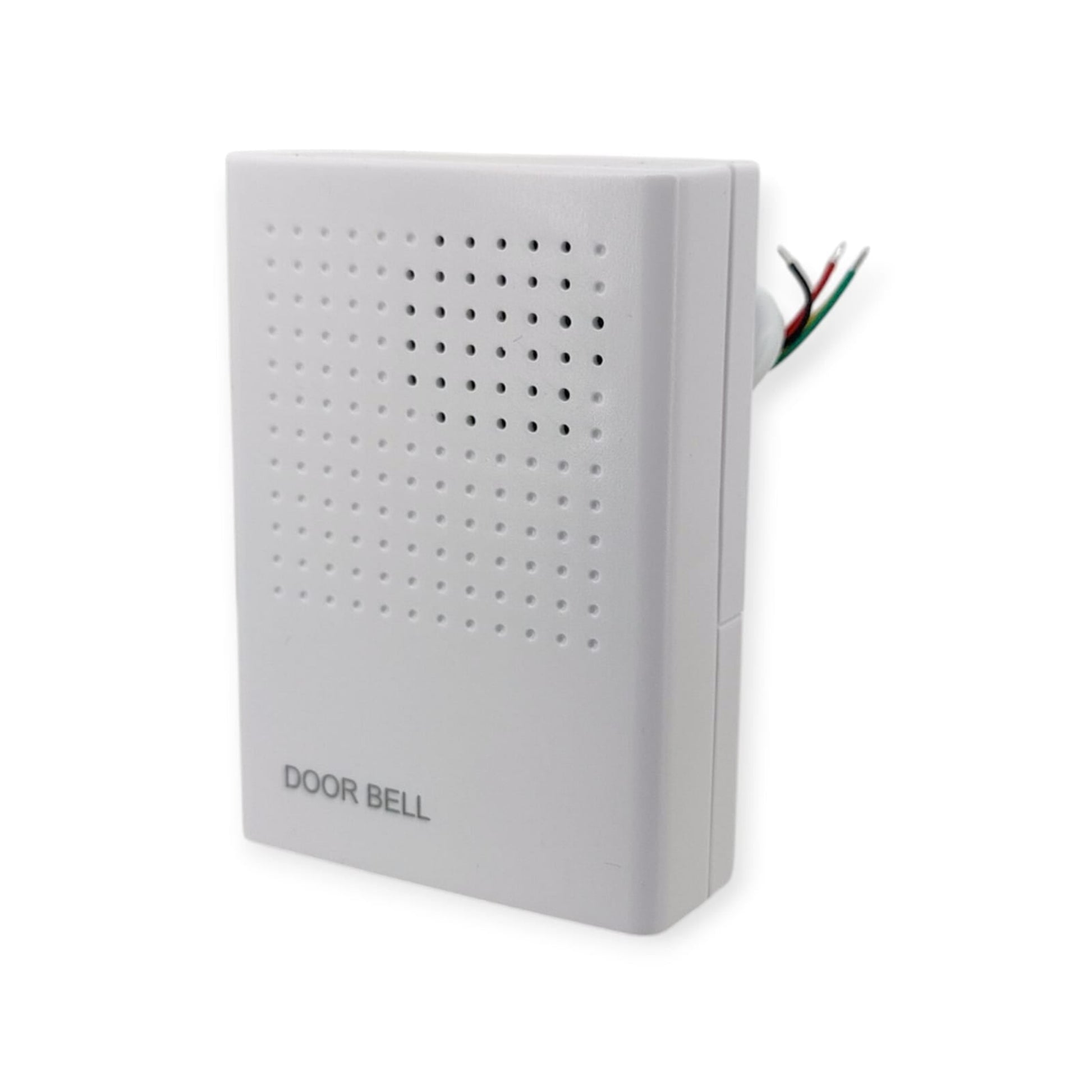

12V Wired Doorbell for Access Control Systems

This sleek, easy-to-install 12V wired doorbell is the perfect solution for your home or office entry system. Its compact design provides a clear, loud chime, ensuring you never miss a visitor.

Product Features

• Clear Chime Sound: Produces a classic "ding-dong" chime that is easily heard throughout the room.
• 12V System Compatibility: Designed to connect directly to a 12V power source, making it compatible with most access control and security systems.
• Compact & Lightweight: With dimensions of just 88mm x 62mm x 23mm, this doorbell is discreet and can be mounted on any door frame or wall.

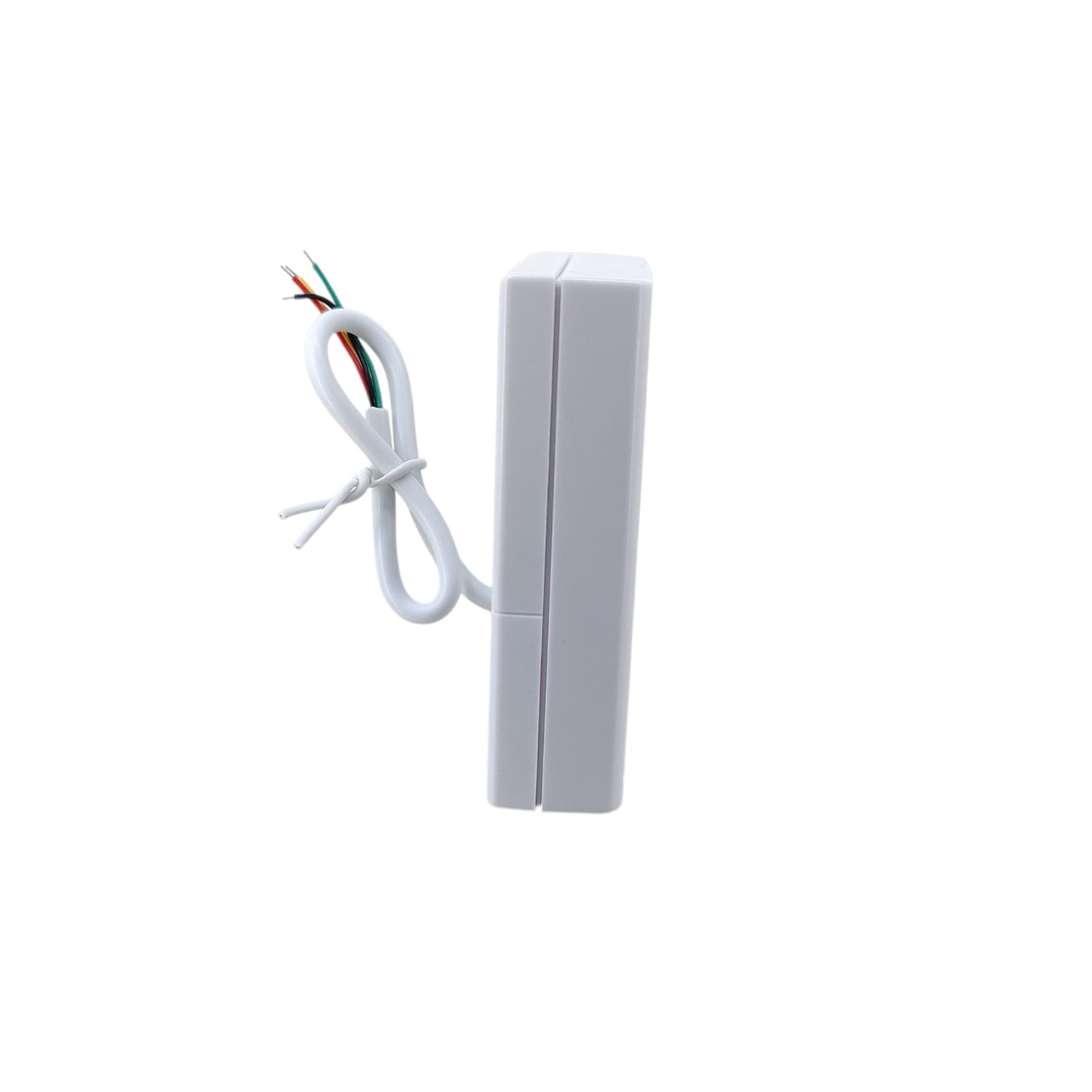

• Simple Setup: Includes approximately 15cm of pre-wired cable for quick and hassle-free installation.

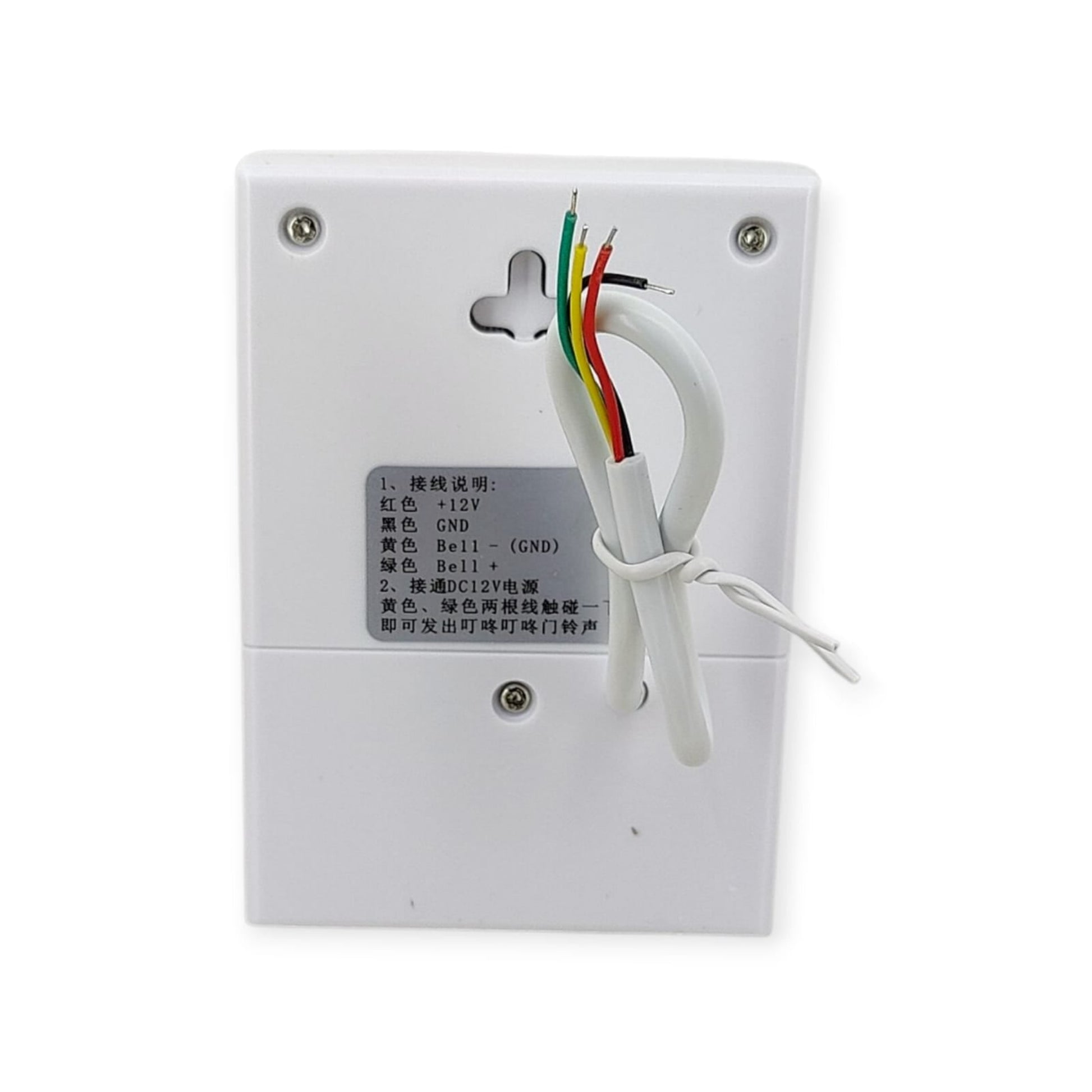

Wiring Instructions

This doorbell comes with four wires. Please follow these simple steps to connect it:

• Power Connection:
  • The Red Wire connects to the +12V positive power terminal.
  • The Black Wire connects to the GND (Ground) negative power terminal.
• Doorbell Trigger:
  • To make the doorbell ring, simply make a temporary connection between the Yellow Wire and the Green Wire, or connect them to your access control system's trigger port.

Product Specifications

• Dimensions: Approx. 88mm x 62mm x 23mm
• Wire Length: Approx. 15cm
• Voltage: 12V DC
• Sound: Classic "Ding-Dong" Chime
