RGBW LED Strip Controller with 2.4G RF Touch Remote | DC 5-24V
RGBW LED Strip Controller with 2.4G RF Touch Remote | DC 5-24V
Couldn't load pickup availability
Short Product Description
Short Product Description
Control high-power lighting setups effortlessly with this heavy-duty 30A RGBW LED Controller. Operating on DC 5-24V and supporting up to 720W, it provides stable, flicker-free color management for long LED strip installations. The included 2.4G RF touch remote allows for seamless, omnidirectional color adjustments from up to 20 meters away. Featuring a durable iron shell for heat dissipation and protective terminal caps, it is the ideal solution for custom home lighting, commercial displays, and vehicle neon modifications.
Key Features
Key Features
- Heavy-Duty 30A Capacity: Safely drives up to 720W of LED lighting, ideal for long, continuous strip installations.
- 2.4G RF Touch Remote: Provides omnidirectional wireless control up to 20 meters away without needing a direct line of sight.
- RGBW Support: Features a dedicated channel for White (W) LEDs, allowing for pure white illumination alongside RGB colors.
- Thermal Iron Housing: The metal chassis effectively dissipates heat, ensuring stable operation under heavy loads.
- Protective Terminal Caps: Transparent covers shield the screw terminals from dust and prevent accidental short circuits.
- Wide Voltage Range: Compatible with DC 5V, 12V, and 24V systems, offering maximum flexibility for different LED types.
Full Product Description
Full Product Description
High-Capacity 30A Output for Long LED Strips
This RGBW controller is engineered to handle heavy electrical loads, supporting a continuous 30A output and up to 720W of maximum load power. This high capacity makes it perfect for driving multiple rolls of LED strips in parallel without experiencing voltage drops or color fading at the end of the run. Whether you are illuminating a large commercial signboard or installing extensive cove lighting in a living room, this controller ensures consistent brightness across your entire setup.
2.4G RF Wireless Touch Control
Experience true wireless freedom with the included 2.4G Radio Frequency (RF) touch remote. Unlike traditional Infrared (IR) remotes that require a direct line of sight, this RF remote can transmit signals through walls and cabinets from over 20 meters away. The intuitive color wheel allows for infinitely dimmable color adjustments, while dedicated buttons let you quickly switch between dynamic color-changing modes and pure white light.
Durable Iron Housing with Thermal Design
Safety and longevity are prioritized in this controller's physical design. The internal circuitry is housed within a robust iron and plastic shell that acts as a passive heatsink, effectively dissipating heat during high-power operation. Additionally, the screw terminals are shielded by transparent protective caps, which prevent dust contamination and reduce the risk of accidental short circuits in crowded junction boxes.
Technician Tip

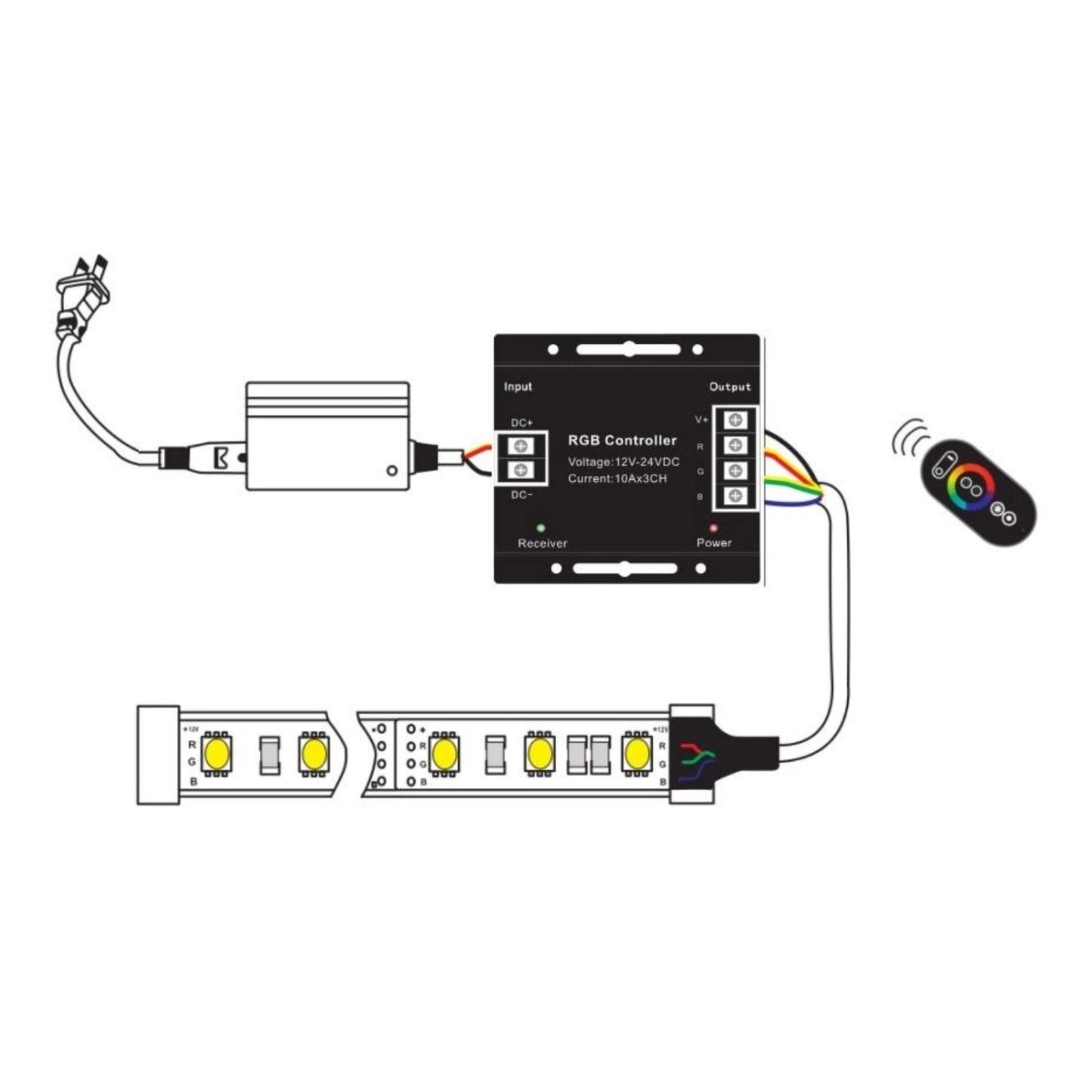

When wiring this controller, ensure your power supply matches the voltage of your LED strips (e.g., use a 12V power supply for 12V strips, or 24V for 24V strips). This controller uses a "Common Anode" connection, meaning the V+ wire from the strip goes to the V+ terminal, and the R, G, B, and W wires go to their respective negative switching terminals. While the manufacturer label indicates 50A, we conservatively rate and recommend this unit for 30A continuous use to guarantee long-term thermal stability. If you need help calculating the total wattage of your lighting project, visit our physical store at Sun Cheong Computer Co. Ltd. in Sham Shui Po for expert advice.
Technical Specifications
Technical Specifications
- Product Type: RGBW LED Controller with RF Remote
- Input Voltage: DC 5V - 24V
- Maximum Current: 30A (Conservative continuous rating)
- Maximum Power Load: 720W
- Control Mode: 2.4G RF Wireless Touch Remote
- Control Distance: > 20 meters
- Connection Mode: Common Anode
- Operating Temperature: -30°C to +60°C
- Housing Material: Iron + Plastic
- Controller Dimensions: 102mm x 62mm x 21mm
- Remote Dimensions: 114mm x 56mm x 23mm
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Can I use this controller with standard RGB strips, or only RGBW?
Yes, you can use this controller with standard 4-pin RGB strips. Simply connect the V+, R, G, and B wires to their respective terminals and leave the "W" (White) terminal empty. The controller will function perfectly.
Why use an RF remote instead of a standard IR remote?
An RF (Radio Frequency) remote does not require a direct line of sight to the controller. This allows you to hide the controller completely out of sight—such as inside a ceiling void or behind a cabinet—and still control your lights from over 20 meters away.
How do I wire the power supply to this controller?
The controller features screw terminals labeled "INPUT V+" and "INPUT V-". Strip the wires from your DC power supply and secure them into these terminals. Ensure the voltage of your power supply exactly matches the voltage requirement of your LED strips.
Is this controller suitable for outdoor lighting installations?
While the controller can operate in temperatures ranging from -30°C to +60°C, the housing itself is not waterproof. If you plan to use it for outdoor lighting, you must install the controller inside a dedicated weatherproof IP65/IP68 junction box.
The label in the picture says 50A, why is it rated for 30A in the description?
We conservatively rate this controller for 30A continuous use to ensure maximum safety, thermal stability, and product longevity. Operating high-power electronics slightly below their absolute maximum peak rating prevents overheating and guarantees a reliable lifespan.
Target Users / Applications
Target Users / Applications
- Commercial Interior Fitters: Installing long, continuous runs of RGBW LED cove lighting in restaurants or retail stores without voltage drop issues.
- Custom Vehicle Modifiers: Adding high-power RGBW neon underglow or interior cabin lighting to cars and campervans running on 12V/24V systems.
- Home Theater Enthusiasts: Creating immersive, hidden bias lighting behind large projection screens controlled via a wireless RF remote.
- Signage Fabricators: Driving high-wattage LED modules inside large outdoor advertising light boxes (when housed in a waterproof enclosure).
