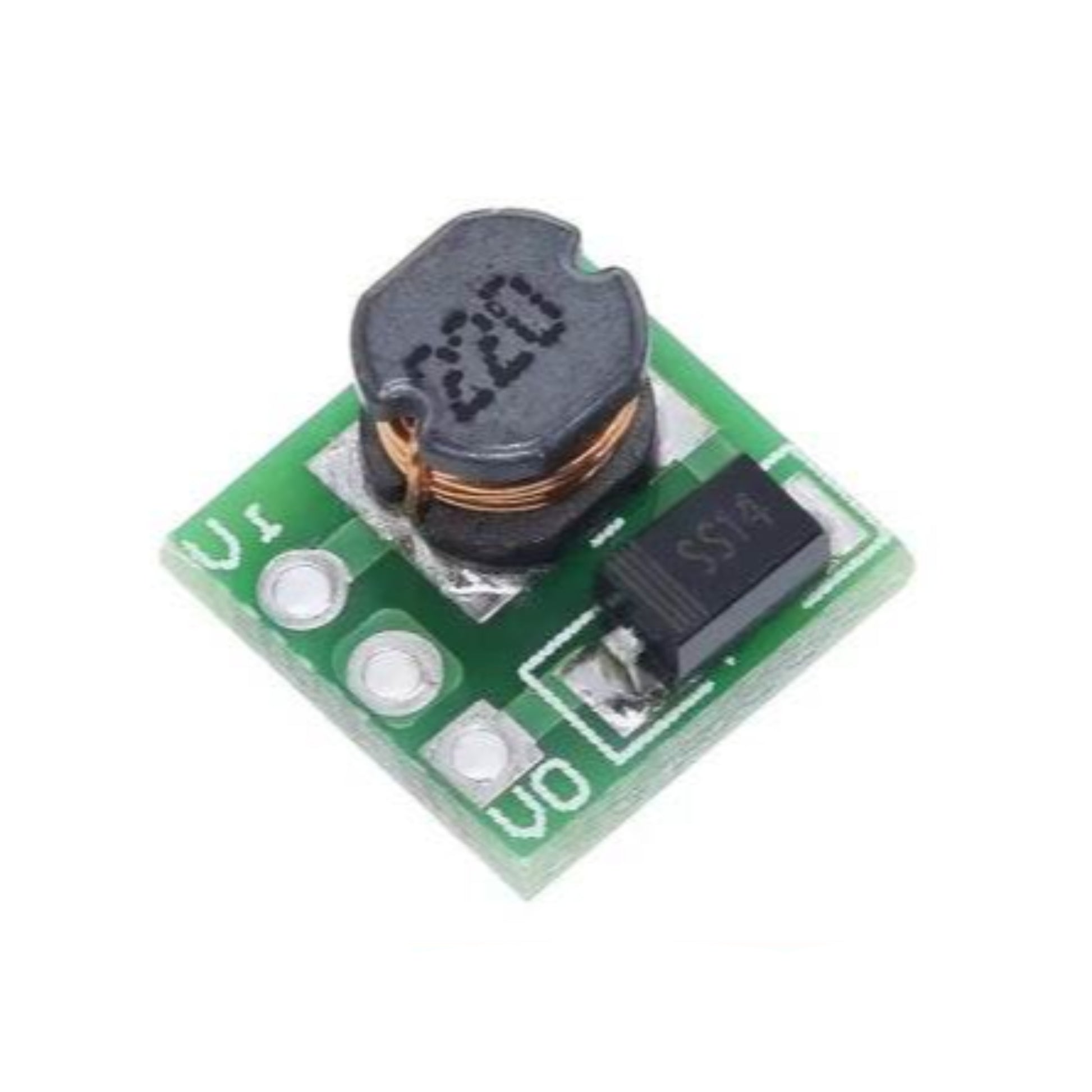

DC-DC Step-Up Power Module 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V To 5V Boost Conversion Module 150KHZ Frequency 480mA Output
Input voltage 0.9-5V; Output voltage 5V
Output current: 480 MA
Starting voltage 0.8V, output current 7MA
Input 1-1.5V, output 5V 40-100MA;
Input 1.5-2V, output 5V 100-150MA;
Input 2-3V, output 5V 150-380MA;
Input more than 3V, output 5V 380-480MA;
DC-DC boost conversion module, working frequency 150KHZ, typical conversion efficiency 85%
Pin spacing 2.54MM
Size: 11mm x 10.5mm x 7.5mm(very small)
This is a voltage boost conversion module, when using must comply with the following conditions:
1 The input voltage cannot be greater than the nominal voltage, otherwise the module will burn out
2 The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage.
3 The output load cannot be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage.
Note: The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!
