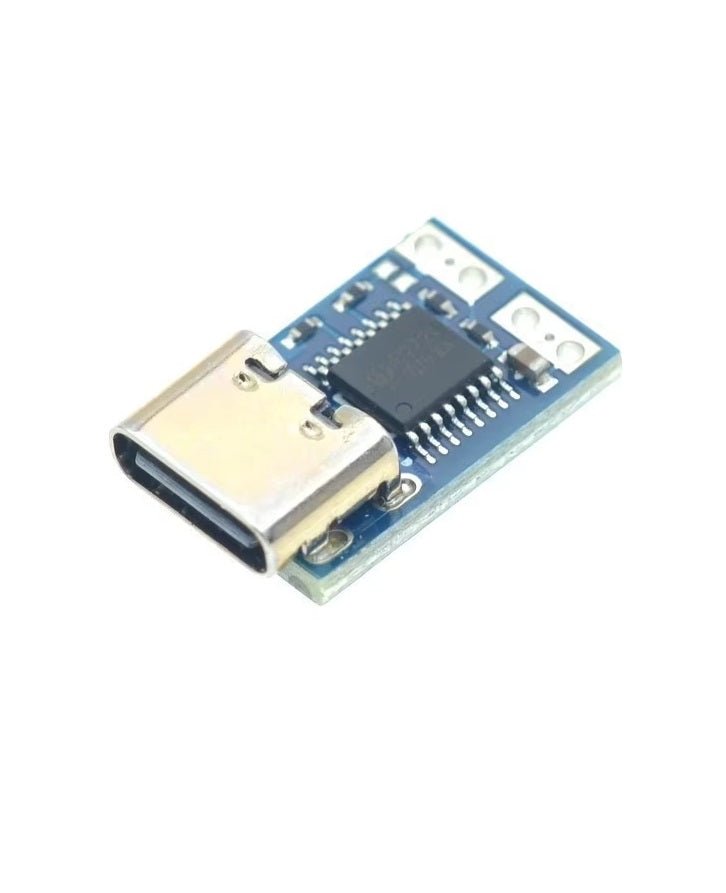

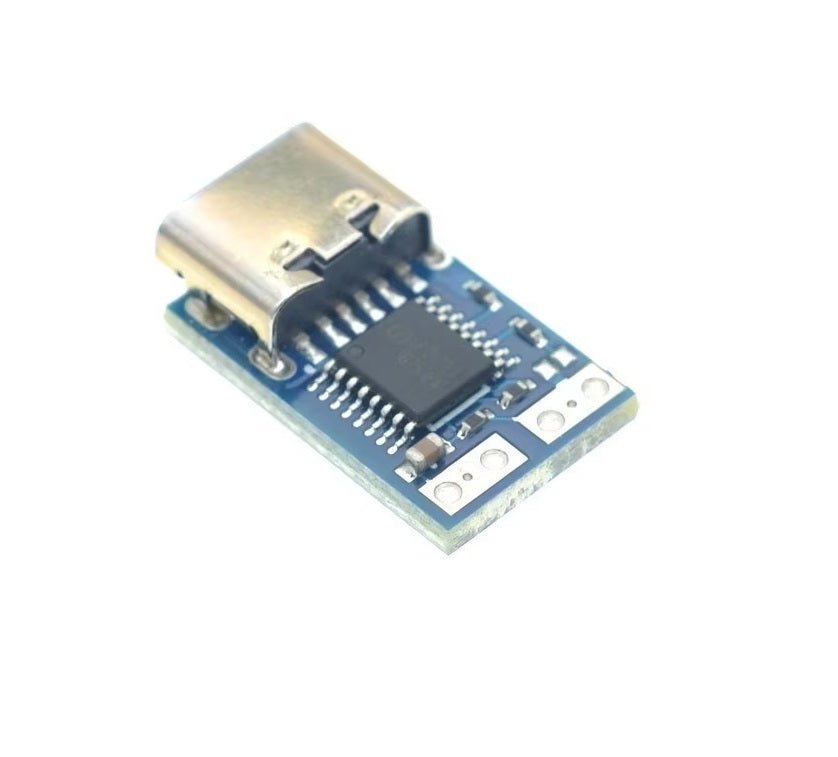

Type-C PD 12V 5A Decoy Trigger Module | Power Supply Adapter Board
Type-C PD 12V 5A Decoy Trigger Module | Power Supply Adapter Board
Couldn't load pickup availability
Short Product Description
Short Product Description
Transform your standard USB-C fast charger into a reliable 12V power supply instantly. The Type-C PD 12V 5A Decoy Module communicates directly with your Power Delivery (PD) or Quick Charge (QC) adapter, triggering a stable 12V output to power monitors, routers, DIY projects, and cooling systems. Built for efficiency, it delivers up to 60W (12V/5A) without the bulk of traditional power bricks.
Key Features
Key Features
- Universal Protocol Support: Compatible with both PD (Power Delivery) and QC (Quick Charge) power supplies, maximizing compatibility with the chargers you already own.
- High Current Capacity (5A Max): Capable of sustaining up to 5A (60W at 12V), easily handling power-hungry devices like monitors and custom LED arrays.
- Ultra-Low Power Consumption: Driven by a highly efficient 8-bit processor that runs cool, ensuring long-term reliability without thermal throttling.
- Zero Voltage Conversion Loss: Because it triggers native voltage rather than converting it, your power transmission remains highly efficient.
- Instant Visual Feedback: An integrated onboard LED light illuminates the second a successful protocol handshake is achieved.
- Micro-Sized Footprint: At just 23x12mm with pre-drilled positioning slots, it perfectly fits into tight DIY enclosures and hardware modifications.
Full Product Description
Full Product Description
Unlock the Full Potential of Your USB-C Chargers
Modern power adapters pack a massive punch, but their default 5V output severely limits their utility for standard electronics. The Type-C PD 12V 5A Decoy Trigger Module bridges this gap. By speaking the native "protocol language" (PD/QC) of your fast charger, this smart module "decoys" the adapter into releasing a fixed 12V Direct Current (DC), eliminating the need to carry multiple bulky AC adapters for your gear.
How It Solves Your Power Problems
Whether you are building a custom DIY workstation, running a 12V router off a power bank during an outage, or powering a dedicated cooling fan, getting a stable 12V from a modern Type-C port can be frustrating. This trigger module acts as a smart handshake device. It seamlessly negotiates with your power source, ensuring your connected equipment receives the exact voltage required to function safely and efficiently.
Engineered for Stability and Low Heat
Unlike cheap voltage step-up converters that waste energy as heat, this trigger module relies on protocol negotiation. Featuring an integrated 8-bit processor, it draws virtually zero power itself, meaning no overheating issues even under sustained high-current loads.
Ultra-Compact for Seamless Integration
Measuring just 23x12mm, this PCB is designed to be embedded directly into custom enclosures, shrink-tubed onto cables, or mounted within existing electronic casings. The onboard LED indicator provides instant visual confirmation the moment the 12V protocol handshake is successful, taking the guesswork out of your electrical builds.
Technical Specifications
Technical Specifications
- Input Interface: Type-C Female
- Output Voltage: 12V DC (Fixed)
- Max Current Support: 5A (Limited by your power supply/cable)
- Supported Protocols: USB-C PD (Power Delivery), QC (Quick Charge)
- Processor: 8-bit low-power MCU
- Dimensions: 23mm x 12mm
- Status Indicator: Built-in LED (Protocol Success)
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q. Can I use this module to fast-charge my smartphone or tablet?
A. No. This module is strictly designed to extract a fixed 12V output for non-mobile hardware (like routers, fans, or monitors). Adding this board will not make a mobile phone charge faster and could potentially damage devices not rated for a constant 12V input.
Q. Why isn't the module outputting exactly 5A of current?
A. This module only triggers the voltage. The actual electrical current (Amperage) drawn is determined by the load of your connected device and the maximum capacity of your power adapter. If your adapter is rated for 12V/1.5A, the current will not exceed 1.5A.
Q. My multimeter shows the voltage is slightly off. Is the module defective?
A. The decoy module only communicates the request for 12V to the power supply. It does not actively regulate or correct the voltage. Minor fluctuations or inaccuracies are a result of the power supply's own voltage accuracy and load drop, not the decoy module.
Target Users / Applications
Target Users / Applications
- DIY Electronics Enthusiasts: For custom builds, Arduino/Raspberry Pi projects requiring 12V rails, and hardware modifications.
- Network & IT Technicians: Powering standard 12V routers, switches, or CCTV cameras via high-capacity Type-C power banks for field testing.
- General Tech Consumers: Powering external monitors, fan heaters, and cooling chips using a single universal USB-C laptop charger.
