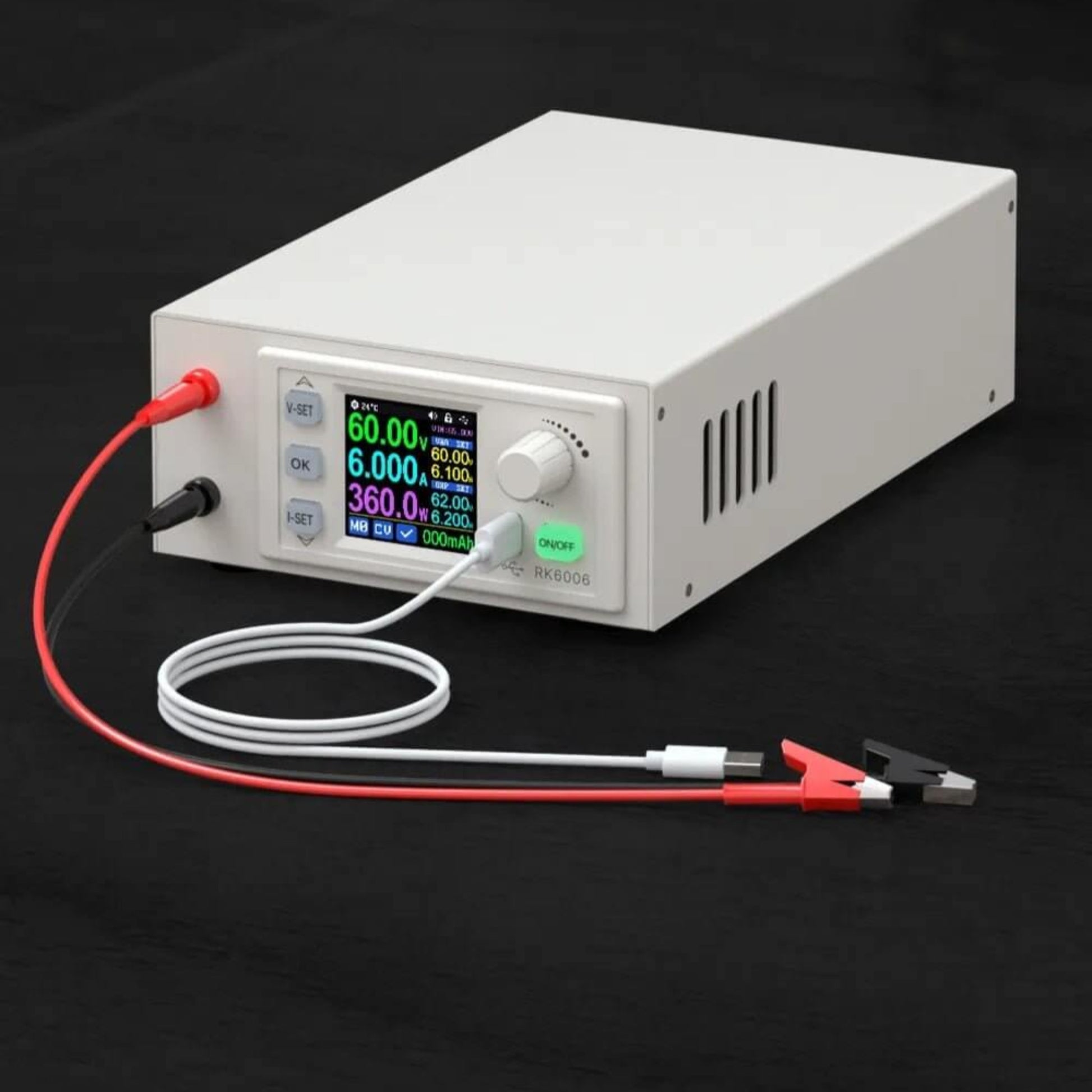

RK6006-C 60V 6A 4 digit AC to DC Adjustable digital control Stabilized Lab Bench Power Supply Battery Charging Easy Operation
NOTE:
- RK6006-C has bluetooth function, and it does not have AC power cord, you need to prepare it by yourself, and it does not have external temperature sensor cable, please notice that, you could buy the power cord from the follow link: 1.5m AC Power Cord U│Standard UK Computer Power Cord│ – Sun Cheong Computer Company Limited (scccltd.com)
Model: RK6006-C
Input voltage range: 100-120V/200-240V AC
Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360W
Output voltage setting/reading resolution: 0.01V
Output current setting/reading resolution: 0.001A
Output voltage setting/reading accuracy: ±(0.3%+3 digits)
Output current setting/reading accuracy:±(0.5%+5 digits)
Output ripple typical:100mV VPP①
Working temperature range: -10℃~40℃
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
regulation: ±(0.1%+2 digits) Constant voltage mode load
regulation: ±(0.1%+3 digits) Constant current mode load
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％

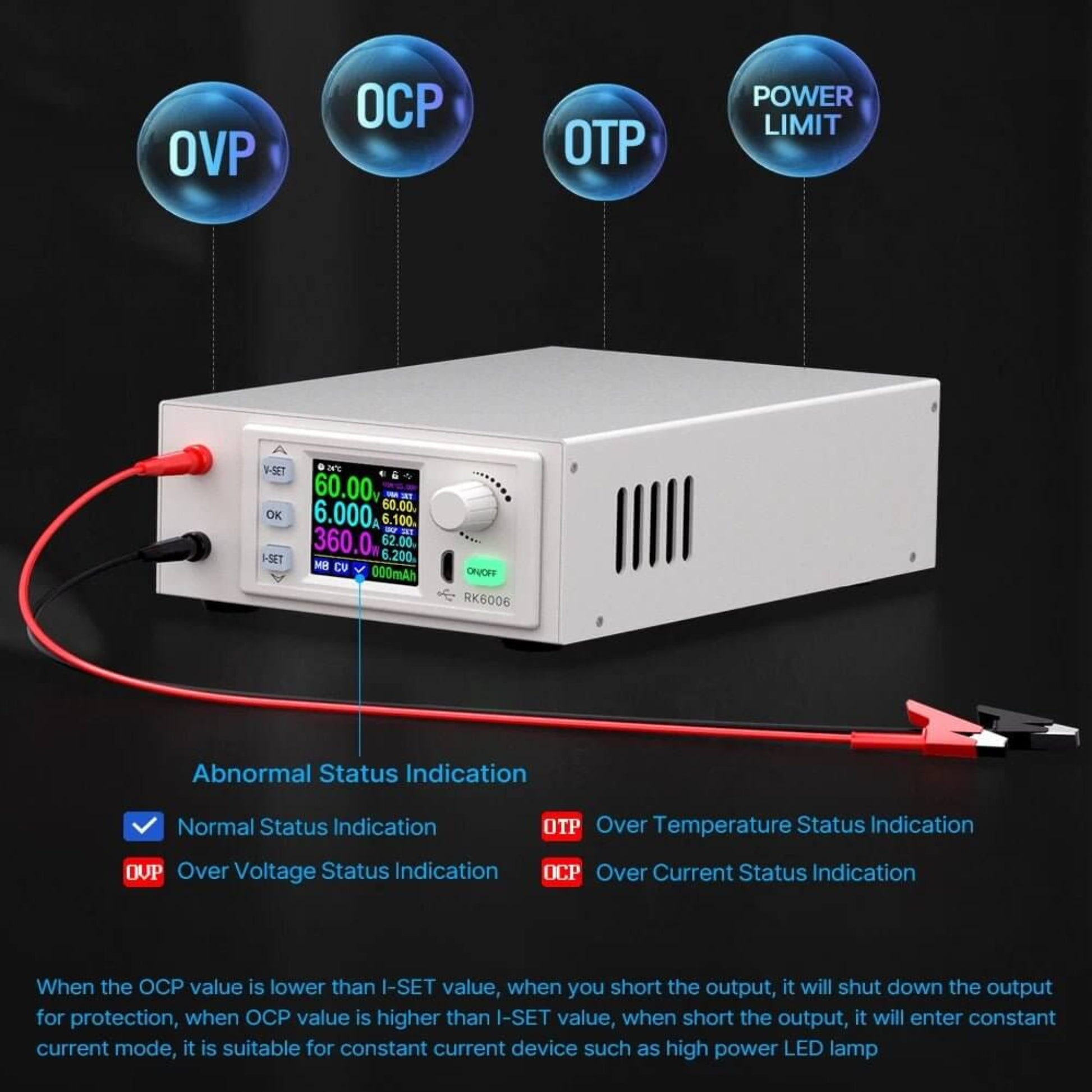

Over temperature protection: System temperature>90℃
Screen brightness setting: 0-5(6 level in total)

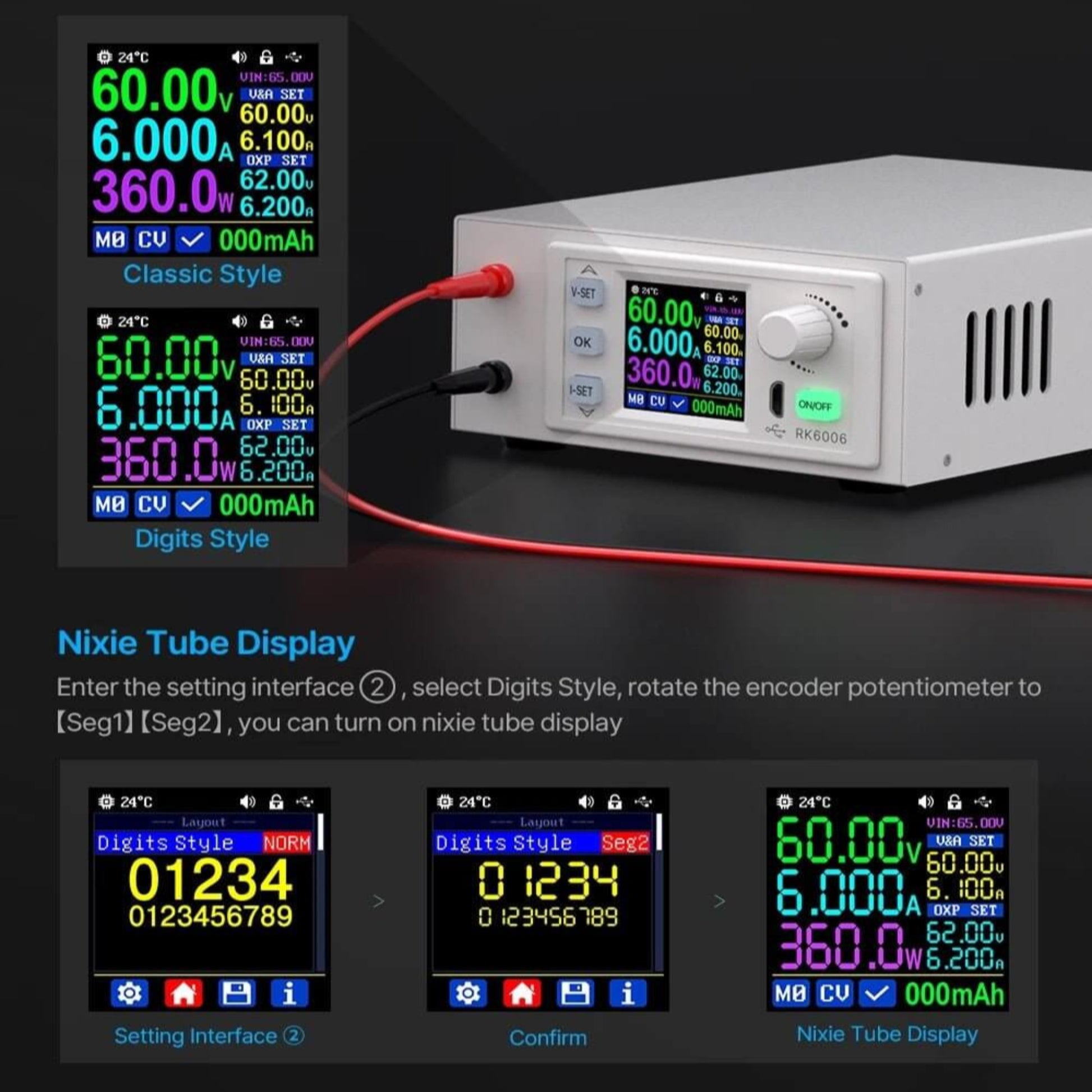

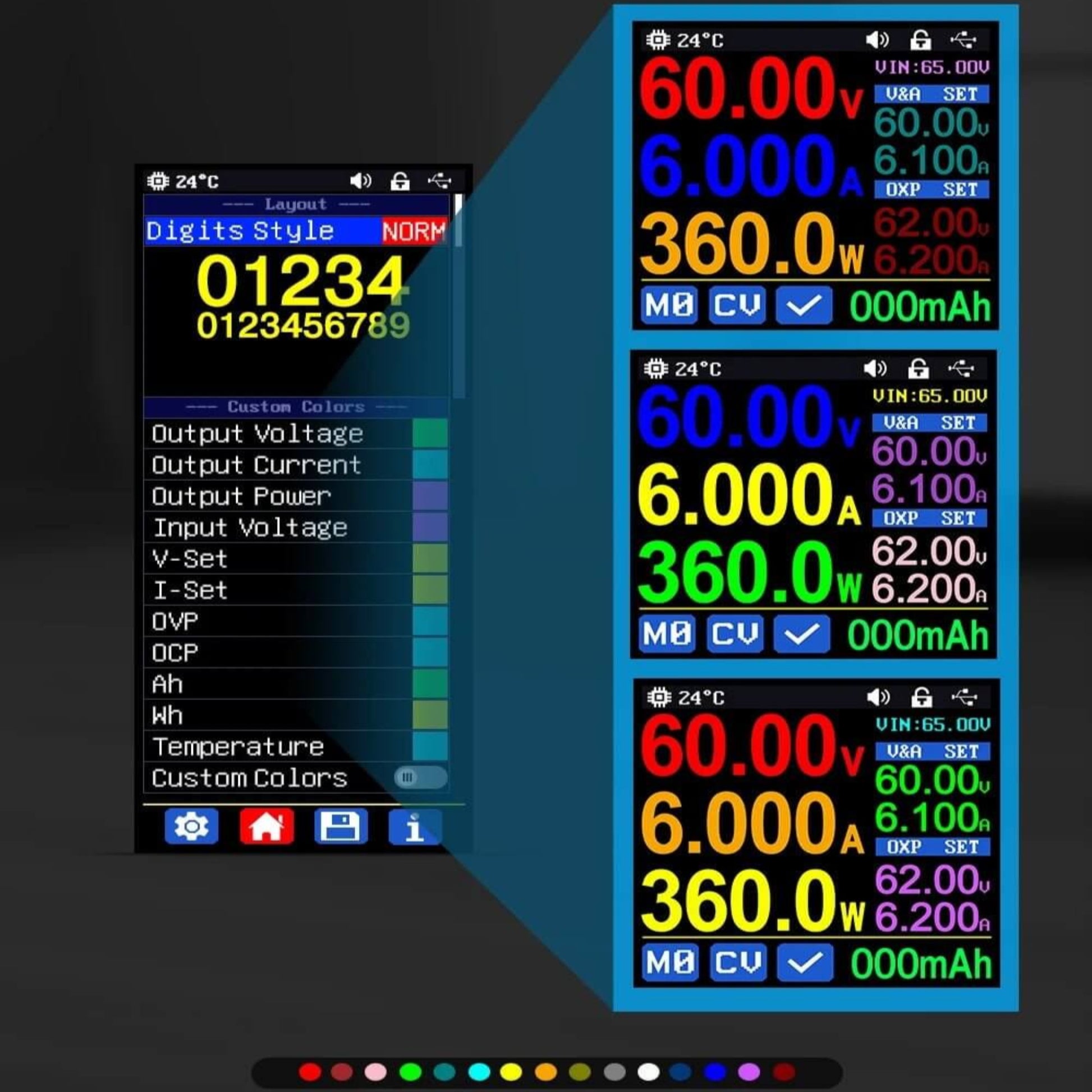

Screen: 1.54 inch 240*240 color LED display
Weight(with package):About 1.3 kg

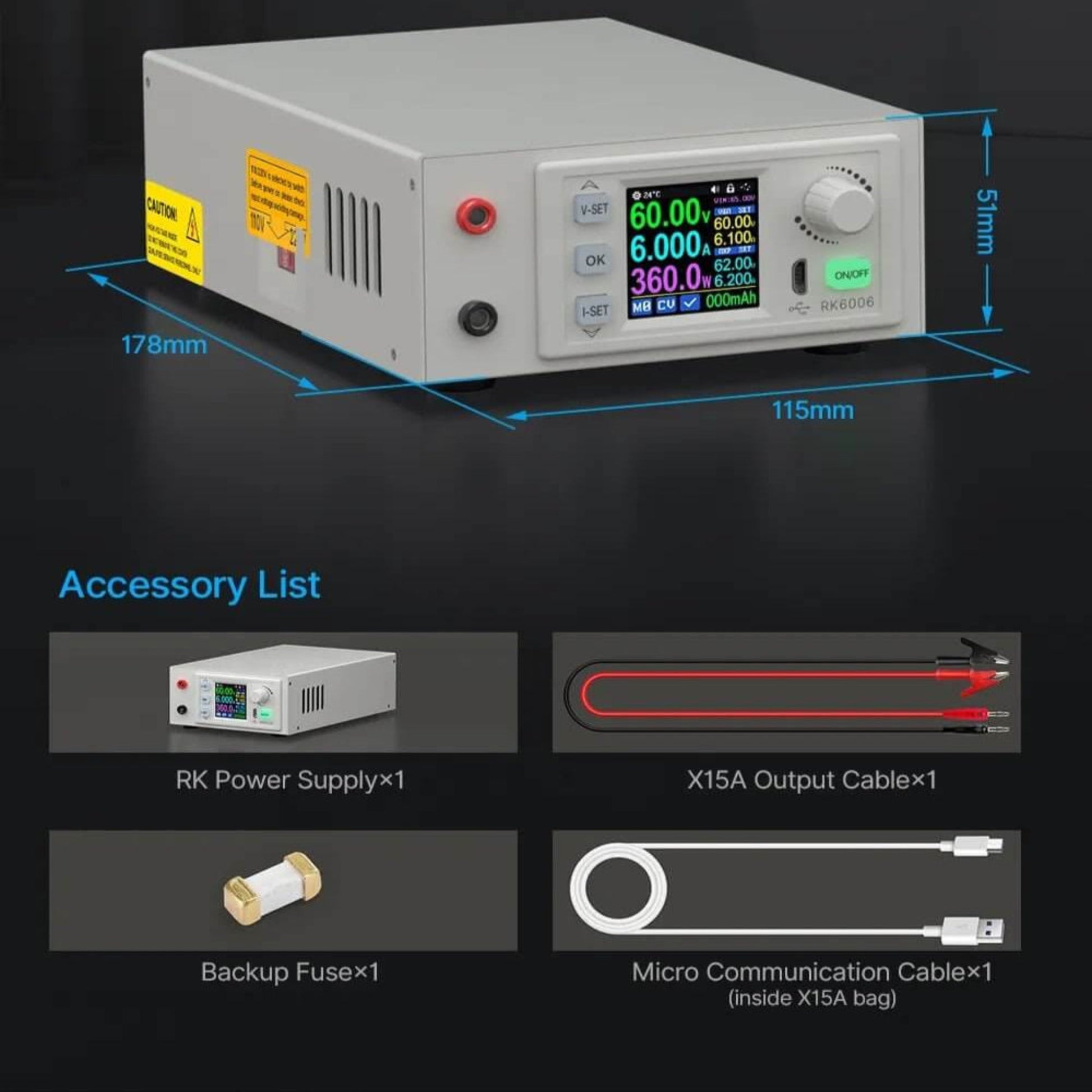

Product dimension: 200*115*57mm

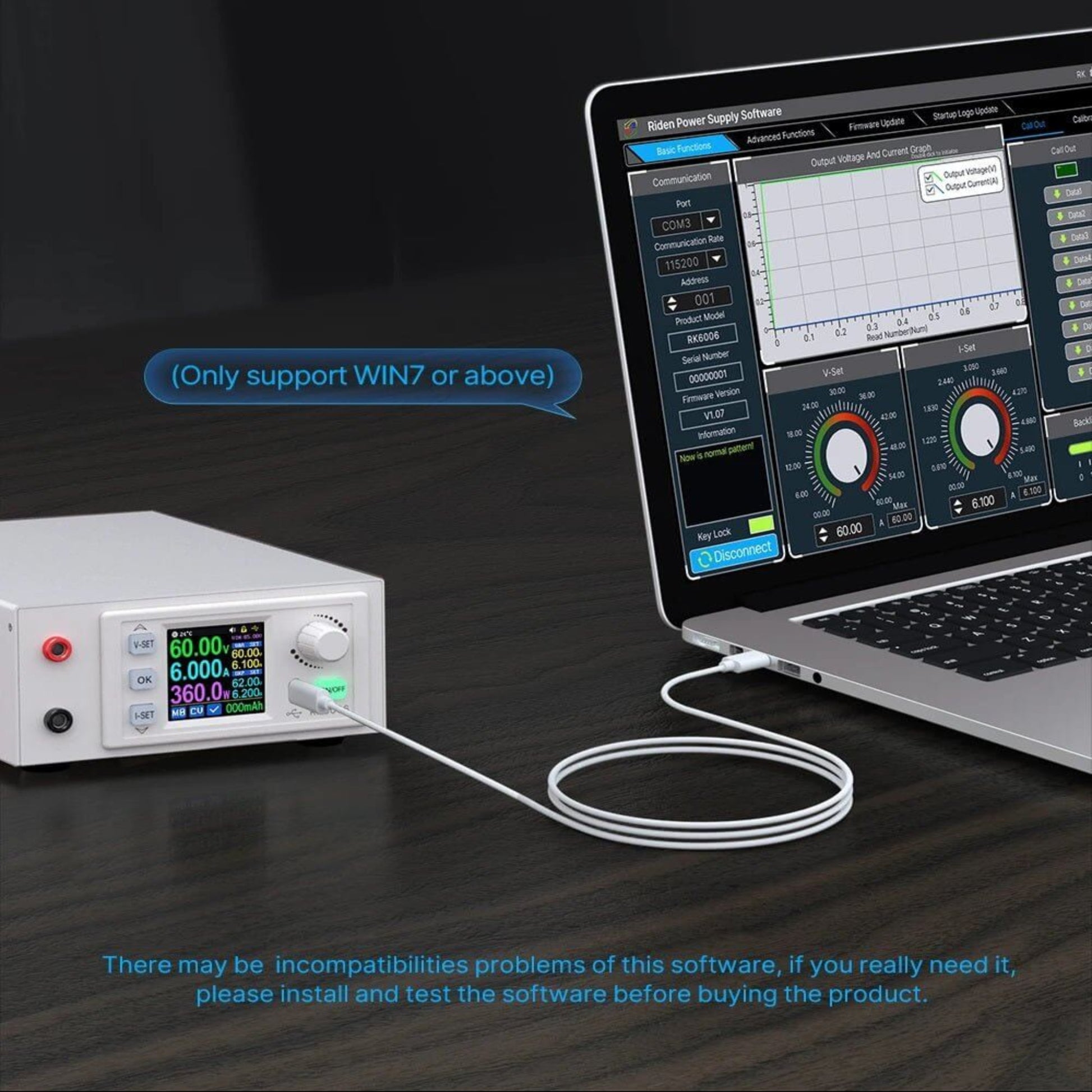

Support USB/Bluetooth communication: yes
①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals

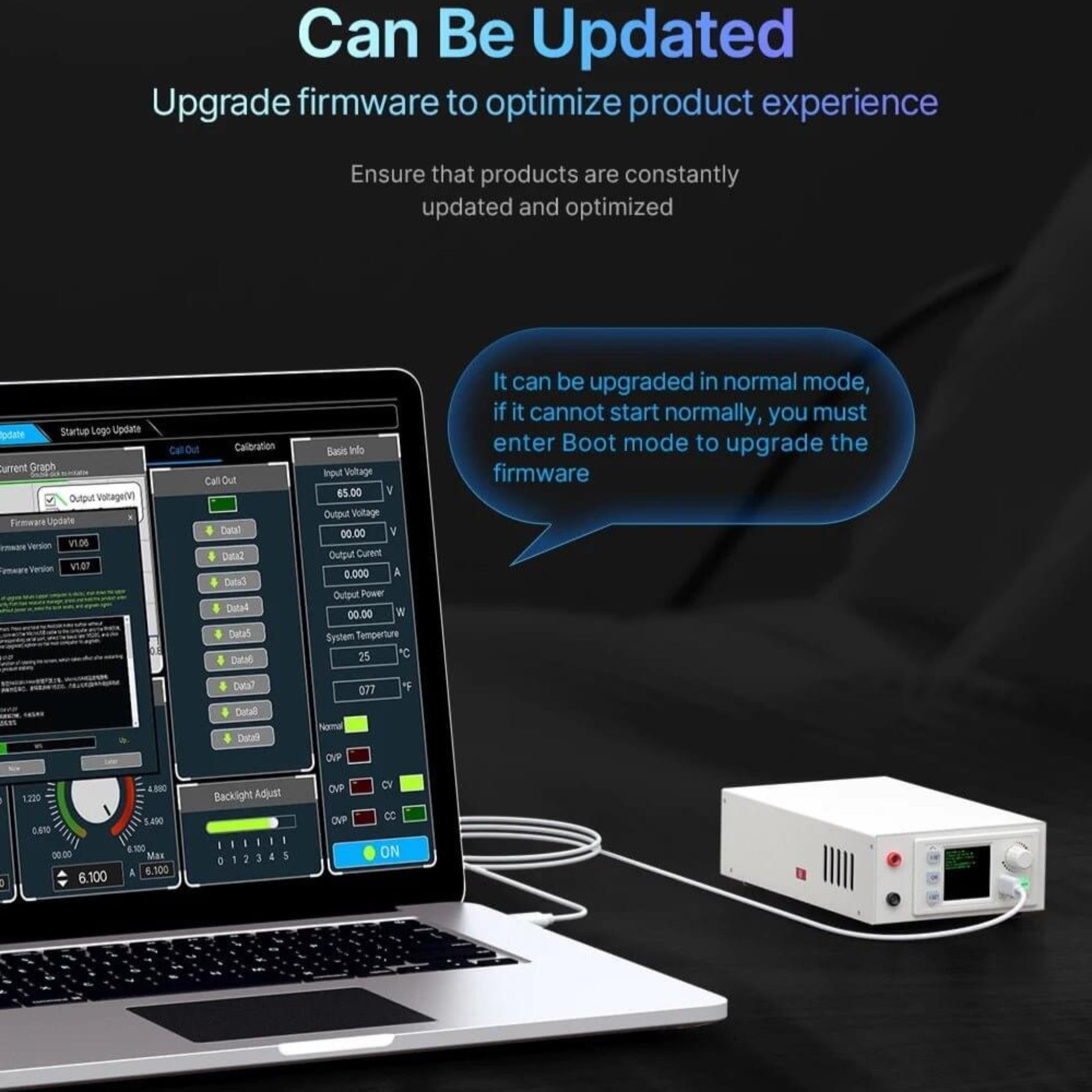

- RK6006-C manual, PC software, APP download link: https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing

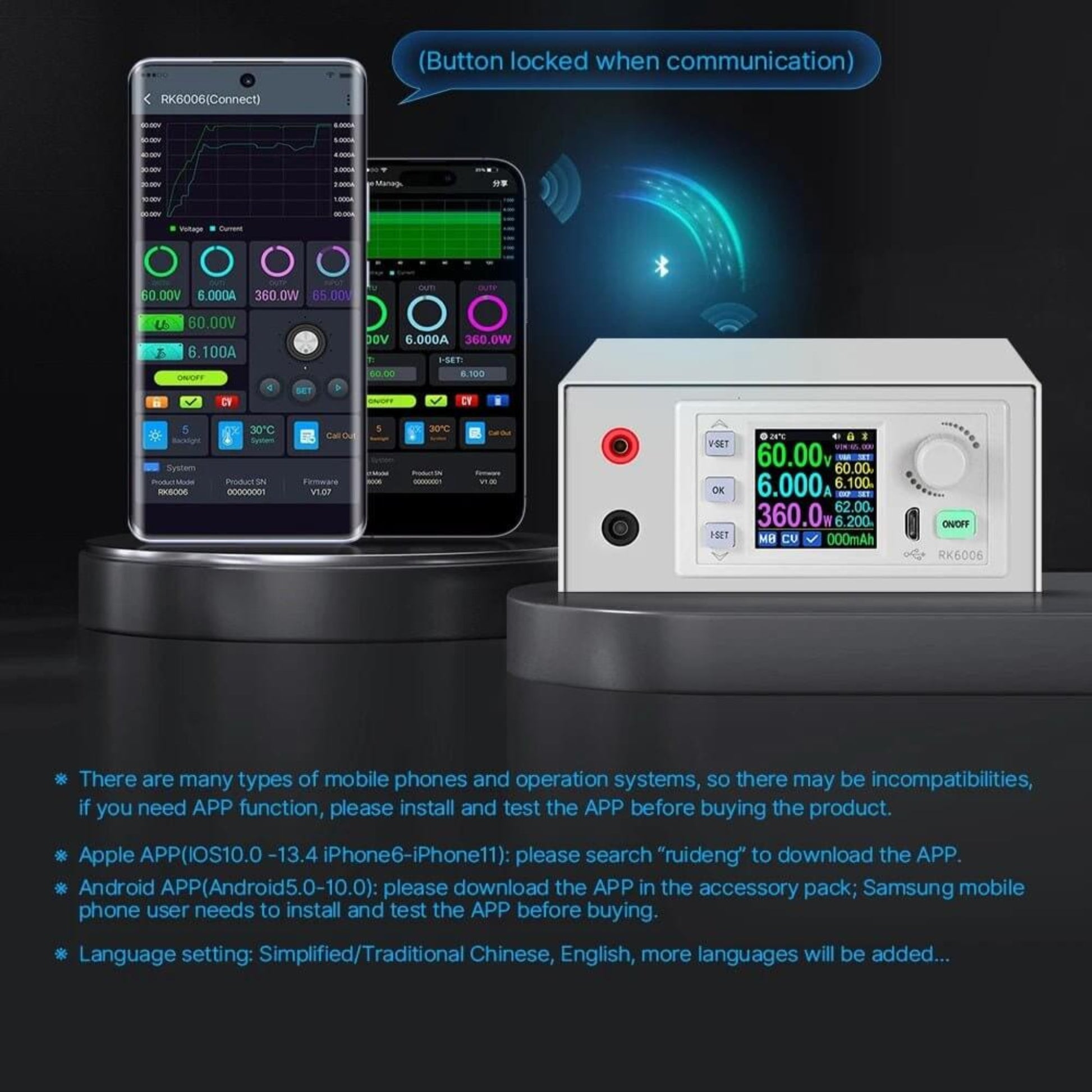

- IOS APP download: search "RUIDENG" in APP STORE
- Android app download link: https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing
