Raspberry Pi Pico 2 W with Pre-Soldered Headers (RP2350)

Upgrade Your Project with the Next-Gen Raspberry Pi Pico 2 W

Meet the Raspberry Pi Pico 2 W (SC1634), the powerful, next-generation microcontroller that's ready to go right out of the box. This version comes with pre-soldered 40-pin headers, saving you time and the hassle of soldering.

Based on the new RP2350 chip, the Pico 2 W delivers a massive boost in performance, memory, and security. With a faster dual-core Arm Cortex-M33 processor, double the SRAM (520KB), and double the Flash memory (4MB), it's built to handle your most demanding tasks.

The "W" in Pico 2 W stands for wireless. Featuring built-in 2.4GHz 802.11n Wi-Fi and Bluetooth 5.2, this board is the perfect choice for your next IoT project, smart device, or wireless-controlled robot.

Key Features:

• Next-Gen RP2350 Core: Features a high-performance dual-core Arm Cortex-M33 processor, offering significantly more power than the original Pico.
• More Memory: Equipped with 520KB of on-chip SRAM and 4MB of on-board QSPI flash—double the memory of its predecessor.
• Integrated Wireless: On-board 2.4GHz 802.11n Wi-Fi and Bluetooth 5.2 with an integrated antenna and modular compliance certification.
• Advanced Security: The RP2350 provides a robust security architecture, including Arm TrustZone®, signed boot, and hardware-accelerated cryptography.

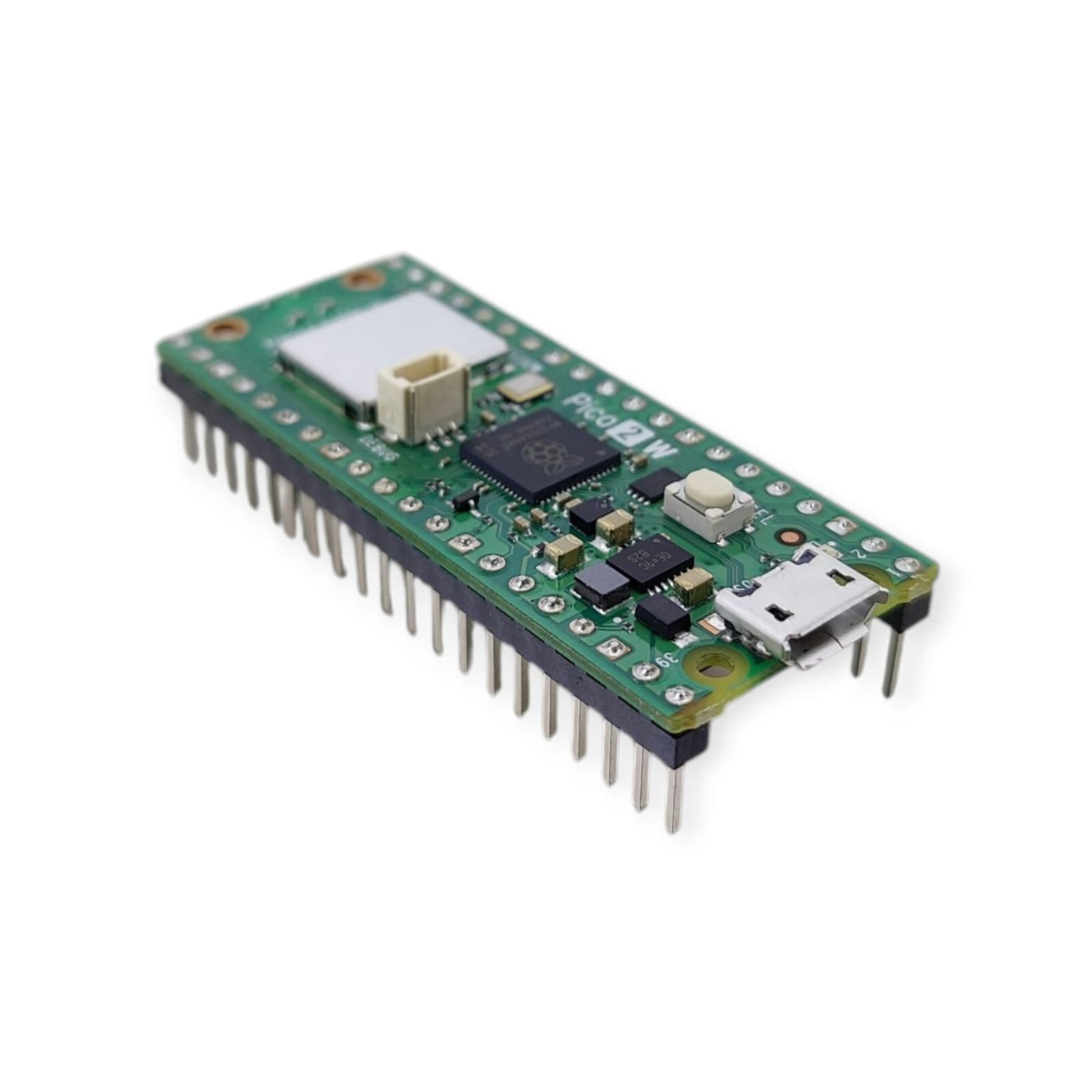

• Ready to Use (No Soldering!): This model comes with pre-soldered 40-pin headers, making it breadboard-friendly and perfect for quick prototyping.
• Flexible I/O: Retains the classic Pico form factor with 26 multi-purpose GPIO pins, including 4 analog inputs (ADC), plus Raspberry Pi's unique PIO (Programmable I/O) state machines.

Technical Specifications:

• Microcontroller: Raspberry Pi RP2350 (Dual-core Arm Cortex-M33)
• Memory: 520KB SRAM, 4MB QSPI Flash
• Connectivity: 2.4GHz 802.11n Wireless LAN & Bluetooth 5.2
• Interfacing: 26 multi-purpose GPIO (4 can be used for ADC)
• Peripherals: 2x UART, 2x SPI, 2x I2C, 24x PWM channels
• USB: 1x USB 1.1 controller and PHY (supports host and device)
• Input Power: 1.8V – 5.5V DC
• Form Factor: 21mm × 51mm
• Operating Temperature: -20°C to +85°C
