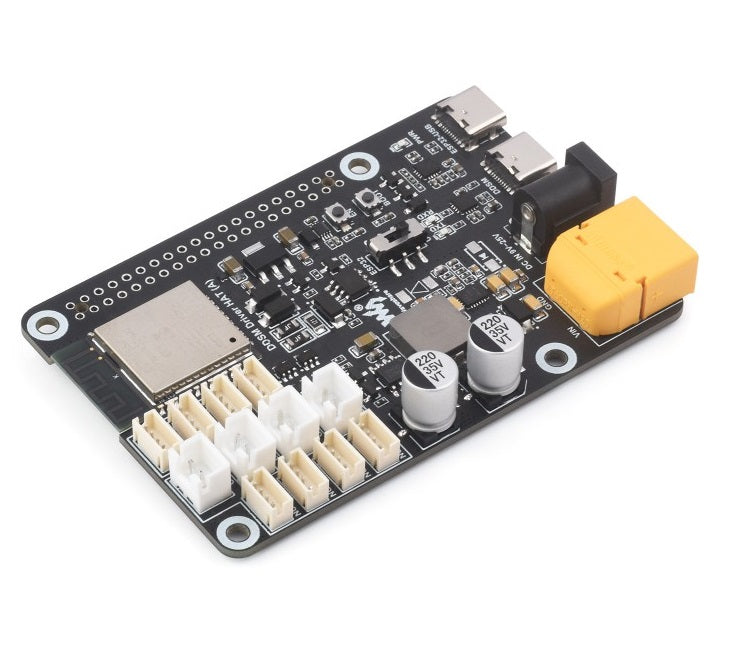

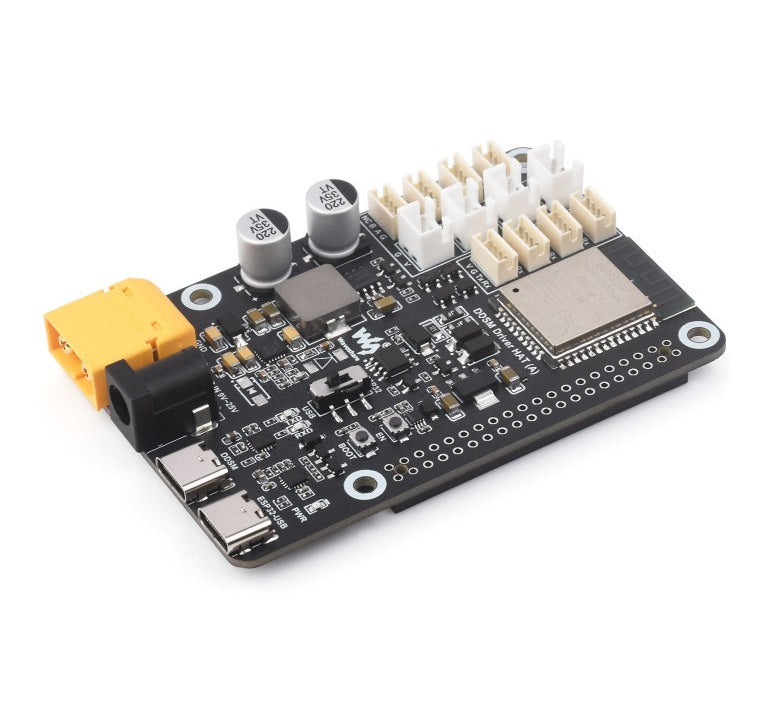

Direct Drive Servo Motor Driver Board, Integrates ESP32 and Control Circuit, 2.4G WiFi Support, Suitable for DDSM Series Hub Motors, ESP Now Support
Features
· Suitable for DDSM series hub motors such as DDSM115 and DDSM210, onboard 4-ch DDSM115 motor interfaces and 4-ch DDSM210 motor interfaces
· Provides DDSM hub motor control demo and SDK, easy to use
· Supports multiple wired and wireless communication modes, supports JSON command interaction for easier control
· Supports connecting to Raspberry Pi, powering the Pi via integrated 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management
· Integrated WEB application for controlling and setting the DDSM hub motors, more convenient for debugging

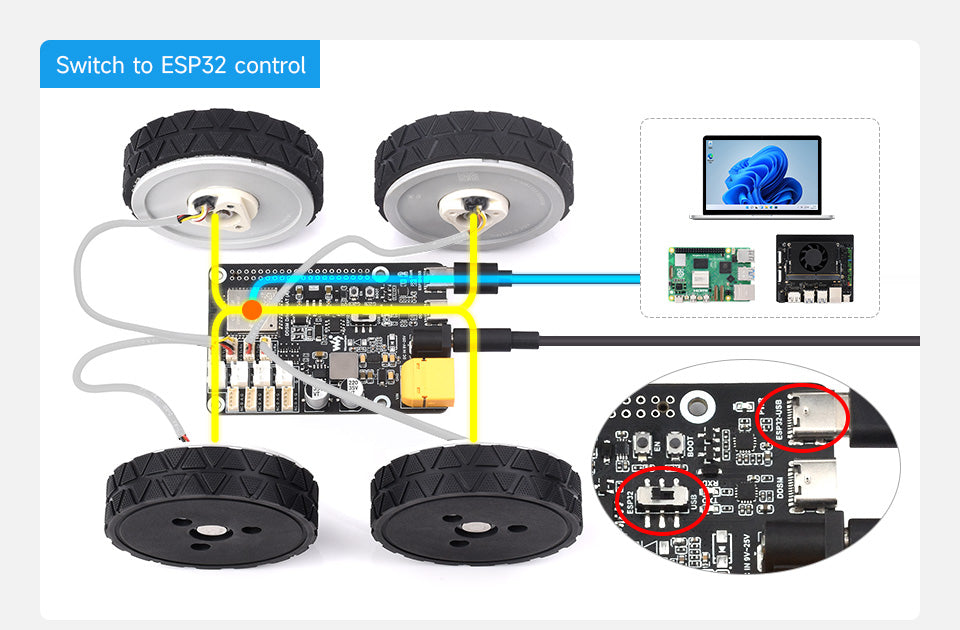

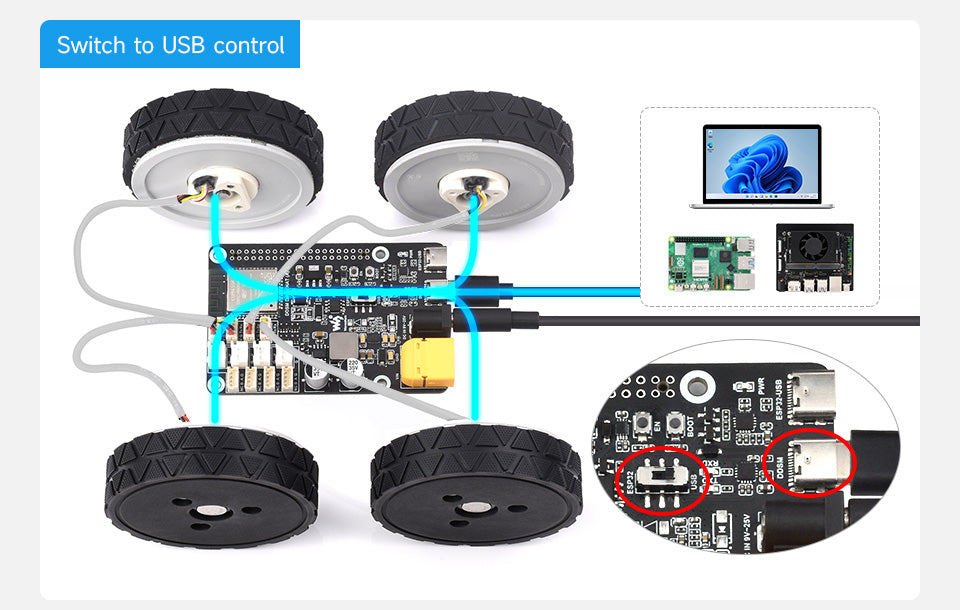

· Supports controlling the DDSM hub motors directly via onboard Type-C port
Application Examples

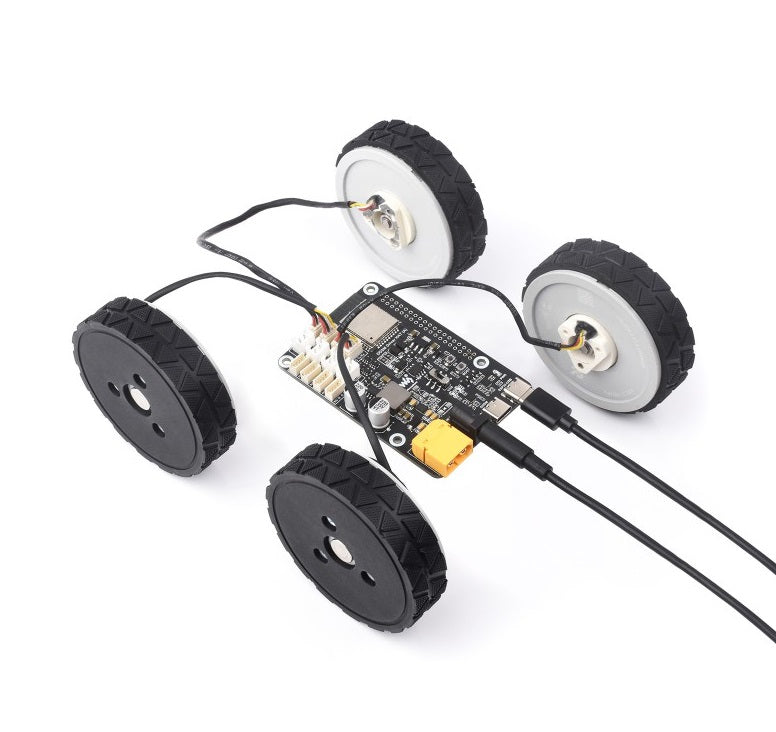

· Suitable for driving DDSM series hub motors and obtaining feedback information

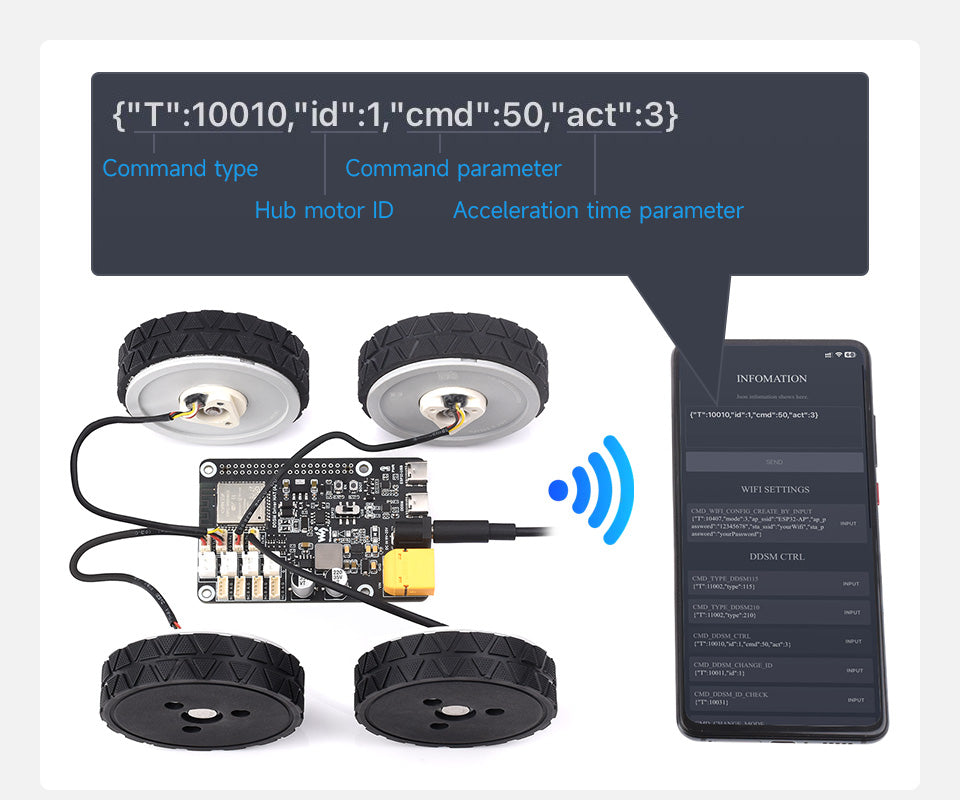

· The host controller can control the hub motors by sending JSON commands and obtain feedback information in JSON format, easy to use, more convenient for secondary development
· Multiple communication methods for easy integration into robotics projects
Package included:
1. DDSM Driver HAT (A) x1
2. 2×20 pin header x1
3. USB Type-A to Type-C cable ×1
4. Screws pack ×1
