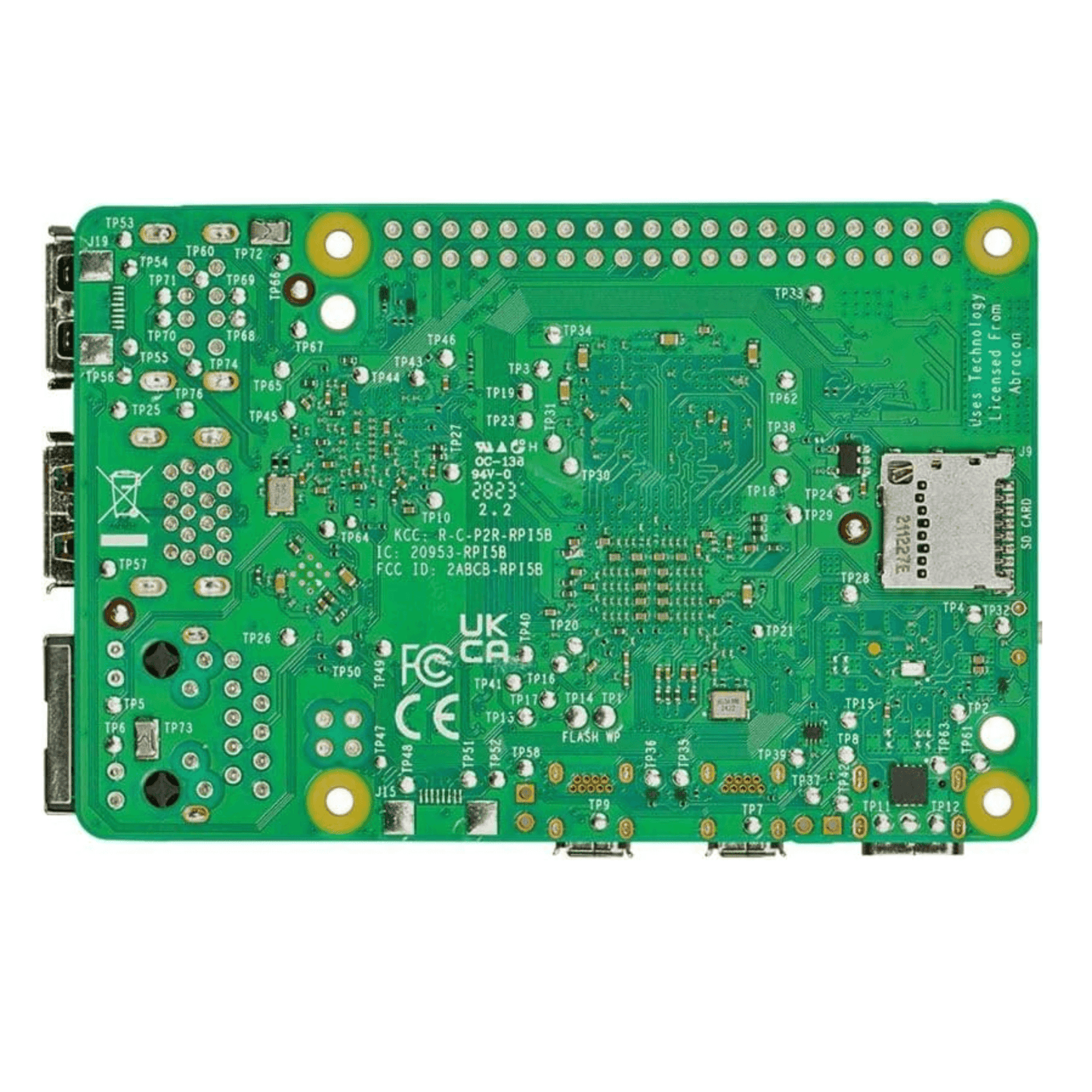

Raspberry Pi 5 Model B (1GB/4GB/8GB/16GB) | 2.4GHz Quad-Core SBC
Raspberry Pi 5 Model B (1GB/4GB/8GB/16GB) | 2.4GHz Quad-Core SBC
Couldn't load pickup availability
Short Product Description
Short Product Description
Experience desktop-class performance with theRaspberry Pi 5 Model B. Powered by a blazing-fast2.4GHz Quad-Core ARM Cortex-A76 CPUand available in 1GB, 4GB, 8GB, or 16GB RAM variants, this flagship single-board computer (SBC) is built for everything from lightweight IoT nodes to heavy-duty edge computing. Featuring a newPCIe 2.0 interfacefor NVMe SSDs, dual 4K display output, and a built-in power button. Need help configuring your build?Sun Cheong Computer Co. Ltd.has over 20 years of IT expertise. Visit our Sham Shui Po physical store for instant pickup and expert on-site technical configuration for your Pi accessories!
Key Features
Key Features
- Blazing-Fast CPU: 2.4GHz Quad-Core ARM Cortex-A76 delivers unprecedented processing power for complex DIY electronics and robotics.
- PCIe 2.0 Interface: Connect high-speed peripherals like NVMe SSDs (via adapter) for desktop-level storage speeds and fast booting.
- Flexible Memory Options: Choose from the budget-friendly 1GB, the standard 4GB/8GB, or the massive 16GB LPDDR4X-4267 SDRAM to perfectly match your project's demands.
- Dual 4K Display Output: The VideoCore VII GPU ensures smooth 4K visuals for digital signage, media centers, and dual-monitor workstations.
- Built-in Power Button & RTC: Safely power on/off without pulling the cable, and keep accurate time offline with the Real-Time Clock.
- High-Speed I/O: Features two USB 3.0 ports (5 Gbps), two USB 2.0 ports, and Gigabit Ethernet with PoE+ support (via HAT).
Full Product Description
Full Product Description
Desktop-Class Performance in a Pocket-Sized Board
The Raspberry Pi 5 represents a massive generational leap in single-board computing. At its heart lies the Broadcom BCM2712, a 2.4 GHz quad-core ARM Cortex-A76 processor that delivers up to three times the speed of its predecessor. Paired with the high-performance VideoCore VII GPU (supporting OpenGL ES 3.1 and Vulkan 1.2), this board effortlessly handles dual 4K60 displays, advanced retro gaming emulation, and intensive media center applications. It is a true desktop PC replacement in a credit-card-sized footprint.
Next-Gen Connectivity with PCIe 2.0
For the first time ever, the flagship Raspberry Pi features a PCIe 2.0 x1 interface. This opens up a world of high-bandwidth possibilities. By adding a compatible M.2 HAT (Hardware Attached on Top), you can connect ultra-fast NVMe SSDs directly to the board. This allows for lightning-fast boot times, massive data storage for personal NAS setups, and rapid file transfers that traditional Micro SD cards simply cannot match.
Essential Power & Thermal Management
The Pi 5 introduces highly requested quality-of-life upgrades, including an integrated power button for safe shutdowns and a built-in Real-Time Clock (RTC). To support its massive performance boost, the board features a dedicated Power Management IC (PMIC). It requires a robust 5V/5A DC power supply with Power Delivery (PD) to ensure stable operation when powering high-draw USB peripherals.
💡 Pro Tip from Our Technicians
"Choosing the right RAM is crucial! If you are building a 'headless' IoT sensor, a Pi-Hole ad blocker, or a simple retro gaming console, the new 1GB RAM version is incredibly cost-effective. However, if you plan to use the Pi 5 as a daily desktop replacement, run heavy Docker containers, or host a local AI LLM, we highly recommend stepping up to the 8GB or 16GB models. Also, the Pi 5 runs hot under load—an Active Cooler is highly recommended. Drop by our Sham Shui Po store, and our team at Sun Cheong Computer Co. Ltd. will help you build and test your complete Raspberry Pi 5 rig on the spot!"
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Processor (CPU) | 2.4 GHz quad-core ARM Cortex-A76 (Broadcom BCM2712) |
| Graphics (GPU) | VideoCore VII (OpenGL ES 3.1, Vulkan 1.2) |
| Memory (RAM) | 1 GB / 4 GB / 8 GB / 16 GB LPDDR4X-4267 SDRAM |
| Wireless Connectivity | Dual-band 802.11ac Wi-Fi, Bluetooth 5.0 / BLE |
| Wired Network | Gigabit Ethernet (PoE+ support via separate HAT) |
| USB Ports | 2 × USB 3.0 (5 Gbps), 2 × USB 2.0 |
| Expansion Interface | PCIe 2.0 x1 interface (requires M.2 HAT) |
| Video / Camera | 2 × four-lane MIPI CSI/DSI connectors |
| Storage | Micro SD slot (supports SDR104 high-speed mode) |
| Power Requirement | 5V/5A DC via USB-C (PD enabled) ⚠️ Official PSU highly recommended |
| Additional Features | Integrated Power Button, Real-Time Clock (RTC), 40-pin GPIO |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Why do I need the official 27W (5V/5A) power supply for the Pi 5?The Raspberry Pi 5 is a high-performance computer. If you use a standard 5V/3A phone charger, the Pi 5 will automatically restrict the USB ports to 600mA to prevent crashing. To unlock the full 1.6A USB power (necessary for external hard drives and SSDs), you MUST use a PD-enabled 5V/5A power supply.
- Can I boot the Raspberry Pi 5 directly from an NVMe SSD?Yes! By utilizing the new PCIe 2.0 x1 interface and attaching a compatible M.2 NVMe HAT, you can configure the Raspberry Pi 5 to boot directly from an ultra-fast NVMe SSD, bypassing the slower Micro SD card entirely.
- Is the 1GB RAM version enough for my project?The 1GB version is perfect for "headless" applications where no desktop GUI is loaded. This includes running a Pi-Hole network ad blocker, a lightweight file server, basic IoT sensor logging, or simple retro emulation. For desktop web browsing or heavy multitasking, we recommend 4GB or higher.
Target Users / Applications
Target Users / Applications
- Home Lab & Server Enthusiasts: Building low-power, high-speed personal NAS (Network Attached Storage) or Plex media servers using the PCIe NVMe interface.
- Smart Home Integrators: Running heavy Home Assistant OS instances with multiple Docker containers and Zigbee/Z-Wave dongles.
- Edge AI Developers: Utilizing the Cortex-A76 CPU for local machine learning inference, computer vision, and robotics processing.
- Retro Gaming Makers: Building powerful arcade emulation consoles capable of running advanced 3D gaming systems smoothly.
