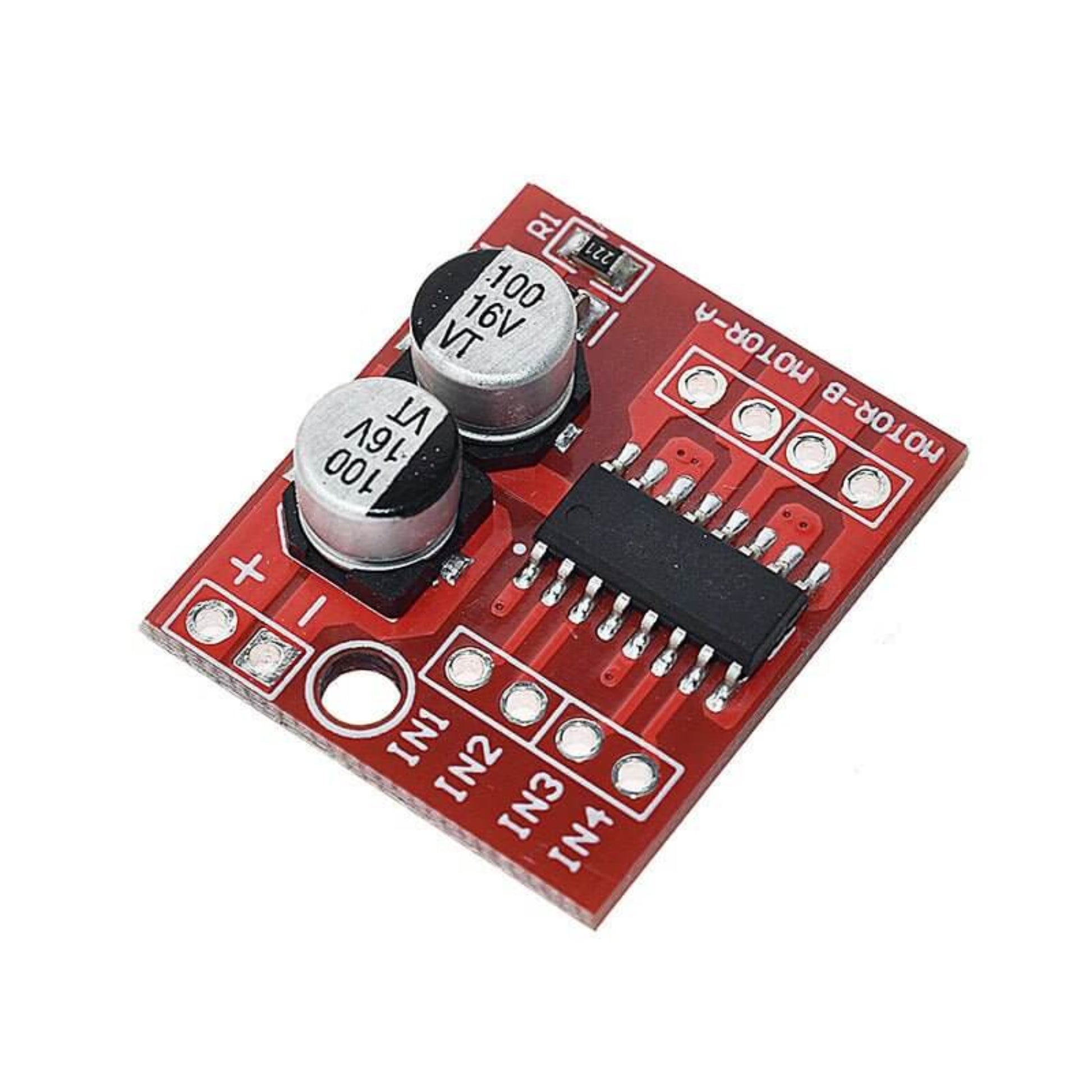

• PWM DC Motor Drive Module for controlling DC motors with dual H-bridge setup, suitable for robotics and toy cars.

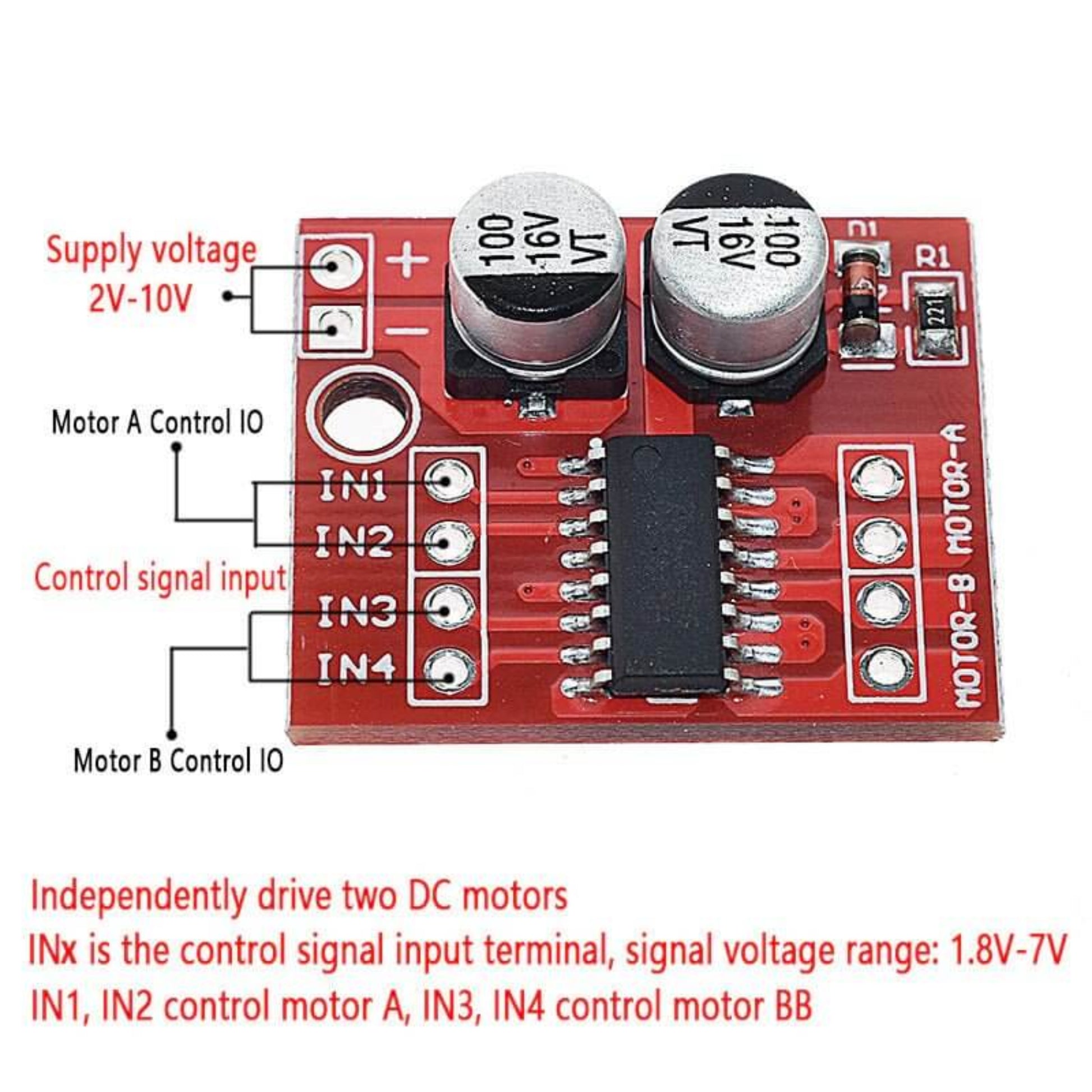

  • PWM DC Motor Drive Module for controlling two DC motors with 2V-10V voltage range, features input terminals for motor control.

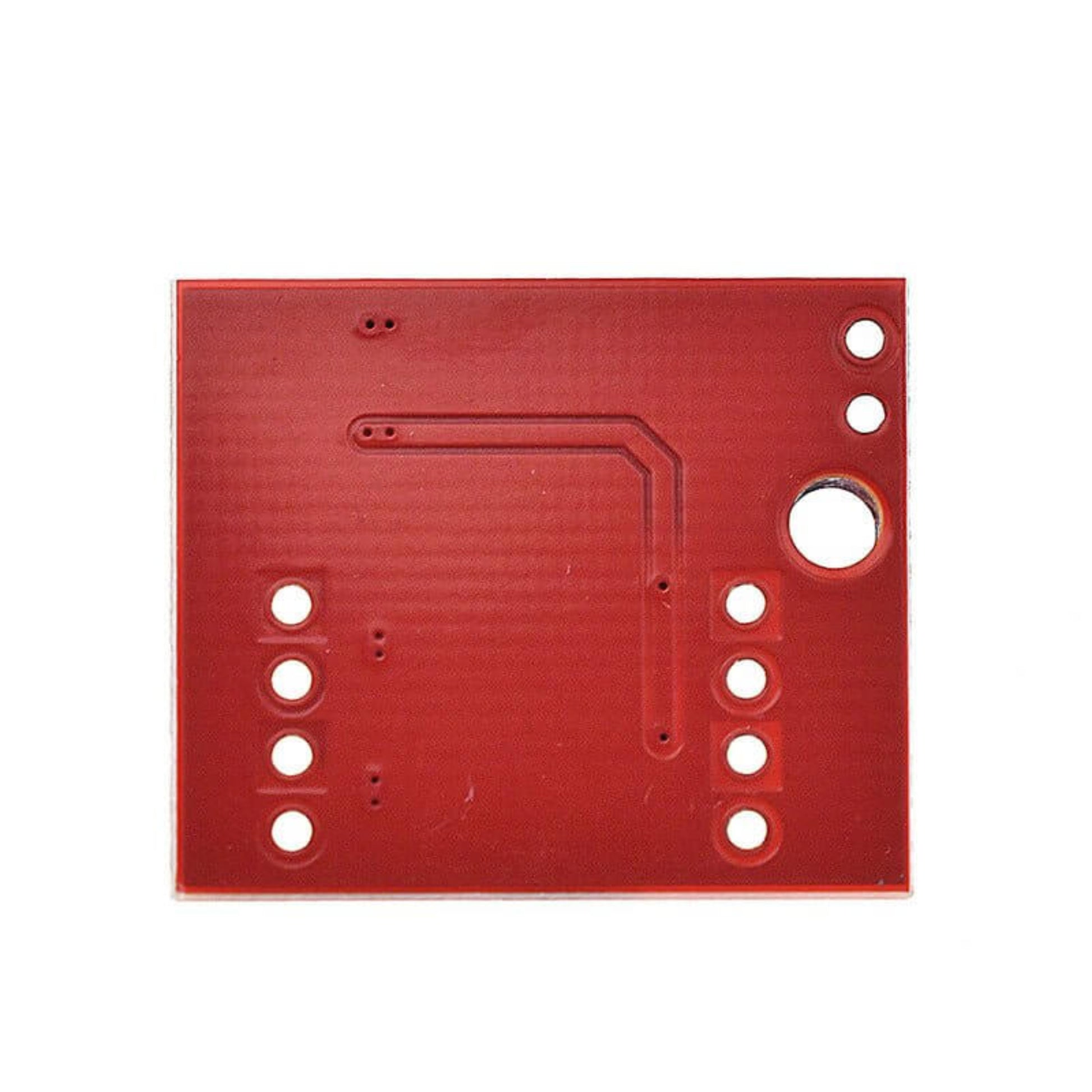

  • Red circuit board for PWM DC motor drive module, designed for dual H bridge and stepper motor applications.
  • PWM DC Motor Drive Module L298N with dual H bridge, ideal for robots and toy cars, compact size 25mm x 21mm.
1 4
12 sales

Mini Dual DC Motor Driver Module with PWM & H-Bridge

Mini Dual DC Motor Driver Module with PWM & H-Bridge

HK$15.00
HK$15.00
Sale Sold out
Shipping calculated at checkout.

Overview:

Power your smart car, toy robot, or DIY projects with our ultra-compact DC Motor Drive Module. Designed for battery-powered applications, this versatile module operates on a wide 2V-10V supply, capable of independently driving two DC motors or one 4-wire 2-phase stepper motor. Achieve precise forward/reverse control and variable speed with PWM, with each channel delivering up to 1.5A continuous current and peak currents of 2.5A. Built-in thermal protection ensures automatic recovery from stalling.

Why Choose Our Motor Driver Module?

  • Superior Performance & Efficiency: Unlike older L298N modules, our driver uses a professional motor driver chip with built-in low conduction resistance switch MOS. This results in minimal heat generation, eliminating the need for bulky heatsinks, saving space, and significantly increasing energy efficiency – perfect for battery-powered designs. (Say goodbye to L298N's low efficiency, high heat, and potential for burnout!)
  • Robust & Reliable: With dual 1.5A continuous output (2.5A peak per channel) and an integrated overheat protection circuit (TSD with hysteresis effect), you don't have to worry about motor stalling or burnout. The module automatically recovers after cooling, making it ideal for the common voltage and current ranges found in smart cars.
  • Ultra-Compact Design: Measuring just 24.7mm x 21mm x 5mm and weighing only 2.6g, this module is incredibly small and lightweight. It features near-zero standby current (less than 0.1uA), making it the ideal choice for vehicle models and applications where space and power consumption are critical.

Key Features & Specifications:

  • Driver Type: H-bridge dual motor drive
  • Motor Compatibility: Drives two DC motors or one 4-wire 2-phase stepper motor
  • Supply Voltage: 2V - 10V
  • Control Signal Voltage: 1.8V - 7V
  • Output Current: 1.5A continuous per channel (2.5A peak)
  • Standby Current: Less than 0.1uA (ultra-low)
  • Safety Features:
    • Built-in common conduction circuit prevents motor malfunction if inputs are suspended.
    • Integrated overheat protection circuit (TSD) with hysteresis effect.

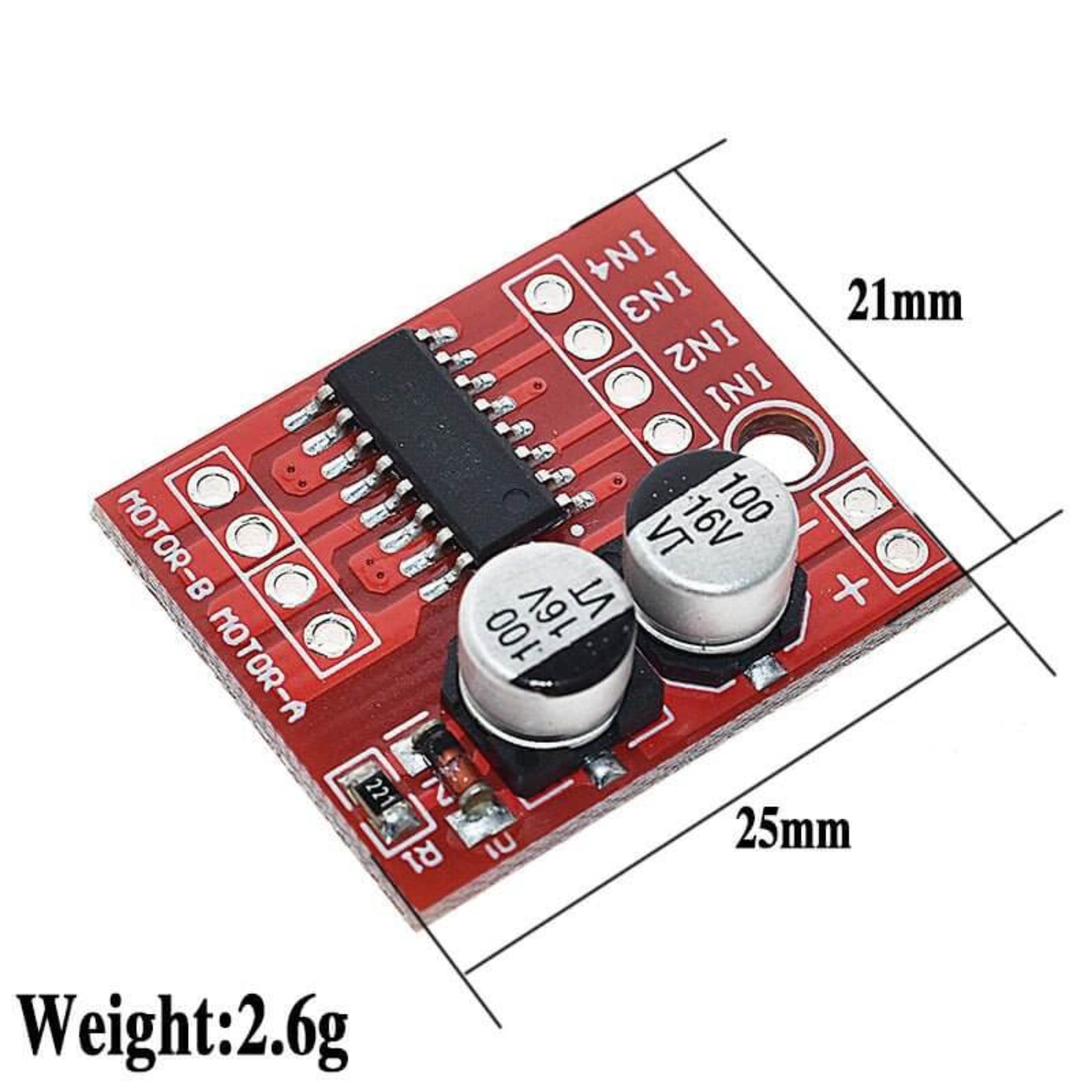

  • Dimensions (LxWxH): 24.7mm x 21mm x 5mm
  • Mounting Hole Diameter: 2 mm
