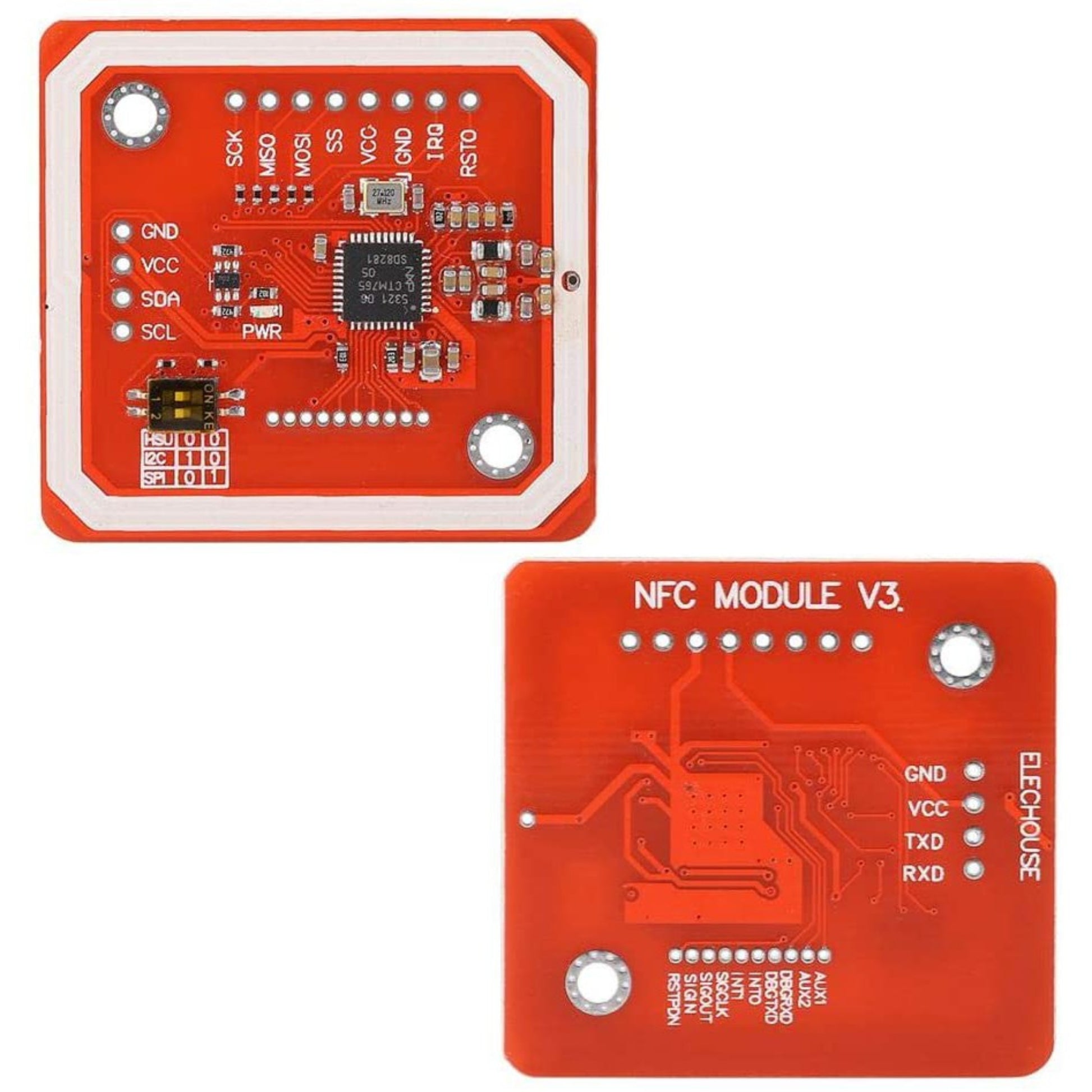

  • Top view of PN532 module showing I2C SPI HSU interface pins and gilt PCB.

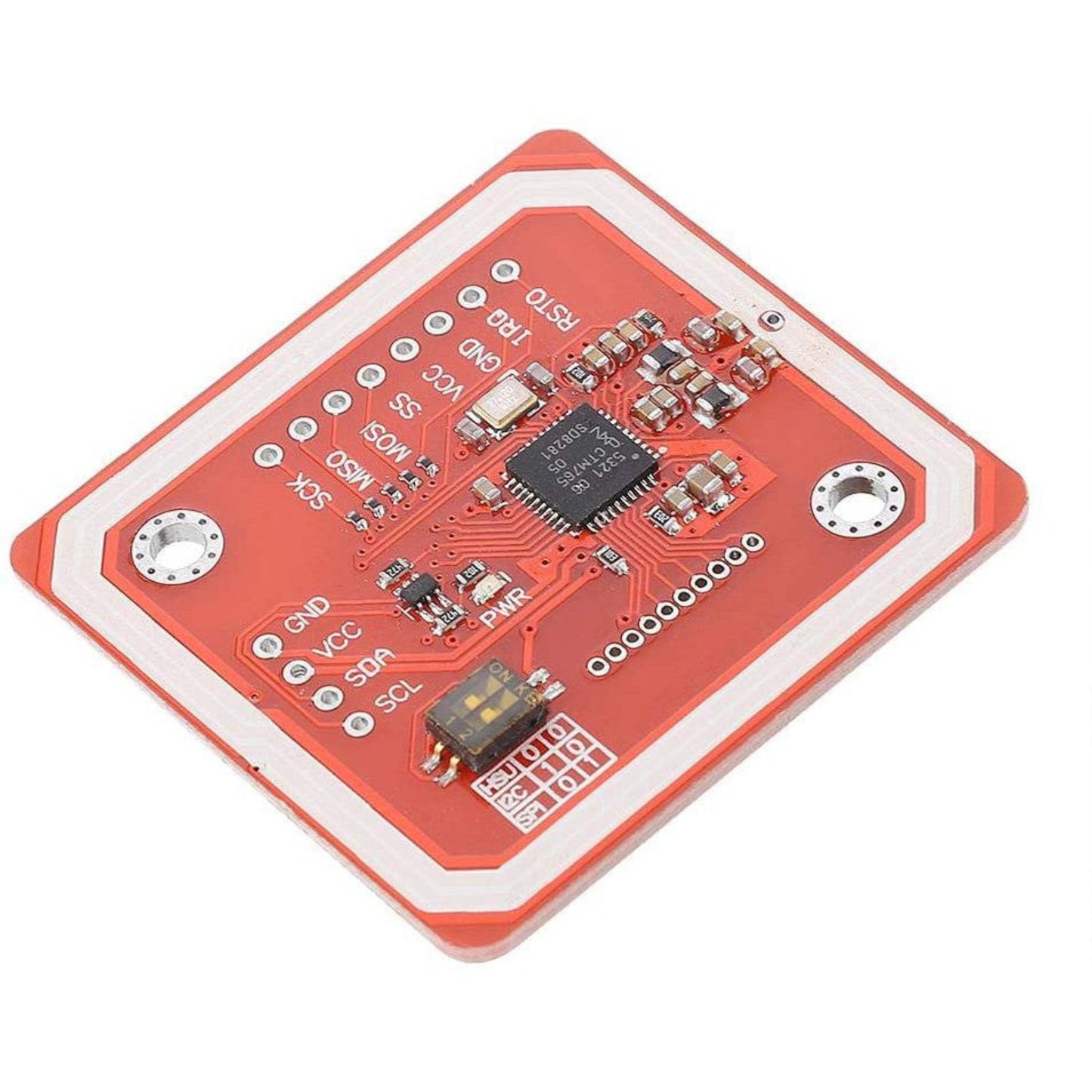

  • PN532 NFC module connection ports for GND VCC SDA SCL and SPI interfaces.
1 3
sales

PN532 NFC RFID Module V3 Kit for Arduino & Raspberry Pi | I2C SPI HSU

PN532 NFC RFID Module V3 Kit for Arduino & Raspberry Pi | I2C SPI HSU

HK$68.00
HK$68.00
Sale Sold out
Shipping calculated at checkout.

Short Product Description

Upgrade your interface with crisp visuals.
This 12864 Graphic LCD Module delivers a sharp 128x64 pixel resolution on a stunning blue backlight with white pixels. Built with the versatile ST7920 controller, it supports both Parallel and SPI Serial modes, allowing you to save precious I/O pins on your Arduino or microcontroller. Perfect for displaying complex graphics, charts, and custom text.

Key Features

  • High-Res Graphic Display: 128x64 dot matrix resolution enables text, images, and graph rendering.
  • Crisp Visibility: Deep blue background with bright white pixels provides excellent contrast and aesthetics.
  • Dual Interface Modes: Supports both 6800 8-bit Parallel and Serial (SPI) modes (Selectable via Pin 15 PSB).
  • Standard 5V Logic: Seamlessly compatible with Arduino UNO, Mega, and other 5V logic controllers.
  • Adjustable Contrast: Dedicated V0 pin allows for precise brightness and contrast tuning via potentiometer.
  • Robust Mounting: Four corner mounting holes (3mm) for secure installation in enclosures.

Full Product Description

Professional NFC Integration Made Simple

The PN532 NFC Module V3 is a highly integrated transmission module for near-field communication at 13.56MHz. Built on the industry-leading PN532 chip, this version 3 module offers superior stability and range compared to earlier iterations. It is the perfect bridge between your microcontroller (like Arduino, Raspberry Pi, or ESP32) and the world of RFID.



Versatile Communication for Any Architecture

One of the standout features of this module is its triple-interface support. Using the onboard toggle switches, you can easily switch between:

  • I2C & UART (HSU): Standard 5V TTL levels for easy plug-and-play.
  • SPI: 3.3V TTL for high-speed data transfer requirements. This flexibility ensures that regardless of your system architecture, the PN532 can be embedded without complex level-shifting or hardware workarounds.



Reliable Range and High Compatibility

Equipped with a gilt PCB and a built-in antenna, the module achieves a stable reading distance of 5cm to 7cm. It supports a wide array of protocols, including ISO/IEC 14443-A/B and FeliCa. From standard Mifare 1k/4k cards to advanced DesFire tags, this module handles them all with precision.

Important Usage Note: This is an IC Card Reader (13.56MHz) specifically designed for IC tags. It is not compatible with ID cards (125kHz) or CPU simulation. Please ensure correct wiring polarity to avoid damaging the circuitry.

Technical Specifications

  • Chipset: NXP PN532
  • Operating Voltage: 3.3V ~ 5.5V
  • Max Current: 150mA
  • Working Frequency: 13.56MHz
  • Communication Protocols: I2C, SPI, HSU (High Speed UART)
  • Reading Distance: 5cm – 7cm
  • NFC Modes: Reader/Writer, P2P, Card Emulation
  • PCB Dimensions: 42.7mm × 40.4mm

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

FAQ Section

Q: Can this module be used to duplicate encrypted hotel or access cards?
A: The PN532 can read and write the "Dump" file of encrypted IC cards. However, it does not "crack" the encryption algorithms. You must research and provide the decryption keys yourself before the module can read or write the protected sectors.

Q: Does this work with the Octopus card or ID cards in Hong Kong?
A: This module supports FeliCa (the technology behind Octopus) for data reading, but it cannot modify Octopus card balances. It is not compatible with 125kHz ID cards (common thick proximity cards).

Q: What happens if I reverse the VCC and GND pins?
A: Warning: The module is highly sensitive to polarity. Reversing the power pins will cause immediate and permanent damage to the chip (it will burn out). Always double-check your wiring before powering on.

Target Users / Applications

  • Arduino & Raspberry Pi Hobbyists: Ideal for building smart door locks or automated login systems.
  • Security Engineers: Prototyping NFC-based access control and identity verification.
  • Retail & Inventory: Creating P2P data exchange solutions for stock tracking.
  • STEM Educators: A hands-on tool for teaching wireless communication and RFID technology.
