Stop worrying about low-voltage warnings and CPU throttling on your Raspberry Pi 5. The Yahboom PD Power Expansion Board delivers a rock-solid 5V/5A output, ensuring your demanding USB peripherals and robotics projects run flawlessly. With versatile 6~24V input support and a sleek stackable design, it's the ultimate power solution for serious makers and developers.
Key Features
Key Features
- True 5V/5A PD Output: Eliminates low-voltage warnings and unlocks full USB port current for demanding peripherals.

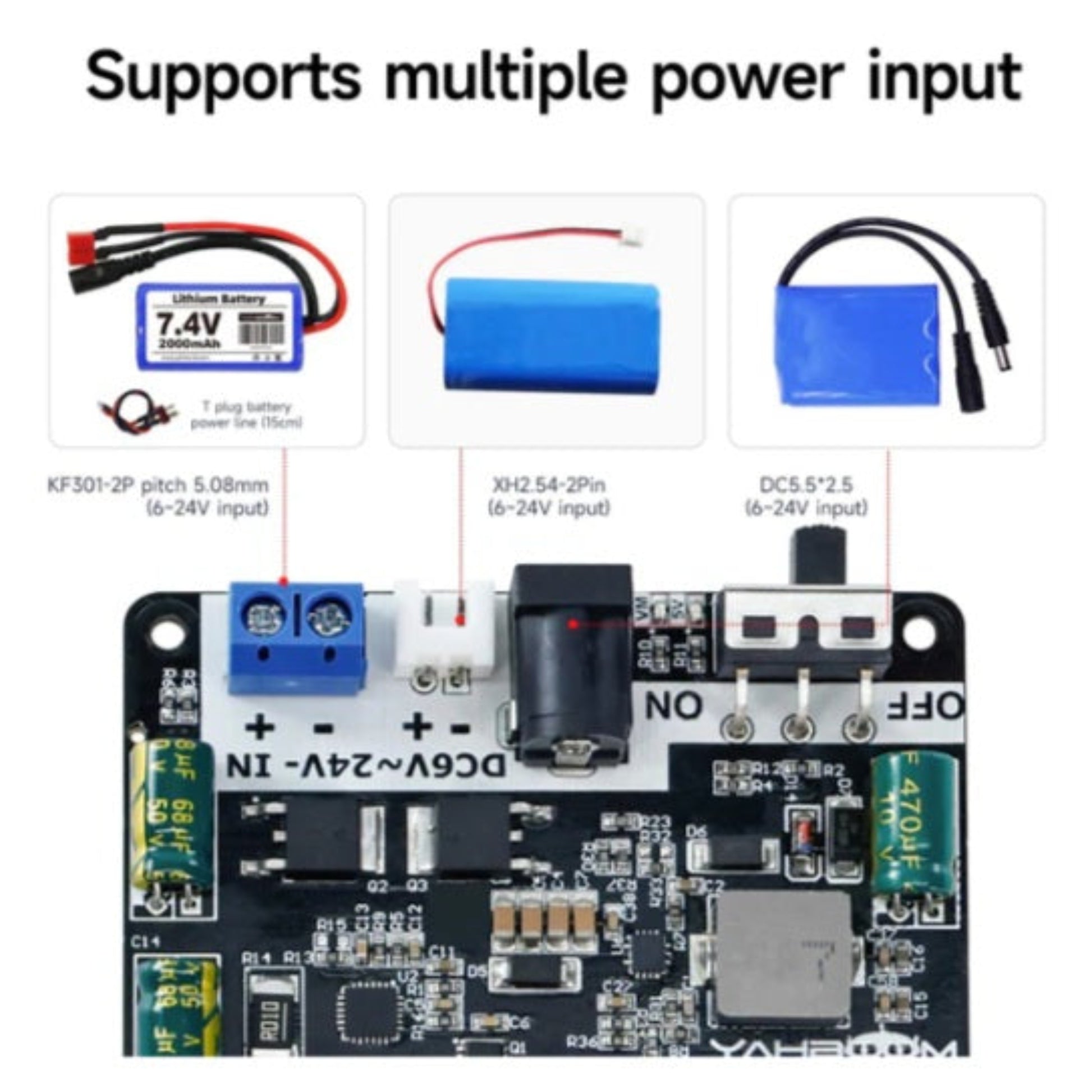

- 6~24V Wide Voltage Input: Easily power your projects using various power sources like 2S-5S LiPo batteries without needing external step-down converters.

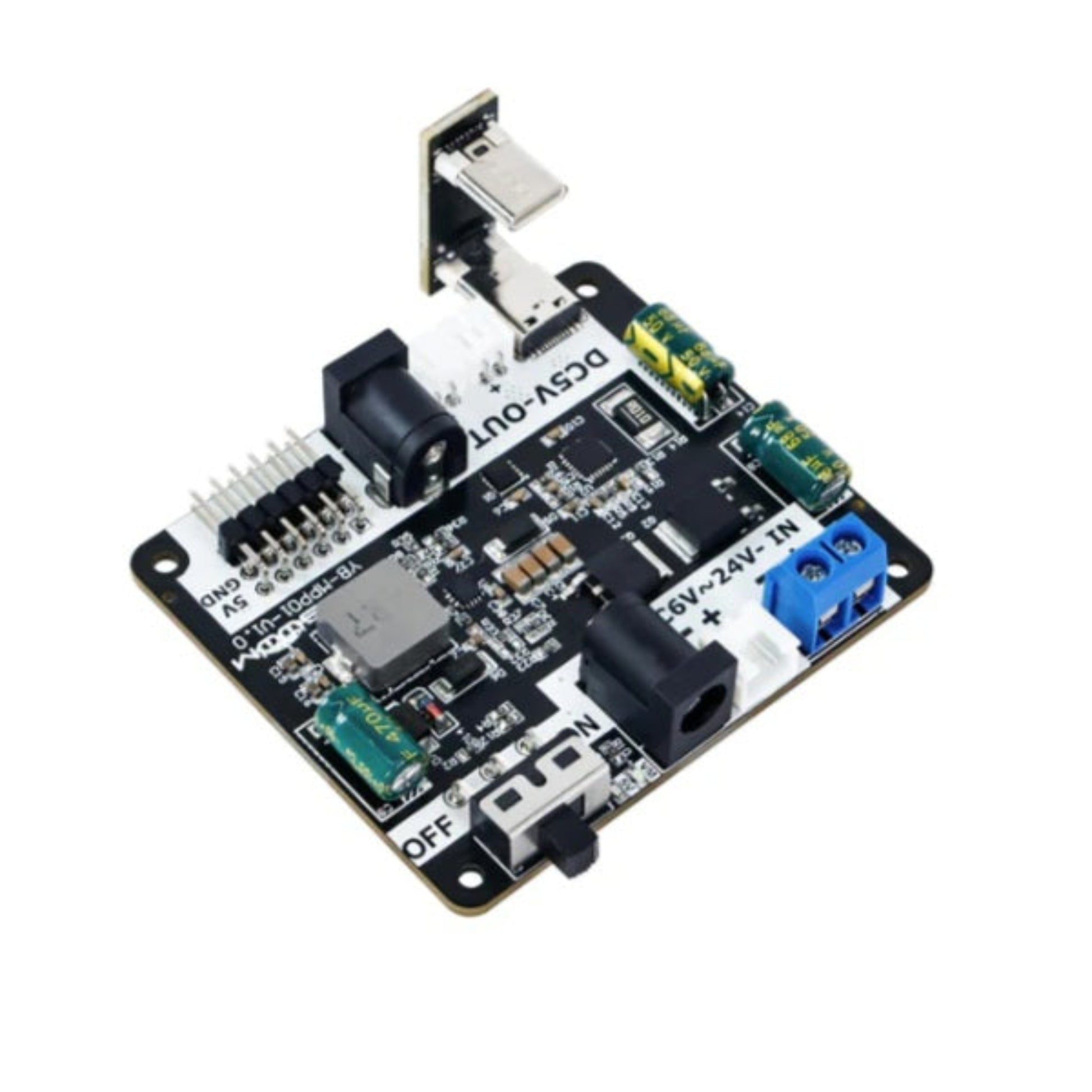

- Dual Type-C Direct Bridge: Includes a custom U-shaped Type-C adapter for cable-free, direct power connection to the Raspberry Pi 5.
- Multi-Board Compatibility: Safely power standard 5V devices including Raspberry Pi 4B, Jetson Nano, Arduino, and STM32 boards.
- Stackable Hardware Design: Mounts directly onto the RPi 5 using included standoffs, leaving plenty of room for active cooling solutions.
- 5-Layer Smart Protection Circuit: Protects your valuable electronics from short circuits, reverse polarity, and overheating.
Full Product Description
Full Product Description
Unleash the Full Potential of Your Raspberry Pi 5
Powering the Raspberry Pi 5 properly is critical for sustained performance. Standard power supplies often fall short, triggering low-voltage warnings and limiting the current to your USB ports. The Yahboom PD Power Expansion Board is engineered to solve this exactly. By supporting the official PD power supply protocol, it guarantees a stable 5V/5A power delivery, allowing your Pi 5 to operate at peak performance without random reboots or freezing during heavy workloads.
Versatile Power for Robotics and IoT
Whether you are building a smart car, a quadruped robot, or a complex IoT gateway, power flexibility is key. This board accepts a massive 6~24V wide voltage input. You can easily hook up standard LiPo batteries, battery packs, or wall adapters. It intelligently regulates the voltage to safely power your Raspberry Pi, Jetson Nano, or other microcontrollers like Arduino and STM32 simultaneously.
Seamless Stacking and Clean Cable Management

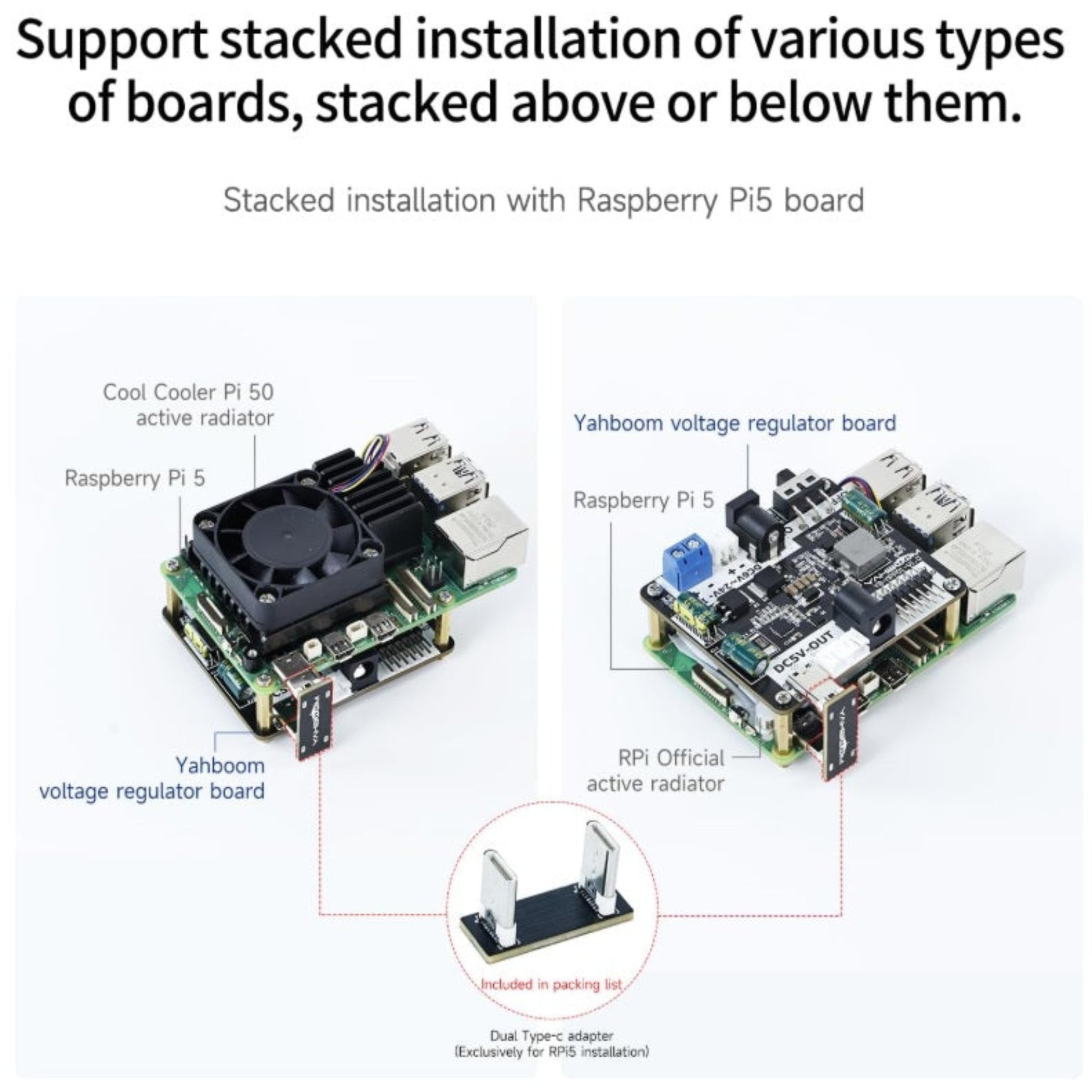

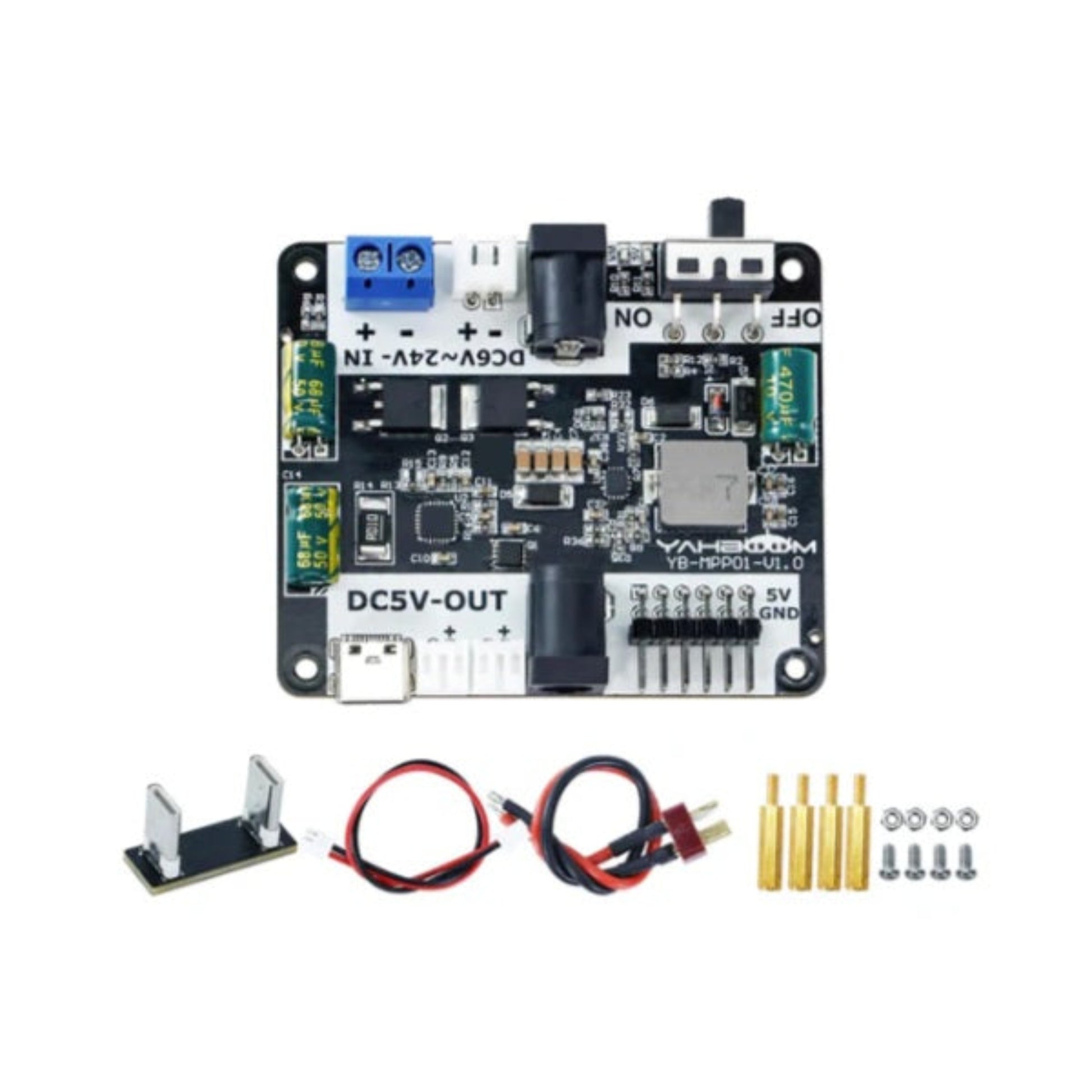

Keep your builds professional and neat. This expansion board features precise mounting holes that perfectly align with the Raspberry Pi 5. It can be easily stacked above or below your Pi using the included copper pillars, and it even accommodates the official RPi Active Cooler. The included Dual Type-C adapter board connects the power board directly to the Pi 5, eliminating messy cables and reducing footprint.
Built-In Safety Protections
Your expensive development boards are safe. The Yahboom expansion module features a comprehensive suite of hardware protections, including anti-reverse connection, overcurrent, overvoltage, and over-temperature safeguards.

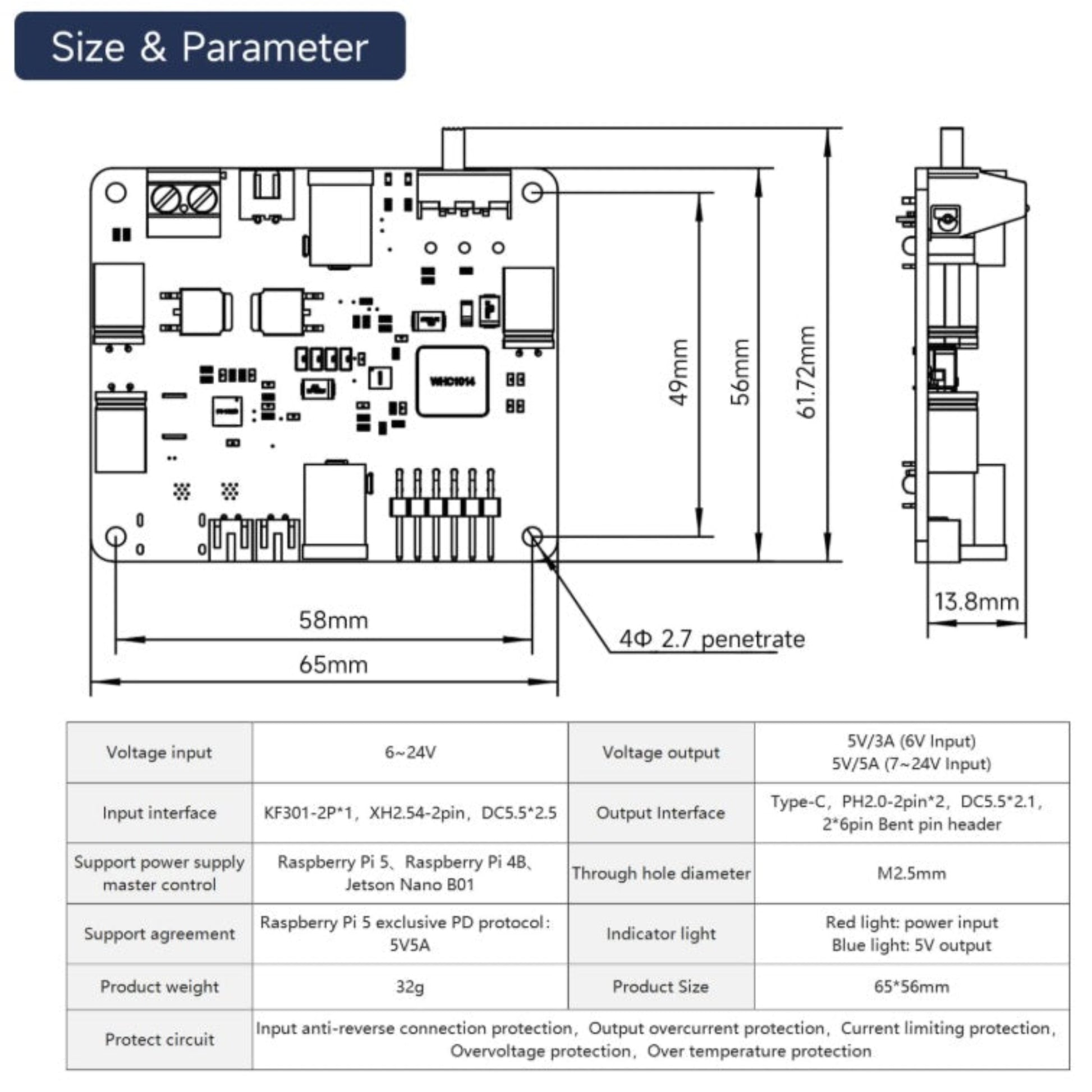

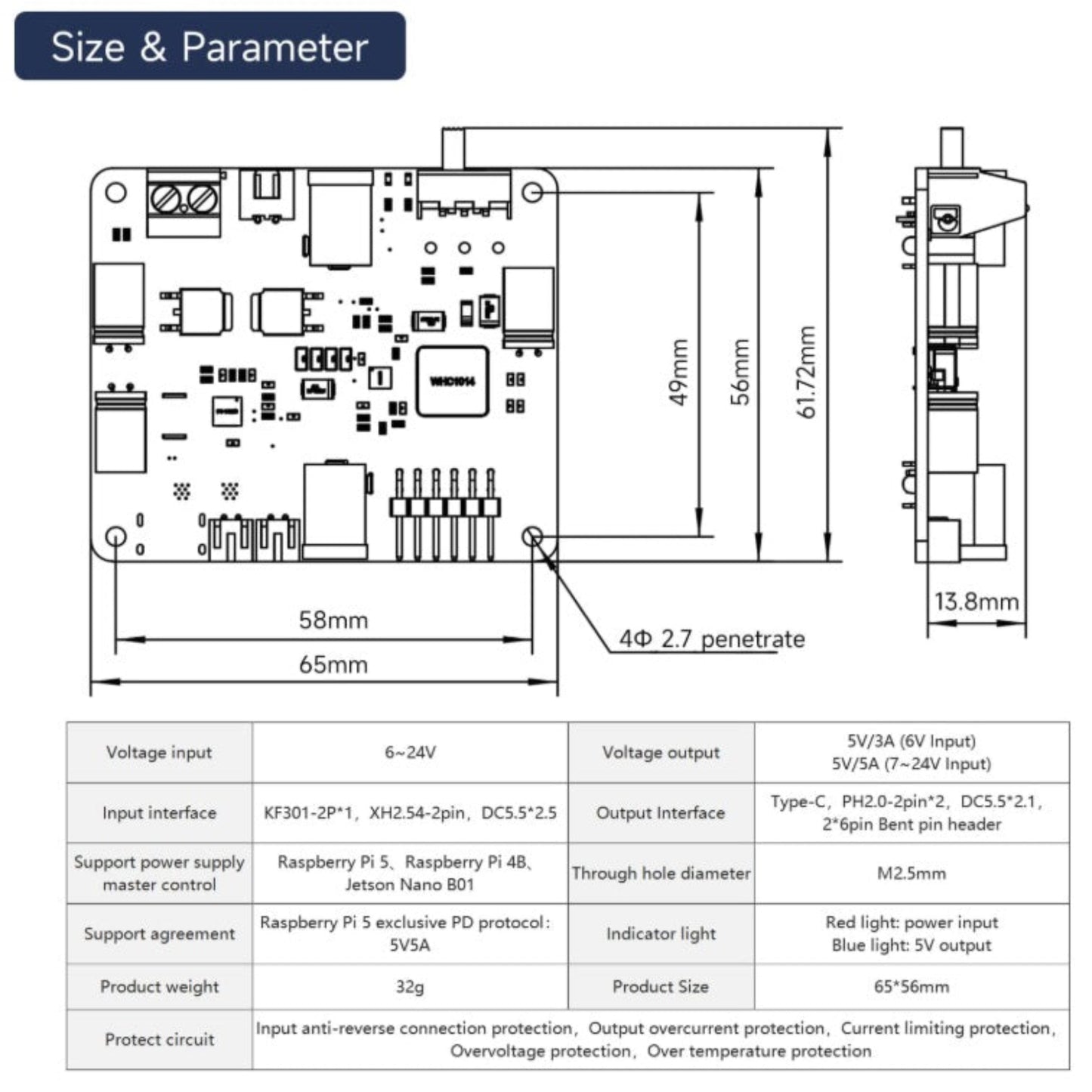

Technical Specifications
Technical Specifications
- Input Voltage Range: 6V–24V
- Output Voltage / Current:5V / 5A (requires 7–24V input)5V / 3A (at 6V input)

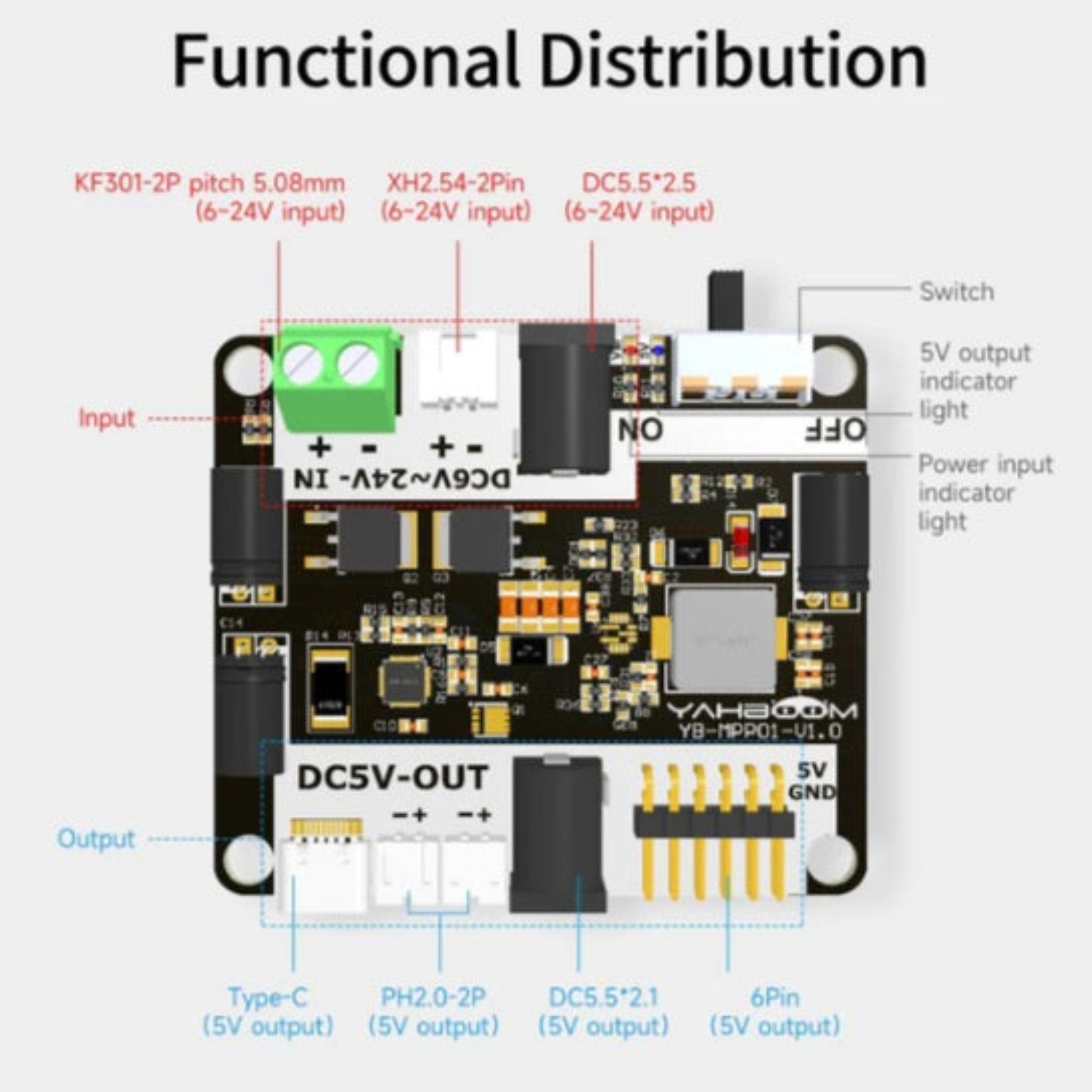

- Input Interfaces:KF301-2P (5.08mm)XH2.54-2PinDC 5.5×2.5mm jack

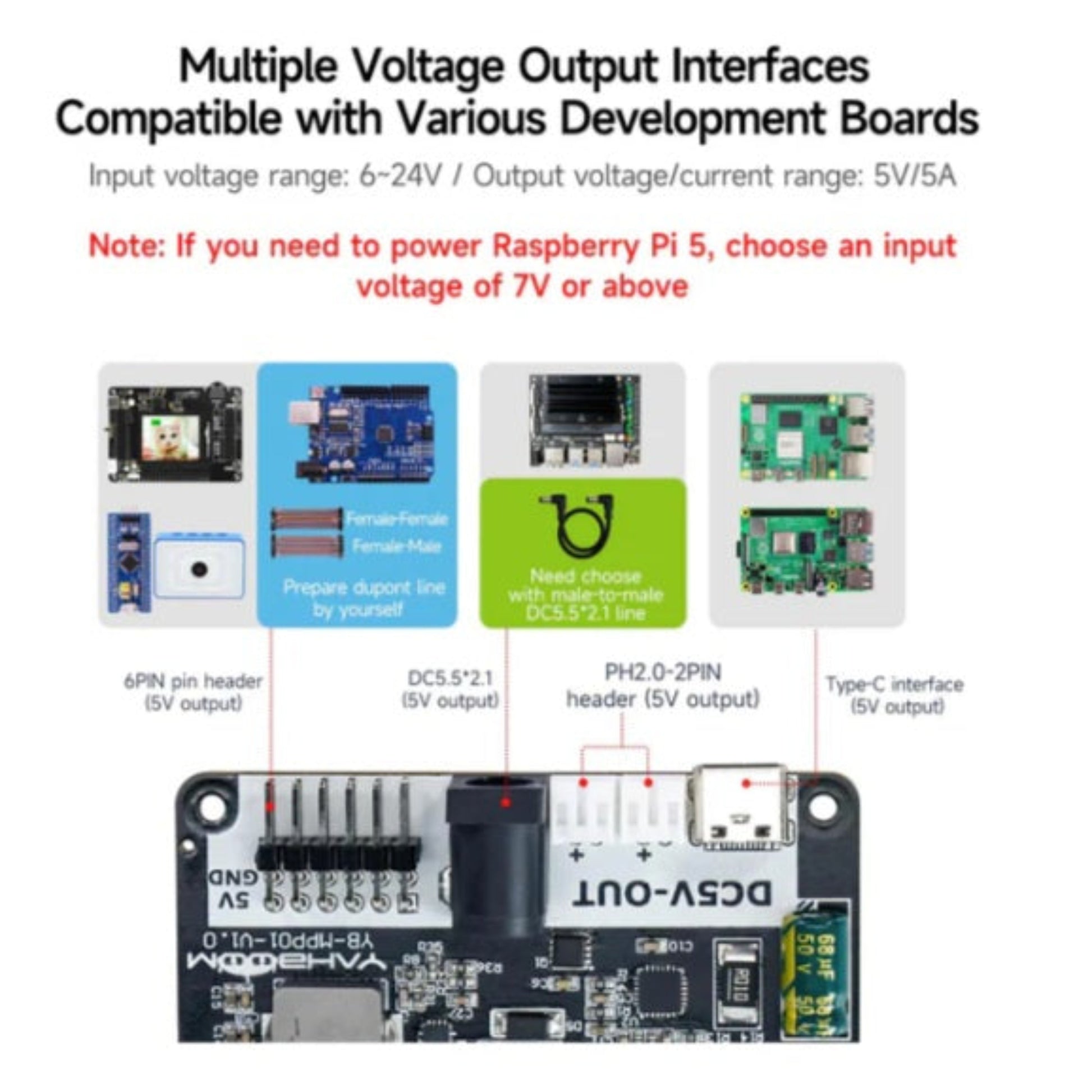

- Output Interfaces:Type-C2 × PH2.0-2PinDC 5.5×2.1mm jack2 × 6Pin bent header
- Supported Boards:Raspberry Pi 5Raspberry Pi 4BJetson Nano B01
- Protection Features:Anti-reverse connectionOvercurrent protectionCurrent limitingOvervoltage protectionOver-temperature protection
- Dimensions / Weight: 65mm × 56mm / 32g
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q. Do I need a special cable to connect this to my Raspberry Pi 5?
A. No extra cables are required for the Pi 5! The package includes a specialized Dual Type-C adapter board that directly bridges the expansion board to the Raspberry Pi 5's power port.
Q. What input voltage do I need to get the full 5A output?
A. To achieve the maximum 5V/5A output required for heavy Raspberry Pi 5 workloads, you need to provide an input voltage of 7V or higher (up to 24V). If you supply exactly 6V, the output will be capped at 5V/3A.
Q. Can I use this board with a Raspberry Pi 4B or Jetson Nano?
A. Yes. While the PD protocol and U-shaped adapter are optimized for the Pi 5, the board's standard Type-C and pin header outputs provide clean 5V power perfectly suited for the Pi 4B, Jetson Nano, and standard microcontrollers.
Target Users / Applications
Target Users / Applications

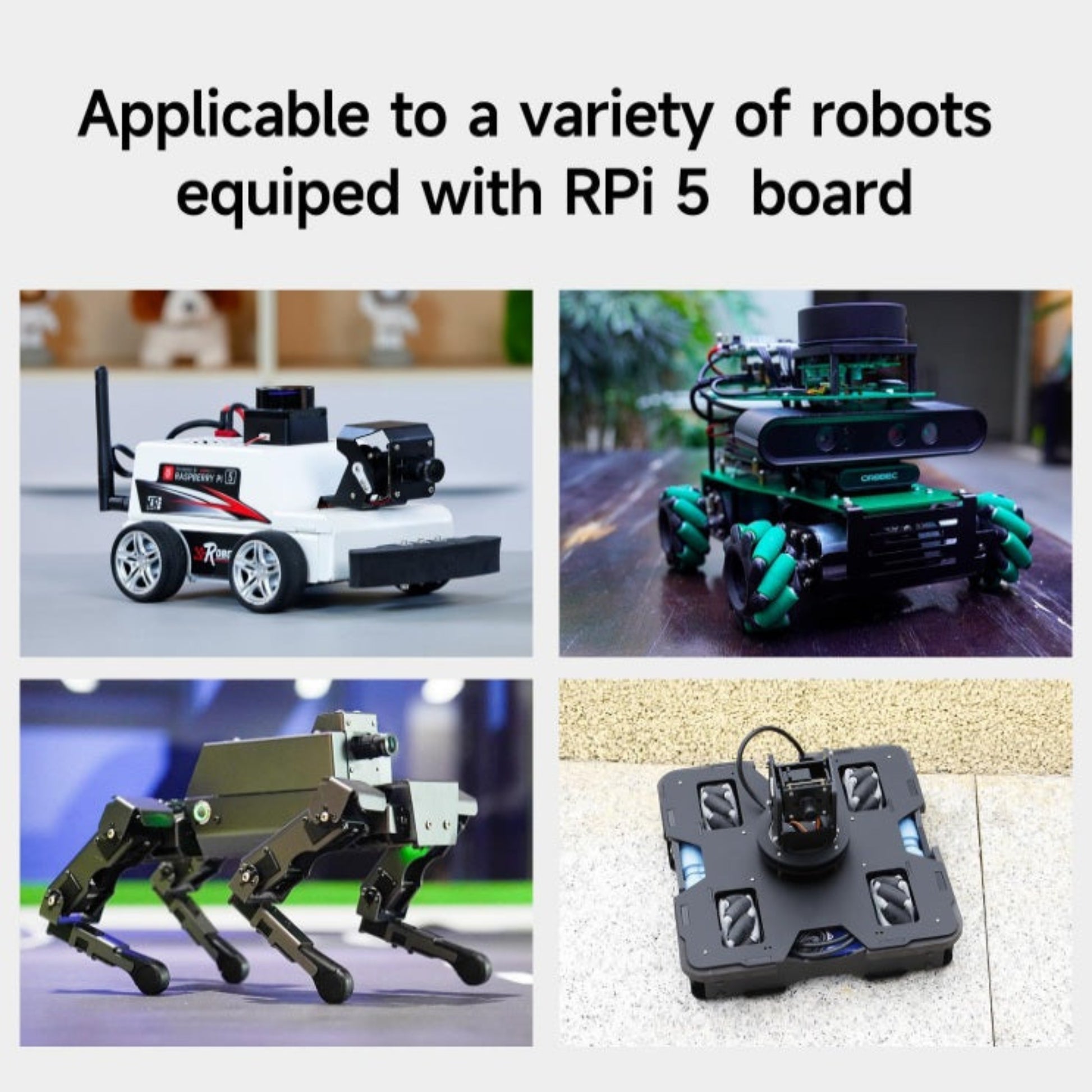

- Robotics Engineers & Hobbyists: Perfect for powering ROS robots, mecanum wheel cars, and robot dogs.
- STEM Educators: A safe, reliable power distribution method for classroom electronics projects.
- IoT Developers: Ideal for remote sensors and gateways requiring stable battery-backed power.
