PCA9685 16-Channel 12-Bit I2C PWM Servo Motor Driver

PCA9685 16-Channel 12-Bit I2C PWM Servo Motor Driver

HK$39.00
HK$39.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

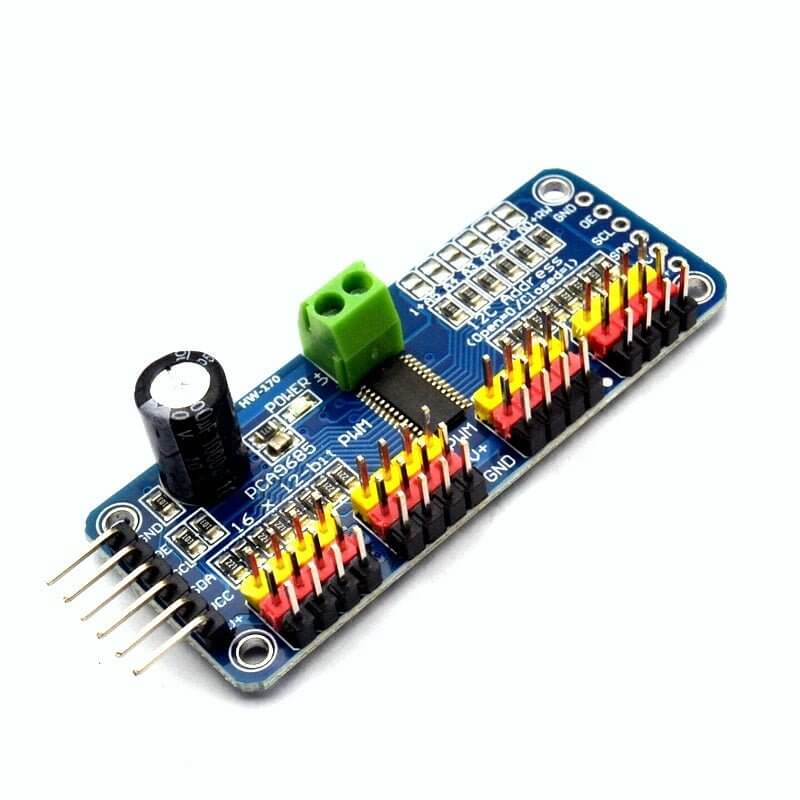

PCA9685 16-Channel 12-Bit PWM Servo Motor Driver Module

The PCA9685 16-Channel Servo Motor Driver Module is a versatile I2C-controlled PWM driver designed for robotics, automation, and LED lighting projects. Ideal for Arduino, Raspberry Pi, and other microcontrollers, it lets you control up to 16 servos or LEDs using only two I2C pins. The built-in clock allows for independent, smooth, and precise PWM signals, eliminating the need for constant microcontroller updates.

Key Features and Benefits

  • Controls up to 16 servo motors or LEDs simultaneously with accurate PWM output.
  • Chain up to 62 modules on a single I2C bus for massive scalability—up to 992 PWM outputs.
  • 12-bit (4096-step) resolution ensures precise servo or light brightness control.
  • Adjustable PWM frequency up to about 1.6 kHz for flexible applications.
  • Compatible with both 3.3V and 5V systems, perfect for microcontrollers like Arduino and Raspberry Pi.
  • Integrated clock eliminates the need to generate PWM signals via the MCU.
  • Reverse polarity protection and capacitor filtering for safe and stable operation.
  • Ready-to-use 3-pin headers for quick servo and LED connections.

Technical Specifications

Specification Value Note
Chip PCA9685 12-bit PWM Servo/LED Driver
Control Interface I2C (IIC) Uses SDA and SCL pins
Channels 16 Independent control
Resolution 12-bit (4096 steps) High precision
Frequency Range 40–1000 Hz (up to 1.6 kHz) Adjustable
Logic Voltage 3.3V / 5V MCU compatible
Output (V+) Voltage 5–10V DC For servos/LEDs
Protection Reverse polarity 1000µF capacitor
Dimensions 60mm × 25mm Compact design


Applications

  • Robotics and automation systems
  • Servo motor control projects
  • LED lighting and color mixing
  • Arduino, Raspberry Pi, and microcontroller development
  • DIY electronics and hobby projects

What’s Included

  • 1 × PCA9685 16-Channel PWM/Servo Driver Module
