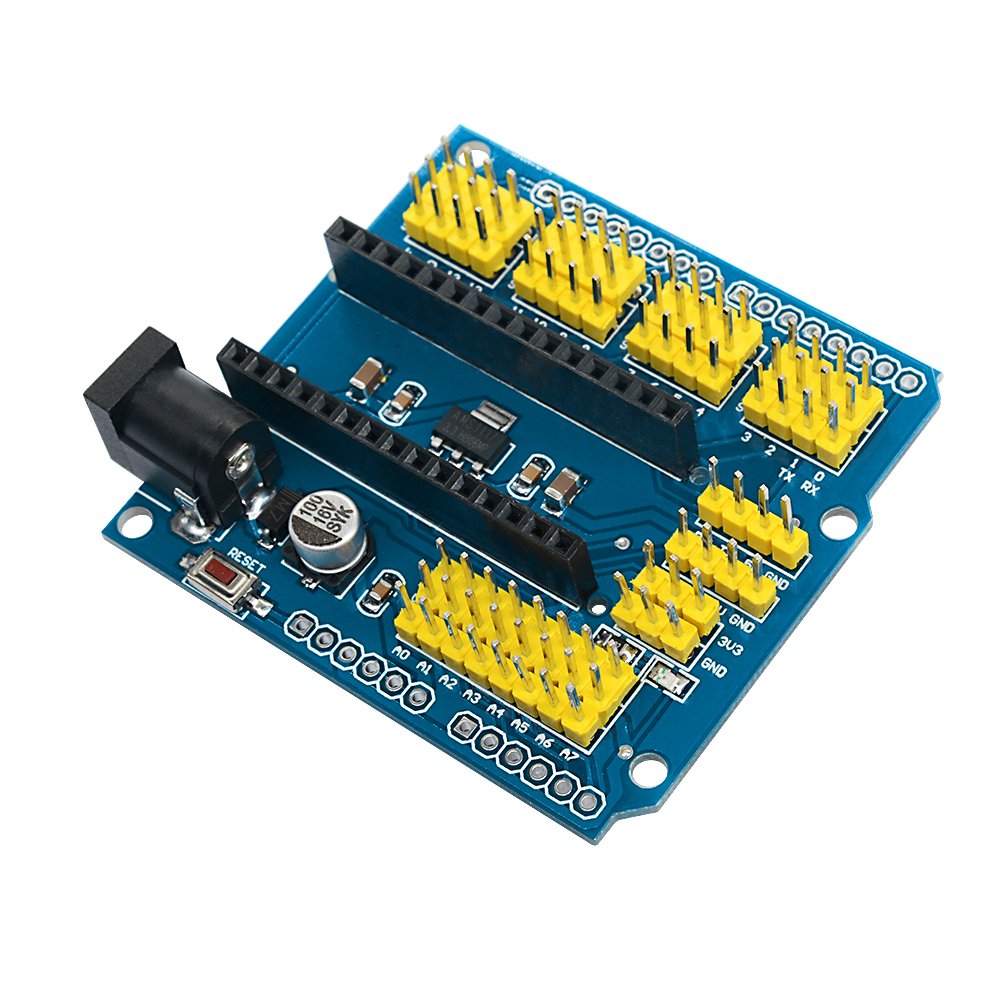

• Angled view of Arduino Nano I/O expansion shield showing yellow headers and DC power jack.

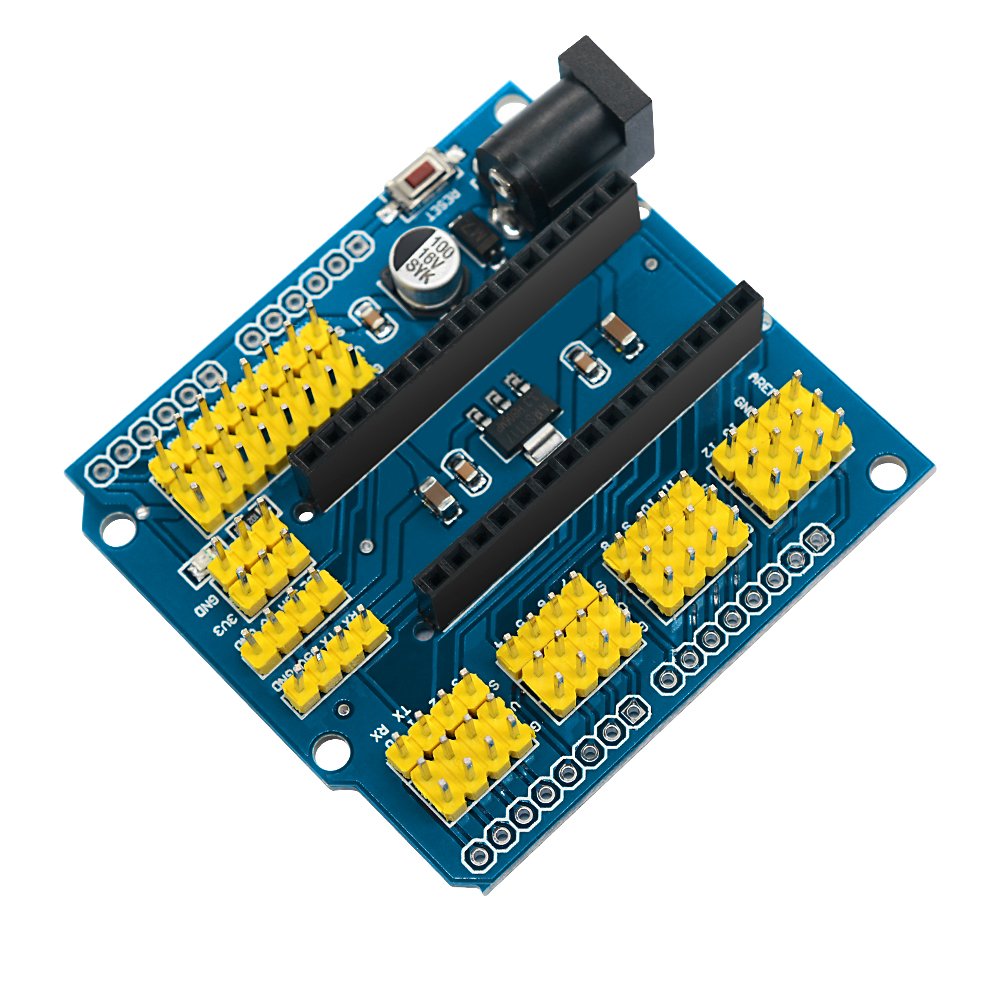

  • Top down view of Nano V3.0 extension board detailing pin layouts and reset button.

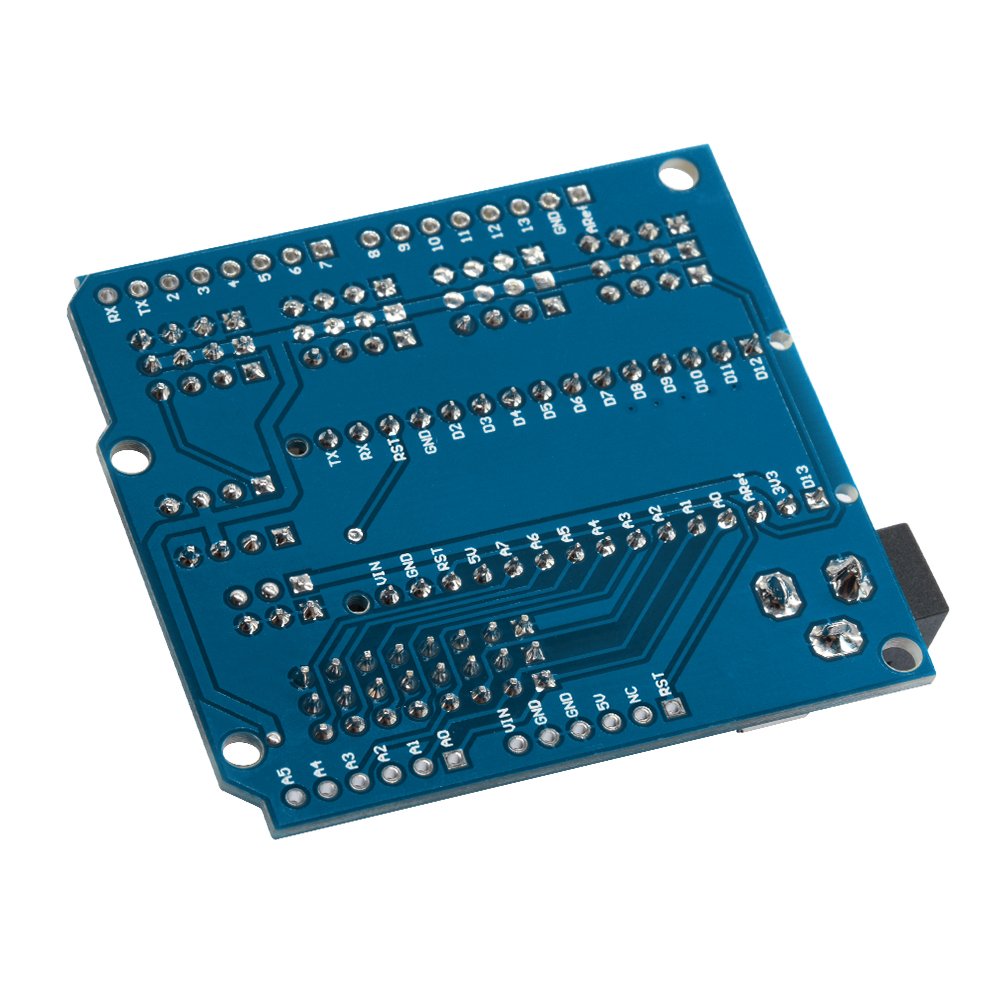

  • Underside view of the blue PCB traces and soldering points of the Nano expansion module.
1 3
3 sales

Arduino Nano I/O Expansion Shield V3.0 - Sensor & Servo Breakout Board

Arduino Nano I/O Expansion Shield V3.0 - Sensor & Servo Breakout Board

HK$25.00
HK$25.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

Unlock the full potential of your Arduino Nano with the Nano I/O Expansion Shield. Specifically designed to solve the common problem of messy wiring, this board breaks out all digital and analog pins into easy-to-use 3-pin headers (Signal, VCC, GND). It is the perfect companion for prototyping, allowing you to connect sensors, servos, and other modules instantly without a breadboard.

Why You Need This Shield:

  • Simplifies Wiring: No more tangled jumper wires. Connect devices directly using standard 3-pin sensor cables.
  • External Power Support: The on-board DC barrel jack allows you to power high-current devices (like servo motors) that the Nano's USB port cannot handle alone.
  • Broad Compatibility: Designed for Arduino Nano V3.0, but adaptable for older versions and compatible clones.

Key Features:

  • Plug-and-Play: Breaks out all 14 Digital I/O pins and 8 Analog pins with dedicated power and ground rails.
  • Servo Ready: Provides stable external power input specifically for driving servo motors.
  • Communication Friendly: Dedicated pins for I2C (SDA, SCL) and UART (Rx, Tx) expansion.
  • Stable Power: Includes 3.3V output and AREF output for precise voltage reference.

Technical Specifications:

  • Compatibility: Arduino Nano V2.x / V3.x
  • Digital I/O: 14 Pins (servo style with GND, Power, Signal)
  • Analog I/O: 8 Pins with power output and GND
  • PWM Pins: 6
  • Interfaces: I2C Expansion, UART
  • Power Input: DC Barrel Jack for external power supply
