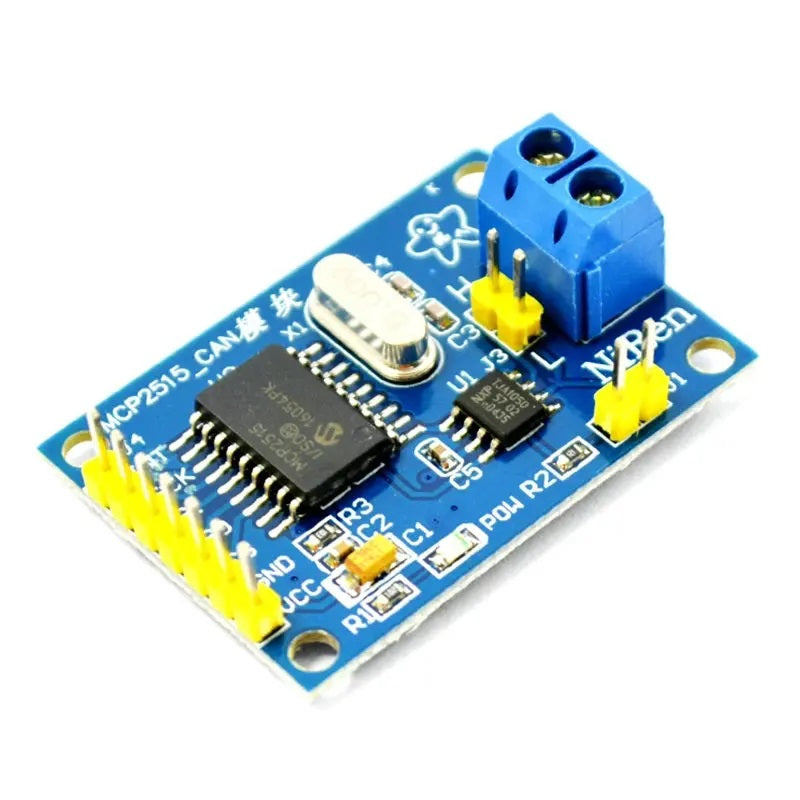

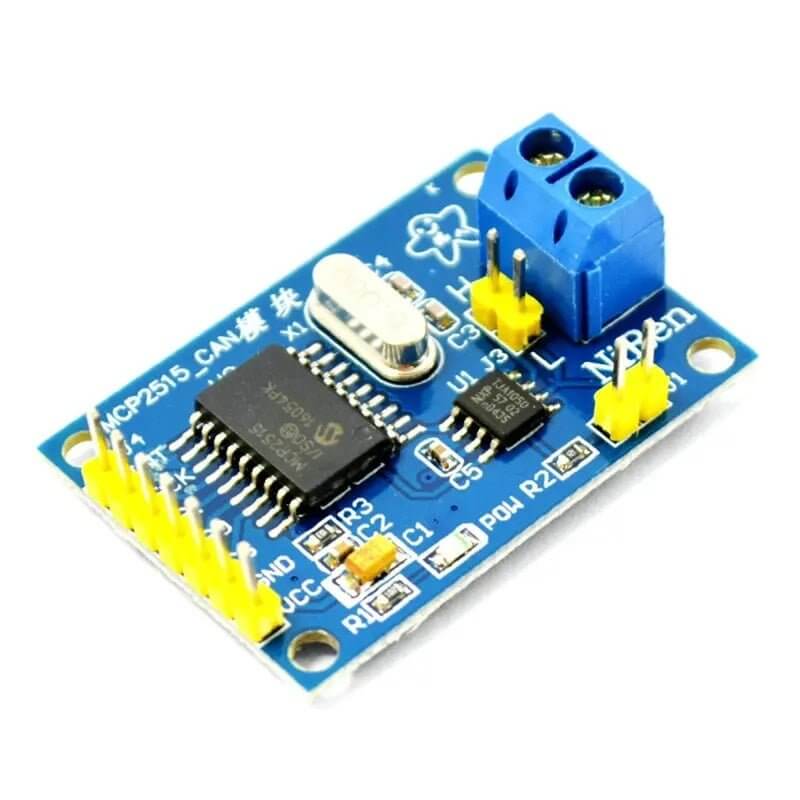

• MCP2515/TJA1050 CAN Bus module used for electronic DIY kits and ARM/51 microcontroller projects.

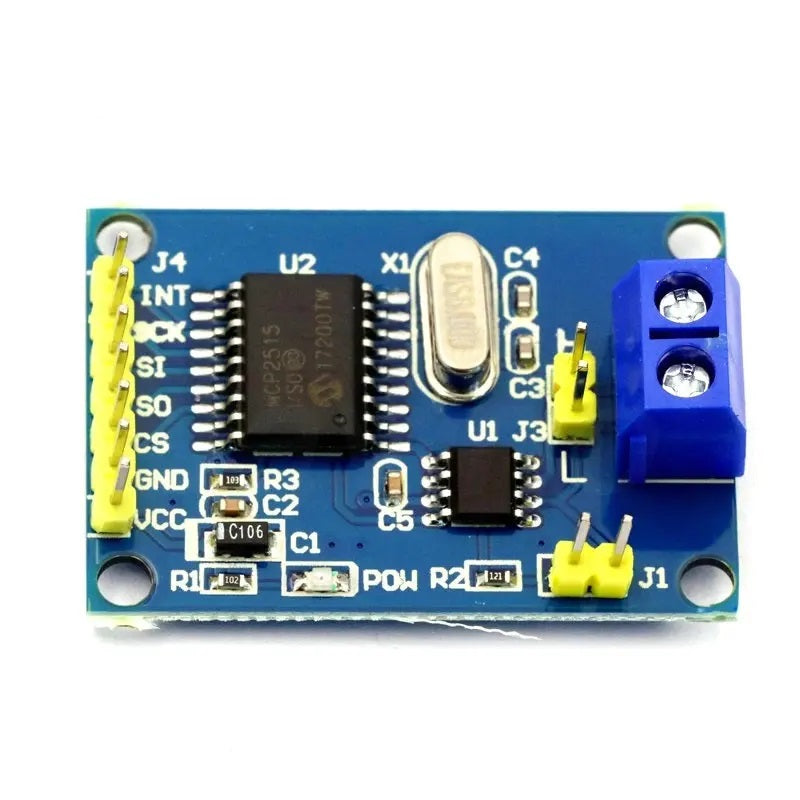

  • MCP2515 CAN Bus Controller Module with TJA1050 Transceiver for Arduino & 51 MCU SPI Interface.

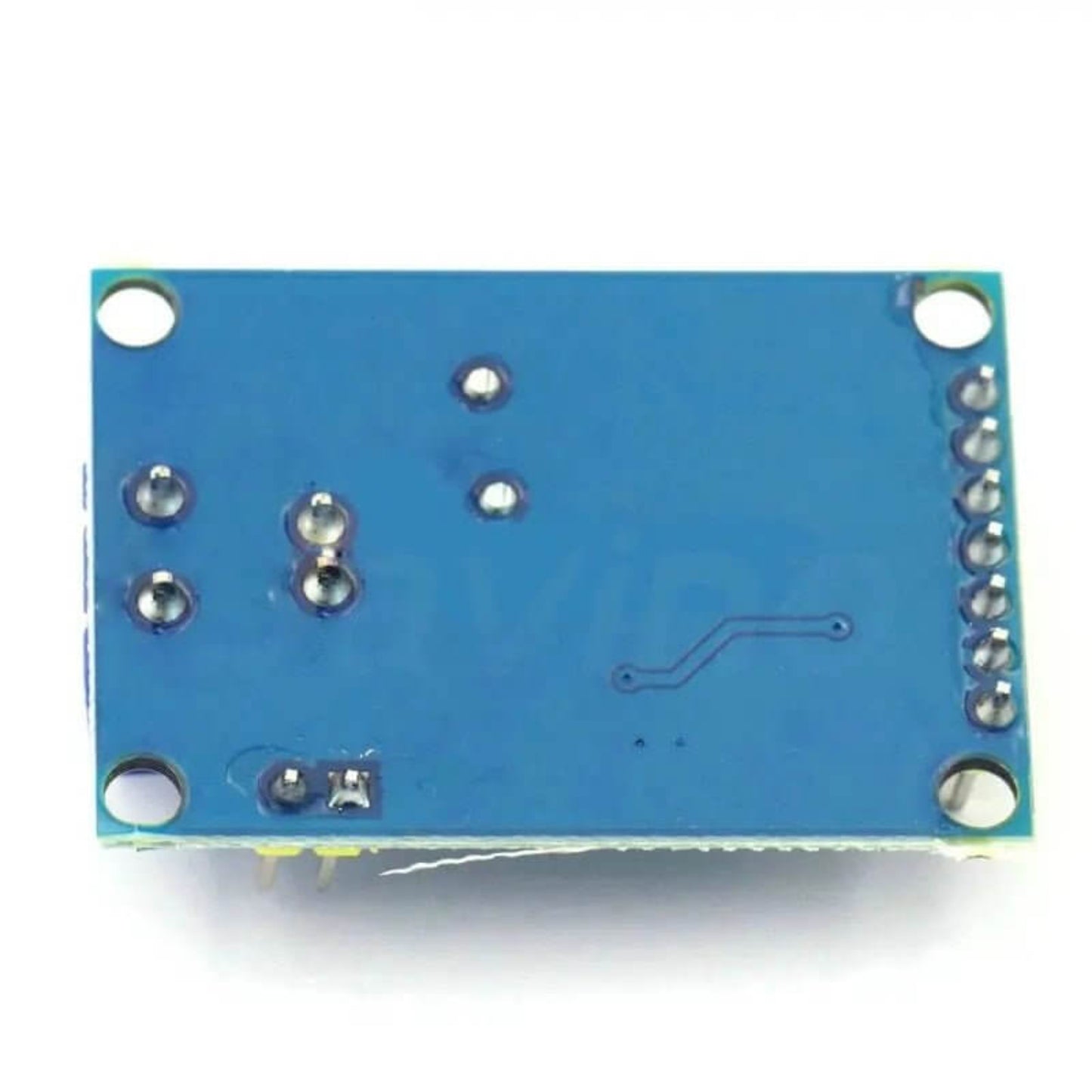

  • Backside of the MCP2515 CAN Bus module PCB.
1 3
sales

MCP2515 CAN Bus Module with TJA1050 Transceiver SPI for Arduino

MCP2515 CAN Bus Module with TJA1050 Transceiver SPI for Arduino

HK$20.00
HK$20.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

Reliable CAN Bus Communication for Your Microcontroller Projects
The MCP2515 CAN Bus Module (with TJA1050 transceiver) is a compact and stable solution for adding CAN bus communication to Arduino, 51 MCU, ARM controllers and other DIY electronics projects.
Whether you're working on automotive diagnostics, industrial automation, or embedded systems, this module provides a dependable CAN interface using the popular SPI protocol.

🔧 Key Features

  • MCP2515 CAN Controller + TJA1050 Transceiver
    Provides a complete CAN V2.0B communication solution with high stability and excellent noise immunity.
  • Supports Up to 1Mb/s CAN Data Rate
    Ensures fast and reliable data transmission for demanding real-time applications.
  • Flexible Frame Formats
    Supports standard frames, extended frames, and remote frames (0–8 bytes of data).
  • Built-in 120Ω Termination Resistor
    Ensures proper bus impedance matching, reduces signal reflection, and improves long-distance transmission.
  • Simple SPI Communication
    Works seamlessly with Arduino, 51 single-chip microcontrollers, ARM processors, and most SPI-enabled controllers.
  • Wide Industrial-Grade Temperature Range
    Operates from –40°C to +85°C, suitable for automotive and industrial applications.

📐 Specifications

  • CAN Protocol: CAN V2.0B
  • Baud Rate: Up to 1Mb/s
  • Data Length: 0–8 bytes
  • Power Supply: DC 5V
  • Interface: SPI
  • Termination: 120Ω onboard resistor
  • Module Size: 4.4 × 2.8 cm (approx.)
  • Working Current: ~5mA
  • Standby Current: 1µA
  • Operating Temperature: –40°C to +85°C

📦 Package Includes

1 × MCP2515 CAN Bus Module with TJA1050 Transceiver
