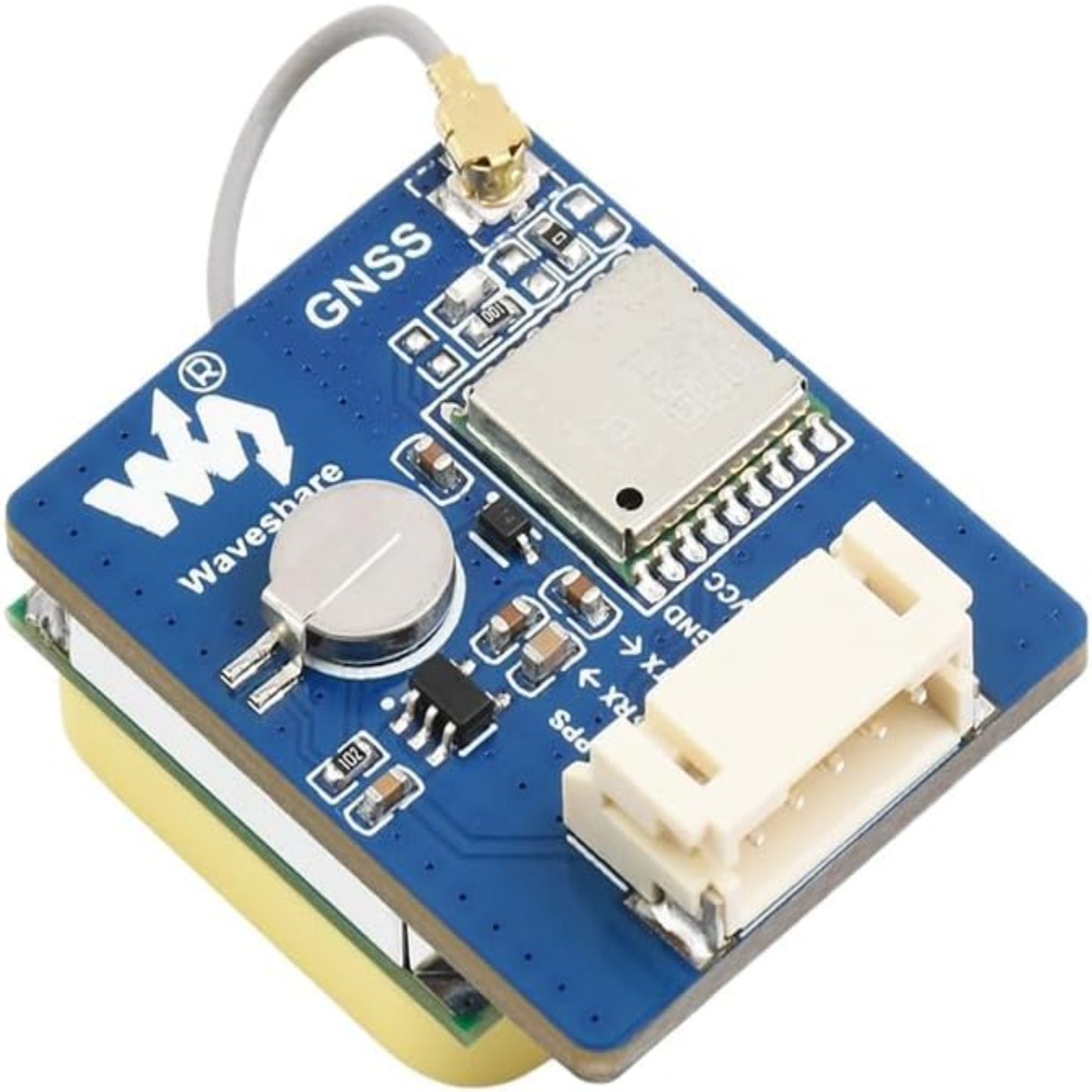

• L76K Multi-GNSS Module with low noise amplifier, supporting GPS, GLONASS, BDS, QZSS, ideal for projects with Raspberry Pi and Arduino.

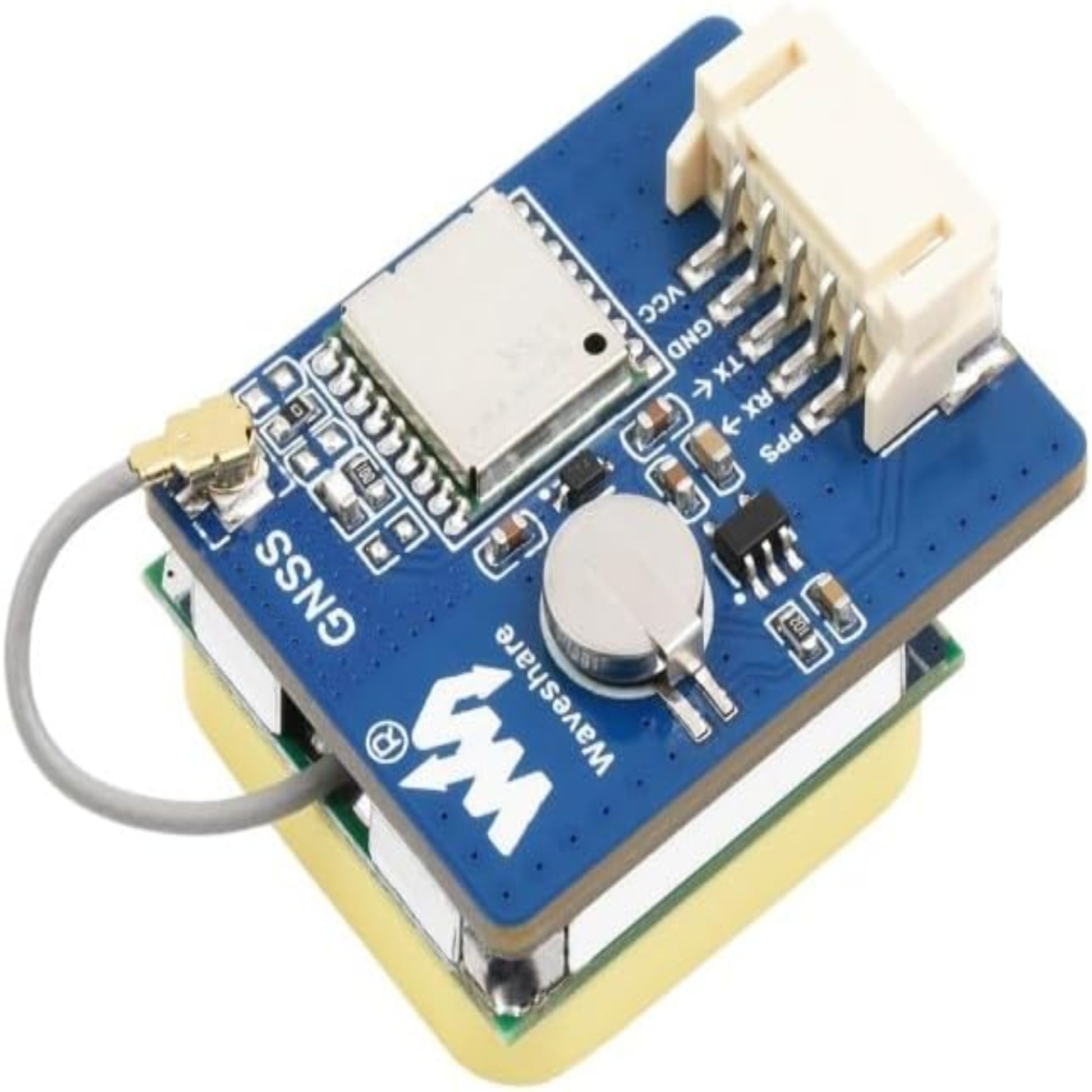

  • L76K Multi-GNSS Module for Raspberry Pi and Arduino featuring GPS/GLONASS/BDS/QZSS compatibility.

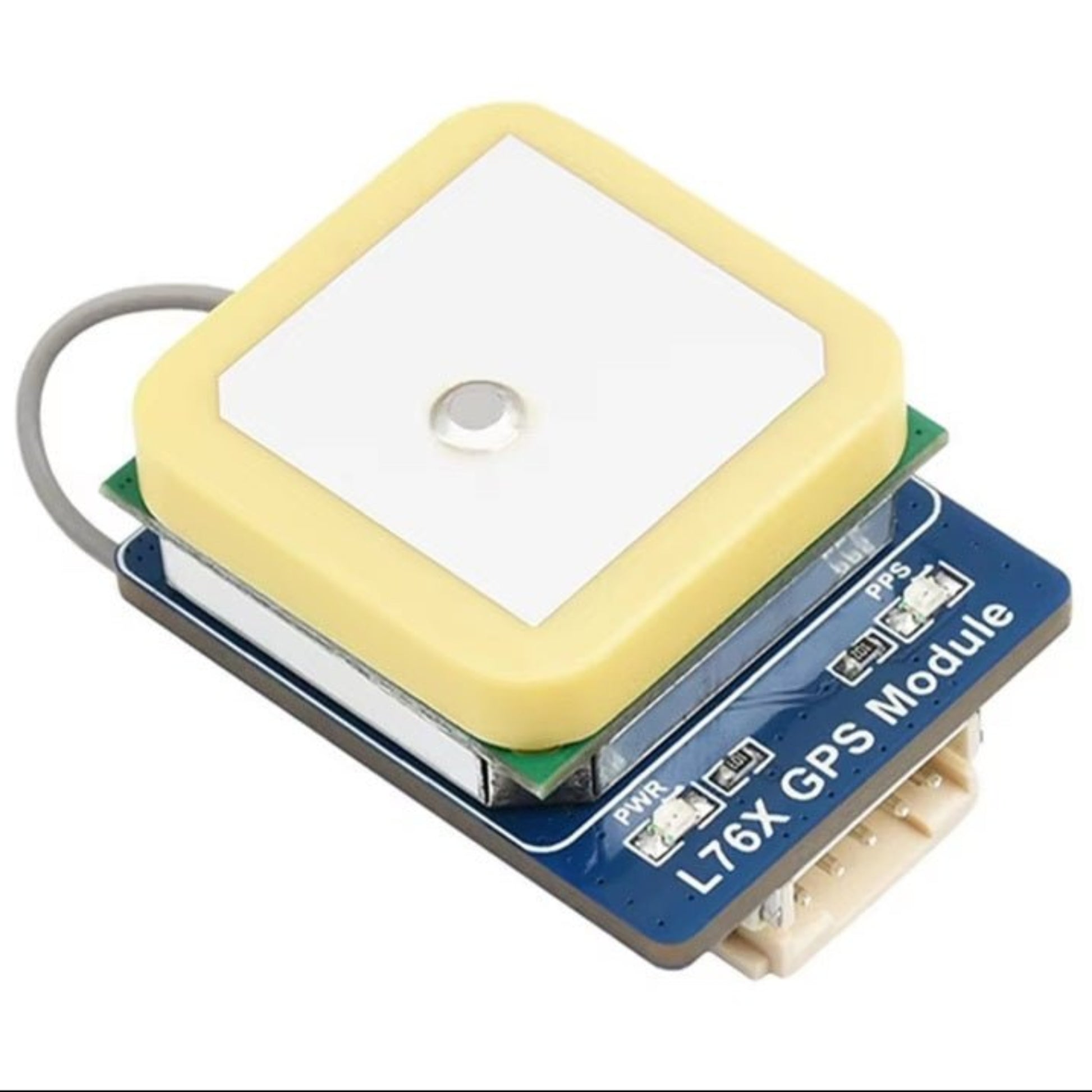

  • L76K Multi-GNSS Module with GPS/GLONASS/BDS/QZSS support for Raspberry Pi, Jetson Nano, Arduino.

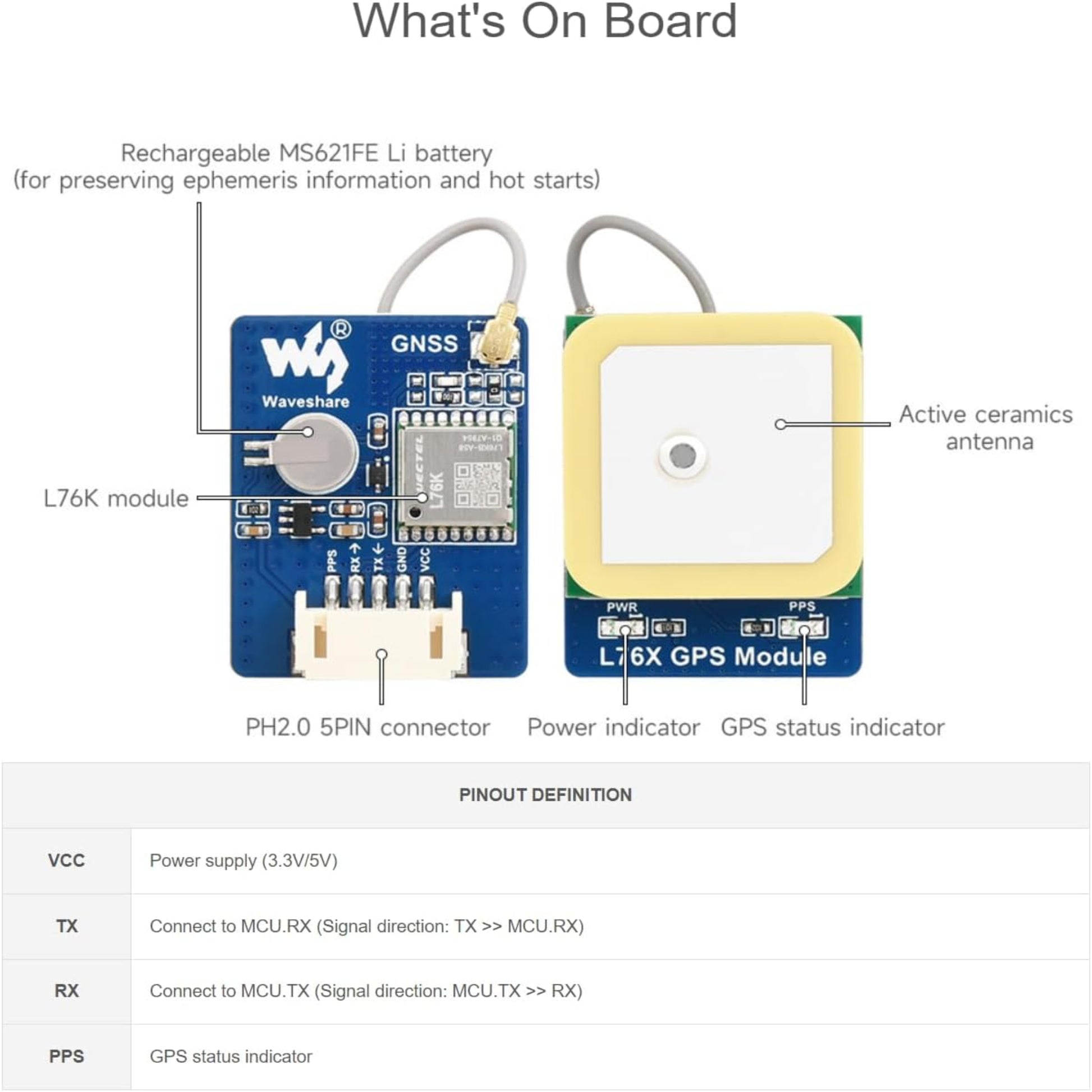

  • L76K Multi-GNSS module image showcasing components, active antenna, and pinout definition for GPS systems.

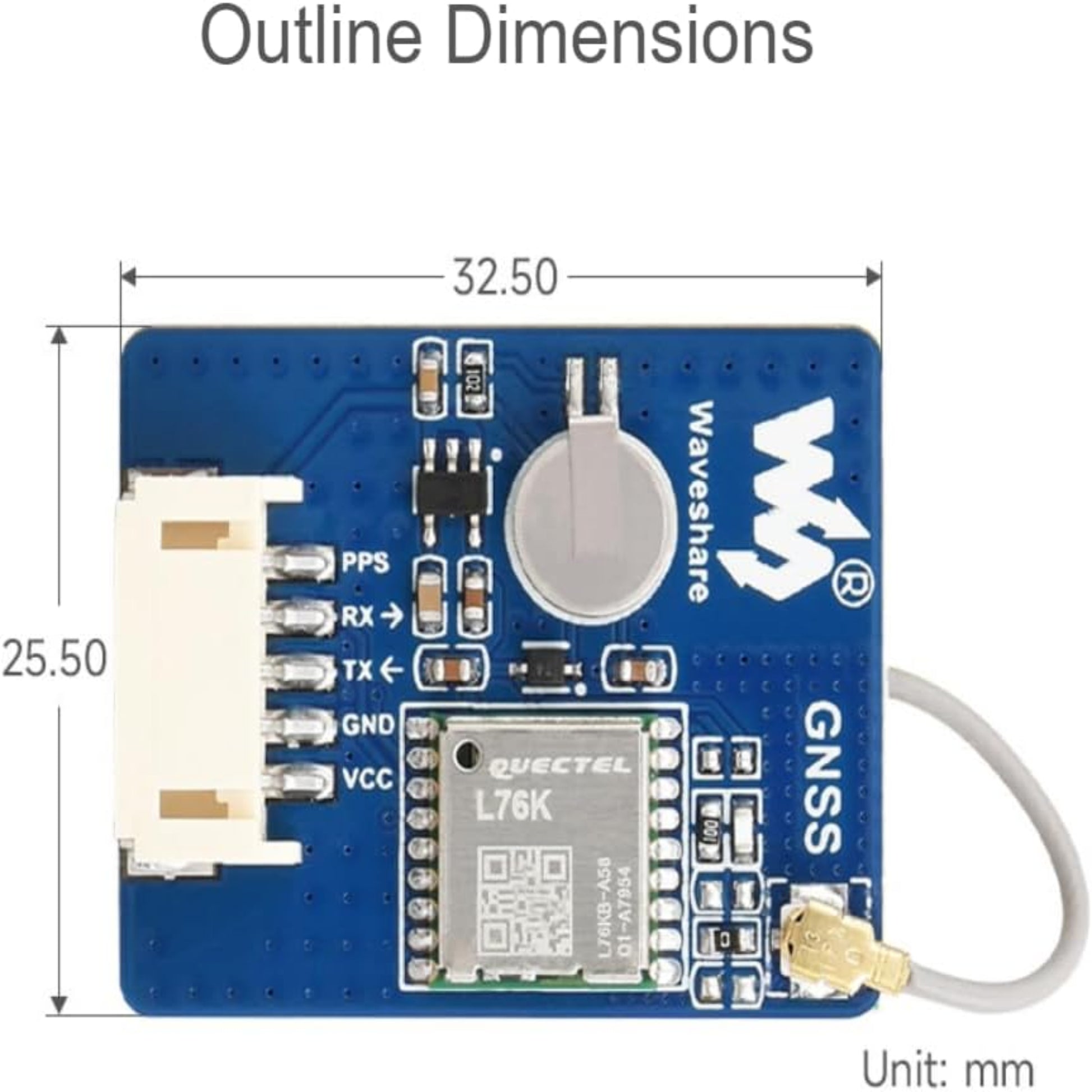

  • L76K Multi-GNSS Module outline dimensions with interface ports and integrated GPS receiver.
1 5
sales

L76K Multi-GNSS GPS Module with LNA & AGNSS Support

L76K Multi-GNSS GPS Module with LNA & AGNSS Support

HK$169.00
HK$169.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

High-Accuracy Multi-Satellite Positioning for Raspberry Pi, Arduino & More

The L76K Multi-GNSS Module delivers fast, accurate, and reliable positioning by supporting GPS, BDS, GLONASS, and QZSS satellite systems. Whether for IoT tracking, robotics, drones, or navigation projects, this module ensures high performance with its advanced features and compact design.

Key Features

  • Multi-Satellite Support – GPS, BDS, GLONASS & QZSS for enhanced coverage and accuracy.
  • Built-in Low-Noise Amplifier (LNA) – Improves reception sensitivity in weak signal environments.
  • Integrated SAW Filter – Enhances noise cancellation for cleaner signal processing.
  • AGNSS Function – Faster cold start times using assisted satellite data.
  • 1PPS Output – For precise timing applications.
  • Flexible Serial Baud Rate – Supports 4800–115200bps (default 9600bps).
  • Onboard Rechargeable Battery (MS621FE) – Retains ephemeris data for quick hot starts after power loss.
  • Dual LED Indicators – Easily monitor module operation status.

Specifications

  • Model: L76K
  • Chipset: AT6558R
  • Channels: 32 tracking / 72 acquisition
  • Sensitivity:
    • Acquisition: –148dBm
    • Reacquisition: –160dBm
    • Tracking: –162dBm
  • TTFF (Time to First Fix):
    • Cold Start: 30s (5.5s with AGNSS)
    • Hot Start: 2s
  • Accuracy: Position 2.0m CEP, Speed 0.1m/s, Acceleration 0.1m/s², Timing 30ns
  • Update Rate: Up to 5Hz
  • Baud Rate: Default 9600bps
  • Dimensions: 32.5 × 25.5mm
  • Material: PCB + Metal
  • Color: Blue

Package Includes

  • 1 × L76K GPS Module
  • 1 × PH2.0 5-Pin Cable

Compatible With: Raspberry Pi, Jetson Nano, Arduino, and other microcontrollers.
