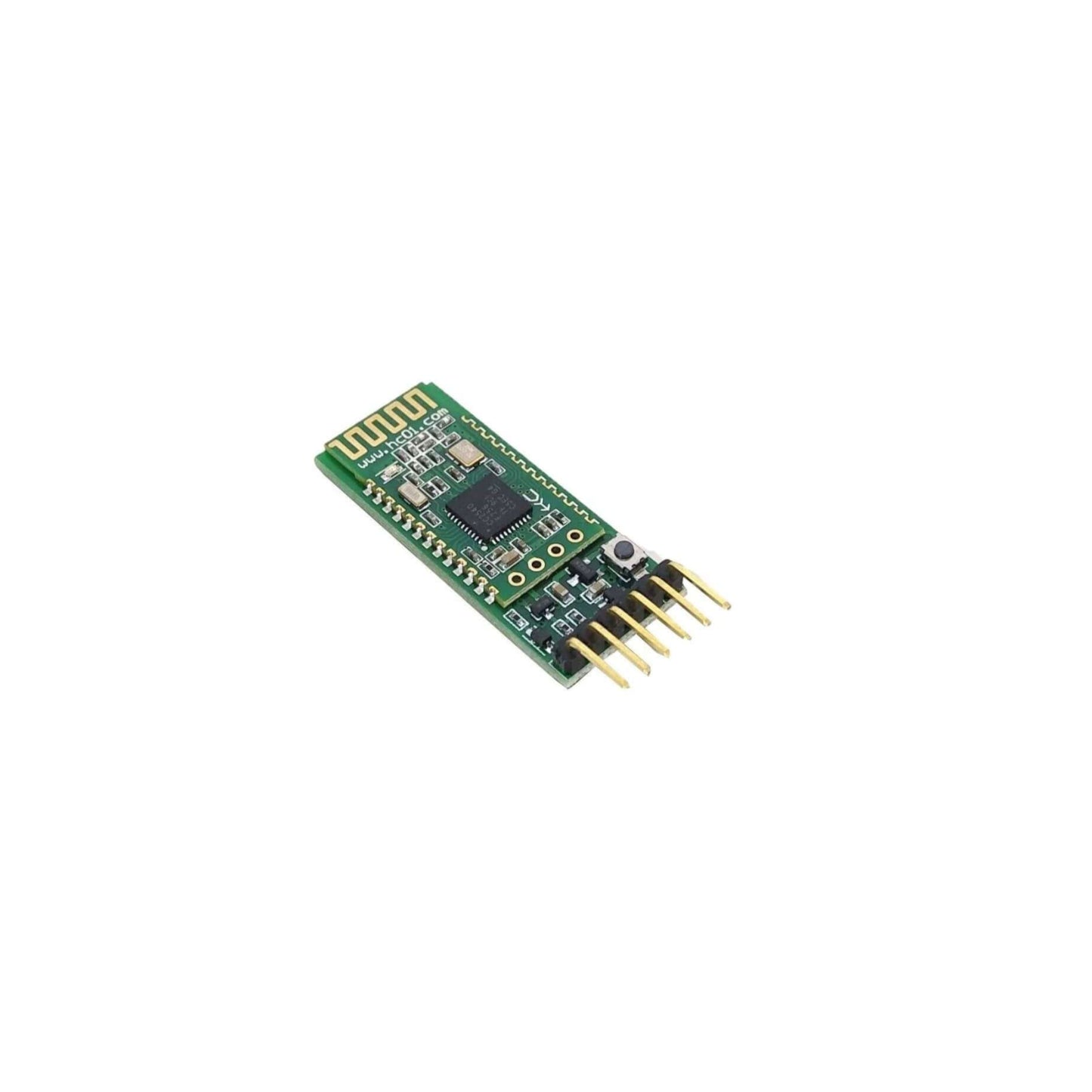

HC-08 HC08 Serial Port Module Wireless Bluetooth 4.0 RF Transceiver Support 9600bps Low Power Microcontroller 3.3V
Product Parameters:
- Model: HC-08
- Working frequency band: 2.4G
- Communication interface: UART3.3VTTL level
- Working voltage: 2.0 ~ 3.6v
- RSSI support: not supported
- Communication level: 3.3v
- Transmit power: 4dBm (max)
- Transmission distance: 80 meters
- Emission current: 31.6mA

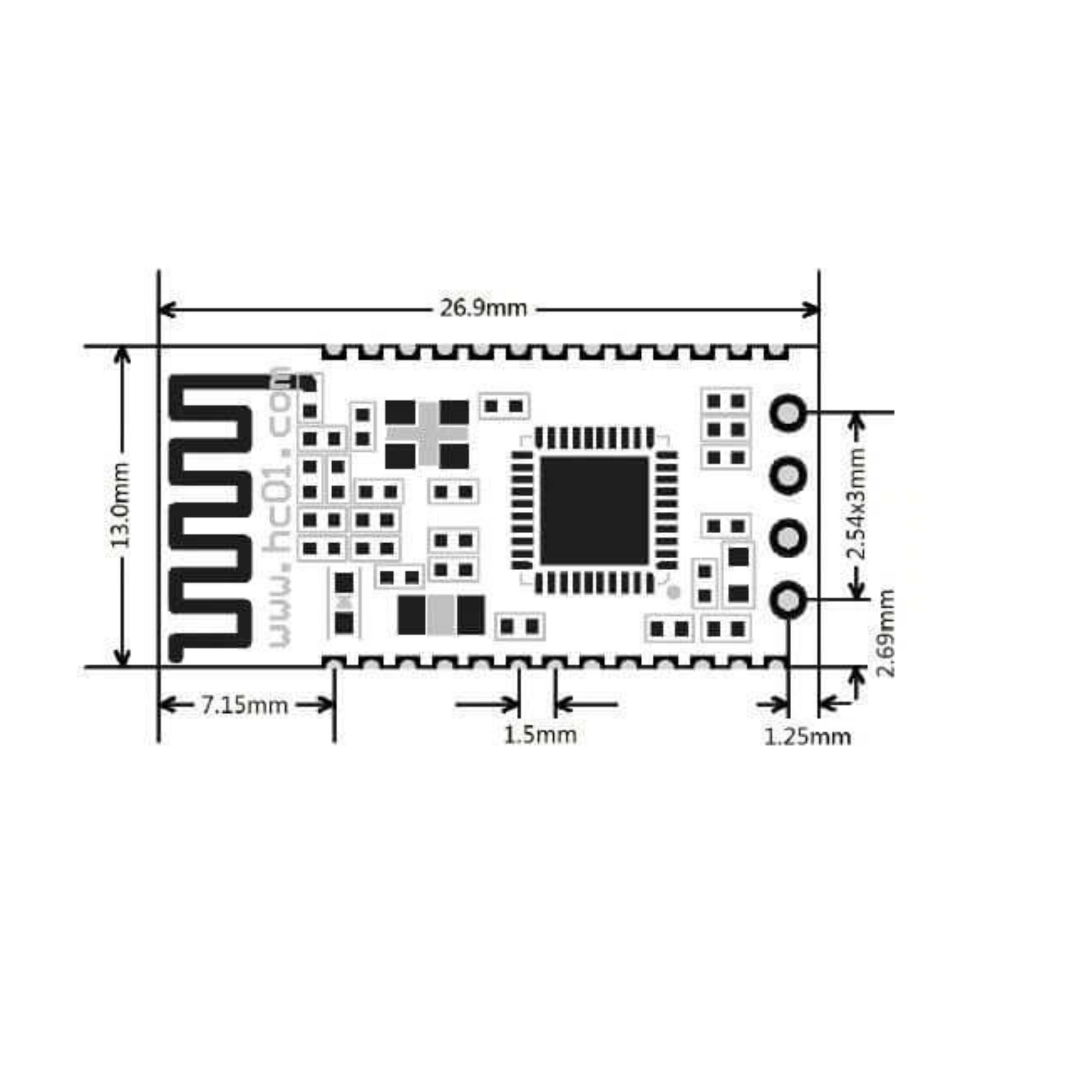

- Module size: 29mm * 13mm (without board)
- Air speed: 1Mbps
- Antenna interface: built-in PCB antenna
- Sleep current: 0.4uA
- Receiver sensitivity: -93dBm @ 1Mbps
- Working humidity: 10% to 90%
- Storage temperature: -40 ℃ ~ 85 ℃
- Working temperature: -25 ℃ ~ 75 ℃
- Received current: 15.8mA
