HC05 HC-05 master-slave 6pin JY-MCU anti-reverse, integrated Bluetooth serial pass-through module, wireless serial dai
This HC-05 module can be set to a transmitter or receiver, transmitter could pairing with receiver , receiver and receiver or transmitter and transmitter can't communication between, receiver could pairing with computers and cell phone bluetooth , when buying, the default for receiver.

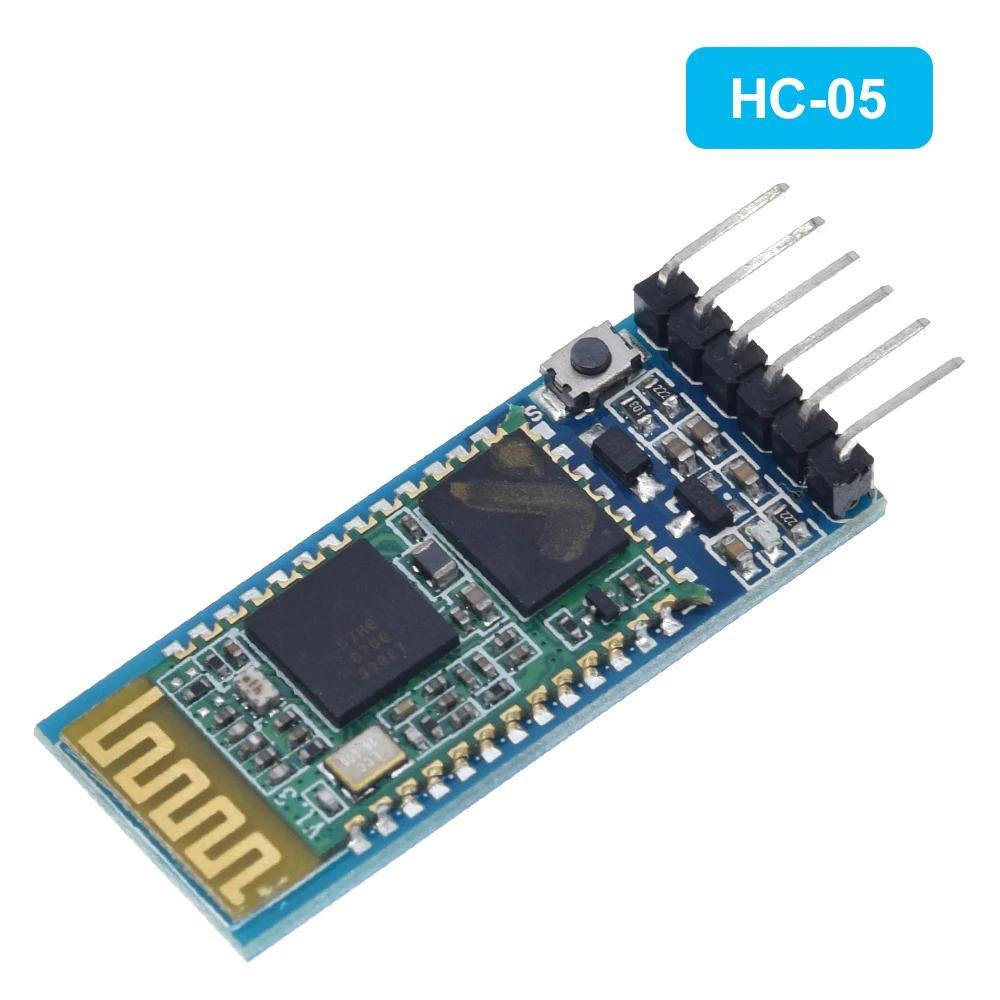

- It is HC-05.
- Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards.
- Module working voltage 3.3 V.
- Potter default rate of 9600, the user can be set up.
- The core module size : 28 mm x 15 mm x 2 mm.
- Working current: matching for 30 MA, matching the communication for 8 MA.
- Dormancy current: no dormancy.
- Used for GPS navigation system, water and electricity gas meter reading system.
- With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment
- Commercial Series: Bluetooth module board Series
- With LED indicator light, use 150mA and 3.3V regulation chip.

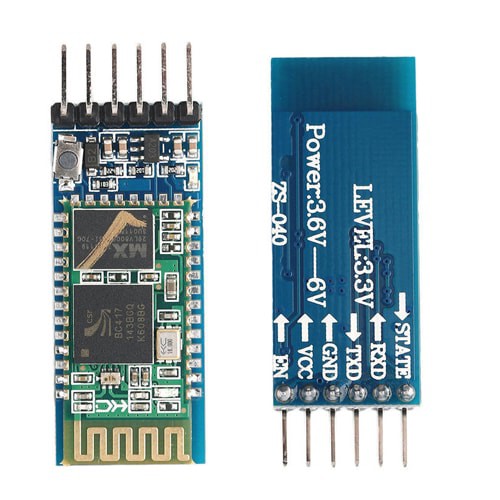

- With VCC.GND.TXD.RXD foot for the Bluetooth
- With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
- Compatible with bluetooth master module".slave module"or master-slave(whole) module.
- The input voltage: 3.6 V-6 V, more than 7 V is prohibited
- Size: Approx. 1.5cm*4cm
