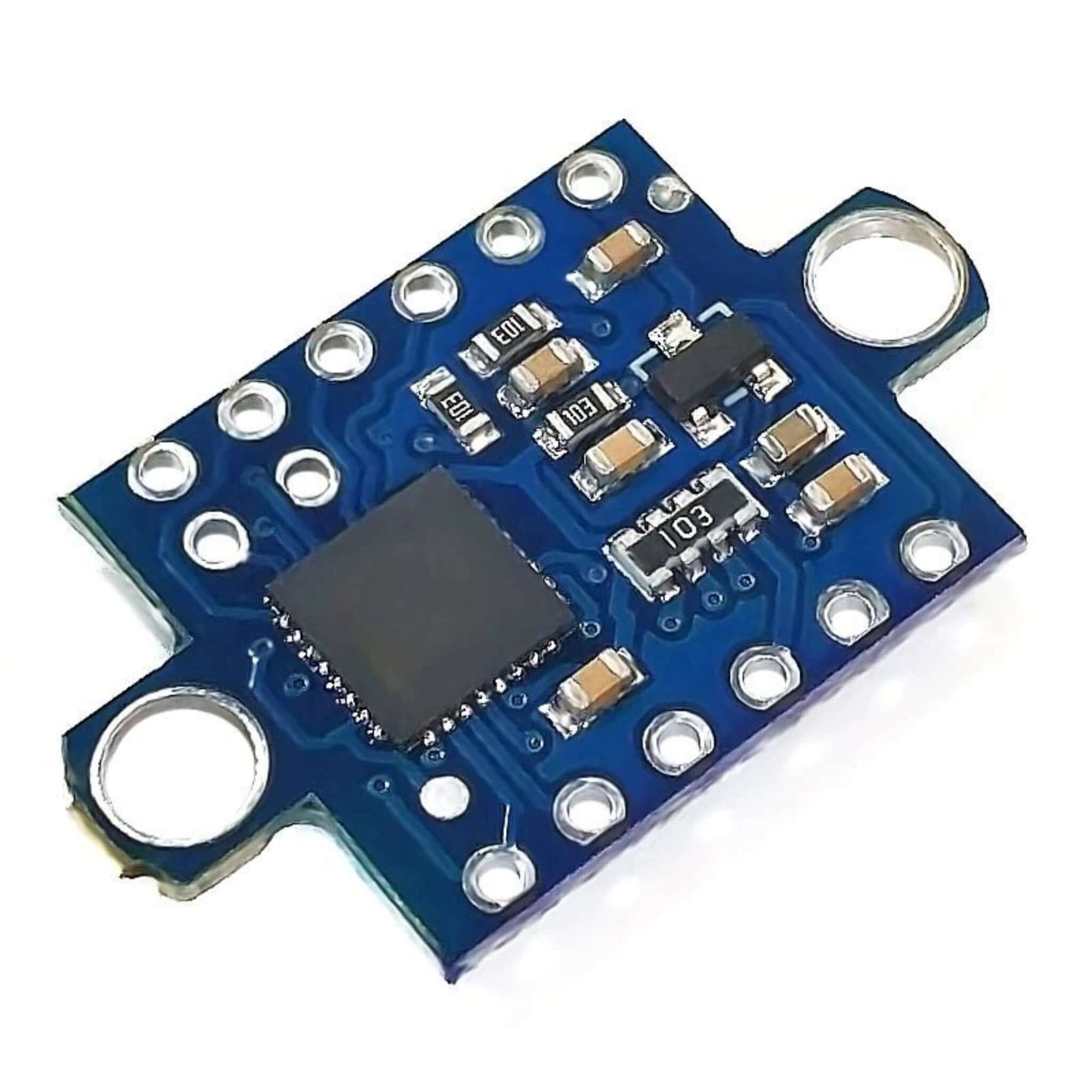

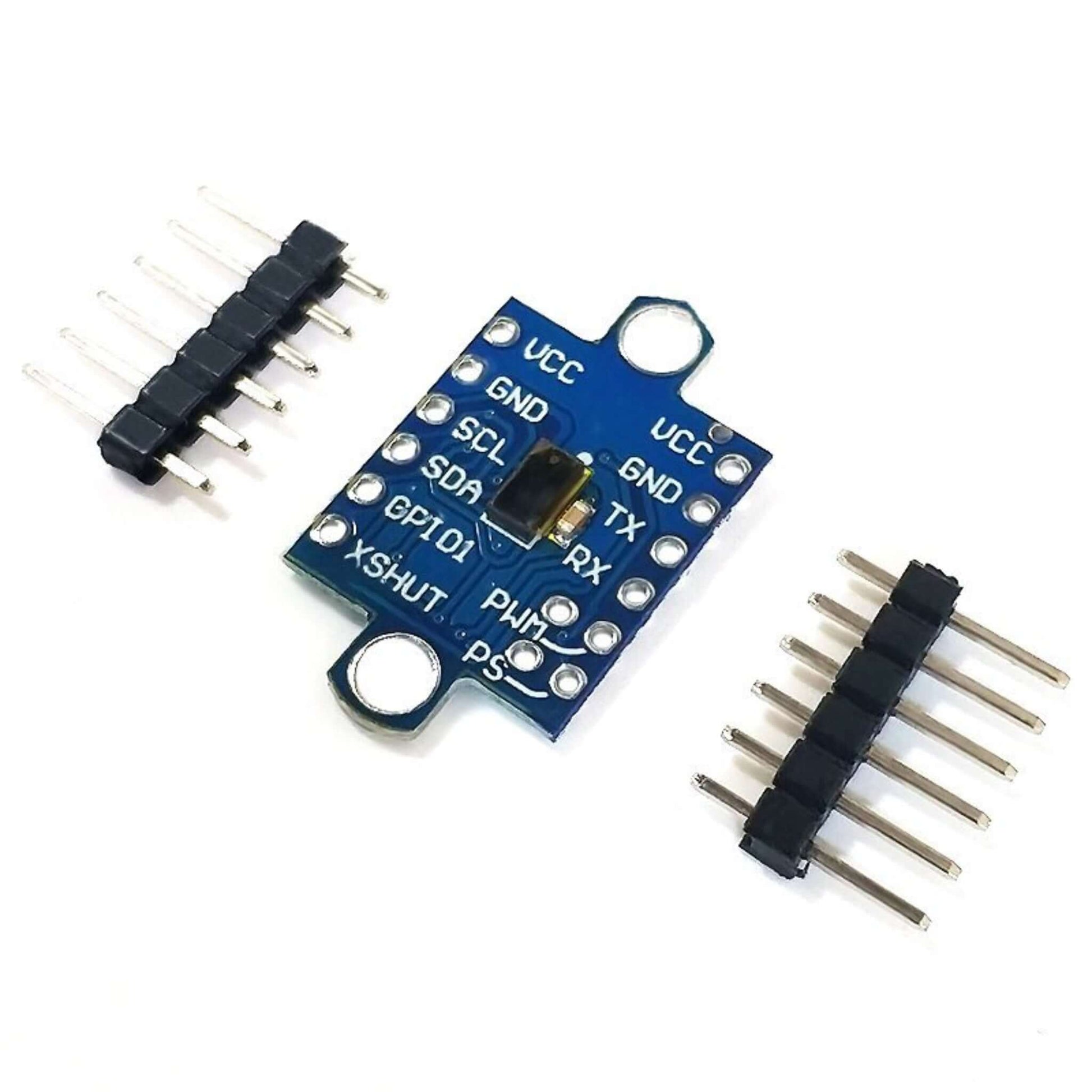

GY-53 VL53L0X Laser ToF Distance Sensor Module

Key Features 🚀

The GY-53 VL53L0X Laser ToF (Time-of-Flight) Sensor Module offers a simple and efficient solution for accurate distance measurement. Powered by a VL53L0X chip coupled with an STM32 microcontroller, this module streamlines your projects by providing direct distance data output, eliminating the need for complex communication protocols or intricate algorithms.

• Easy Integration: Designed for hassle-free connection with various MCUs (STM32, Arduino, 8051) and computers.
• Multiple Output Options: Supports serial output, PWM output, and direct I2C communication from the VL53L0X chip.
• Wide Power Compatibility: Operates on a versatile 3-5V power supply (featuring an internal low-voltage differential regulator).
• Compact Design: With dimensions of just 25mm x 15.6mm (including mounting holes), it's ideal for space-constrained applications.
• Robust Range: Achieves a measurement range of up to 2 meters in low-light, long-distance mode.
• PC Software Included: Comes with dedicated PC display distance software for easy data visualization via a USB to TTL module connection.
• Default Configuration: Pre-configured with a 9600 baud rate for serial communication, automatic output, and high-precision mode.

What's Included 📦

• GY-53 VL53L0X Laser ToF Sensor Module (no welding by default).

Important Note 💡

While highly accurate, the sensor's maximum measurement range can be influenced by strong external light conditions. However, the measurement accuracy itself remains unaffected.
