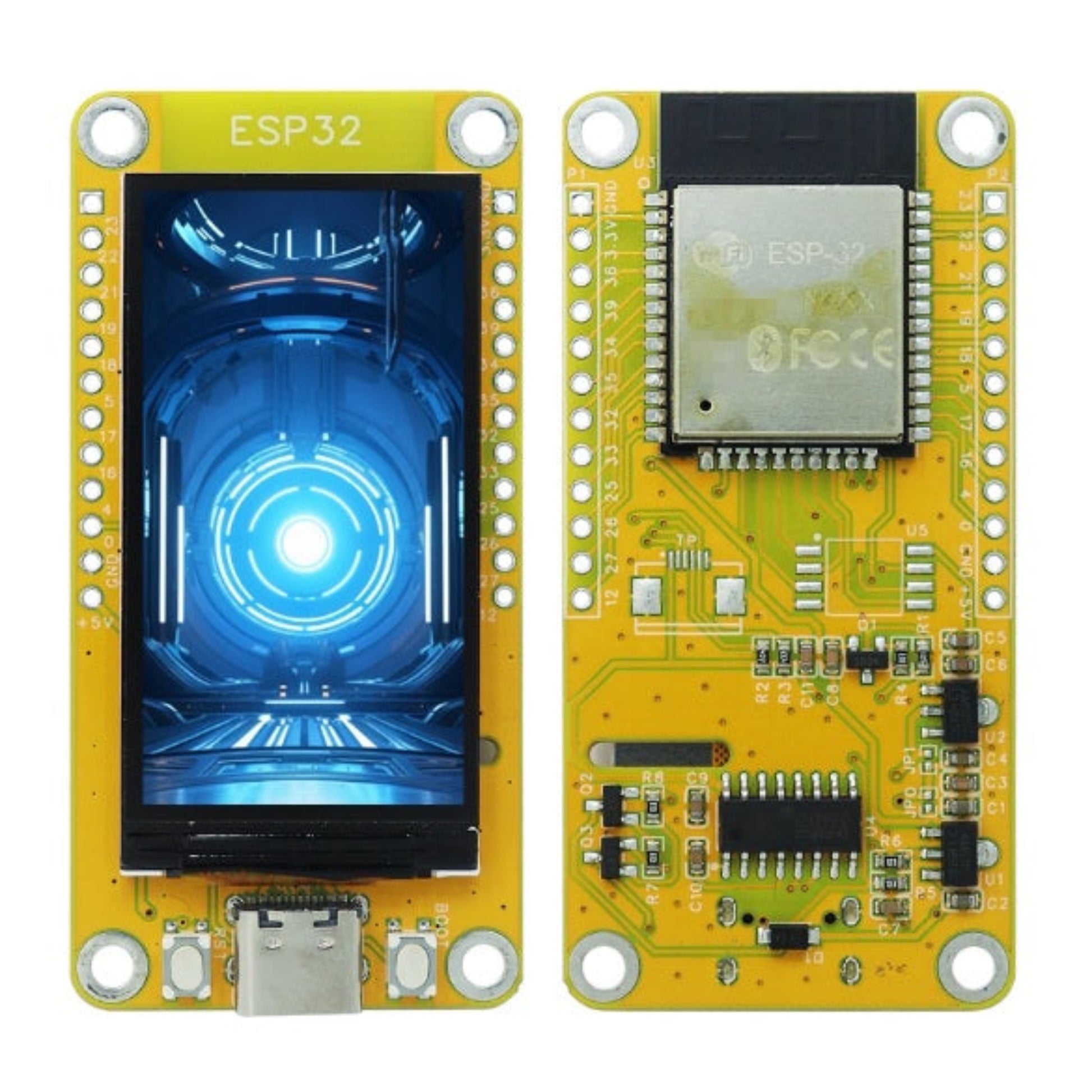

ESP32 Development Board with 1.9" Color TFT Display (1732S019)

Build Smarter IoT Devices with the ESP32 All-in-One Development Board

Take your Internet of Things (IoT) projects to the next level with the ESP32-1732S019 — a compact, feature-rich development board that combines a powerful dual-core processor and a vivid 1.9-inch color TFT display. It’s the perfect platform for prototyping smart devices, dashboards, or control panels — all without the need for extra screens or modules.

Key Features:

• Powerful Dual-Core Performance:
  Equipped with the ESP32 chip running up to 240MHz, supporting multitasking, real-time processing, and efficient power consumption.
• Built-in 1.9" Color TFT Display:
  Integrated 170x320 pixel TFT screen (ST7789 driver) for displaying sensor data, menus, and user interfaces — no additional display wiring needed.
• Wi-Fi and Bluetooth Connectivity:
  Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth v4.2 (Classic + BLE) for wireless data transfer, app control, and IoT communication.
• Developer-Friendly Interface:
  Comes with USB-C connection and onboard auto-download function for easy programming via Arduino IDE, MicroPython, or PlatformIO.
• Versatile IoT Applications:
  Ideal for projects like smart home control, wireless sensor data visualization, and portable monitoring systems.

Simplify Your IoT Design
This all-in-one board saves you from wiring extra modules — simply power up and start coding. Whether you’re building a smart thermostat, an environmental sensor hub, or a custom control interface, the ESP32 board offers performance and convenience in one package.

Specifications:

• MCU: ESP32
• CPU: Tensilica® Xtensa® Dual-Core 32-bit LX6
• Clock Speed: Up to 240MHz
• Connectivity: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth v4.2 (BLE + Classic)
• Display: 1.9" TFT LCD
• Resolution: 170 x 320 pixels
• Driver IC: ST7789
• Interface: SPI
• Connector: USB-C
• Feature: Automatic Download Mode

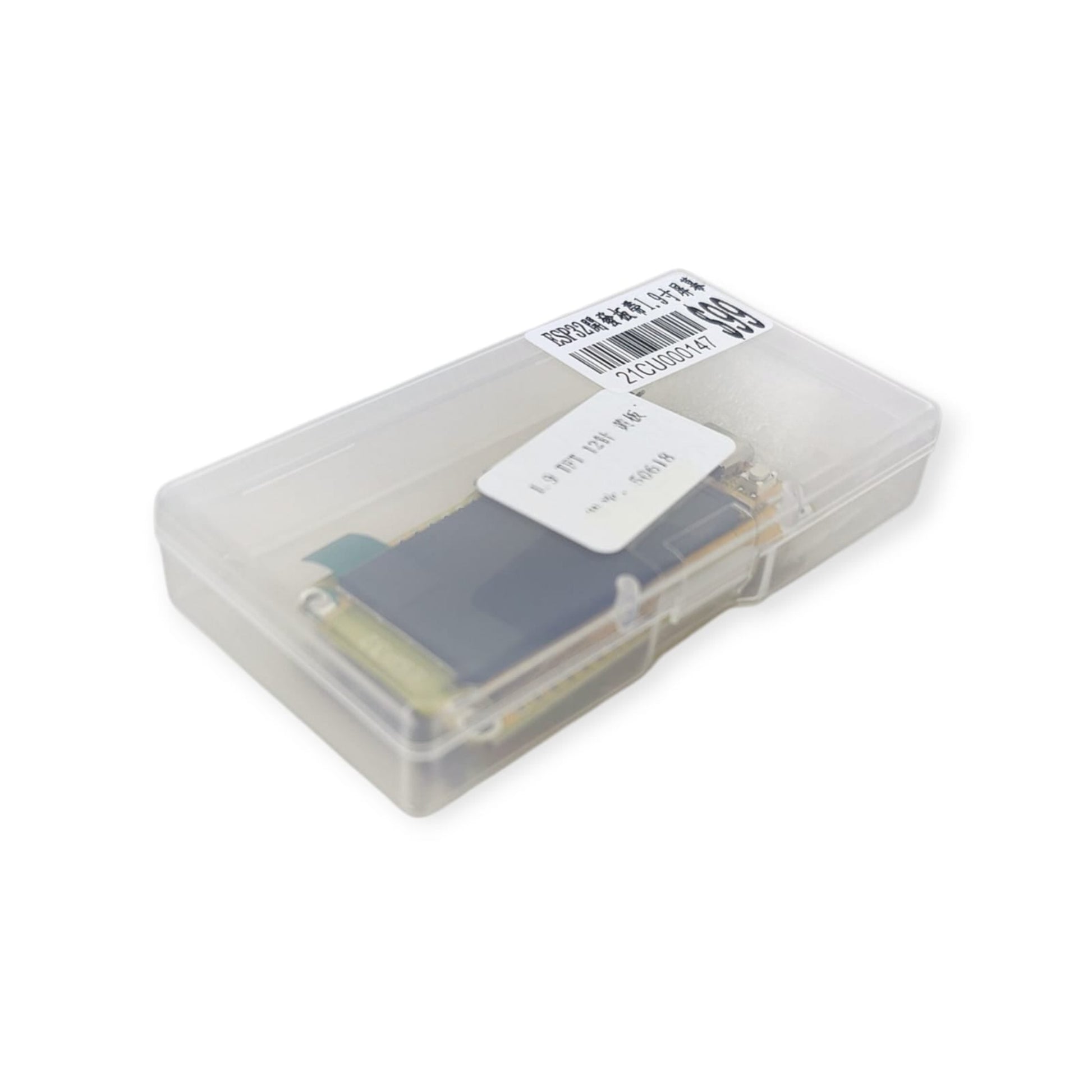

What’s in the Box:

• 1 × ESP32 Development Board with 1.9" Display
