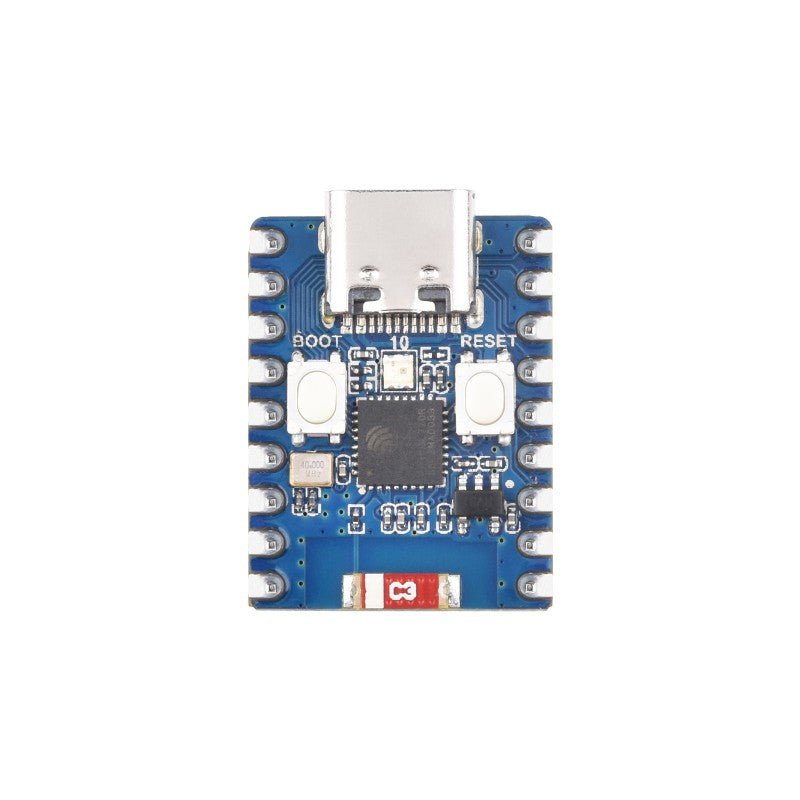

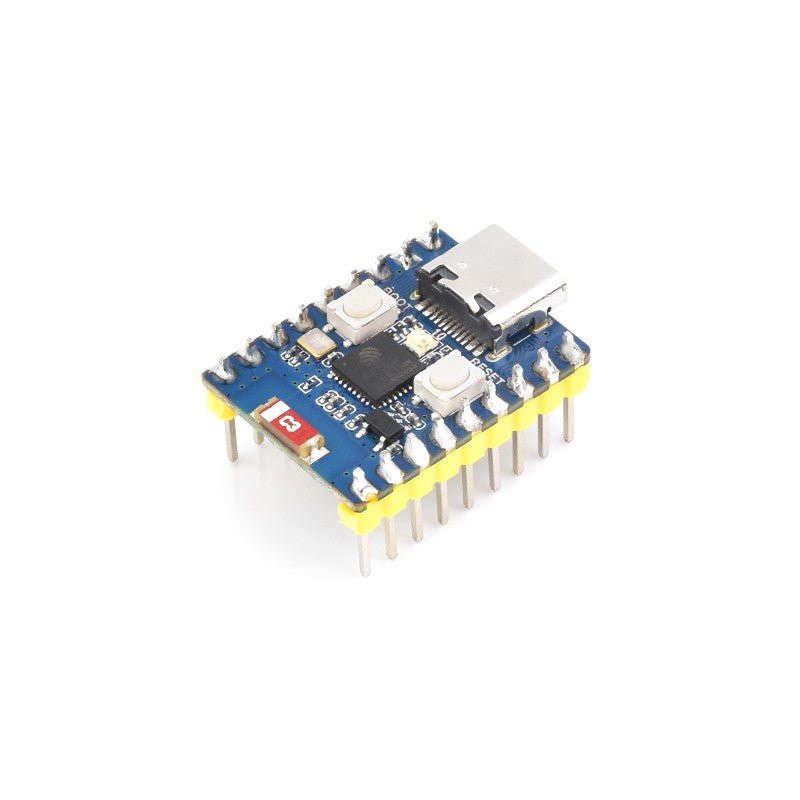

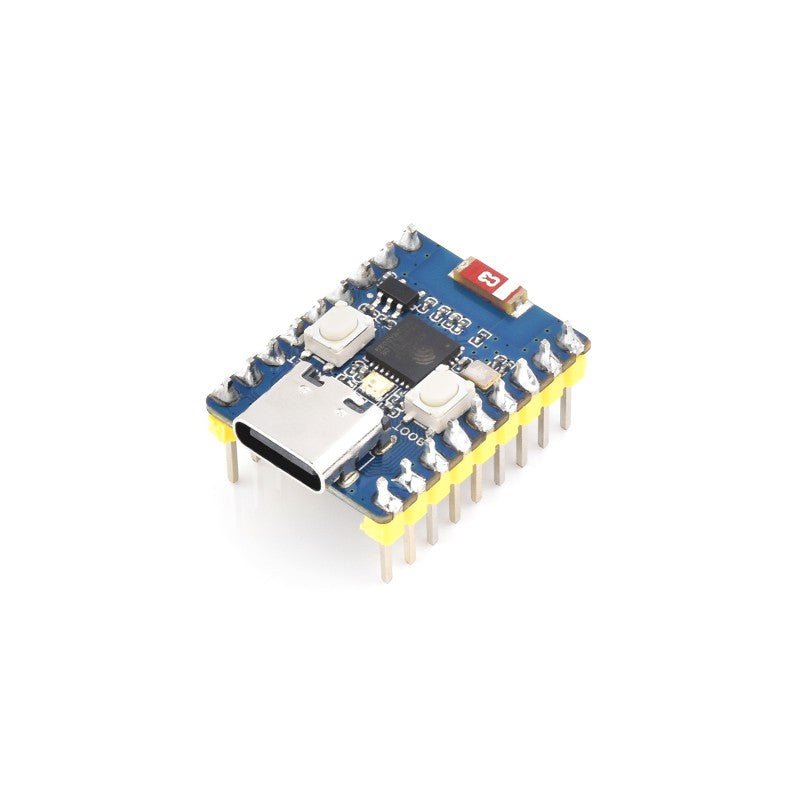

ESP32-C3 Development Module

ESP32-C3 Mini Development Board, Based on ESP32-C3FN4 Single-core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5

Board Specifications

• Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
• 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
• Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

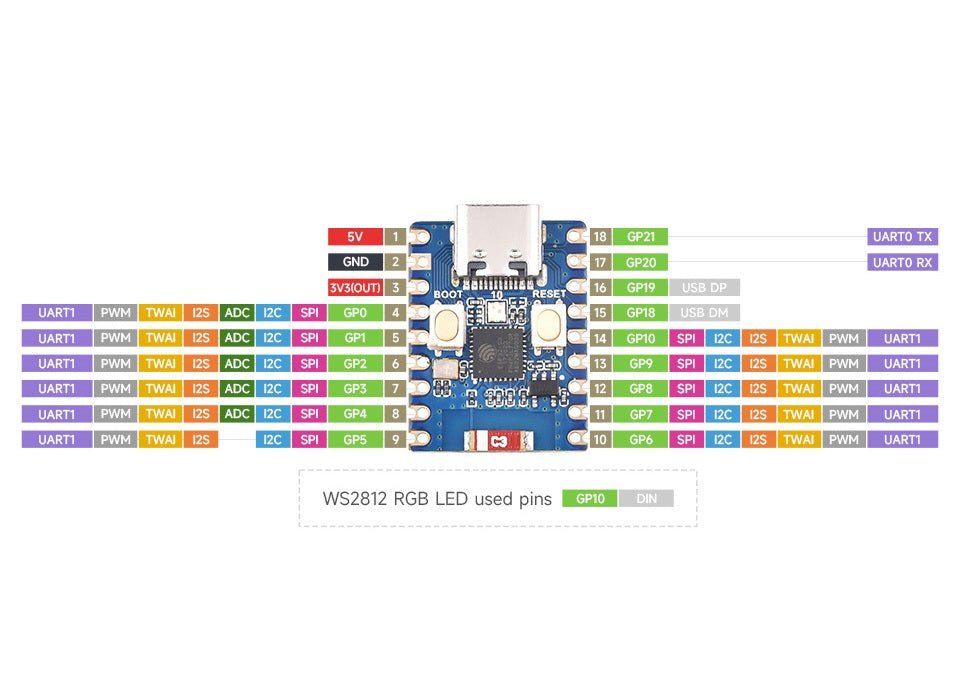

• Integrated with USB serial port full-speed controller, 15 × GPIO pins allows flexibly configuring pin functions
• 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, etc.
