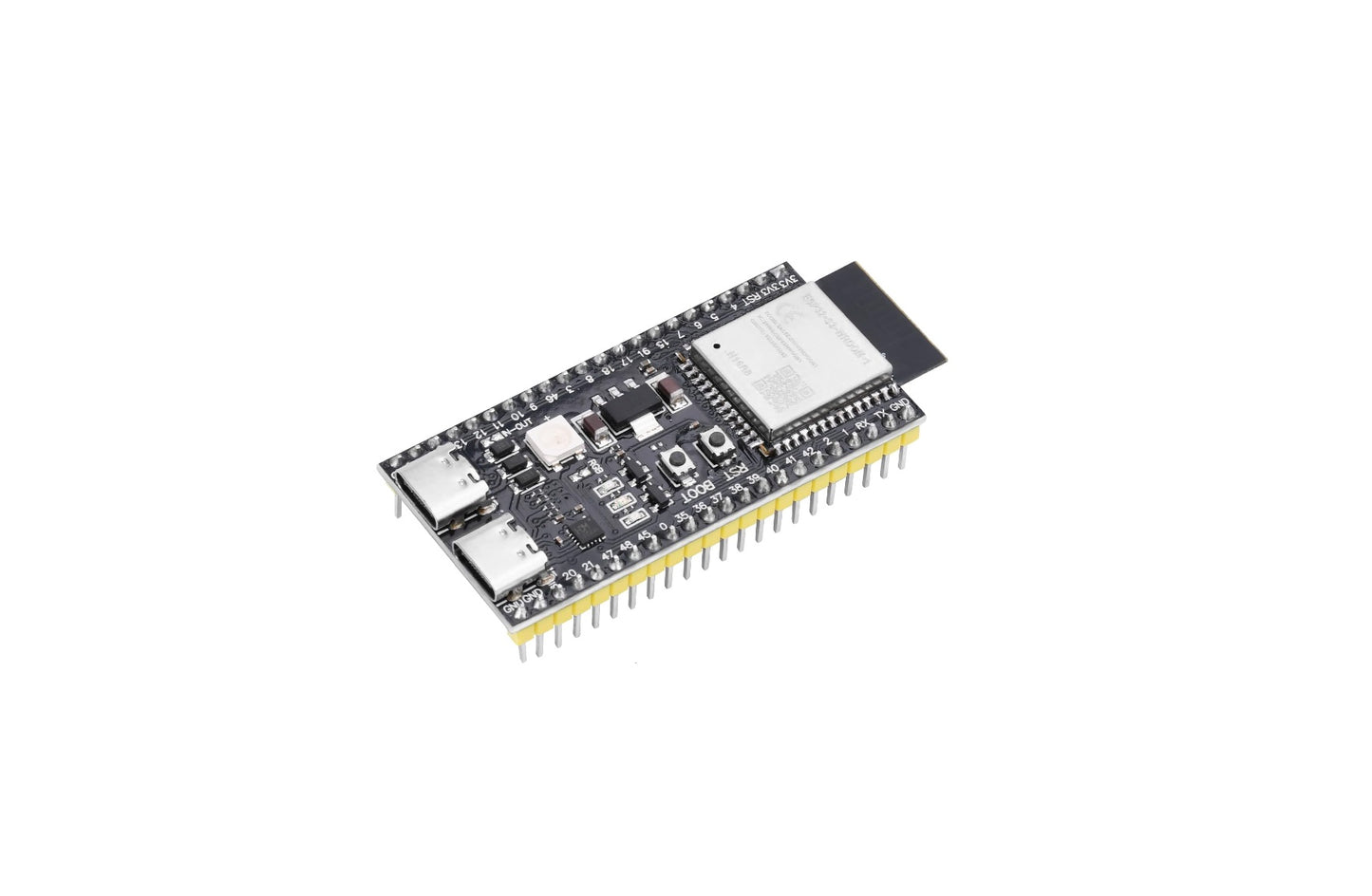

• Angled view of the ESP32-S3 N16R8 development board with soldered header pins, highlighting its compact form factor.

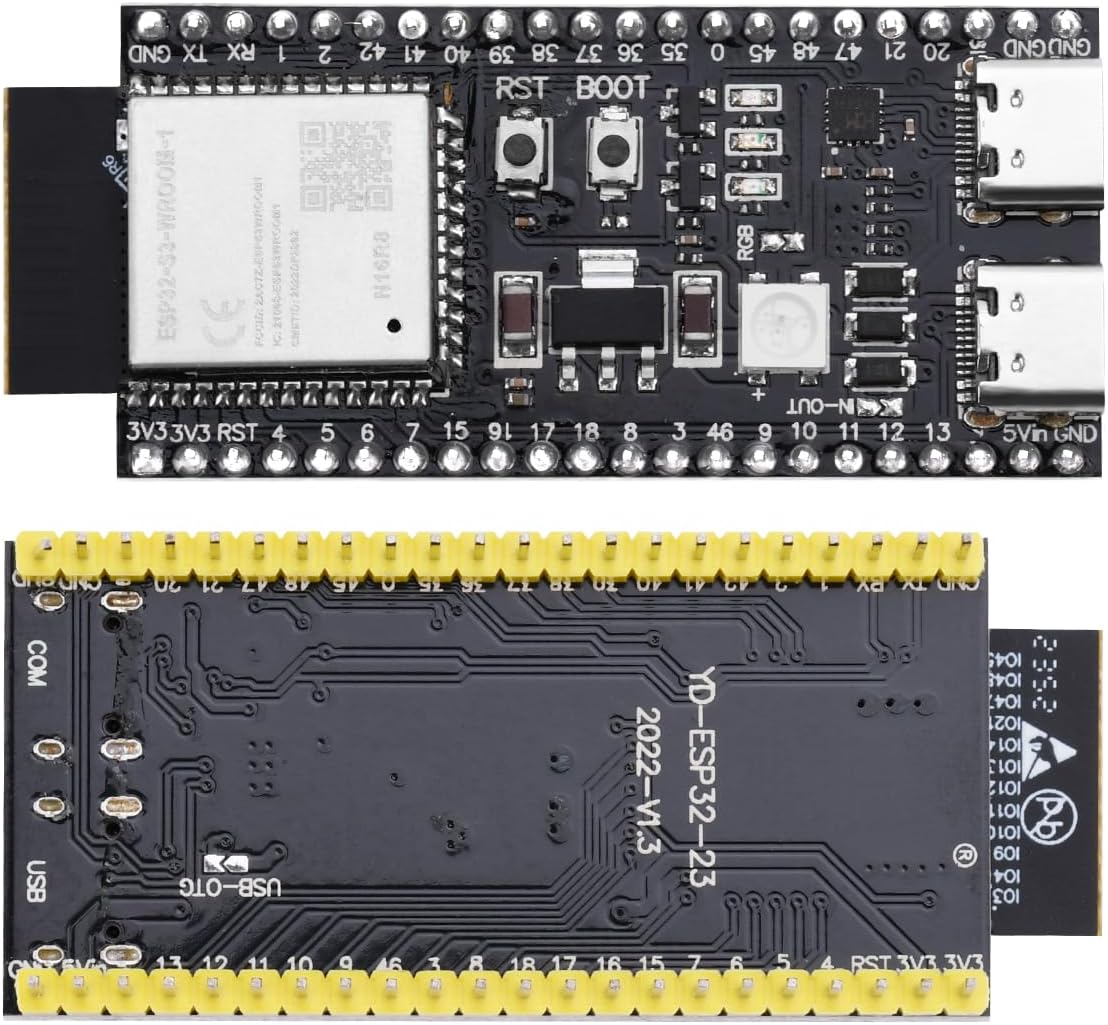

  • Front and back view of the ESP32-S3 N16R8 development board with clearly labeled components and pin headers.

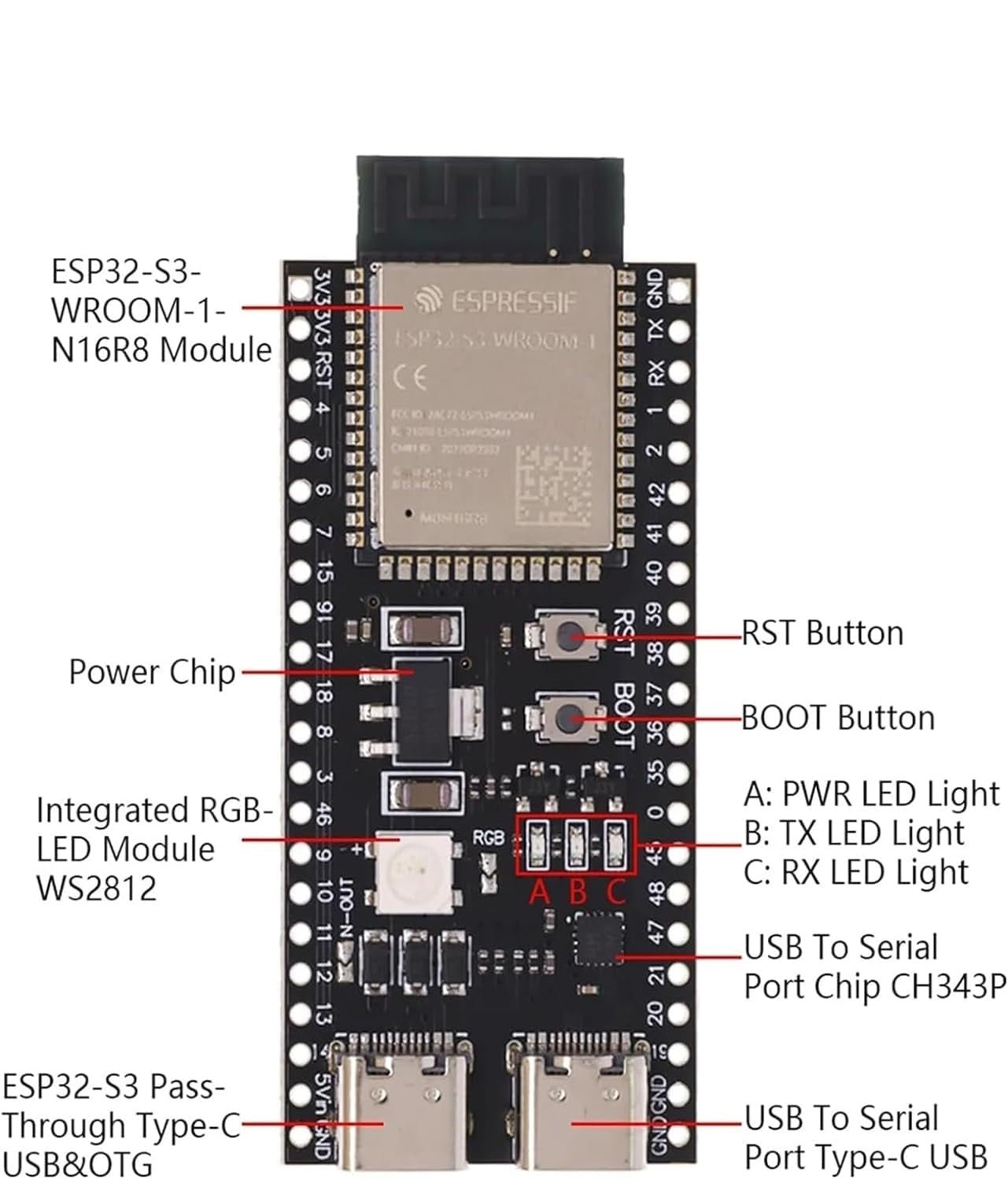

  • Annotated diagram of the ESP32-S3 N16R8 board, pointing out key components like the power chip, USB ports, and buttons.

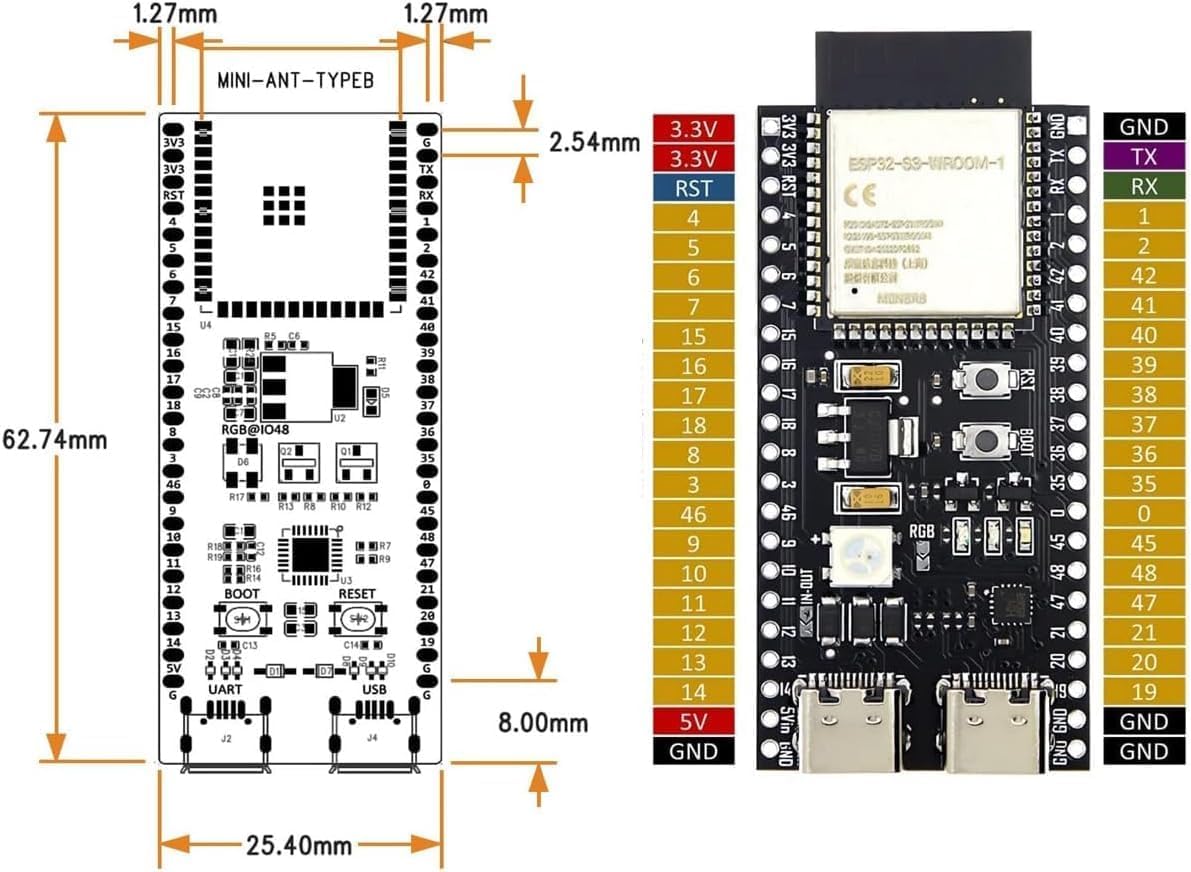

  • Technical drawing of the ESP32-S3 N16R8 board showing dimensions and pin assignments, including 3.3V and 5V pins.

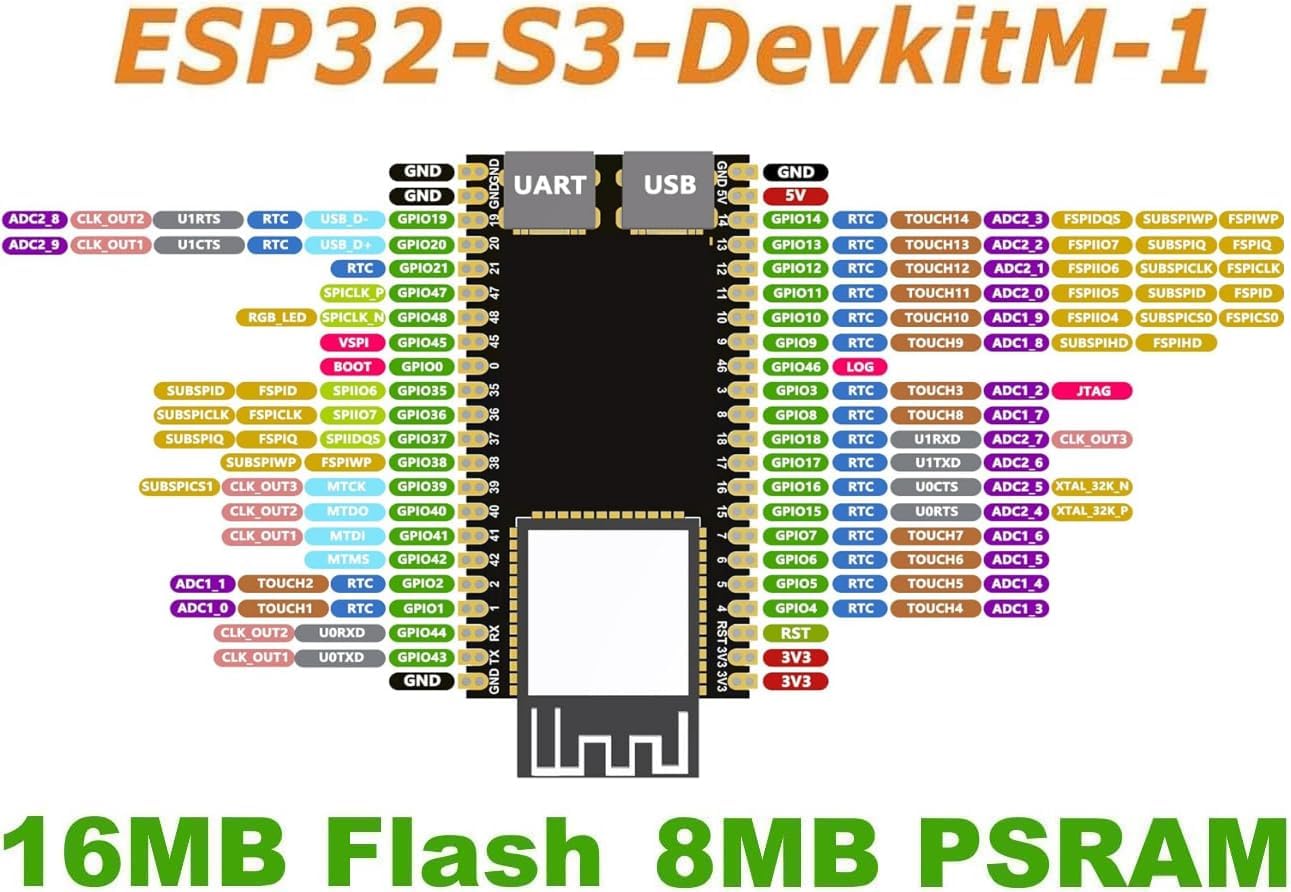

  • Detailed GPIO pinout diagram for the ESP32-S3 N16R8 Development Kit M-1, showing pin functions and numbering.
  • Top-down view of the ESP32-S3 N16R8 development board showcasing USB-C ports, RGB LED, and ESP32-S3-WROOM module.
  • Information sheet detailing the WiFi and Bluetooth 5.0 capabilities of the ESP32-S3 N16R8 development module.
1 7
sales

ESP32-S3 N16R8 WiFi Bluetooth 5.0 Dev Board (Soldered Pins)

ESP32-S3 N16R8 WiFi Bluetooth 5.0 Dev Board (Soldered Pins)

HK$89.00
HK$89.00
Sale Sold out

Unlock your IoT and embedded projects with the versatile ESP32-S3 N16R8 Development Module. This board comes with all pins pre-soldered, making it ready for immediate use right out of the box. Featuring the powerful ESP32-S3-WROOM-1-N16R8 module, it combines robust wireless connectivity with ample memory for complex applications.

Key Features:

  • Integrated ESP32-S3-WROOM-1-N16R8 Module: Experience reliable performance with 16MB Flash and 8MB PSRAM.

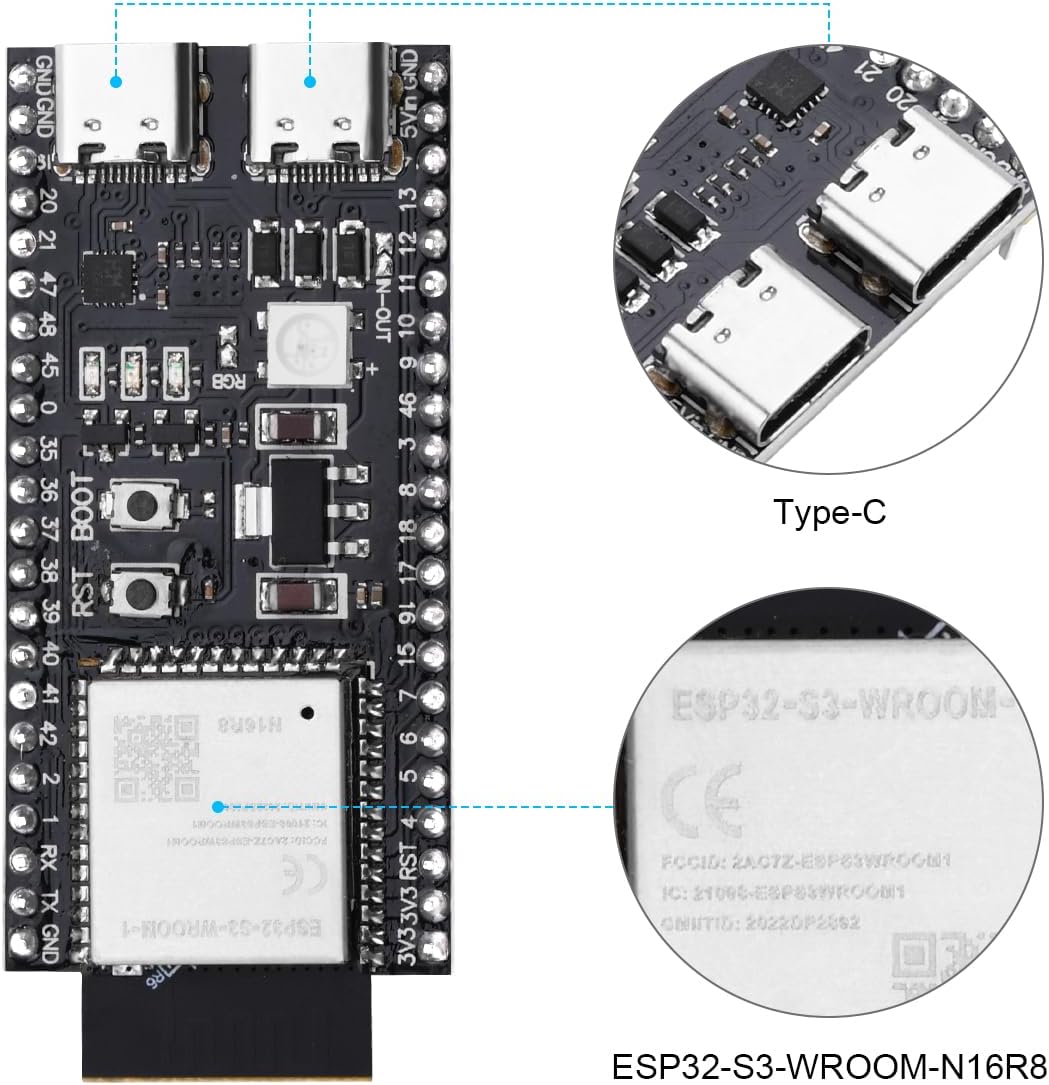

  • Dual USB Type-C Ports: Includes one for USB-to-serial communication (powered by CH343P) and another for USB-OTG, offering flexible connectivity options.
  • Ready-to-Use: Pins are pre-soldered, saving you time and effort on setup.
  • User-Friendly Controls: Equipped with dedicated RST (Reset) and BOOT buttons for easy programming and debugging.
  • Visual Indicators: Features a vibrant integrated RGB LED Module (WS2812) for visual feedback, plus PWR, TX, and RX LED lights for status monitoring.

Advanced Wireless Capabilities:

  • High-Performance Wi-Fi:
    • Supports IEEE 802.11 b/g/n protocols with 20 MHz and 40 MHz bandwidths in the 2.4 GHz band.
    • Achieve data rates up to 150 Mbps with 1T1R mode.
    • Advanced features like Wireless Multimedia (WMM), Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU), and Immediate Blocking of ACK for efficient data transfer.
    • Supports various operating modes: Station, SoftAP, and Station+SoftAP (hybrid mode).
    • Includes 4 virtual Wi-Fi interfaces and Antenna Diversity for improved signal quality.
    • Compatible with 802.11mc FTM and supports external power amplifiers.
  • Bluetooth 5.0 Low Energy (BLE):
    • Low Power Bluetooth (Bluetooth LE) and Bluetooth Mesh support.
    • High power mode (20 dBm) shares the power amplifier with Wi-Fi for optimized power management.
    • Flexible rate support: 125 Kbps, 500 Kbps, 1 Mbps, and 2 Mbps.
    • Features Advertising Extensions, Multiple Advertisement Sets, and Channel Selection Algorithm #2.
    • Wi-Fi and Bluetooth coexist seamlessly, sharing the same antenna for compact design.

Technical Specifications:

  • Module: ESP32-S3-WROOM-1-N16R8
  • Flash Memory: 16MB
  • PSRAM: 8MB
  • USB to Serial Chip: CH343P
  • Integrated LED: WS2812 RGB LED
  • Dimensions: Refer to product images for detailed measurements.

Package Includes:

  • 1 x ESP32-S3 Development Module (with soldered pins)
