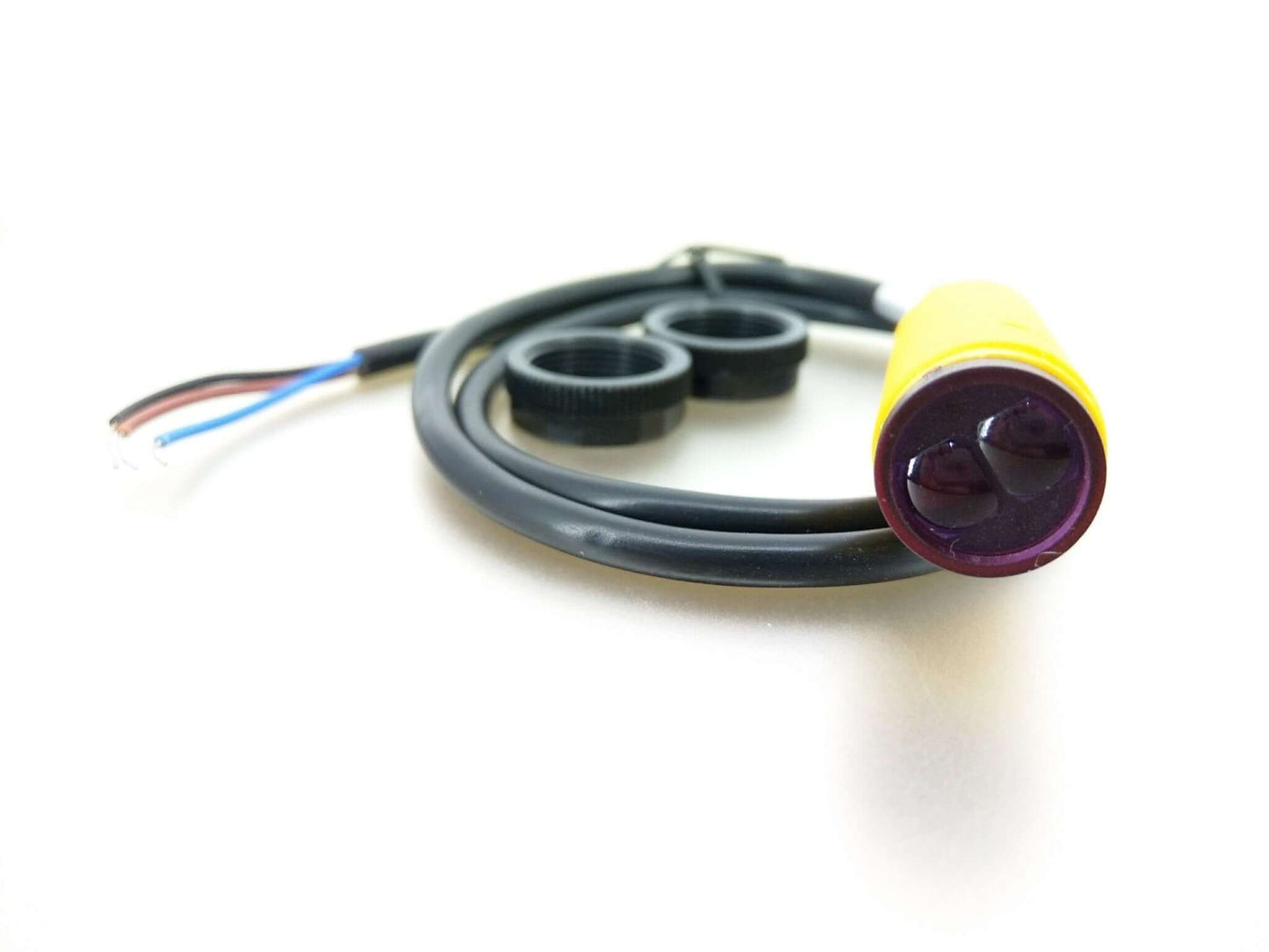

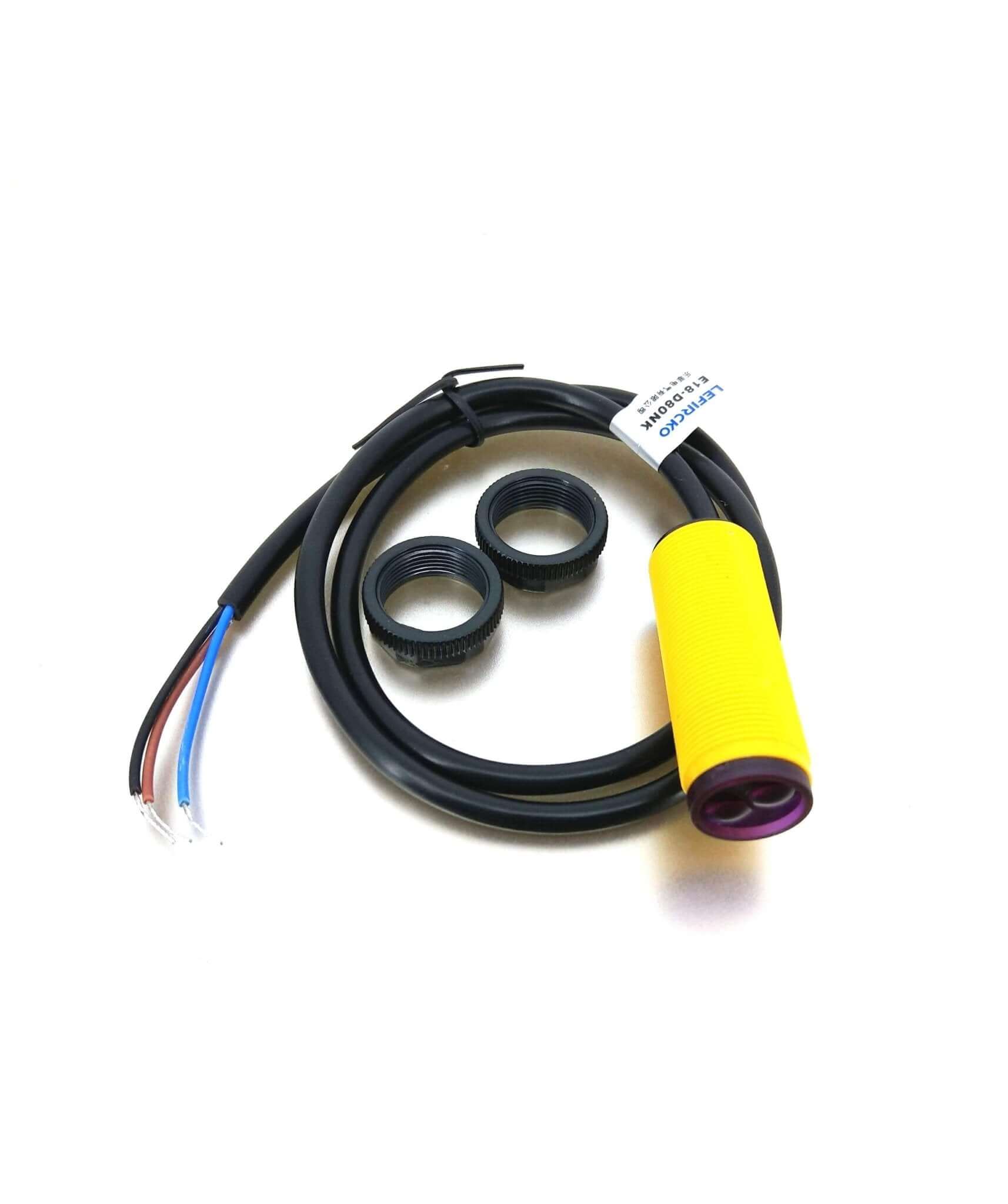

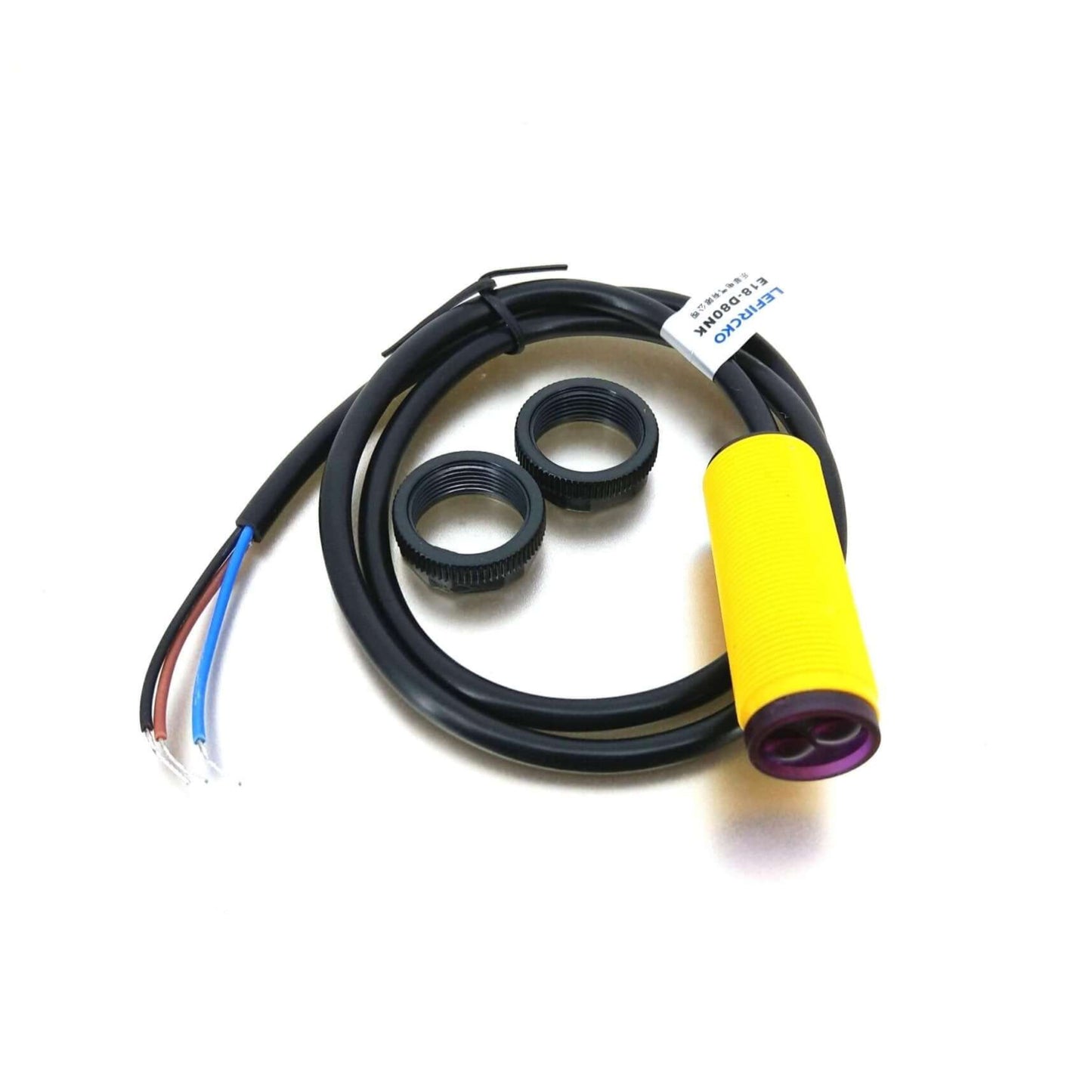

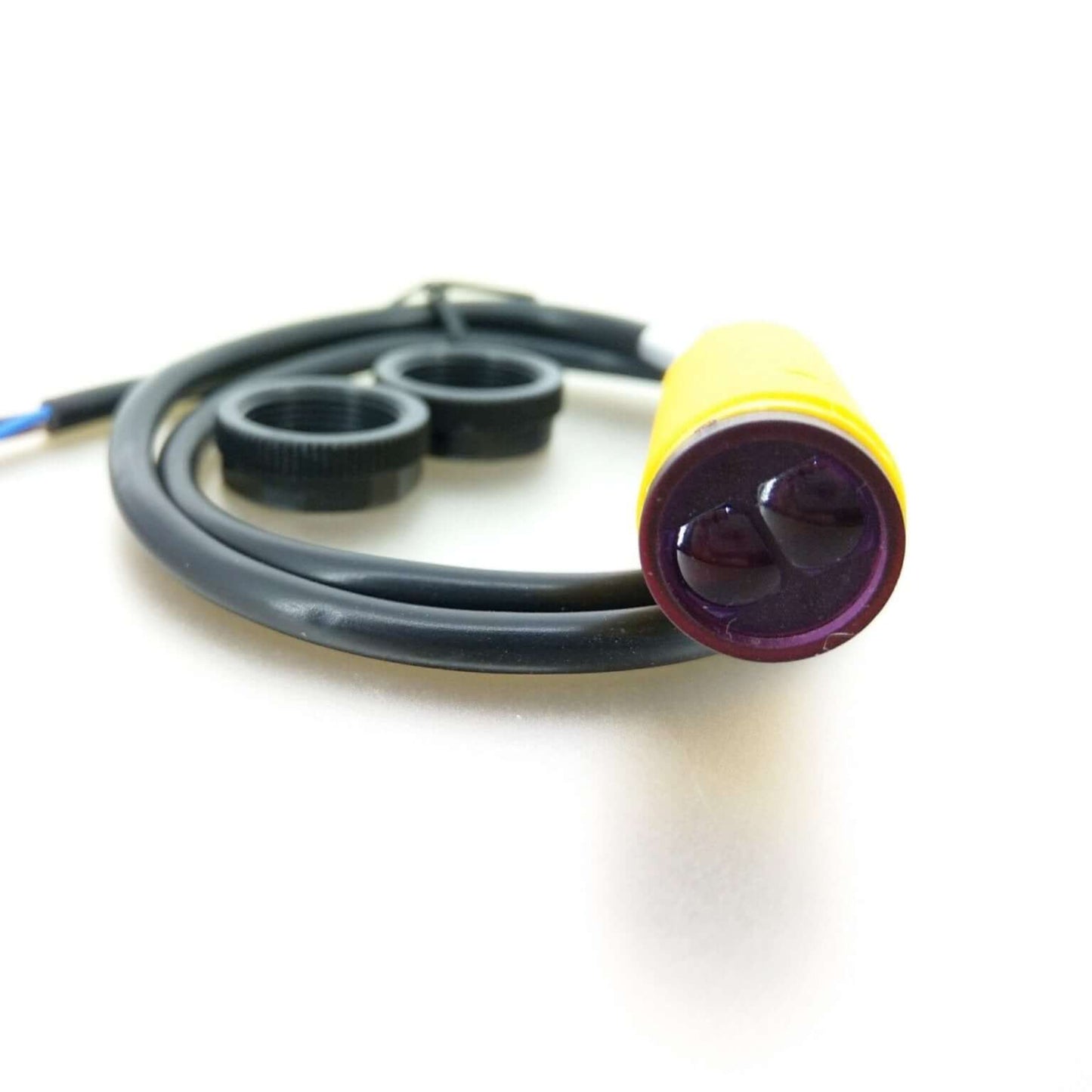

E18-D80NK Adjustable Infrared Obstacle Avoidance Sensor 3-80cm (5V)

The E18-D80NK is a versatile and reliable adjustable infrared photoelectric sensor designed for precise obstacle detection in various applications. This compact sensor integrates both emitter and receiver, offering a robust solution for projects requiring accurate distance sensing.

Key Features:

• Adjustable Sensing Range: Easily fine-tune the detection distance from 3cm to 80cm to suit your specific needs.
• Wide Application: Ideal for robot obstacle avoidance, production line counting, automation projects, and more.
• High Performance:
  • Fast response time: Less than 2ms for quick detection.
  • Detects both transparent and opaque objects.
  • Resistant to visible light interference (sunlight < 10000LX, incandescent < 3000LX).
• Easy to Use: Simple wiring (Brown: 5V+, Blue: Ground, Black: OUT 5V) for straightforward integration with Arduino and other microcontrollers.
• Durable Construction: Made with a robust plastic casing for long-lasting performance.
• Low Power Consumption: Consumes less than 25mA, making it energy efficient for your projects.

Technical Specifications:

• Model: E18-D80NK
• Operating Voltage (U): 5V DC
• Output Current (I): 100mA (DC/SCR/Relay Control output)
• Current Consumption: < 25mA
• Response Time: < 2ms
• Sensing Distance (Sn): 3-80cm (adjustable)
• Pointing Angle: ≤15°
• Detection Objects: Transparent or Opaque
• Working Environment Temperature: -25°C to +55°C
• Standard Sensing Object: Sunlight < 10000LX, Incandescent < 3000LX
• Case Material: Plastic
