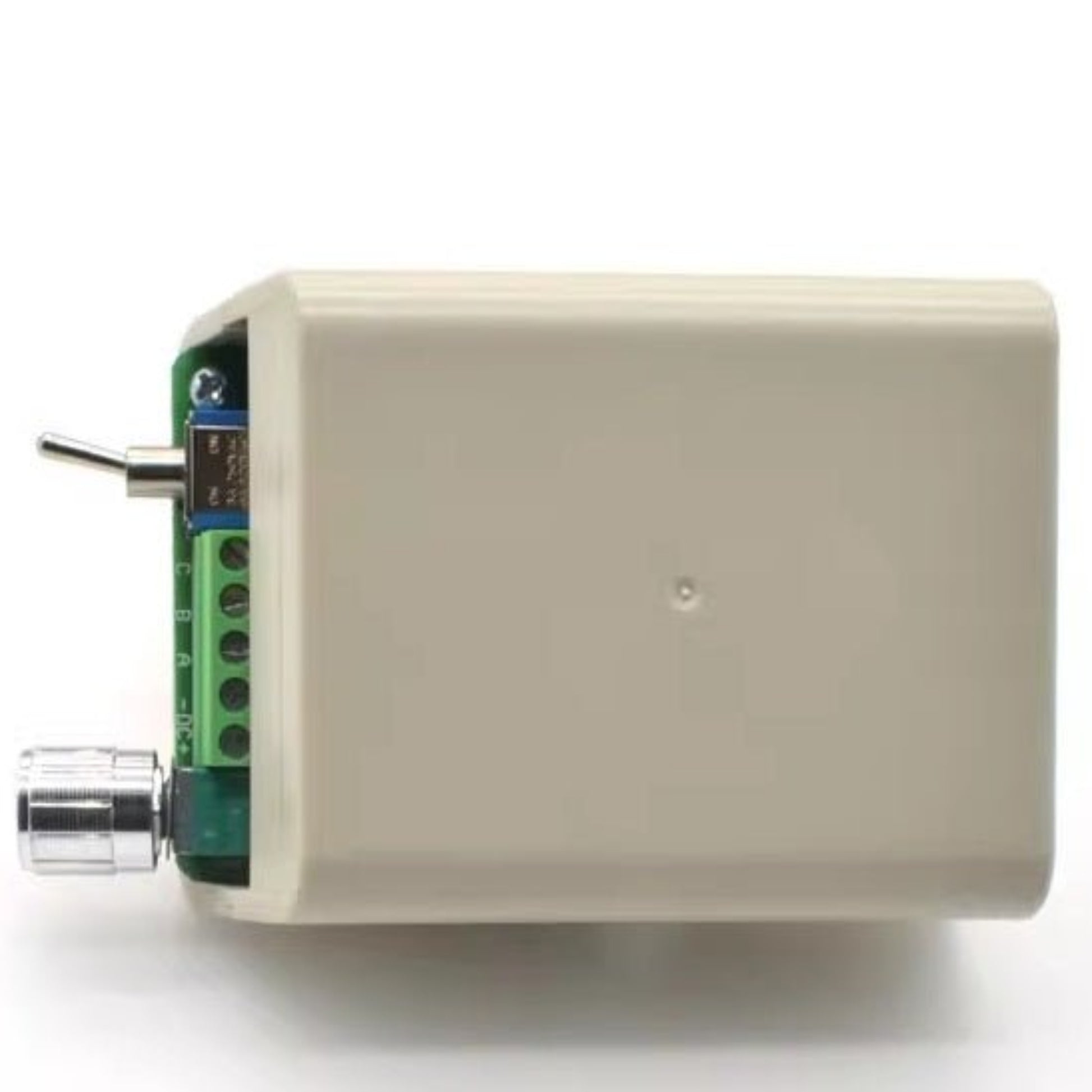

• DC5-36V brushless motor speed controller with potentiometer and dimensions for precise control.
  • DC5-36V 15A brushless motor speed controller with potentiometer and power input terminals.

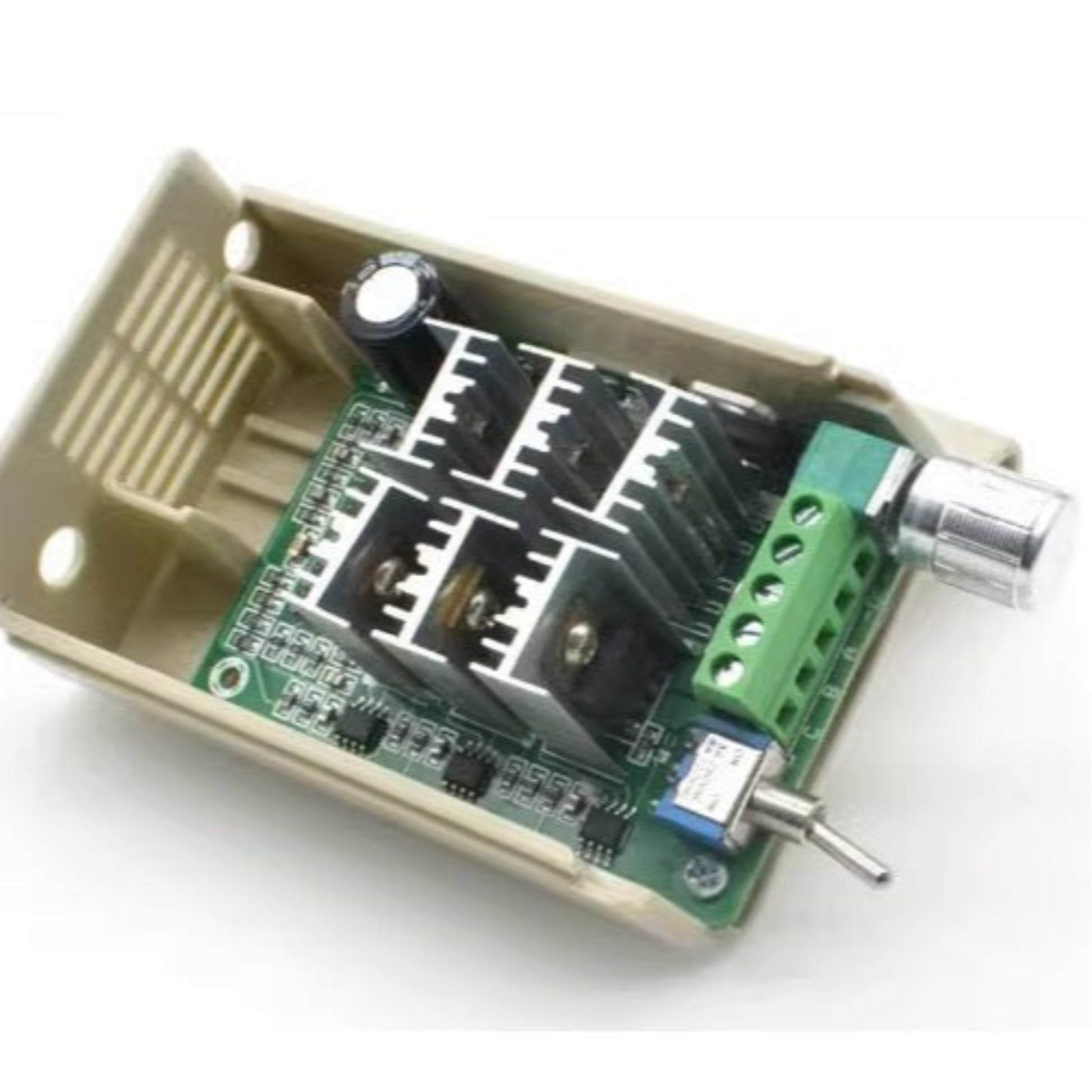

  • DC5-36V 15A BLDC three-phase sensorless brushless motor speed controller PCB with potentiometer
  • DC5-36V 15A motor speed controller view showing inputs and outputs for brushless motor applications.
  • DC5-36V 15A BLDC motor speed controller view showing connections and power inputs.
1 5
sales

DC 5-36V 15A BLDC Brushless Motor Speed Controller | Fan/HDD ESC

DC 5-36V 15A BLDC Brushless Motor Speed Controller | Fan/HDD ESC

HK$99.00
HK$99.00
Sale Sold out
Shipping calculated at checkout.

Overview: Take precise control of your brushless motors with our powerful DC 5-36V 15A BLDC Three-Phase Sensorless Brushless Motor Speed Controller (HM ESC). Designed for versatility and reliability, this controller is ideal for applications requiring adjustable speed, such as explosion fans, hard disk drives, and various industrial or hobby projects. Its robust 15A output ensures stable performance for a wide range of brushless motors.

Key Features:

  • Wide Voltage Compatibility: Operates seamlessly with DC 5V to 36V, matching your motor's rated voltage. Supports common voltages like 6V, 12V, 24V, and 36V.
  • High Current Capacity: Delivers up to 15A continuous output, suitable for demanding applications.
  • Forward & Reverse Control: Easily switch motor direction for enhanced functionality.
  • Adjustable Speed Control: Intuitive potentiometer (270-degree linear) allows for smooth and precise speed adjustments from 0-100%.
  • Sensorless Design: Simplifies wiring and setup, making it compatible with a broad range of brushless motors without Hall sensors.
  • Durable & Protected: Features 15A protection current for safe operation and a sturdy enclosure.
  • Easy Wiring: Utilizes convenient fence terminals for secure connections.
  • Integrated Switch: The 100K knob also functions as an on/off switch for added convenience.

Specifications:

  • Input Voltage: DC 5-36V (Must match motor's rated voltage)
  • Output Current: Max 15A
  • Forward/Reverse: Supported
  • Protection Current: 15A
  • Input Current Requirement: Must be greater than motor working current
  • Speed Regulation: Potentiometer (270° linear)
  • Speed Range: 0-100%
  • Supported Motors: Three-phase brushless motors (sensorless)
  • Wiring Type: Fence Terminal
  • Knob Specification: 100K (with switch function)

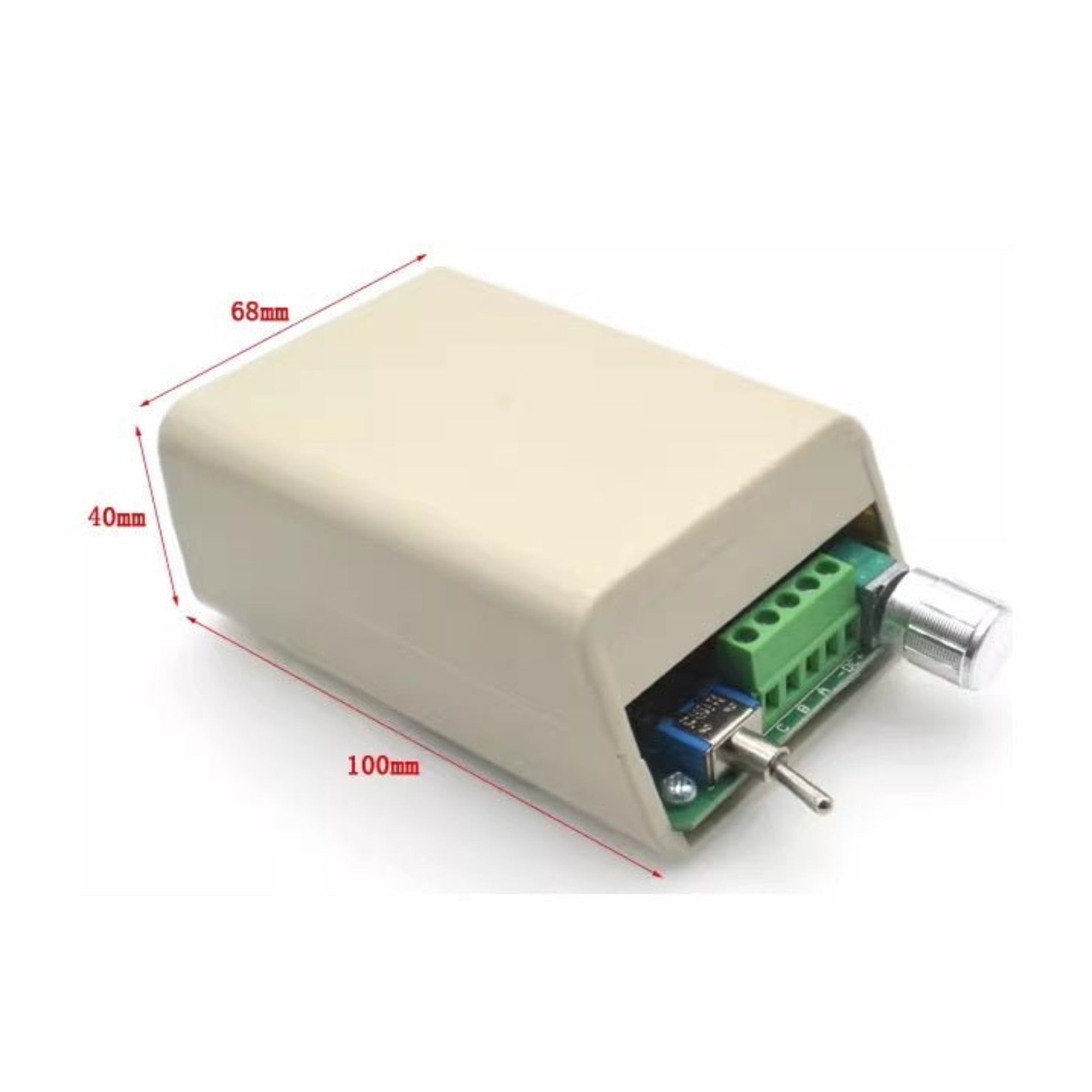

  • Module Dimensions (LWH): 100mm * 68mm * 40mm
  • Net Weight: 96g

Important Notes:

  • Polarity Matters: Ensure correct positive and negative input connections. DO NOT connect to 220V AC household electricity.
  • Voltage Matching: The input voltage must be equal to the rated voltage of your motor for optimal performance and safety.

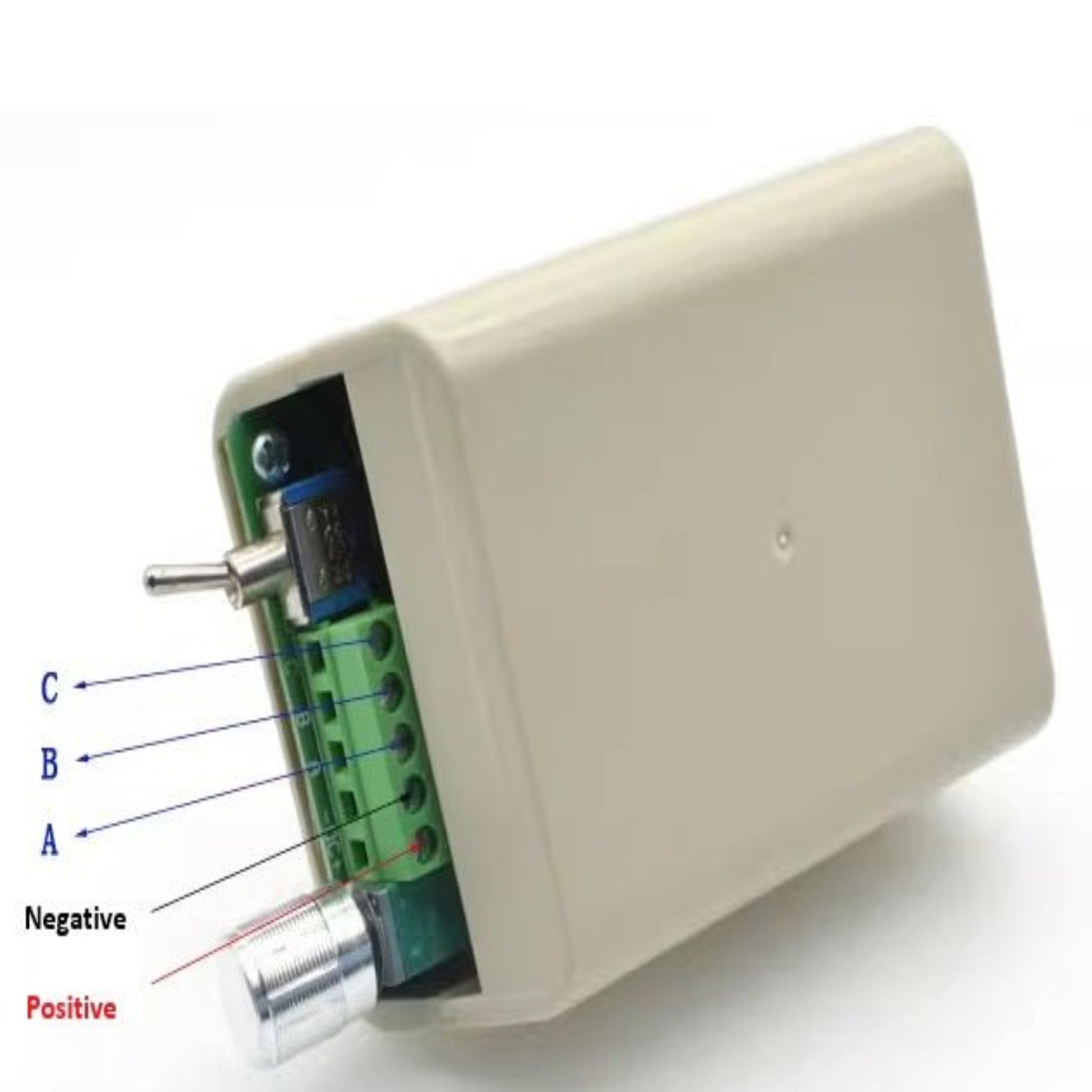

  • Motor Wire Order: The motor lines A, B, and C can be connected in any order to the controller.
