Dahua IPC-HDBW2249E-S-IL 2MP Smart Dual Light WizSense Dome Camera

Elevate Your Security with Intelligent Surveillance

Experience the next level of security with the Dahua IPC-HDBW2249E-S-IL, a 2-Megapixel Smart Dual Light WizSense Network Dome Camera. Engineered for superior performance in various environments, this camera combines high-definition imaging with advanced AI features, making it an ideal choice for both home and business security.

Crystal-Clear 2MP Resolution

Capture every detail with a maximum resolution of 1920 x 1080 (2MP) at 25/30 frames per second. Powered by a 1/2.8" CMOS image sensor, this camera delivers low luminance, high-definition images, ensuring clarity even in challenging lighting conditions.

Smart Dual Light Technology

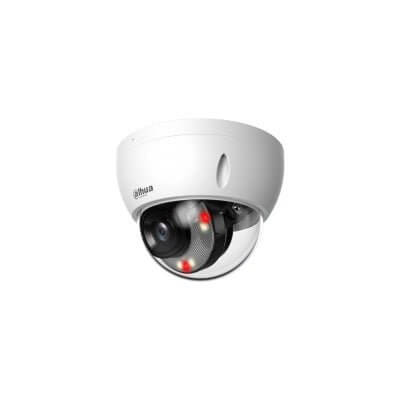

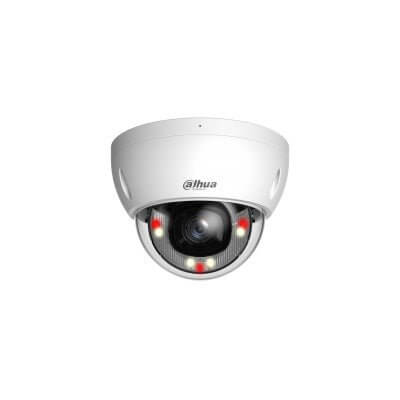

Never miss a moment, day or night. The IPC-HDBW2249E-S-IL features built-in IR LEDs and warm light illuminators, providing up to 30 meters (98.43 ft) of illumination distance for both infrared and warm light. The intelligent Smart Dual Light feature automatically switches between IR and warm light based on detected activity, offering full-color images when needed and conserving power during low-activity periods.

Advanced AI-Powered Protection with WizSense

Harness the power of Dahua's WizSense technology for intelligent monitoring. This camera supports:

• IVS (Intrusion & Tripwire): Accurately detect and classify vehicles and humans, minimizing false alarms.
• SMD Plus: Enhance motion detection by intelligently filtering out irrelevant objects like animals or leaves, focusing only on human and vehicle activity.
• Smart Search: When paired with a Smart NVR, perform refined intelligent searches, event extraction, and merging of event videos for quick and efficient forensic review.

Robust & Reliable Design

Built to withstand the elements, this camera boasts:

• IP67 Protection: Fully protected against dust and capable of immersion in water up to 1 meter for 30 minutes.
• IK10 Vandal Resistance: Provides superior protection against impact and vandalism.
• Durable Metal Casing: Ensures long-lasting performance and reliability.

Flexible Installation & Storage

Installation is made easy with 12 VDC/PoE power supply options. The camera also supports a maximum 256GB Micro SD card for local storage, offering a reliable backup or standalone recording solution. The built-in microphone allows for audio detection and recording, adding another layer of security.

Key Features:

• 2-Megapixel (1920x1080) Resolution: Clear and detailed surveillance.
• Smart Dual Light: IR and warm light for optimal day and night vision up to 30m.
• WizSense Technology: Intelligent perimeter protection (intrusion, tripwire) and SMD Plus for accurate human/vehicle detection.
• H.265 Codec: High compression rate and ultra-low bit rate for efficient storage and bandwidth usage.
• 120 dB WDR: Excellent performance in high-contrast lighting.
• Built-in Microphone: For audio monitoring.
• Max. 256GB Micro SD Card Support: Flexible local storage.
• 12VDC/PoE Power Supply: Easy and versatile installation.
• IP67 & IK10 Rated: Weatherproof and vandal-resistant for outdoor and harsh environments.
• Angle Adjustment: Pan: 0°–355°; Tilt: 0°–65°; Rotation: 0°–355° for flexible positioning.

Product Specifications (Summary for quick reference):

• Image Sensor: 1/2.8" CMOS
• Max. Resolution: 1920 x 1080 (2MP)
• Min. Illumination: 0.002 lux@F1.6 (Color); 0 lux (Illuminator on)
• Illumination Distance: Up to 30m (IR) / Up to 30m (Warm Light)
• Lens Type: Fixed-focal (2.8 mm or 3.6 mm options)
• Field of View (2.8mm): H: 105°; V: 56°; D: 126°
• Video Compression: H.265; H.264; MJPEG
• Storage: Micro SD card (max. 256 GB)
• Power: 12 VDC/PoE (802.3af)
• Operating Temperature: –40 °C to +60 °C
• Dimensions: 81.0 mm × Φ109.9 mm
• Net Weight: 0.35 kg
