Dahua 1080p 2MP HDCVI Eyeball Security Camera 2.8mm | DH-HAC-T1A21P-U
Dahua 1080p 2MP HDCVI Eyeball Security Camera 2.8mm | DH-HAC-T1A21P-U
Couldn't load pickup availability
Short Product Description
Short Product Description

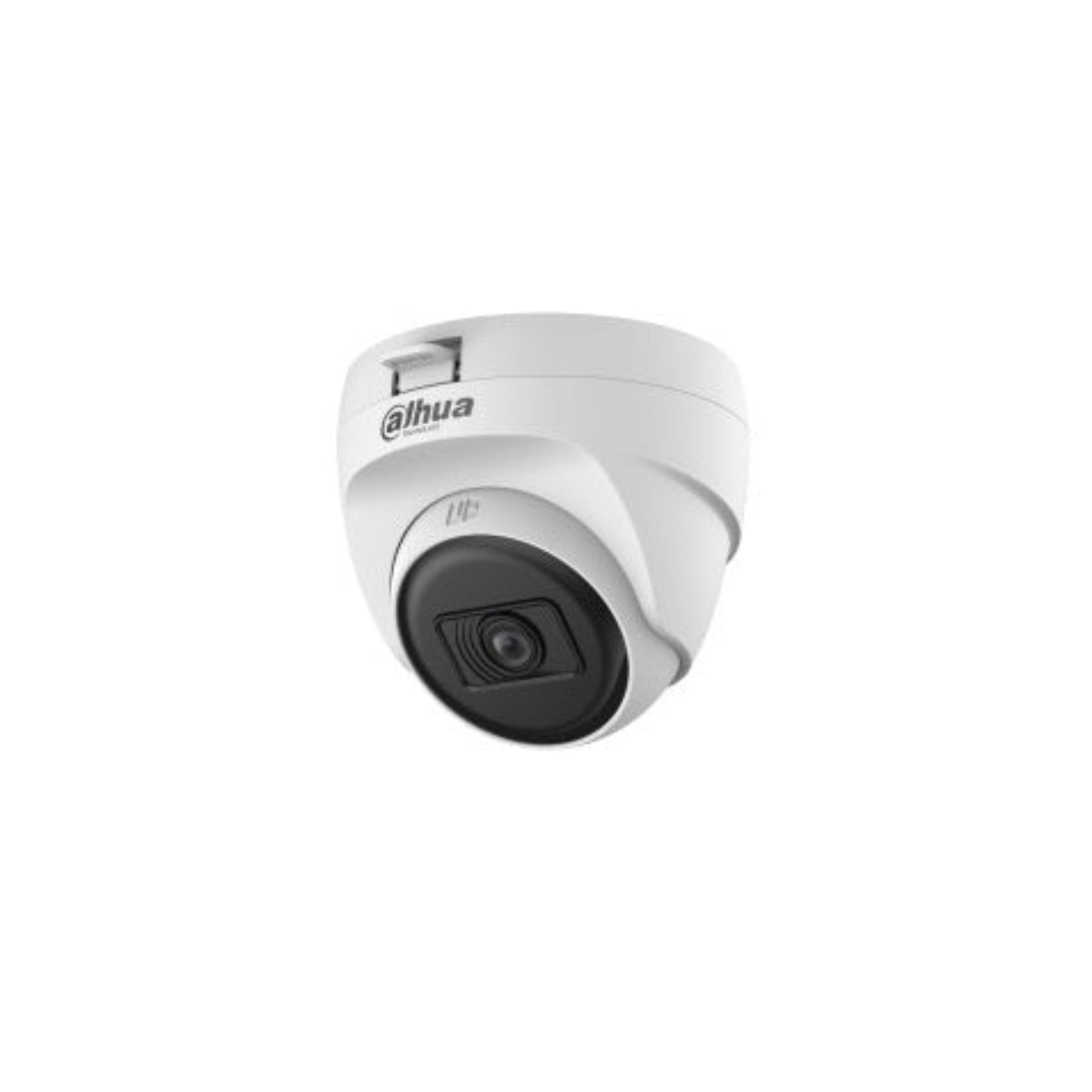

Upgrade your surveillance with the Dahua DH-HAC-T1A21P, a high-performance 1080p eyeball camera designed for crystal-clear visual monitoring. Featuring a 2.8mm fixed lens, it provides an expansive 100° field of view, making it the ideal choice for monitoring large indoor spaces or retail shops with a single device. Built on the reliable HDCVI technology, this camera offers a "plug and play" solution that transmits full HD video over your existing coaxial cables without lag or complex network setup. With 25-meter Smart IR night vision and extreme temperature resilience, it ensures your property is protected 24/7 in any environment.
Key Features
Key Features
- 1080p Full HD Resolution: Delivers sharp 2MP video for precise identification of people and objects.
- 2.8mm Wide-Angle Lens: Provides a 100° wide field of view, covering more area with fewer cameras.
- 25m Smart IR Night Vision: Ensures clear, identifiable images in total darkness without overexposure.
- 4-in-1 Switchable Output: Compatible with CVI, AHD, TVI, and CVBS DVRs for maximum flexibility.
- Quick-to-Install Structure: Streamlined design significantly reduces installation time and labor costs.
- ±30% Wide Voltage Tolerance: Operates reliably even in locations with unstable power supplies.
- Extreme Climate Resilience: Functions perfectly in temperatures ranging from -40°C to +60°C.
- 2D Noise Reduction (2D NR): Filters out image noise in low-light conditions for cleaner, clearer footage.
Full Product Description
Full Product Description
High-Definition Clarity for Total Peace of Mind
Eliminate Blind Spots with 100° Wide-Angle Coverage

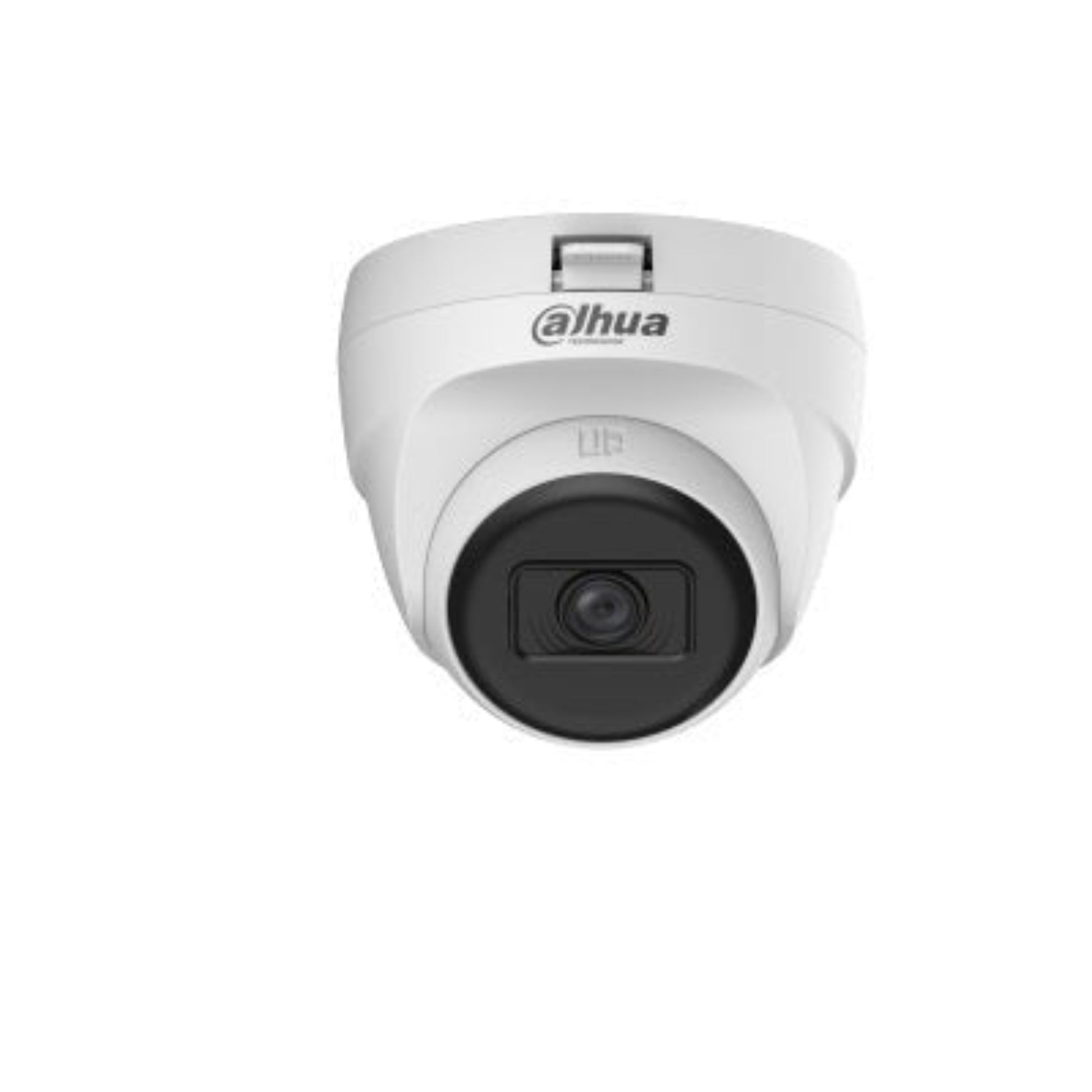

In urban environments and small offices, every inch of coverage matters. The Dahua DH-HAC-T1A21P features a 2.8mm wide-angle lens that delivers a massive 100° horizontal viewing angle . This allows you to monitor an entire room from one corner, reducing the number of cameras needed and lowering your total security investment while ensuring no detail goes unnoticed.
1080p Full HD Resolution: Evidence You Can Trust
Don't settle for grainy, low-quality footage when it matters most. This 2MP camera captures fluid 1080p video at 30fps, providing the forensic-level detail required to identify faces and recognize incidents . Powered by a high-sensitivity CMOS sensor, the DH-HAC-T1A21P ensures sharp images that serve as reliable evidence for insurance or legal claims .
Smart IR Night Vision: 25m Clarity in Total Darkness
Security shouldn't fail when the lights go out. Equipped with Smart IR technology, this camera provides uniform brightness in black-and-white images up to 25 meters (82 feet) away . The intelligent algorithm automatically adjusts the intensity of the infrared LEDs as objects move closer, preventing "white-out" overexposure of faces and ensuring clear identification even in pitch-black conditions.
4-in-1 Versatility: Compatible with Almost Any System
Whether you are using a modern Dahua XVR or a legacy analog DVR, the DH-HAC-T1A21P has you covered. It supports CVI, TVI, AHD, and CVBS video formats, which are easily switchable via a single BNC port. This makes it a perfect "drop-in" replacement for older cameras, allowing you to upgrade to HD quality without replacing your entire infrastructure .
Quick-Install Design & Rugged Reliability
Save time and labor costs with the Quick-to-install eyeball structure. Its 3-axis adjustment allows for effortless mounting on walls or ceilings, ensuring the perfect angle every time. Designed to operate in extreme temperatures from -40°C to +60°C, this camera is built to withstand unstable power supplies with a ±30% input voltage tolerance .
Technical Specifications
Technical Specifications
- Model: Dahua DH‑HAC‑T1A21P-U (2.8 mm)
- Image sensor: 1/2.7" 2 MP CMOS
- Max resolution: 1920 (H) × 1080 (V) at 1080p
- Scanning system: Progressive scan
- Min. illumination: 0.02 lux @ F2.0 (Color), 0 lux with IR on
- IR distance: Up to 25 m (82 ft) with Smart IR
- Lens type: Fixed‑focal 2.8 mm lens (3.6 mm optional on some variants)
- Angle of view (2.8 mm): Horizontal 100°, Vertical 54°, Diagonal 117°
- Frame rate: 1080p @ 25/30 fps
- Video output: BNC port, supports CVI / TVI / AHD / CVBS (switchable)
- Day/night mode: Auto (ICR) / Color / Black & White
- WDR: Digital WDR (DWDR)
- BLC: Backlight compensation (BLC)
- Noise reduction: 2D NR (2‑D noise reduction)
- Casing material: High‑quality plastic
- Power supply: 12 V DC ± 30%
- Operating temperature: −40 °C to +60 °C (−40 °F to +140 °F)
- Mounting: Wall mount and ceiling mount
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: Can I use this camera with my existing BNC cables?
A: Yes. This camera is designed to work with standard coaxial (BNC) cabling. It allows you to upgrade your old analog system to 1080p HD without the need to re-wire your property .
Q: Is this camera suitable for outdoor use?
A: While the DH-HAC-T1A21P features extreme temperature resistance, its plastic casing is best suited for indoor use or sheltered outdoor areas (like under a porch or eave) where it is protected from direct rain.
Q: How do I switch between CVI, AHD, or TVI modes?
A: The camera features a switchable BNC port. You can change the video format via the OSD menu or by using a Dahua PFM820 UTC Controller to match your DVR's specific format.
Target Users / Applications
Target Users / Applications
- Small Retail Shops: Perfect for covering the entrance and the shop floor with a single wide-angle lens.
- Office Managers: Ideal for hallways and reception areas where clear 1080p evidence is required.
- Homeowners: A cost-effective way to monitor living rooms or garages using existing wiring.
- Budget-Conscious SMBs: The Cooper Series offers Dahua quality at a "friendly price" for businesses looking to maximize ROI.
