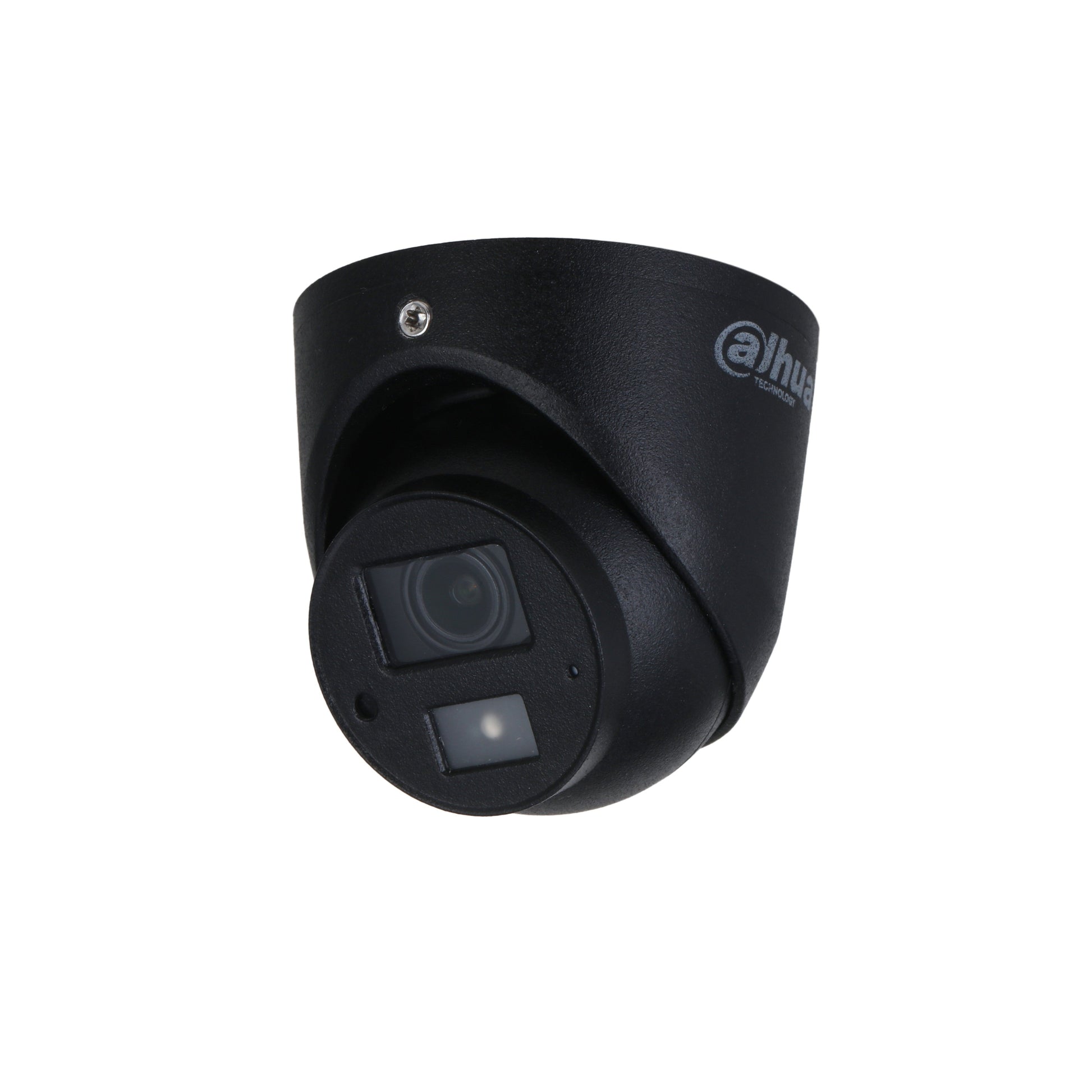

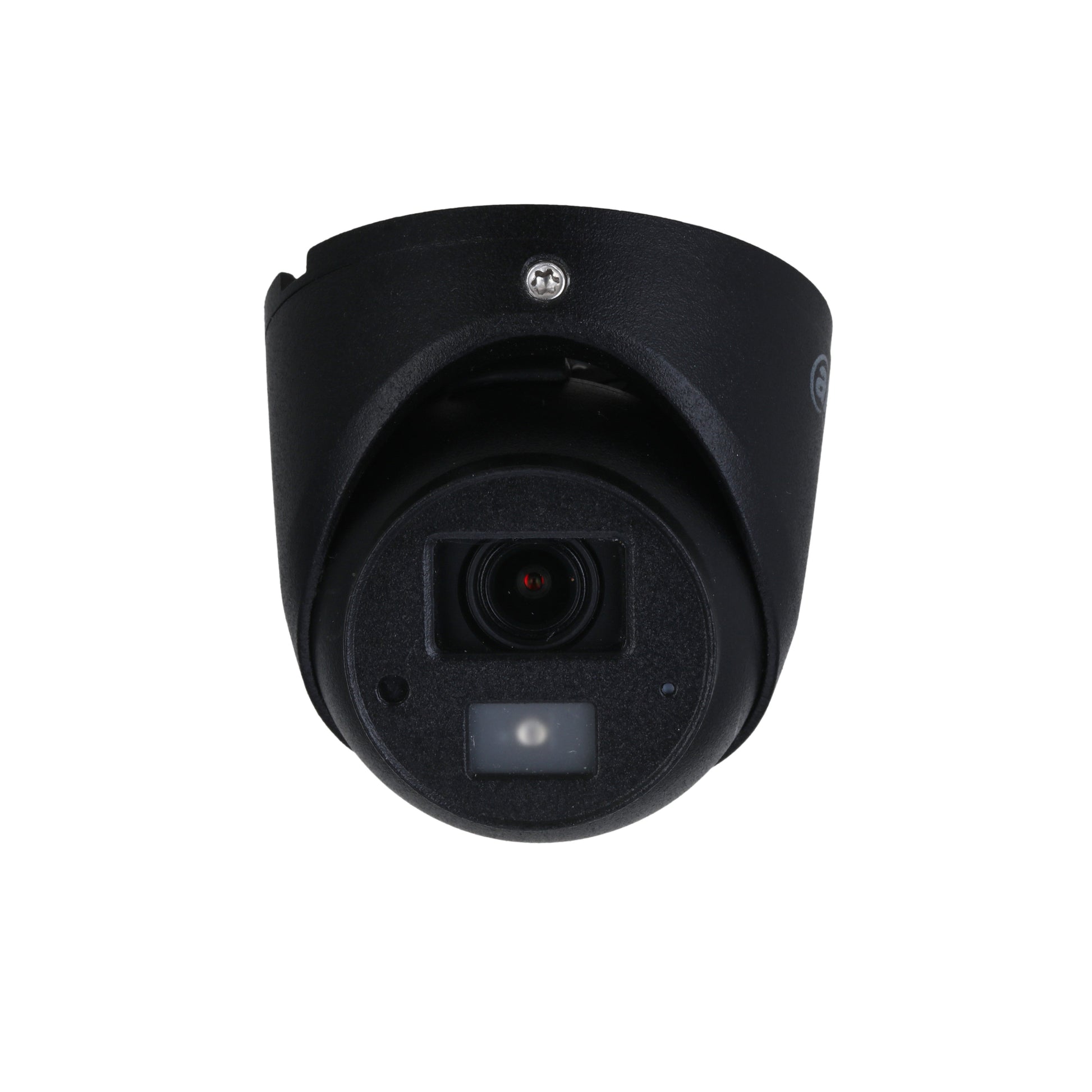

Dahua 2MP HDCVI Eyeball Security Camera (2.8mm) | HAC-HDW3200GP
Dahua 2MP HDCVI Eyeball Security Camera (2.8mm) | HAC-HDW3200GP
Couldn't load pickup availability
Short Product Description
Short Product Description
Upgrade your property's security with the Dahua HAC-HDW3200GP 2MP HDCVI Eyeball Camera. Delivering crystal-clear 1080p resolution and a built-in microphone, it captures both crisp video and crucial audio evidence. Featuring Smart IR technology for up to 20m of night vision and a rugged IP67 weatherproof metal housing, this versatile 4-in-1 camera is built for 24/7 reliability. Backed by a 1-year official warranty, it is the perfect dependable upgrade for your home or business surveillance system.
Key Features
Key Features
- 1080p Full HD Resolution: Captures highly detailed, sharp footage to easily identify faces, license plates, and critical details.
- Built-in Microphone: Records synchronized, high-fidelity audio over the same coaxial cable to provide crucial context to video evidence.
- Smart IR up to 20m: Automatically prevents image overexposure, guaranteeing clear night vision even in total darkness.
- Wide 101° Viewing Angle: The 2.8mm fixed lens provides expansive coverage, reducing the number of cameras needed to monitor an area.
- 4-in-1 Video Output: Switchable between HDCVI, AHD, TVI, and CVBS formats for plug-and-play compatibility with your existing DVR.
- IP67 Weatherproof Metal Housing: Withstands severe weather conditions and physical impacts, perfect for both indoor and outdoor use.
- 1-Year Official Warranty: Enjoy peace of mind with authentic, fully-backed hardware and dedicated local technical support.
Full Product Description
Full Product Description
Reliable 24/7 Surveillance for Homes and Businesses
When it comes to safeguarding your property, clarity and reliability are non-negotiable. The Dahua HAC-HDW3200GP is an industrial-grade 2MP HDCVI eyeball camera designed to provide uncompromised security. Whether you are upgrading an existing CCTV system or building a new one from scratch, this camera delivers professional-grade performance that DIY enthusiasts, homeowners, and enterprise buyers can trust.
Crystal Clear 1080p Video & Synchronized Audio
Stop guessing what is happening in blurry footage. This camera features a high-performance 1/2.7” 2MP CMOS sensor that streams uncompressed 1080p video at 25 frames per second. The wide 101° horizontal field of view ensures maximum coverage with fewer blind spots. Crucially, it features a broadcast-quality built-in microphone over the coaxial cable, allowing you to record synchronized audio and video to capture the full context of any security event.
Superior Night Vision with Smart IR Technology
Darkness shouldn't mean a drop in security. Equipped with advanced Smart IR technology, this camera automatically adjusts the intensity of its infrared LEDs to compensate for the distance of an object. This prevents overexposure and whitewashing as targets move closer to the lens, ensuring highly detailed black-and-white night vision up to 20 meters away, even in zero-light conditions.
Ultimate Compatibility & Rugged Weatherproof Design
Flexibility is key for a seamless setup. The HAC-HDW3200GP boasts a switchable 4-in-1 video output (HDCVI, AHD, TVI, and CVBS), making it universally compatible with almost all modern DVRs. Housed in a heavy-duty metal casing, it boasts an IP67 weatherproof rating, rendering it fully protected against dust, heavy rain, and extreme temperatures ranging from -40°C to +60°C.
As an authorized Dahua retailer with over 20 years of technical expertise in hardware and security solutions, our physical store is ready to support your deployment from purchase to installation.
Technical Specifications
Technical Specifications
- Model: DH-HAC-HDW3200GP-S5
- Image Sensor: 1/2.7” CMOS
- Resolution: 2MP, 1080p (1920 × 1080) @ 25fps
- Lens Type: 2.8mm Fixed Lens
- Field of View (FOV): Horizontal: 101°, Vertical: 54°, Diagonal: 119°
- Night Vision: Smart IR up to 20 meters (1 IR LED)
- Audio: Built-in Microphone
- Video Output: BNC 4-in-1 (HDCVI / TVI / AHD / CVBS switchable)
- Min. Illumination: 0.02 Lux/F2.0, 30IRE, 0 Lux with IR on
- Power Supply: 12V DC ±30%
- Power Consumption: Max 2.3W (12V DC, IR on)
- Ingress Protection: IP67 (Weatherproof)
- Operating Temperature: -40°C ~ +60°C
- Housing Material: Metal
- Dimensions / Weight: Ø 62.0 mm × 61.7 mm / 0.17 kg
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: Will this camera work with my older, non-Dahua DVR?
A: Yes. This is a 4-in-1 camera with switchable HDCVI, AHD, TVI, and CVBS video outputs. It is highly compatible with most third-party analog HD and legacy standard-definition DVRs.
Q: Do I need a separate cable to record audio from the built-in microphone?
A: No, you do not need an extra cable if you are using an HDCVI-compatible DVR. The camera transmits both high-definition video and broadcast-quality audio simultaneously over a single standard coaxial cable.
Q: Can this camera be installed fully outdoors in the rain?
A: Absolutely. The camera features an IP67-rated solid metal housing, meaning it is completely dust-tight and protected against heavy rain and harsh environmental elements.
Target Users / Applications
Target Users / Applications
- Homeowners: Upgrading perimeter security, driveway monitoring, or front door surveillance.
- Small to Medium Businesses: Retail shops, warehouses, and offices needing reliable, high-definition internal/external monitoring.
- DIY Tech Enthusiasts: Easy integration for home security system builders wanting maximum DVR compatibility.
- Enterprise / Engineering Procurement: Bulk deployment for factories or commercial properties requiring robust, weatherproof hardware.
