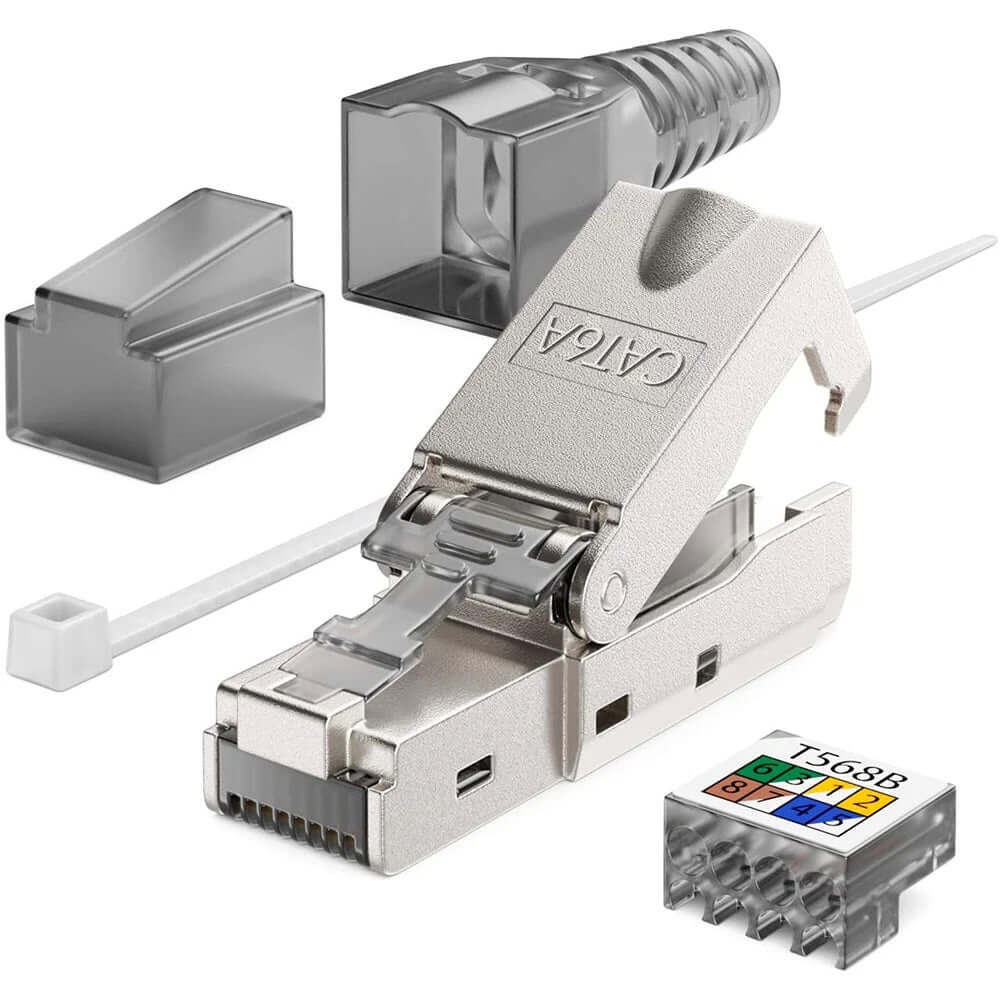

• Zinc alloy RJ45 CAT6A connector with protective covers and cable management tools for Ethernet termination.

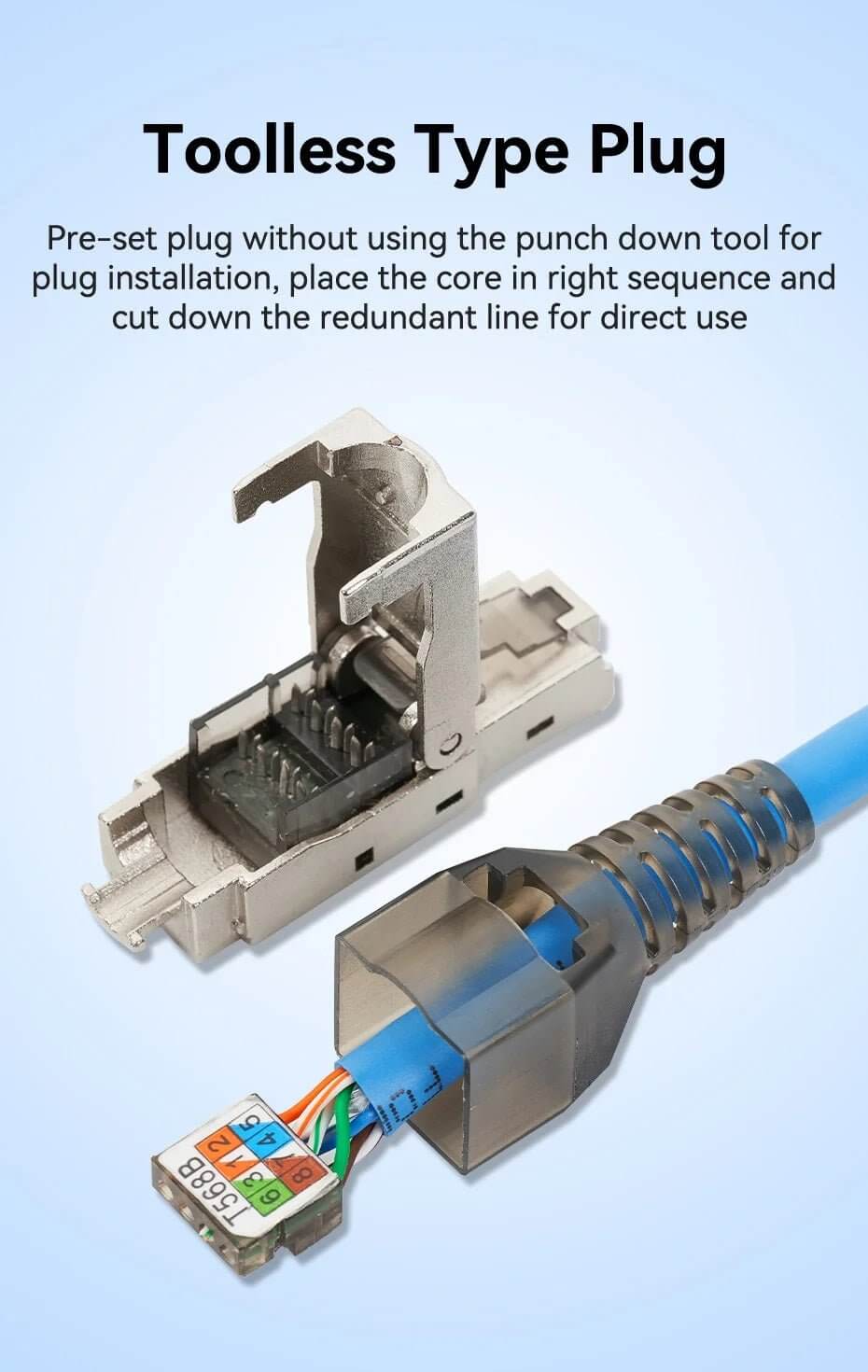

  • Toolless RJ45 plug for easy Ethernet cable installation, showcasing connector and wiring sequence.

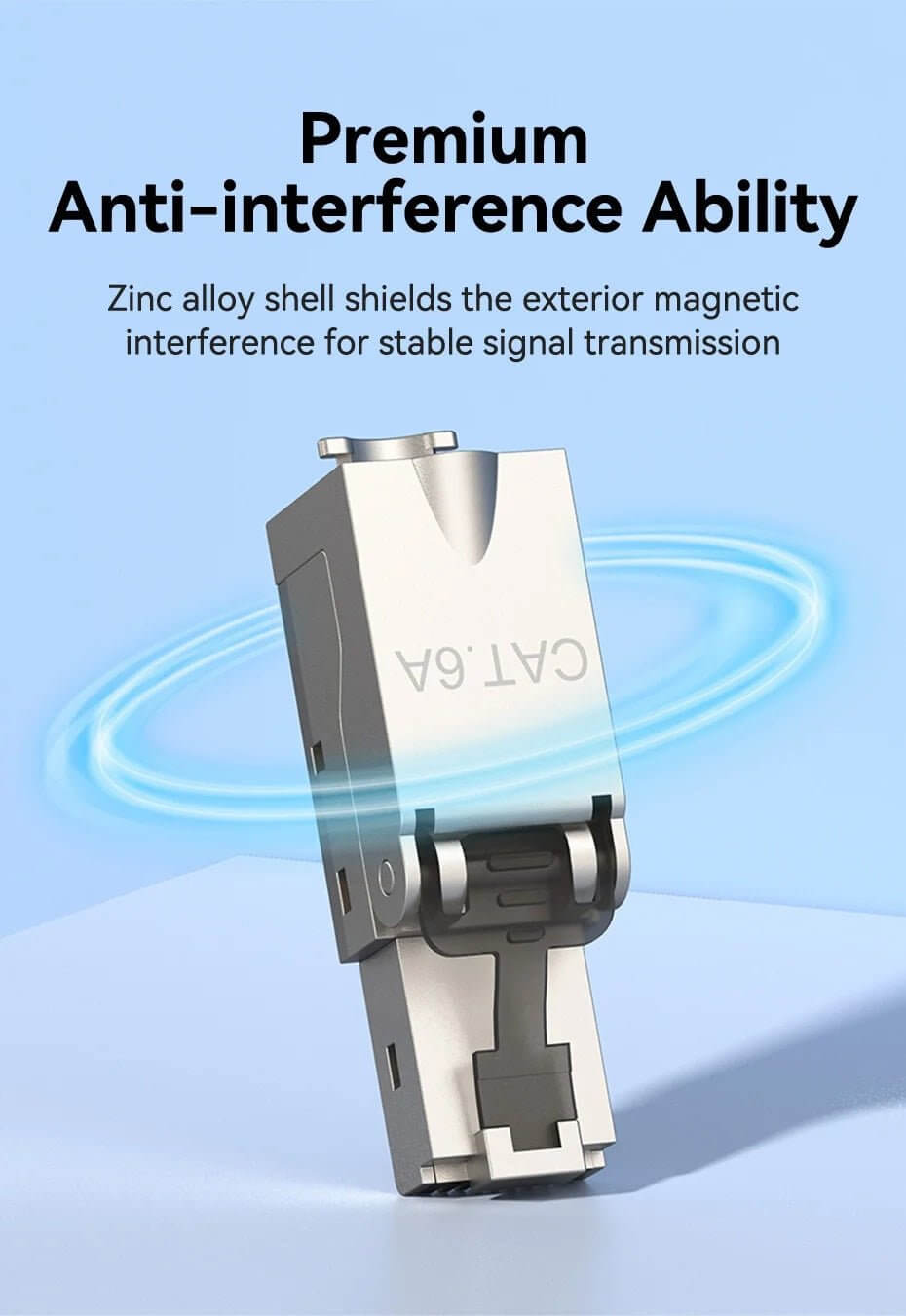

  • CAT6A RJ45 connector showcasing zinc alloy shell for enhanced anti-interference and stable signal transmission.

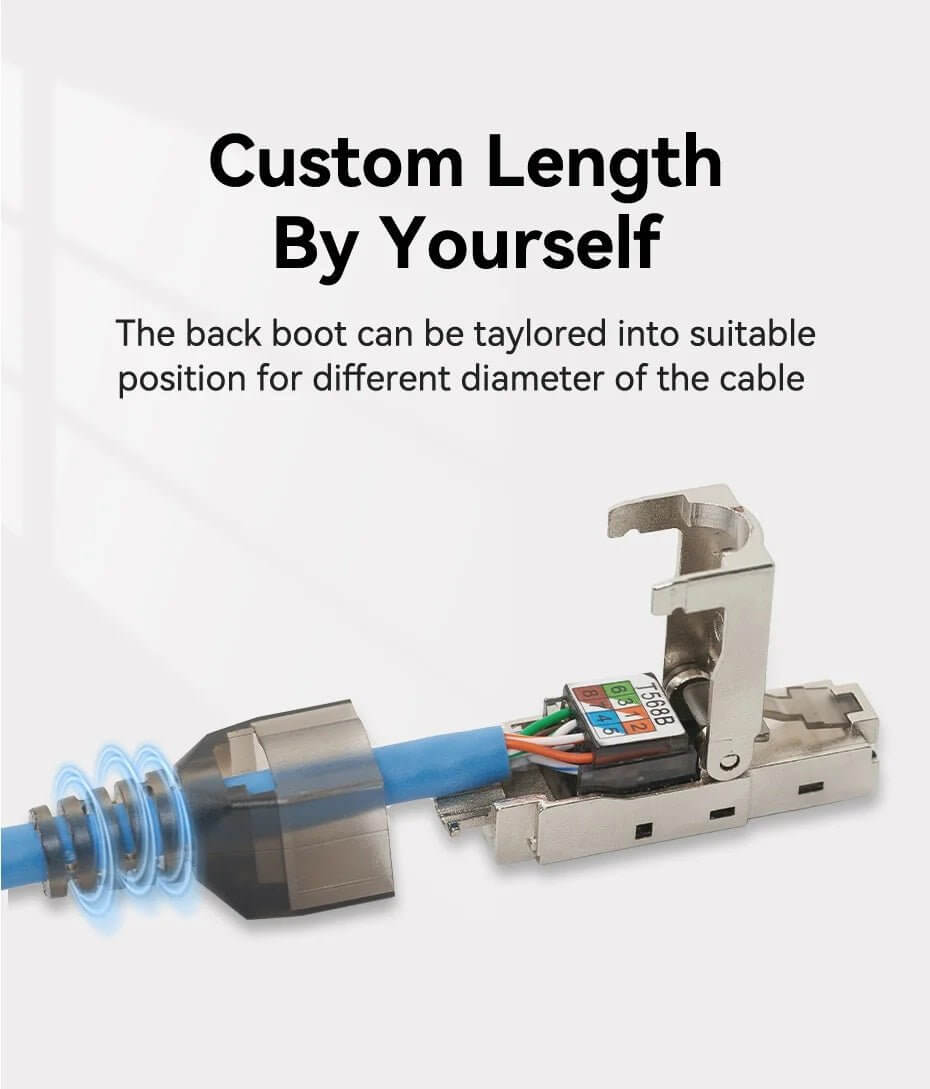

  • Customizable CAT6A RJ45 connector showing adjustable back boot for different cable diameters.

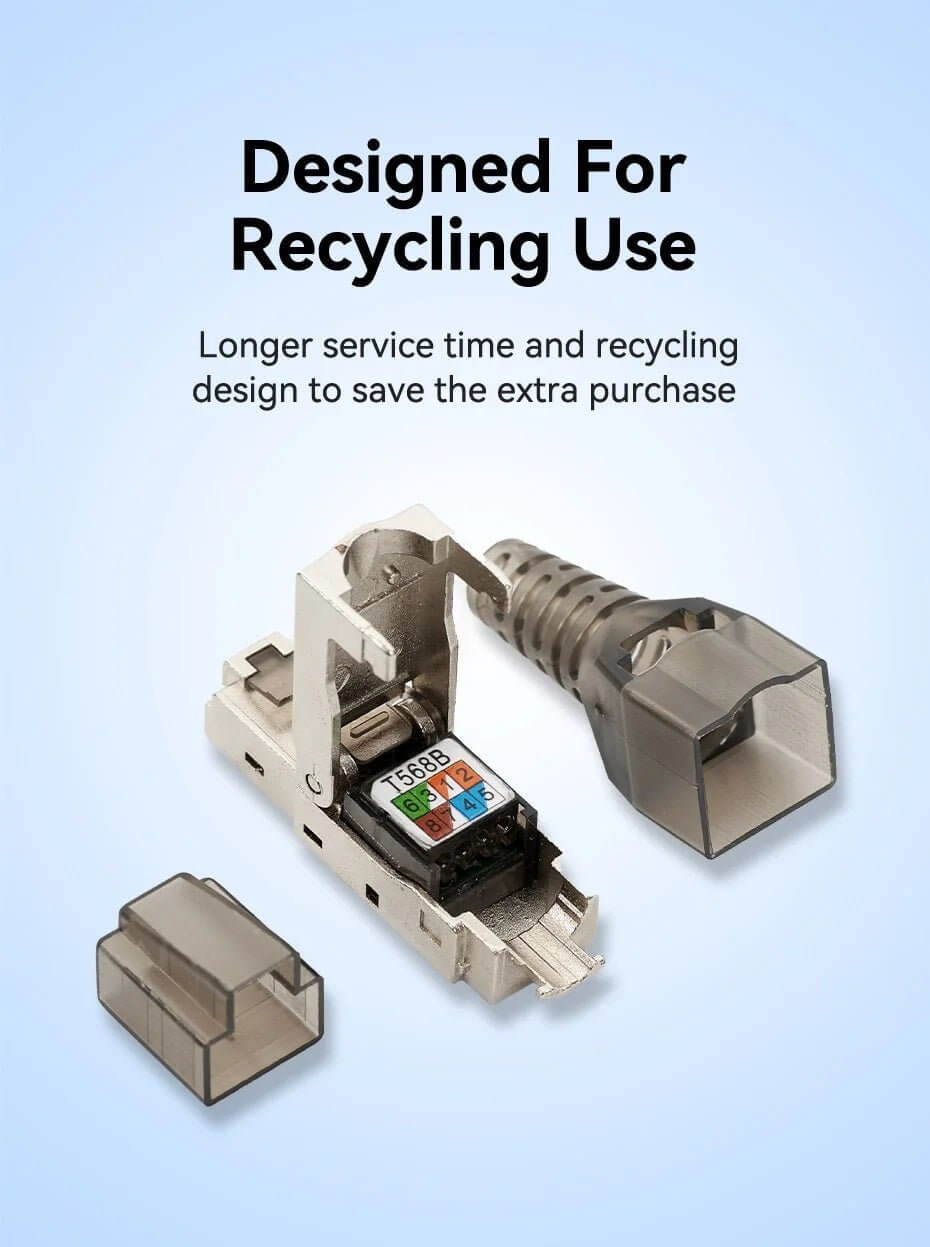

  • RJ45 connectors showcasing a recycling-friendly design for extended service life and cost savings.
  • Image showing various devices compatible with RJ45 network ports: desktop, laptop, router, switcher, smart TV, set-top box, TV box, hubs, ADSL.

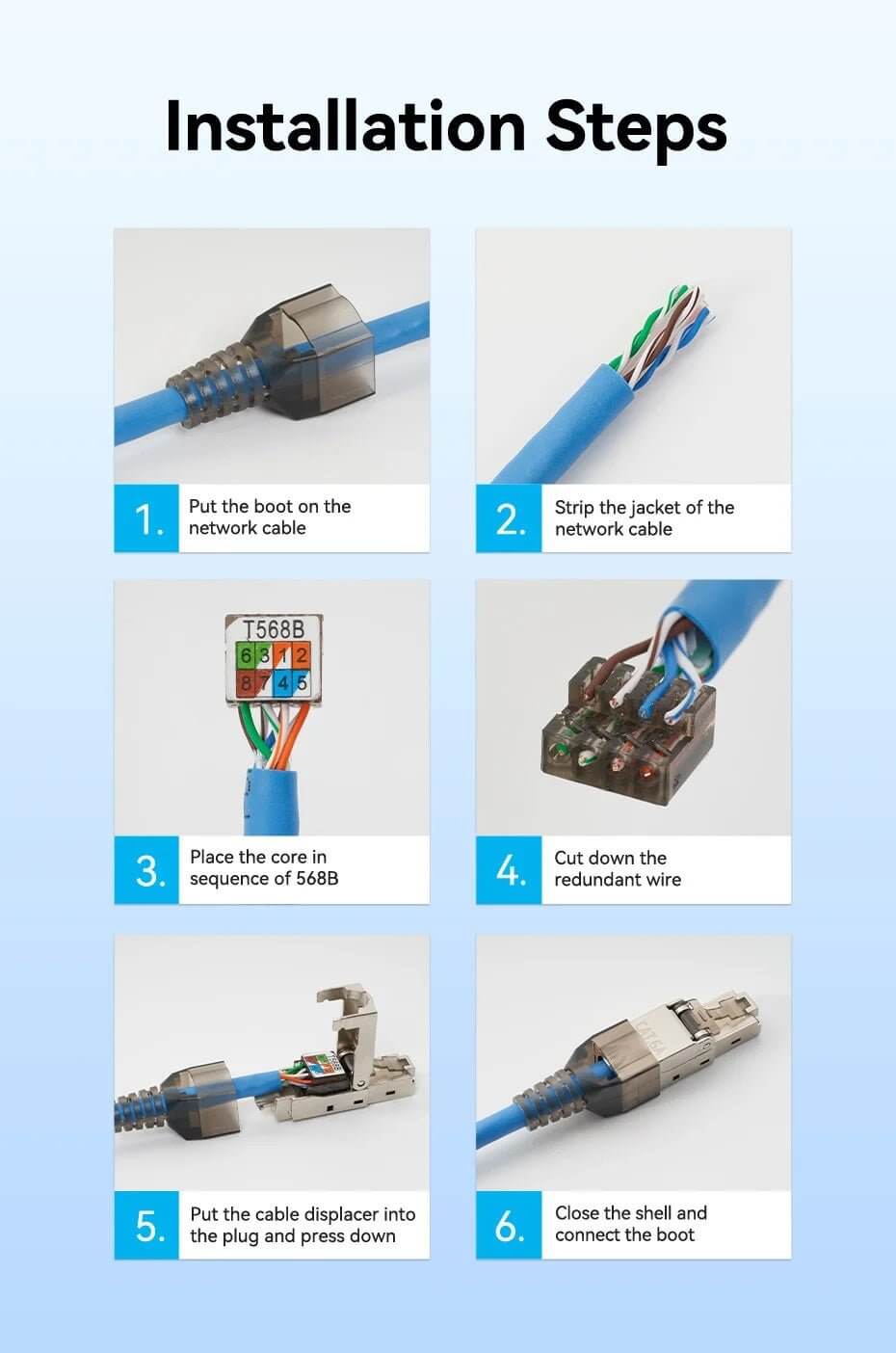

  • Installation steps for RJ45 CAT6A connector, showing boot placement, wire stripping, core placement, and finalizing the connection.

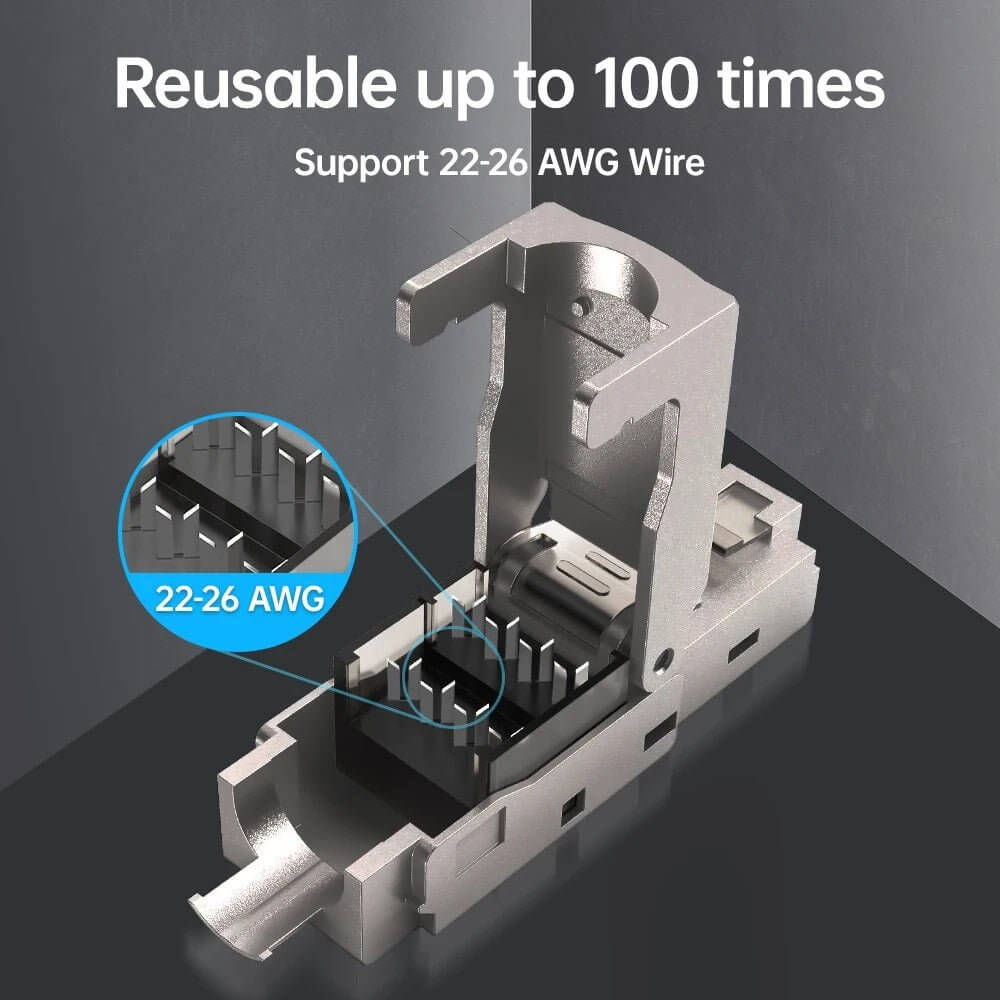

  • Close-up of a reusable RJ45 connector, supporting 22-26 AWG wire, showcasing its modular design and durability.

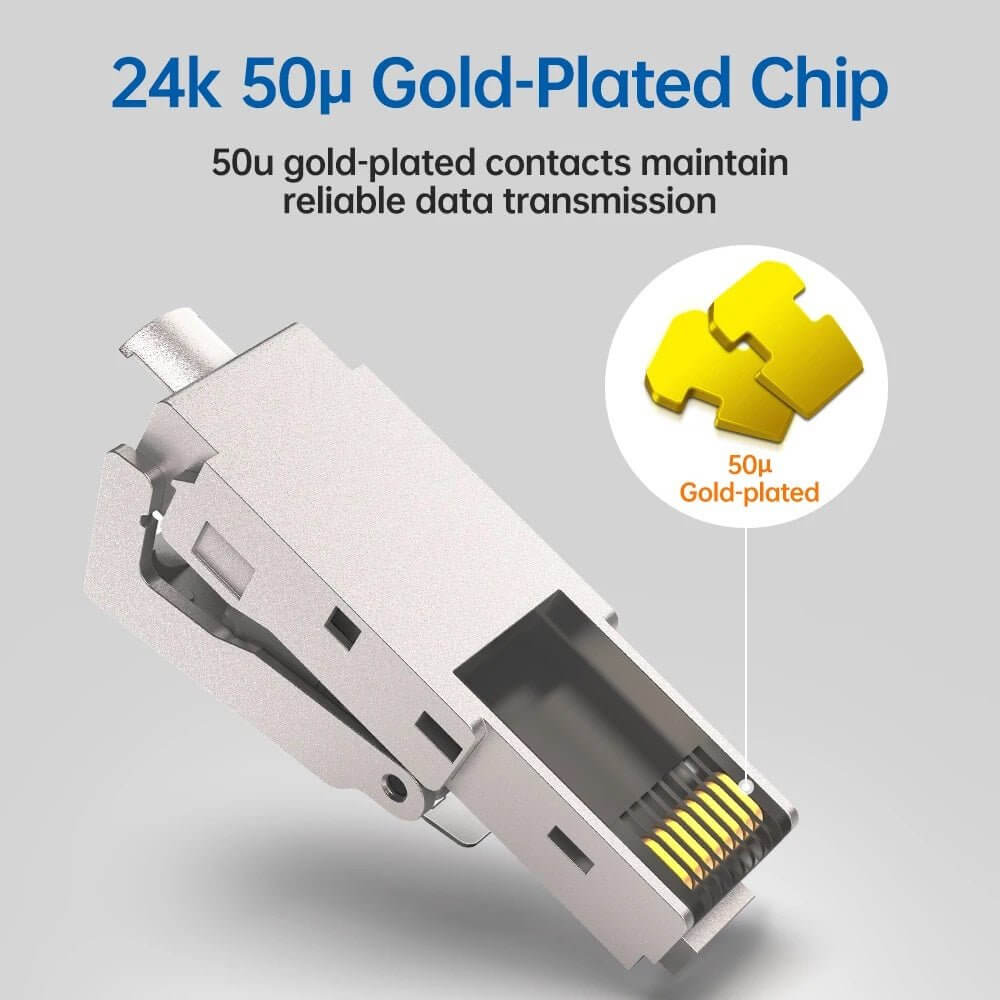

  • 24k gold-plated RJ45 connector with 50u contacts for reliable data transmission

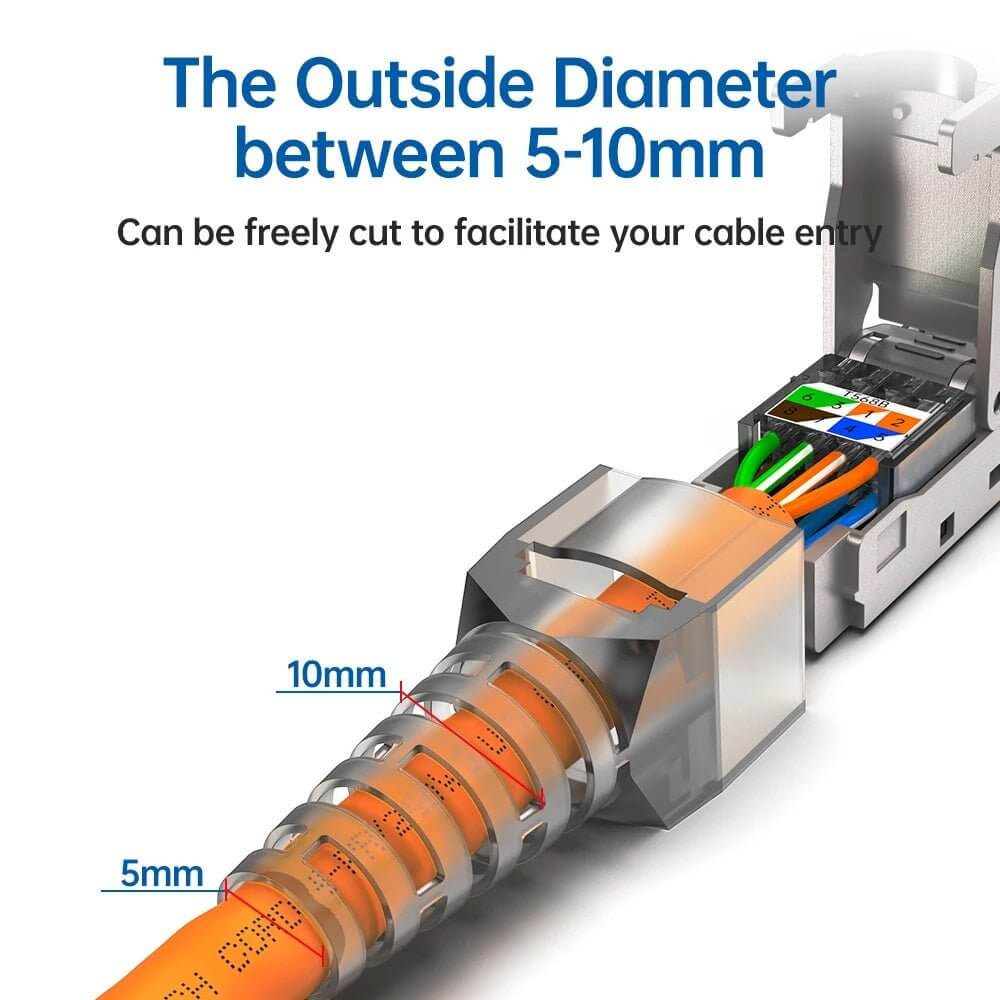

  • Illustration of a CAT6A RJ45 connector showing cable entry diameter adjustments from 5mm to 10mm for optimal fit.
1 10
sales

CAT6A RJ45 Connector RJ45 Plugs Ethernet Plug

CAT6A RJ45 Connector RJ45 Plugs Ethernet Plug

HK$19.00
HK$19.00
Sale Sold out
Shipping calculated at checkout.

RJ45 CAT6A Reusable Ethernet Termination modular Plug Shielded Modular Zinc alloy Field Termination Plug



1. Product Name: DIY Zinc Alloy rj45 Connector Cat6A Plug
2. The Material of Housing: Zinc alloy die-casting with nickel-plated
3. The Material of Contact: Phosphor bronze with 100 micro-inch nickel plated
4. Suitable for:22AWG-24AWG Stranded & solid wires Cat6A Ethernet Cable
5. Type: Cat6A Ethernet Connector with metal boot
6. Contact Finish: Min. 50 micro-inch gold plated on surface contact area
7. IDC Terminal: Titanium copper tin plated
8. PCB: UL94-V0
9. Metal Boot: Zinc alloy die-casting with nickel plated
10. T568B wiring
11. Insetion Force: Max 30N (IEC 60603-7-5)
12. Retention Strength: 7.7kg between jack and plug
13. Life of Contacts: 750 cycles min. (ISO/IEC 11801  IEC 60603-7-5)
14. Life of IDC: 20 repeated installation cycles
15. Suitable cable jacket: OD: 6.0mm - 8.0mm
16. Operating temperature: -10 to 60 degree
