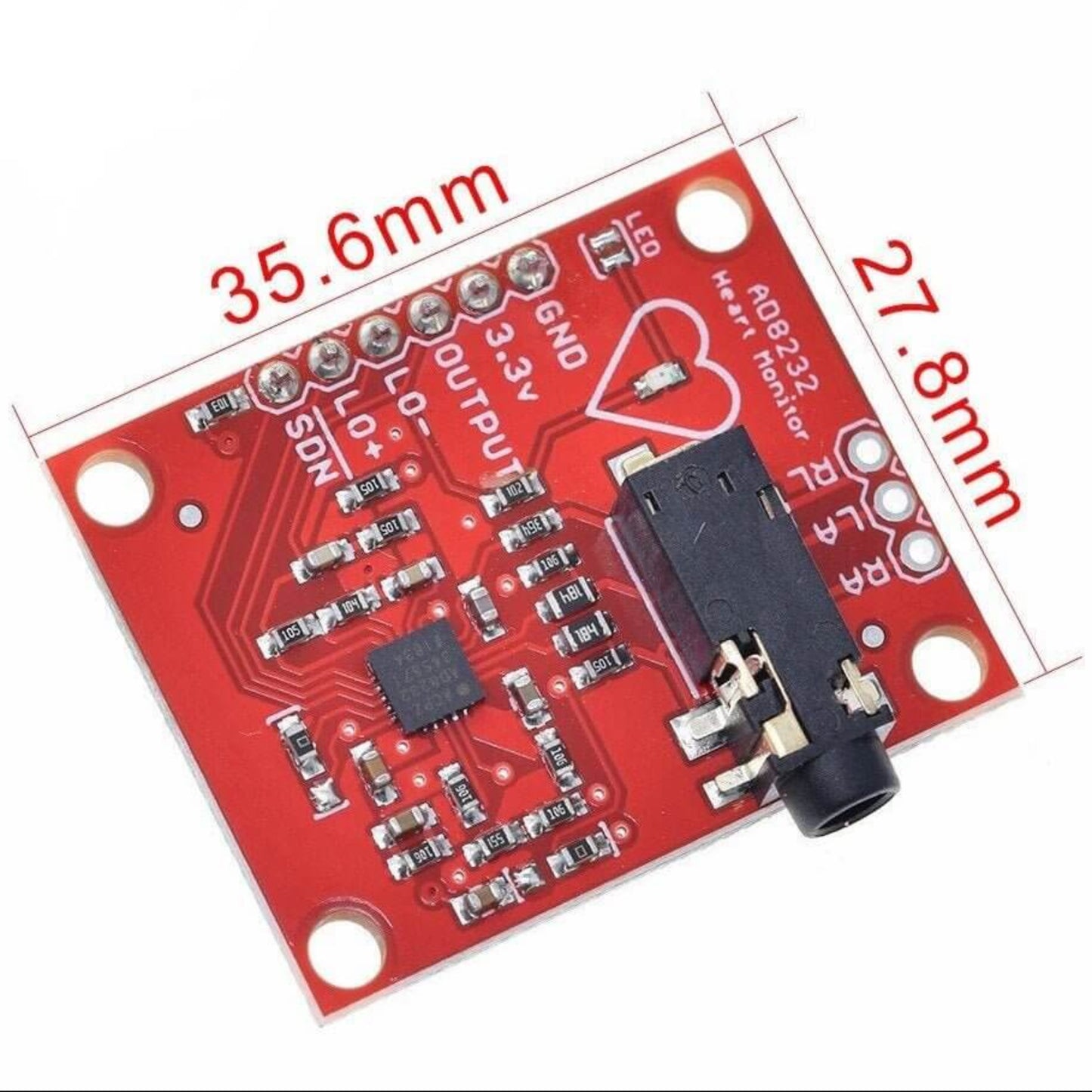

  • Close-up of the AD8232 ECG monitor module front showing 35.6mm x 27.8mm dimensions, pins, and 3.5mm jack.
1 3
5 sales

AD8232 ECG Sensor Module Kit - Heart Rate Monitor for Arduino

AD8232 ECG Sensor Module Kit - Heart Rate Monitor for Arduino

HK$58.00
HK$58.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

The AD8232 Single-Lead ECG Sensor Module Kit is a cost-effective, fully integrated electrocardiogram (ECG) front-end solution designed for makers, students, and electronics enthusiasts. This professional-grade heart rate monitoring module extracts, amplifies, and filters biopotential signals to deliver clear, accurate cardiac waveform readings for Arduino, Raspberry Pi, and microcontroller projects.

Key Features & Benefits

Superior Signal Quality

  • Advanced Noise Filtering: Integrated two-pole high-pass filter eliminates motion artifacts and electrode half-cell potential interference
  • Clean Analog Output: Three-pole low-pass filter removes high-frequency electrical noise for research-grade signal clarity
  • 80dB Common-Mode Rejection Ratio: Professional-level noise suppression from DC to 60Hz

Easy Integration & Compatibility

  • Universal Microcontroller Support: Works seamlessly with Arduino UNO, Raspberry Pi, ESP32, and 3.3V/5V development boards
  • Plug-and-Play Design: Pre-wired 3.5mm biomedical electrode jack - no soldering required for basic setup
  • Visual Feedback: Onboard LED indicator pulses in rhythm with detected heartbeats

Complete Monitoring Solution

  • Comprehensive Pin Breakout: Access to SDN (shutdown), LO+/LO- (leads-off detection), analog OUTPUT, and power pins
  • Flexible Electrode Configuration: Supports both two-electrode and three-electrode setups via RA (Right Arm), LA (Left Arm), and RL (Right Leg) connections
  • Fast Restore Function: Automatically recovers from signal saturation when reconnecting electrodes

Technical Specifications

Specification Value
Operating Voltage 3.3V DC (2.0V - 3.5V range)
Supply Current <10mA (170μA typical)
Rated Temperature 0°C to 70°C
Operating Temperature -40°C to +85°C
Output Type Analog signal (0-3.3V)
Module Dimensions 35mm × 30mm × 18mm
Weight Approximately 5-50 grams
Electrode Interface 3.5mm stereo jack


Applications & Project Ideas

Perfect for a wide range of DIY and educational projects:

  • Health & Fitness Monitoring: Build custom heart rate monitors for sports training and wellness tracking
  • Educational Labs: Teach biomedical engineering principles and signal processing concepts
  • Wearable Technology: Create portable ECG devices and smart health monitoring wearables
  • Arduino Projects: Integrate with IoT systems for remote patient monitoring prototypes
  • Research & Development: Develop biopotential signal acquisition systems for academic research
  • Gaming & Interactive Art: Use heart rate data for biofeedback gaming experiences

What's Included

  • 1× AD8232 ECG Sensor Module
  • 1× Electrode Cable with 3.5mm connector (100cm length)
  • 3× Disposable ECG Electrode Pads (RA/LA/RL color-coded)
