8m Adjustable Laser Reflective Photoelectric Sensor

Advanced 8m Adjustable Reflective Photoelectric Sensor for Reliable Detection

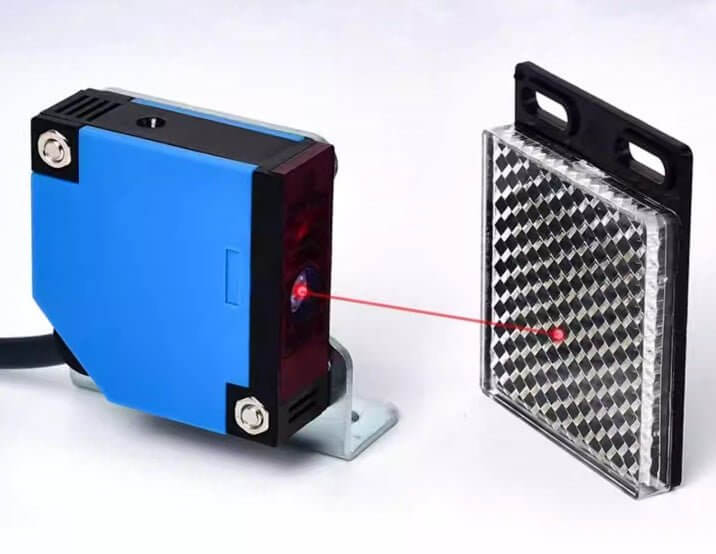

Enhance your automation systems with our high-performance reflective photoelectric sensor. Designed for reliable object detection up to 8 meters, this sensor uses a focused red laser beam and a reflector to precisely identify objects, making it ideal for a wide range of industrial and commercial applications. Its robust design and adjustable detection distance offer unparalleled flexibility and accuracy.

Key Features

• **Extended & Adjustable Detection Range:** Accurately detect objects up to 8 meters away. The detection distance is easily adjustable with a simple clockwise turn to increase and counter-clockwise to decrease, allowing for precise calibration to your specific needs.

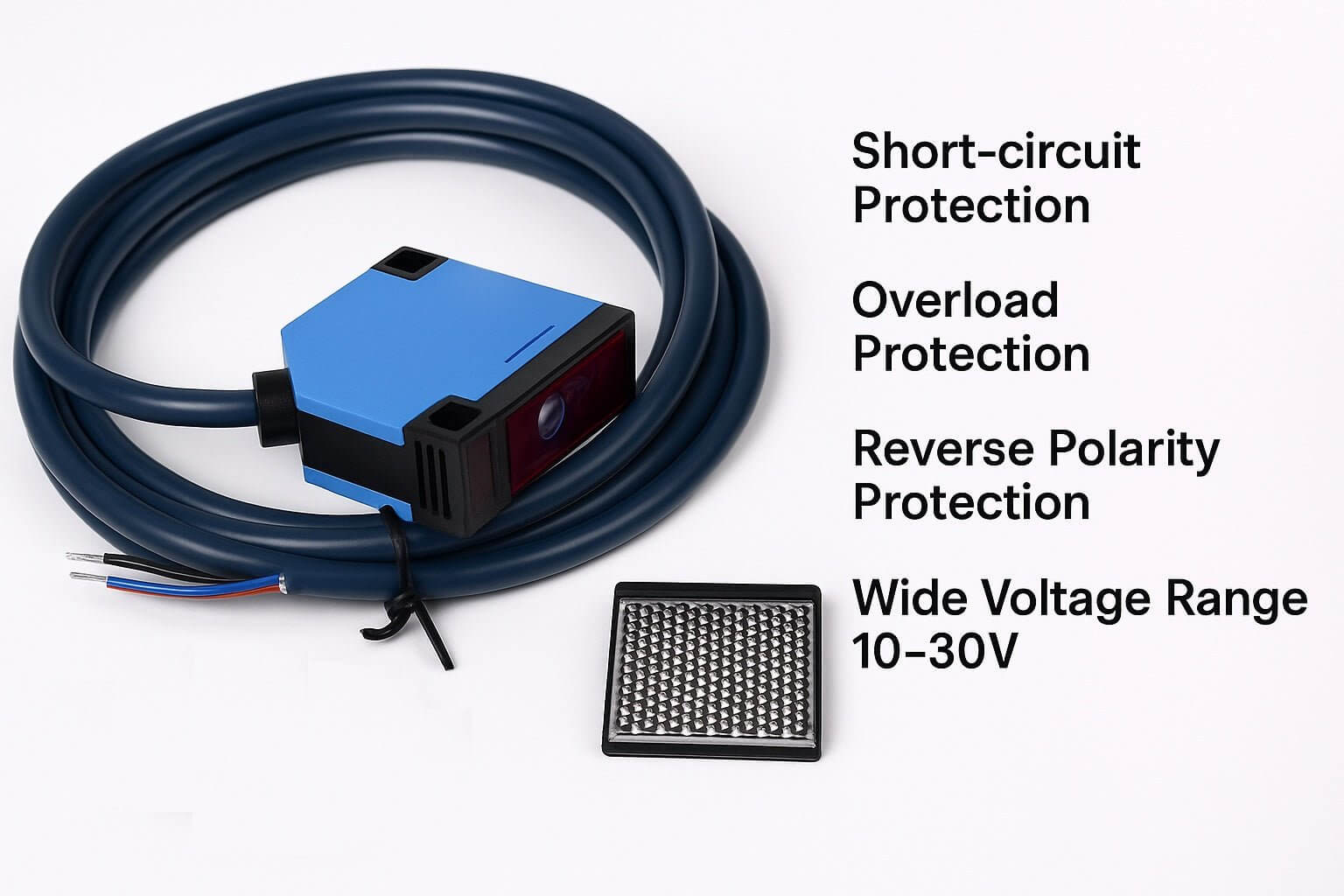

• **Built-in Safety & Durability:** Engineered with multiple protection features including short-circuit, overload, and reverse polarity protection, ensuring long-term reliability and safeguarding your equipment.
• **Wide Voltage Compatibility:** Operates efficiently within a broad voltage range of 10-30V DC, providing versatile integration into various systems.
• **High Temperature Resilience:** Designed to perform reliably in environments with temperatures ranging from 0°C to 55°C, making it suitable for demanding industrial settings.

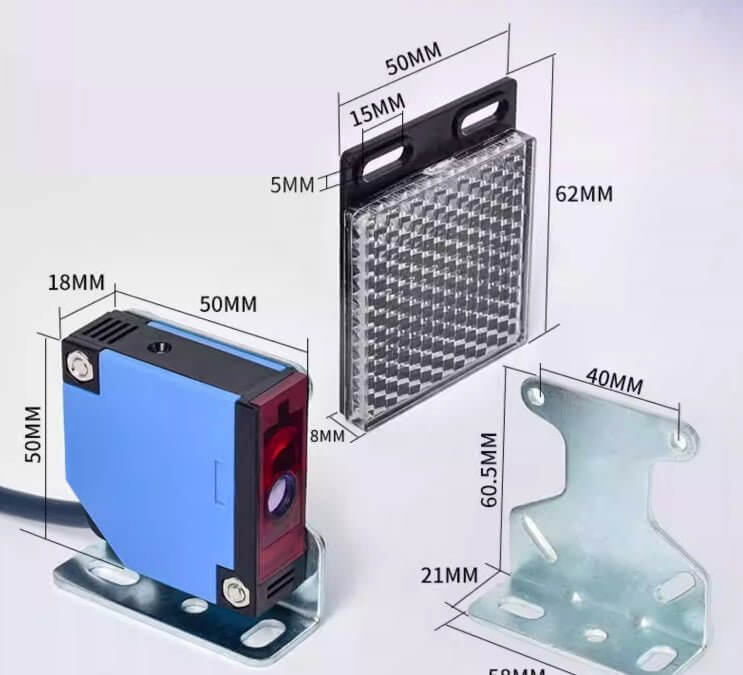

• **Easy Installation & Compact Design:** Comes with a sturdy mounting bracket and compact dimensions (sensor: 50x50x18mm; reflector: 62x50x15mm) for straightforward setup in confined spaces.
• **Clear Visual Indication:** Features a visible red laser beam for easy alignment and operation verification.

How to Use

To ensure efficient and reliable operation of the sensor, please follow these steps:

1. Installation Preparation:
   • Choose a stable mounting location that is free from vibration.
   • Ensure there are no obstacles between the sensor and the reflector, and that the light path is clear.
   • Mount the sensor and reflector in the appropriate positions, ensuring they are directly facing each other for precise beam reflection.
2. Wiring Connection:
   • This sensor supports a wide voltage range of 10-30V DC.
   • Refer to the product's wiring diagram and correctly connect the power and signal lines according to your system requirements. Always ensure correct power polarity to prevent reverse connection.
   • Make sure all wiring is secure and properly insulated to avoid short circuits.
3. Distance Adjustment:
   • Once power is connected, the sensor will emit a red light.

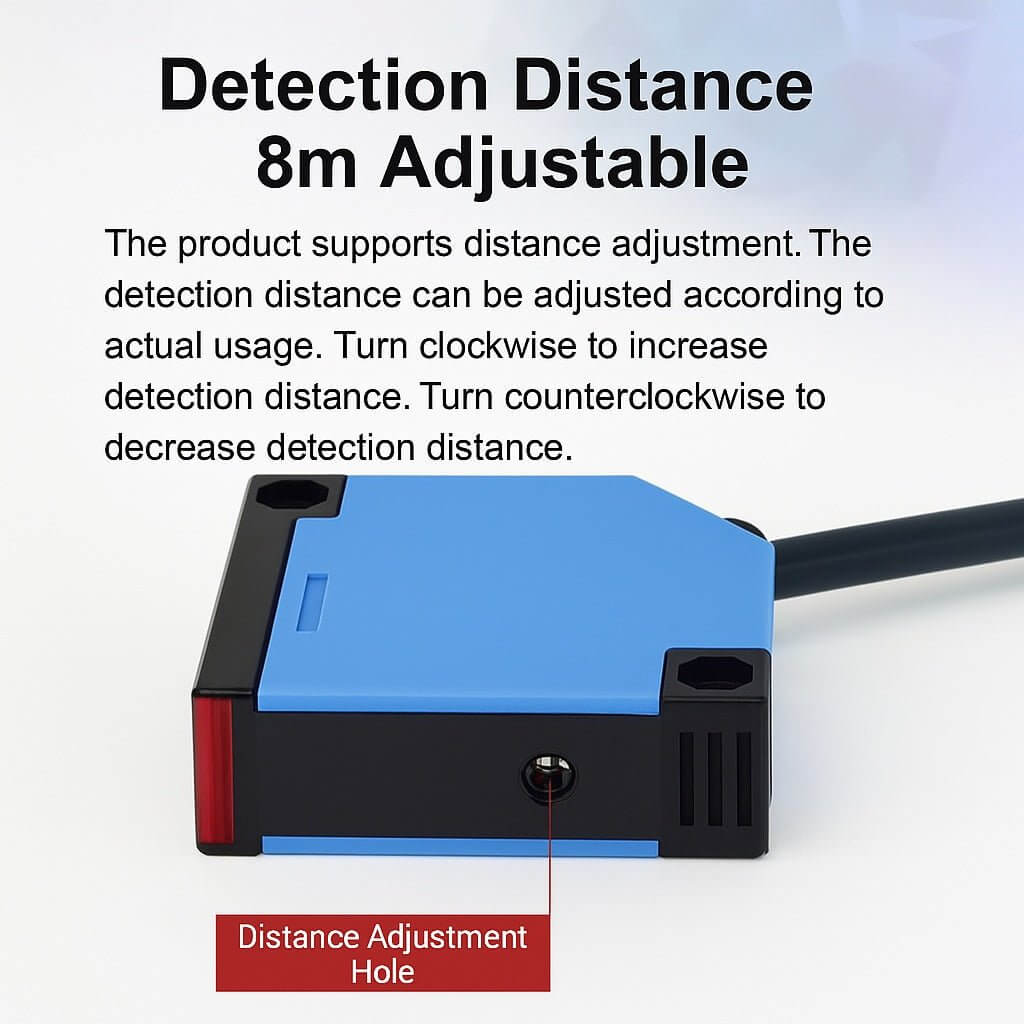

   • Gently rotate the "Distance Adjustment Hole" on the sensor using a small screwdriver:
   • **Clockwise rotation:** Increases the detection distance.
   • **Counter-clockwise rotation:** Decreases the detection distance.
   • Adjust the detection distance to your specific application needs and test to confirm the setting is correct.
4. Operation and Maintenance:
   • When an object enters the light path between the sensor and the reflector, the sensor will output the corresponding signal.
   • Regularly check and clean the surfaces of the sensor and reflector to prevent dust, water stains, or oil from affecting performance.
   • Avoid strong impacts or dropping the sensor.
   • For detailed operating instructions and troubleshooting, please refer to the product's accompanying manual.

Applications

This versatile photoelectric sensor is perfect for:

• Automated door systems
• Conveyor belt monitoring
• Industrial counting and sorting
• Parking barrier systems
• Presence detection in manufacturing

Upgrade your automation solutions today with this reliable and flexible reflective photoelectric sensor.
