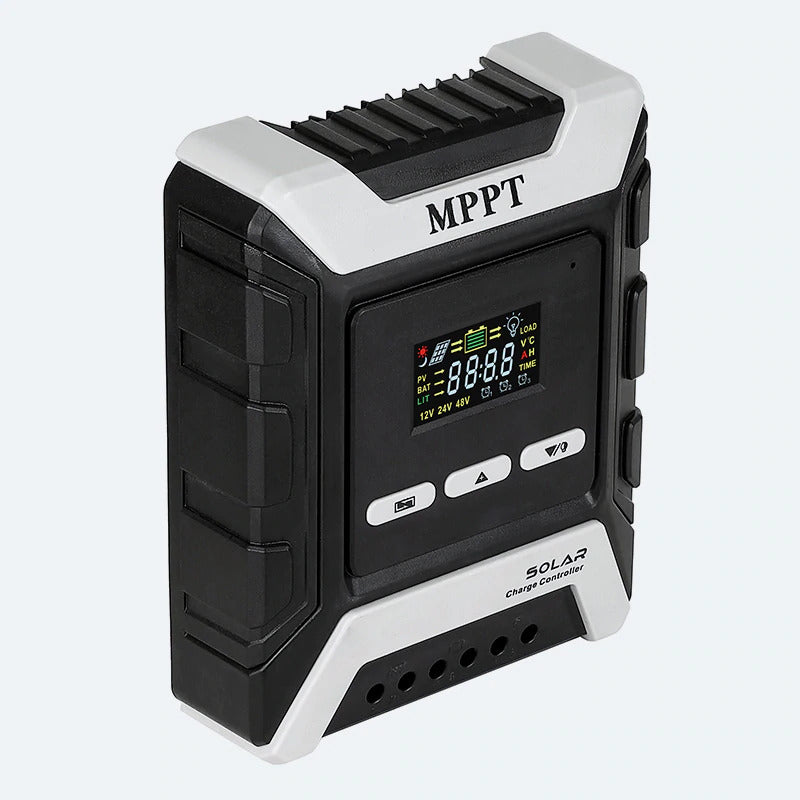

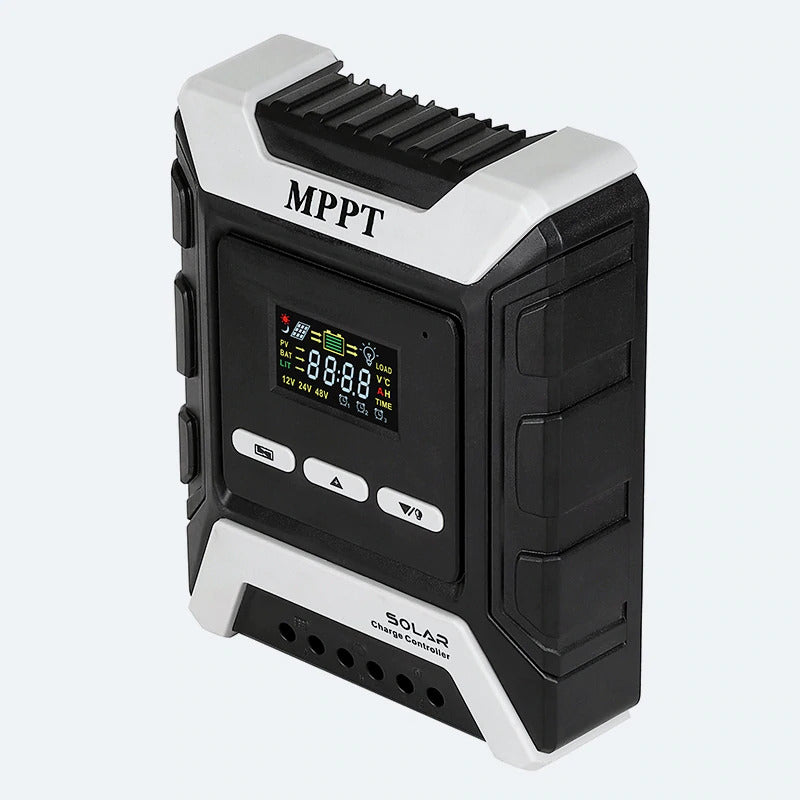

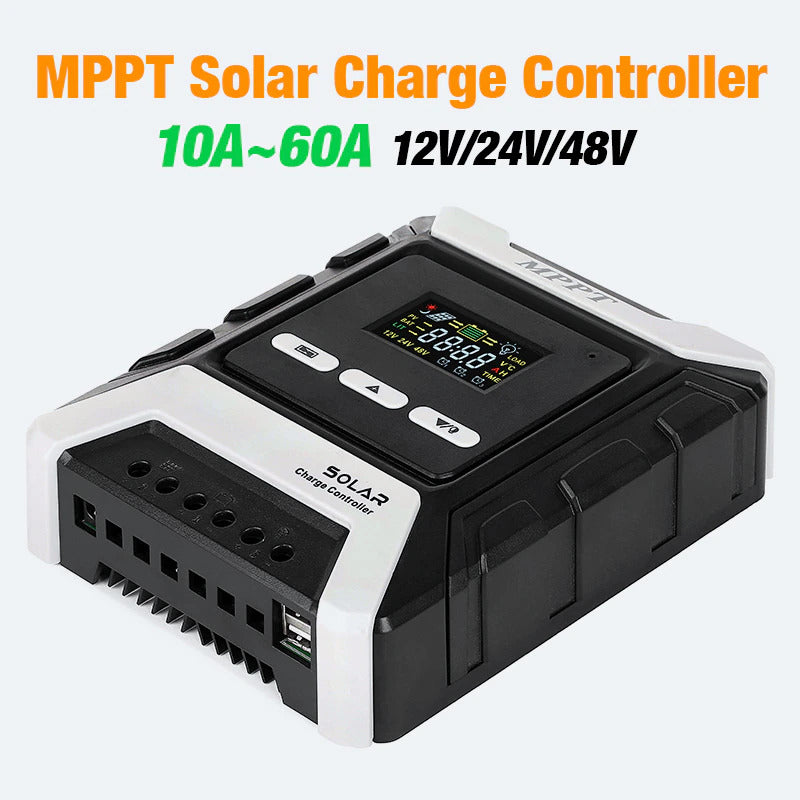

MPPT Solar Charge Controller 60A | 12V/24V/48V Auto with LCD Display

Unlock Your Solar System's Full Potential

Take command of your off-grid power system with our 60A MPPT Solar Charge Controller. Engineered with advanced Maximum Power Point Tracking (MPPT) technology, this controller boosts energy harvest efficiency by up to 30% compared to conventional PWM controllers. It intelligently manages power from your solar panels to your batteries, ensuring a fast, safe, and efficient charge every time.

Featuring automatic voltage detection for 12V, 24V, and 48V systems and compatibility with a wide range of battery types—including Lithium and Lead-Acid—this controller is the versatile and powerful heart your solar setup deserves.

Key Features:

• Advanced MPPT Technology: Maximizes energy conversion by constantly tracking the optimal power point of your solar panels, delivering significantly more power to your batteries, especially on cloudy days.
• Multi-Voltage & Battery Compatibility: Automatically detects 12V, 24V, or 48V system voltages. Supports three major battery types: Lead-Acid, Ternary Lithium, and Lithium Iron Phosphate (LiFePO4).
• Comprehensive LCD Display: A clear, backlit screen provides real-time monitoring of system status, including PV input voltage, battery voltage, charging current, load status, and more.
• Full System Protection: Equipped with multiple built-in safeguards, including protection against overcharge, deep discharge, short-circuit, battery open-circuit, overheating, and overpressure.

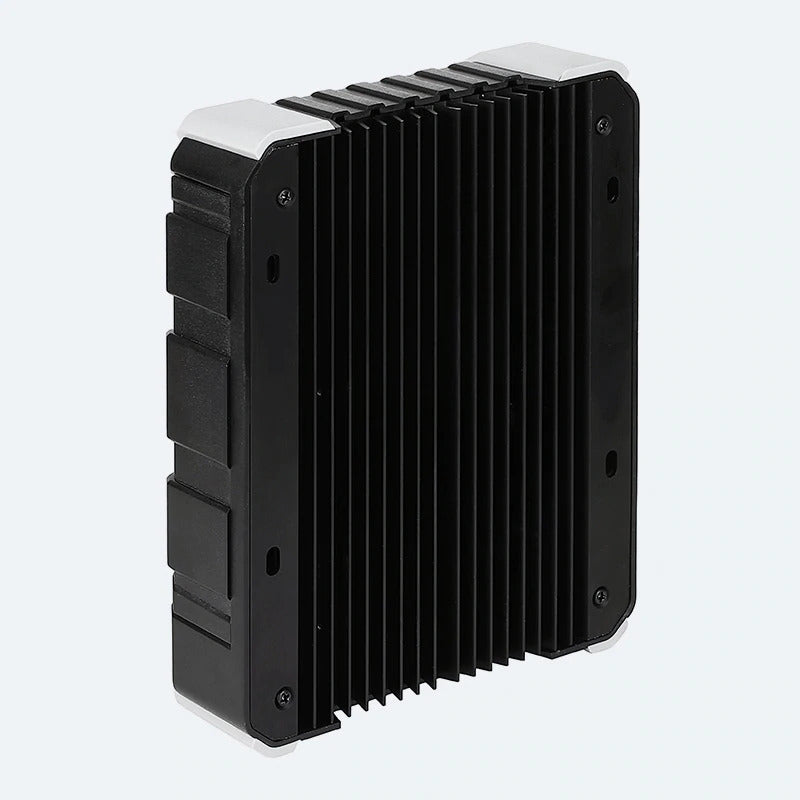

• Efficient Heat Dissipation: A robust, finned aluminum backplate ensures excellent heat dissipation, keeping the controller cool and extending its operational life.

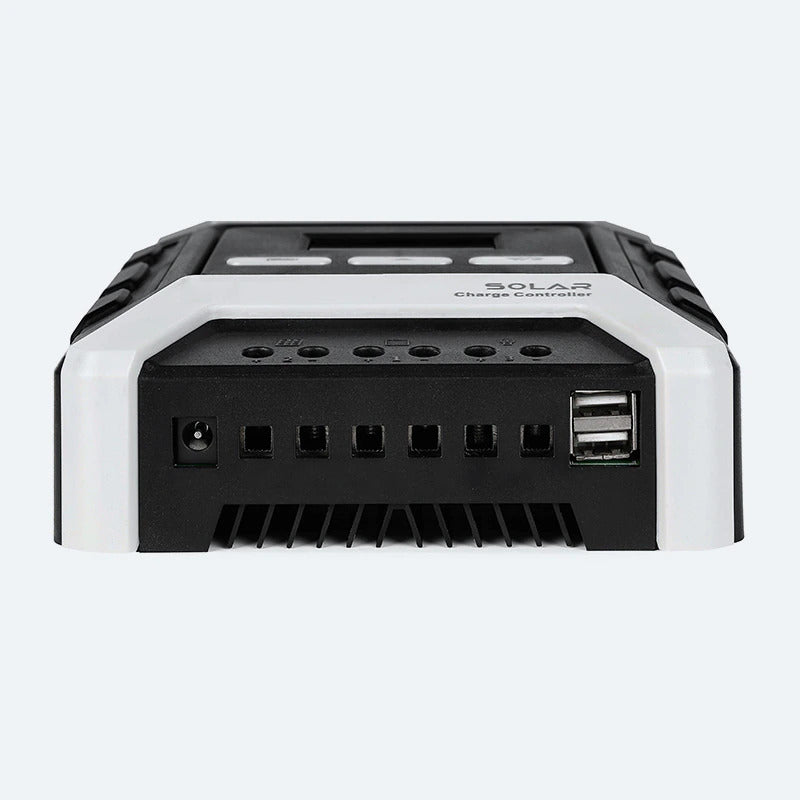

• Convenient Power Outputs: Includes dual 5V USB ports to directly charge your devices and dedicated terminals for a DC load (like lights or a fan).

Ideal for a wide range of applications:

• RVs, Campers, and Boats
• Off-Grid Cabins and Homes
• Solar-Powered Water Pumping
• Remote Monitoring Systems

Technical Specifications:

• System Voltage: 12V / 24V / 48V Auto-Sensing
• Max Charging & Load Current: 60A
• Max Solar Input Power: 720W (12V), 1440W (24V), 2880W (48V)
• Solar Module Open-Circuit Voltage (Voc): 15V ~ 80V
• Supported Battery Types: Lead-Acid (liquid), Ternary Lithium, Lithium Iron Phosphate (LiFePO4)
• Protections: Overcharge, Deep Discharge (LVD), Short-Circuit, Overheat, and more.
• Operating Temperature: -20℃ to +40℃
• Dimensions: 193 x 227 x 58 mm
