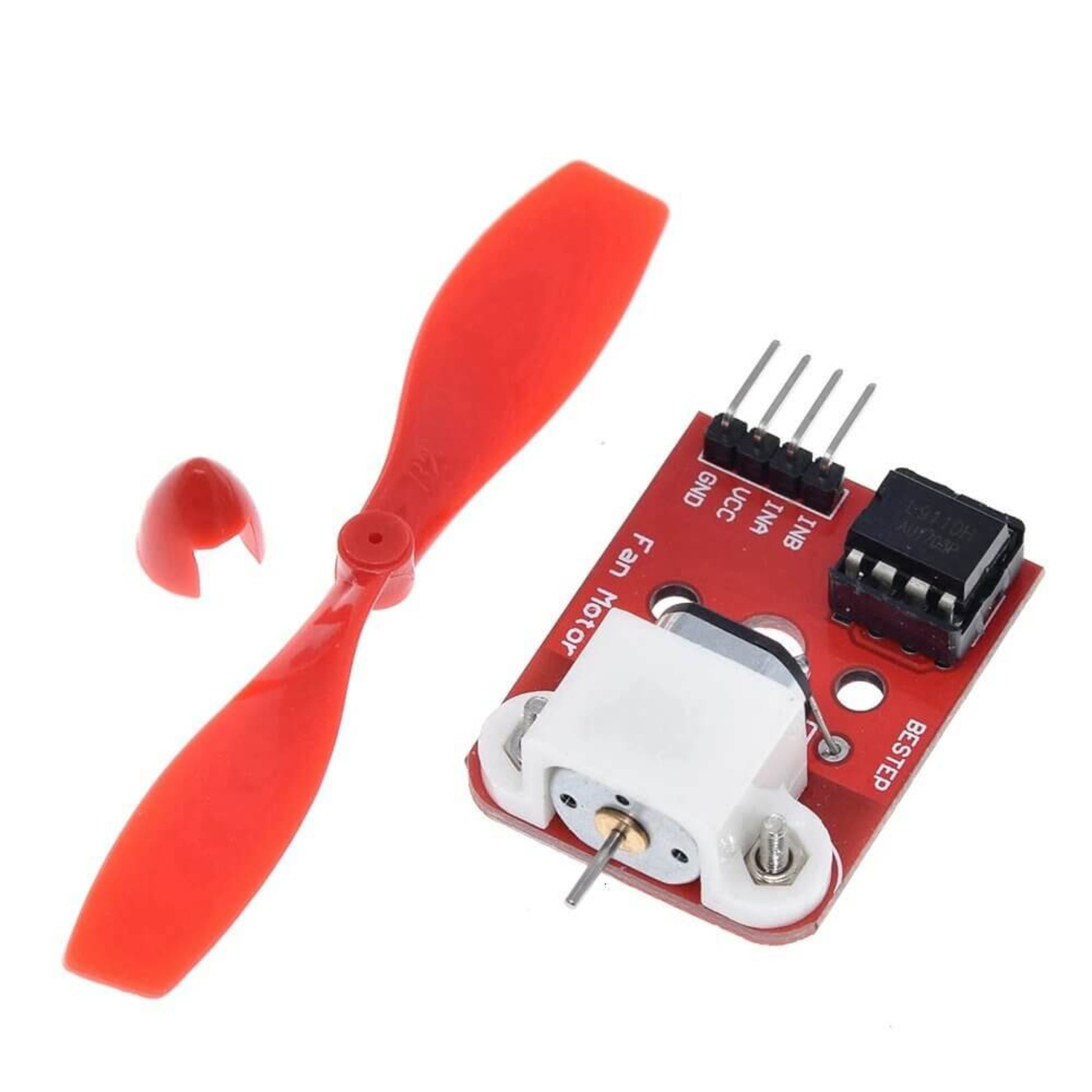

• 5V L9110 Fan Motor Module for Arduino with propeller, ideal for DIY robot design and development projects.

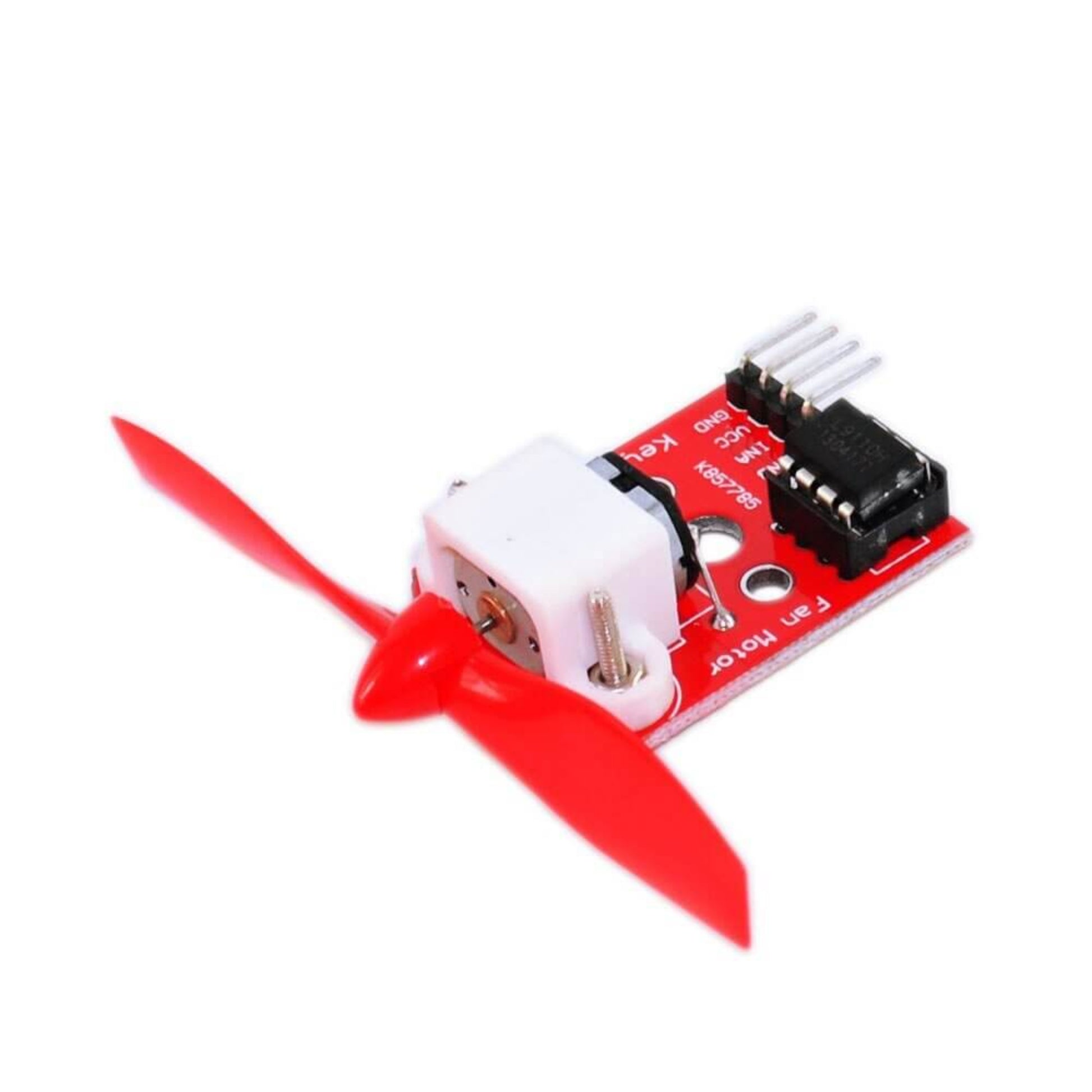

  • 5V L9110 Fan Motor Module with red propeller for Arduino projects, ideal for robotics and DIY applications.

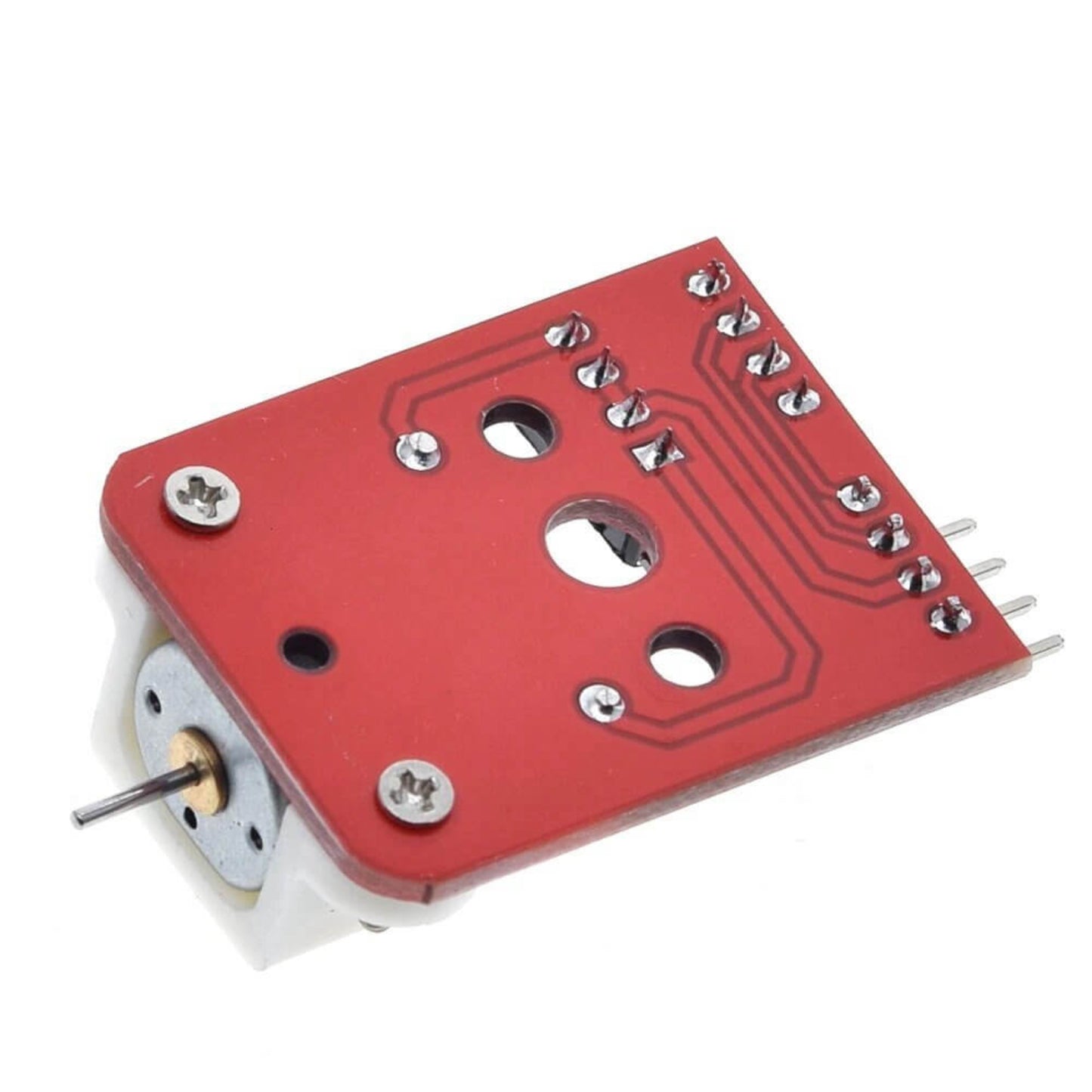

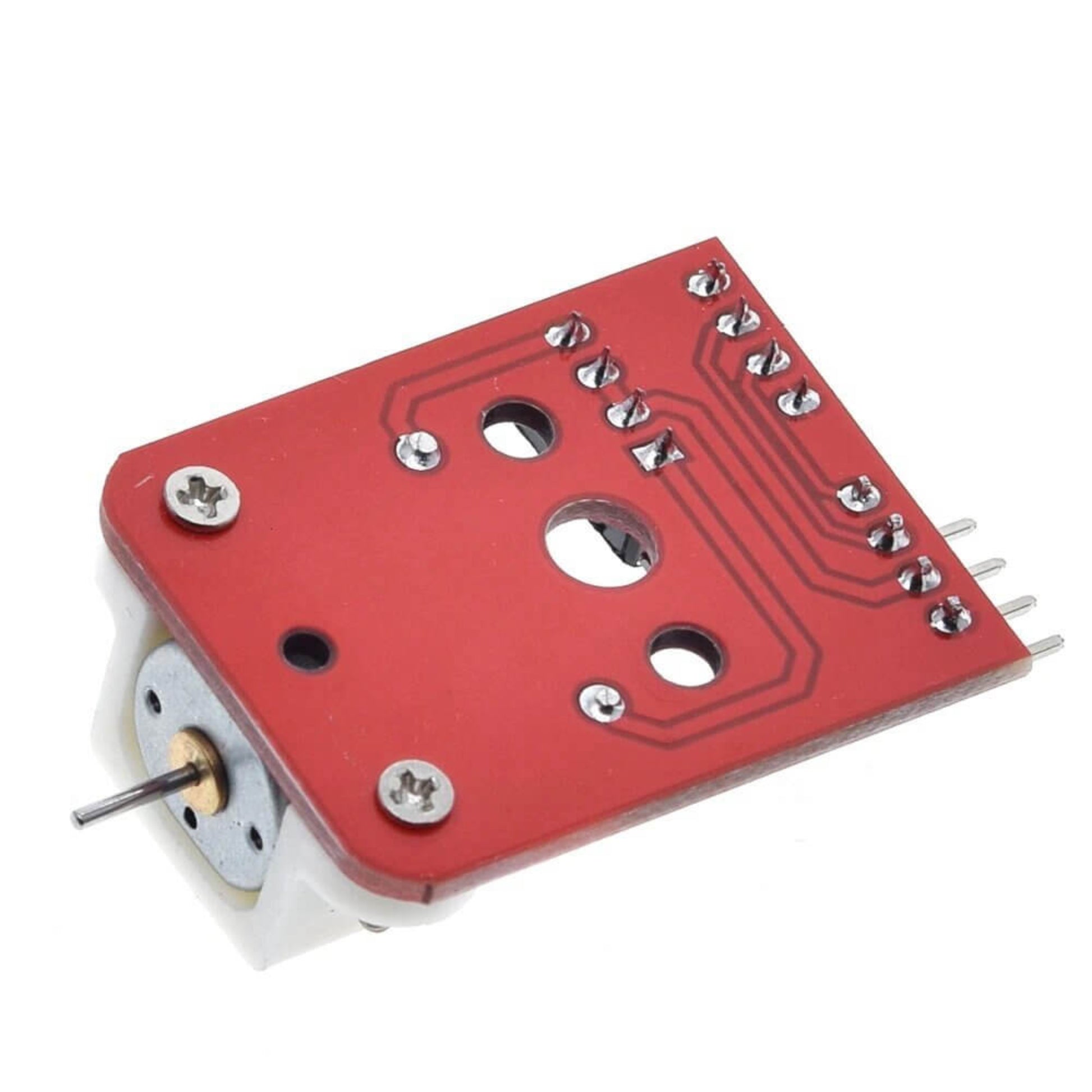

  • 5V L9110 fan motor module for Arduino, designed for robotics with propeller and control features.

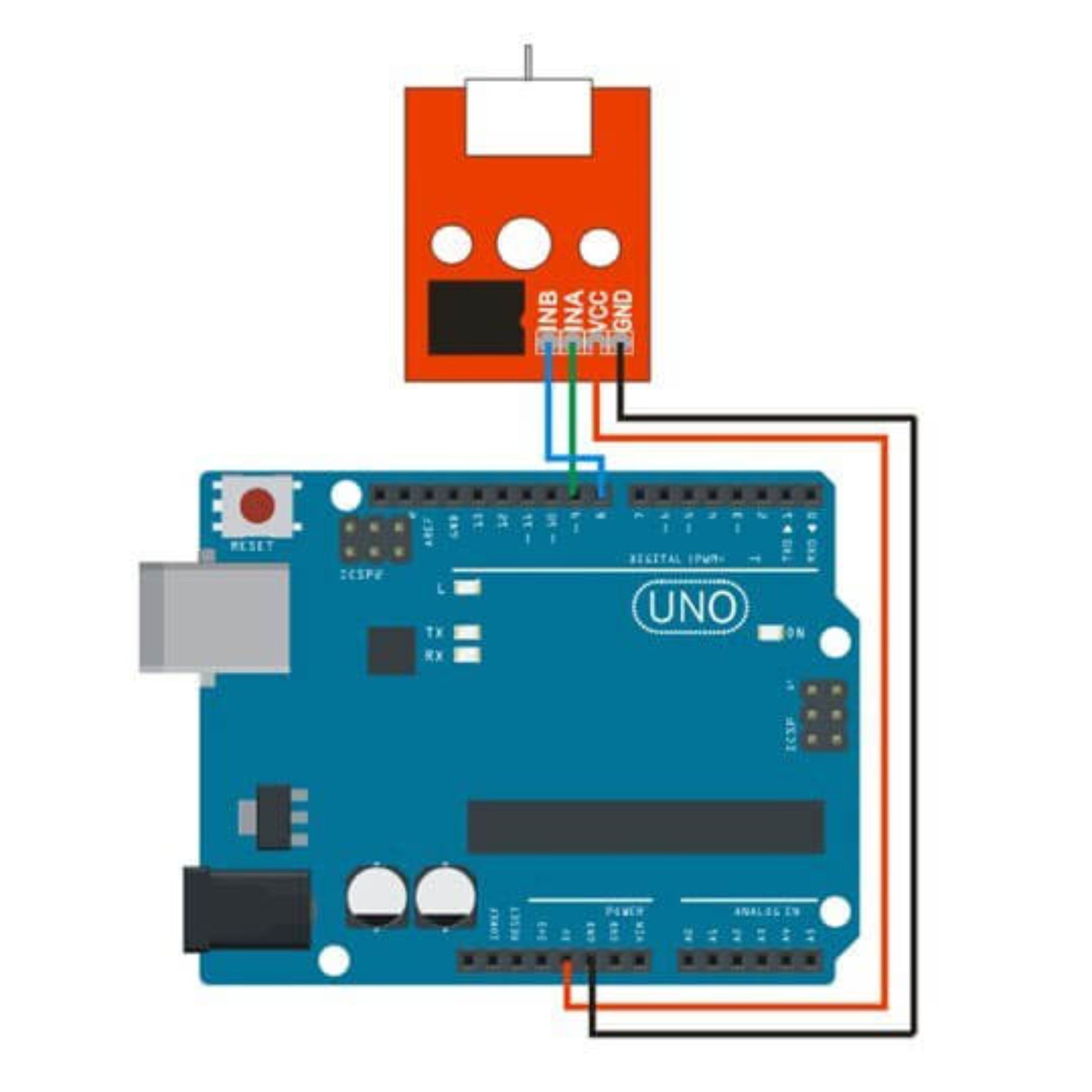

  • Arduino UNO board wiring diagram for L9110 fan motor module connection.
1 4

Arduino L9110 Fan Motor Module 5V - Robot Control & Fire Fighting DIY

Arduino L9110 Fan Motor Module 5V - Robot Control & Fire Fighting DIY

🔥 15 sold•✓ In stock
HK$19.00
HK$19.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

🔥 Arduino L9110 Fan Motor Module: Essential for Fire Fighting Robots & DIY Control

The L9110 Fan Motor Module is a high-efficiency, ready-to-use component perfect for Arduino and other microcontroller-based projects. Its powerful motor driver and propeller system make it an ideal choice for robot design, development control, and especially for fire fighting robots.



✨ Key Features & Specifications

  • Driver Chip: Integrated L9110 Motor Driver allows for easy control of both forward and reverse rotation.
  • High Efficiency: Equipped with a 75mm diameter high-quality propeller for powerful airflow.
  • Demonstrated Capability: Can easily extinguish a lighter flame from 20cm away, proving its effectiveness for fire detection and suppression projects.
  • Voltage: Standard 5V working voltage, perfectly compatible with Arduino and other 5V logic controllers.
  • Installation: Features pre-drilled mounting holes and is compatible with steering gear mounting plates (servo pan).
  • Dimensions:
    • Module Size: 50 x 26 x 15mm
    • Propeller Diameter: 75mm

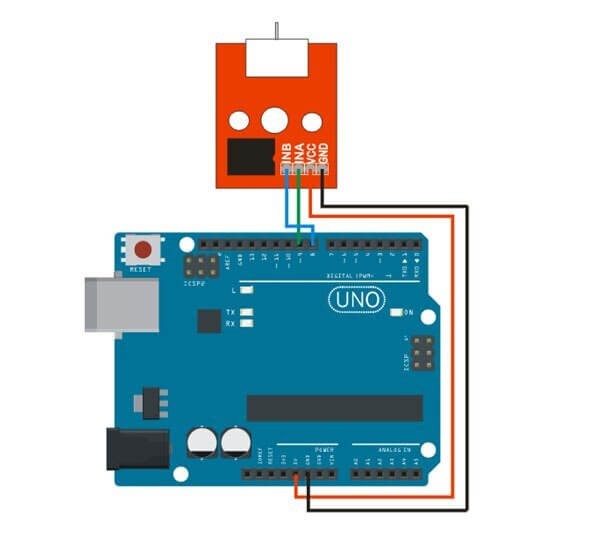

🔌 Module Quick Start & Connection Guide

This module is designed for simple integration into your development board.

Module Pin Connects to Purpose
VCC Controller 5V Power Supply
GND Controller GND Ground
INA Digital Pin 9 Motor Direction/Speed Control
INB Digital Pin 8 Motor Direction/Speed Control
