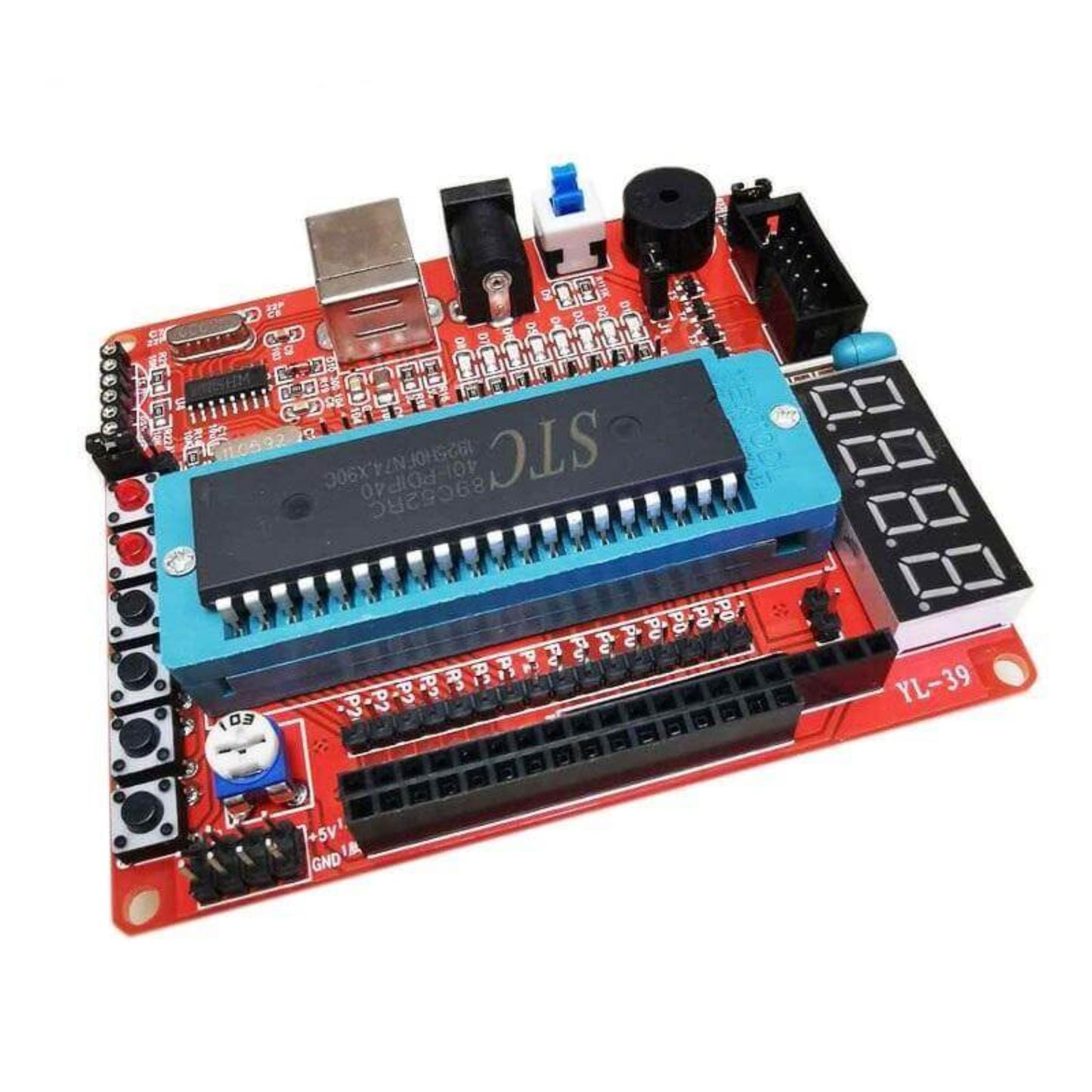

STC89C52RC 51 MCU Microcontroller Development Board

Unlock the world of embedded systems with the STC89C52RC 51 MCU Development Board. This all-in-one learning kit is perfectly designed for students, hobbyists, and professionals who want to master 8051 microcontroller programming. Featuring an onboard USB programmer and a wide array of integrated modules, you can go from unboxing to coding your first project in minutes.

The board's 40-pin ZIF (Zero Insertion Force) socket makes it incredibly easy to swap out the included STC89C52RC chip with other compatible MCUs like the AT89S51/52. All I/O pins are clearly labeled and accessible, allowing for easy expansion and connection to external modules for more complex experiments.

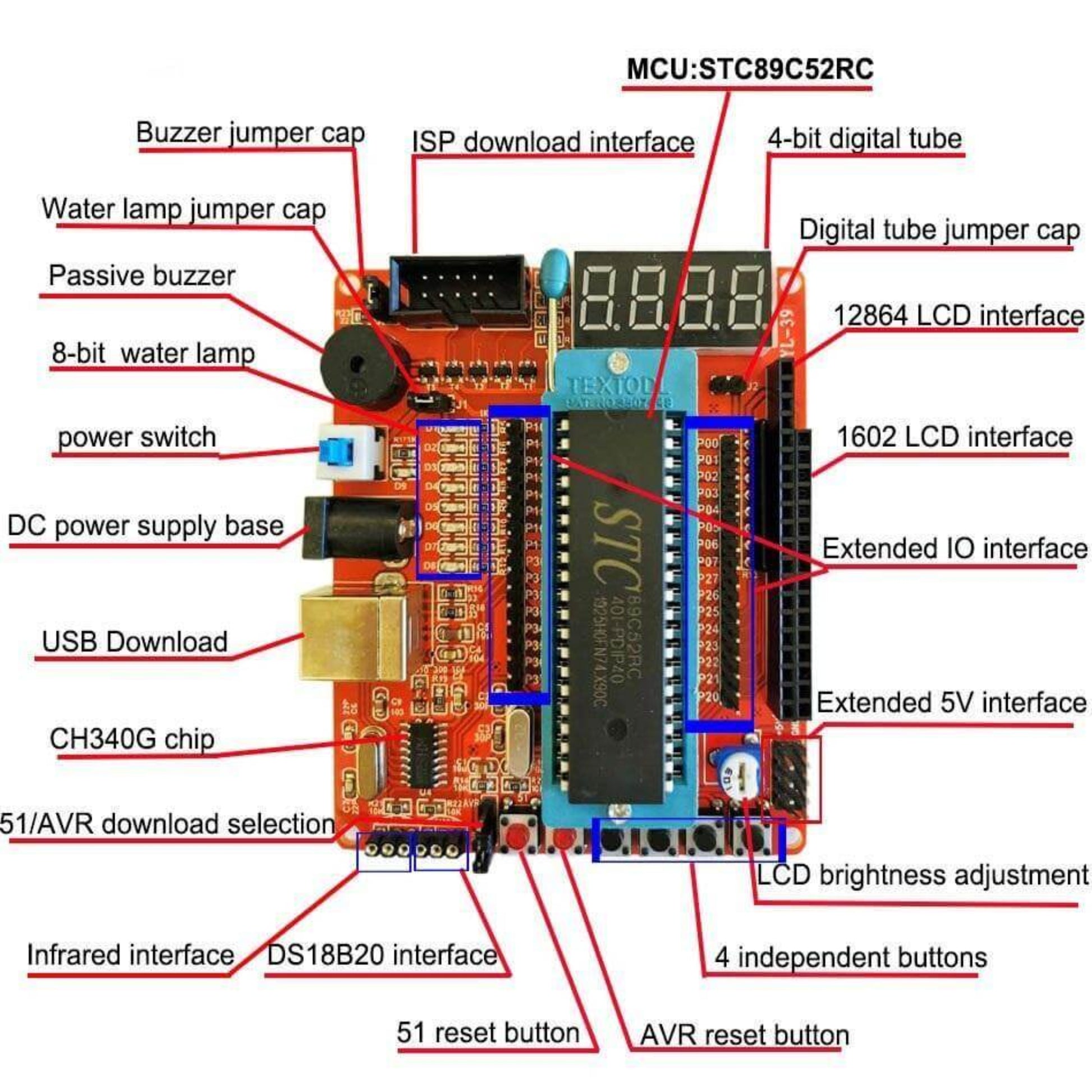

Key Features:

• Powerful Core: Comes with a pre-installed STC89C52RC microcontroller, fully compatible with the classic 8051 instruction set.
• Easy Programming: Integrated CH340G USB-to-serial chip allows you to power the board and download code with a single USB cable—no external programmer needed.
• Versatile ZIF Socket: The 40-pin locking socket allows for quick and safe replacement of microcontrollers.
• Onboard Peripherals: Includes an 8-bit LED array, a 4-digit 7-segment display, a passive buzzer, four independent push buttons, and an infrared receiver.
• Expandable Interfaces: Features dedicated headers for LCD1602 and LCD12864 displays, an ISP download interface for AT-series chips, and multiple 5V power outputs.
• Modular Design: Jumper caps allow you to enable or disable onboard modules, freeing up I/O pins for your own custom circuits.

Extensive Learning Resources: Get started right away with a comprehensive collection of 35 example projects and routines. The provided code library covers everything from basic I/O to advanced communication protocols.

Sample Projects Include:

1. LED Chaser / Knight Rider Effects
2. PWM Controlled LED Fading
3. Playing Melodies with the Buzzer
4. Alarm and Sound Effect Generation
5. Button-controlled LEDs
6. Digital Clock on 7-Segment Display
7. Matrix Keypad Input
8. Relay Control
9. Dot-Matrix LED Scrolling Text
10. DC and Stepper Motor Control
11. Interfacing with an LCD1602 Display
12. Using Timers and External Interrupts
13. Serial Communication with a PC
14. DS18B20 Digital Temperature Sensor Reading
15. PCF8591 AD/DA Conversion
16. DS1302 Real-Time Clock (RTC)
17. AT24C02 EEPROM Memory Storage
18. Infrared Remote Control Decoding
19. Displaying Chinese Characters on an LCD12864
20. TFT Touch Screen Interfacing

Specifications:

• MCU: STC89C52RC (Industrial Grade)
• Programmer Chip: CH340G
• Power Supply: USB (5V) or External DC Jack (5V)
• PCB Size: 90mm x 76mm
• Development Software: Keil C51
• Download Software: STC-ISP
• Driver OS Support: Windows XP / 7 / 8 / 10 / 11 (32/64-bit)

What's in the Box:

• 1 x 51 Development Board with STC89C52RC MCU

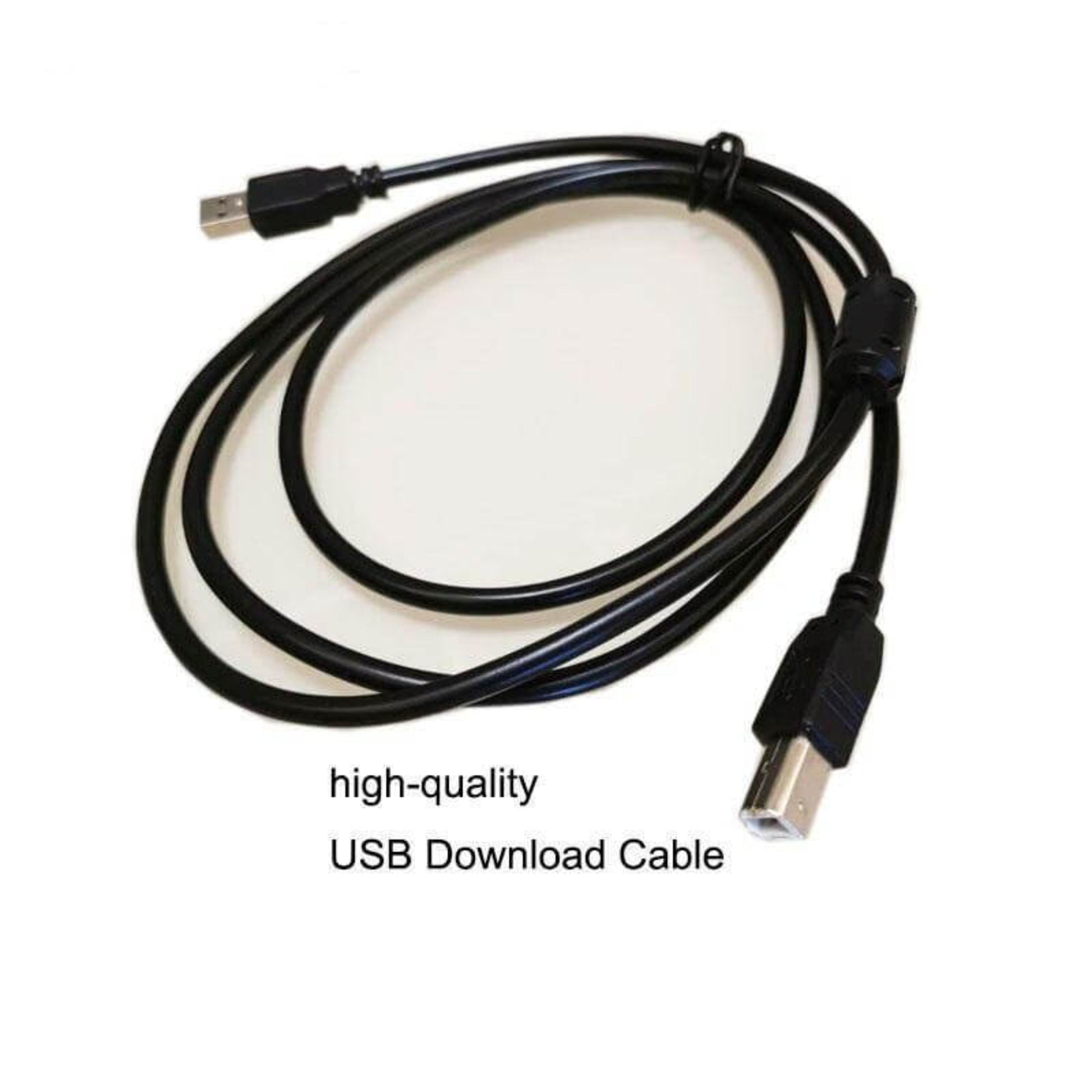

• 1 x High-Quality USB-A to USB-B Cable
• 4 x Mounting Standoffs
