DC 12V-24V to 5V 10A Step Down Power Converter Module (50W)
DC 12V-24V to 5V 10A Step Down Power Converter Module (50W)
Couldn't load pickup availability
Short Product Description
Short Product Description
Need a reliable power drop for your next electronics project? This heavy-duty DC 12V-24V to 5V 10A buck converter module delivers a stable 50W output, ensuring your sensitive 5V devices run flawlessly. Perfect for automotive electronics, CCTV surveillance setups, and custom LED strip installations. Built with integrated over-temperature and overload protection, it provides the consistent, safe power supply your equipment demands.
Key Features
Key Features
- High-Capacity 50W Output: Delivers a robust 10 Amps of continuous current, providing plenty of headroom for power-hungry 5V devices without voltage drops.
- Wide Input Compatibility (10V-30V): Easily handles fluctuations from both standard 12V and heavy-duty 24V battery systems, making it highly versatile.
- Triple Threat Protection: Built-in safeguards against low voltage, overloads, and extreme temperatures prevent catastrophic equipment failures.
- Passive Cooling Design: Open-frame structure utilizes free air convection, eliminating the need for noisy, failure-prone mechanical fans.
- Compact Footprint: Measuring just 75mm x 41mm, it easily tucks away into tight vehicle dashboards, junction boxes, or custom enclosures.
Full Product Description
Full Product Description
Reliable Power Conversion for Demanding Electronics
Powering 5V devices from a 12V or 24V source shouldn't be a gamble. Whether you are wiring a custom dashcam setup in your vehicle or building an extensive CCTV monitoring network, unstable voltage can instantly destroy expensive equipment. This DC power converter PCBA module acts as a dependable bridge, safely stepping down higher voltages to a clean, usable 5V at up to 10 Amps.
Built for Stability and Safety
This regulator is designed with longevity in mind. It utilizes an open-frame design that allows for free air convection cooling, preventing the buildup of damaging heat during continuous operation.
Furthermore, you don't have to worry about power spikes or electrical failures. The module comes equipped with a comprehensive suite of safety features, including low voltage, overload, and over-temperature protections. If the system detects a critical fault, it automatically safeguards both the converter and your connected devices.
Versatile Applications for Auto and Industrial Use
From DIY enthusiasts to professional installers, this step-down module is incredibly adaptable. Its wide input range (DC 10V-30V) makes it the perfect companion for 12V car accumulators or 24V commercial vehicle batteries. It is widely trusted for running medical equipment, precision meters, railway signal systems, and high-draw LED displays.
Technical Specifications
Technical Specifications
- Product Type: DC to DC power converter module
- Input Voltage: DC 12V – 24V (nominal)
- Input Voltage Range: DC 10V – 30V
- Output Voltage: DC 5V
- Output Current: 10A (maximum)
- Output Power: 50W
- Operating Temperature: -40°C to +85°C

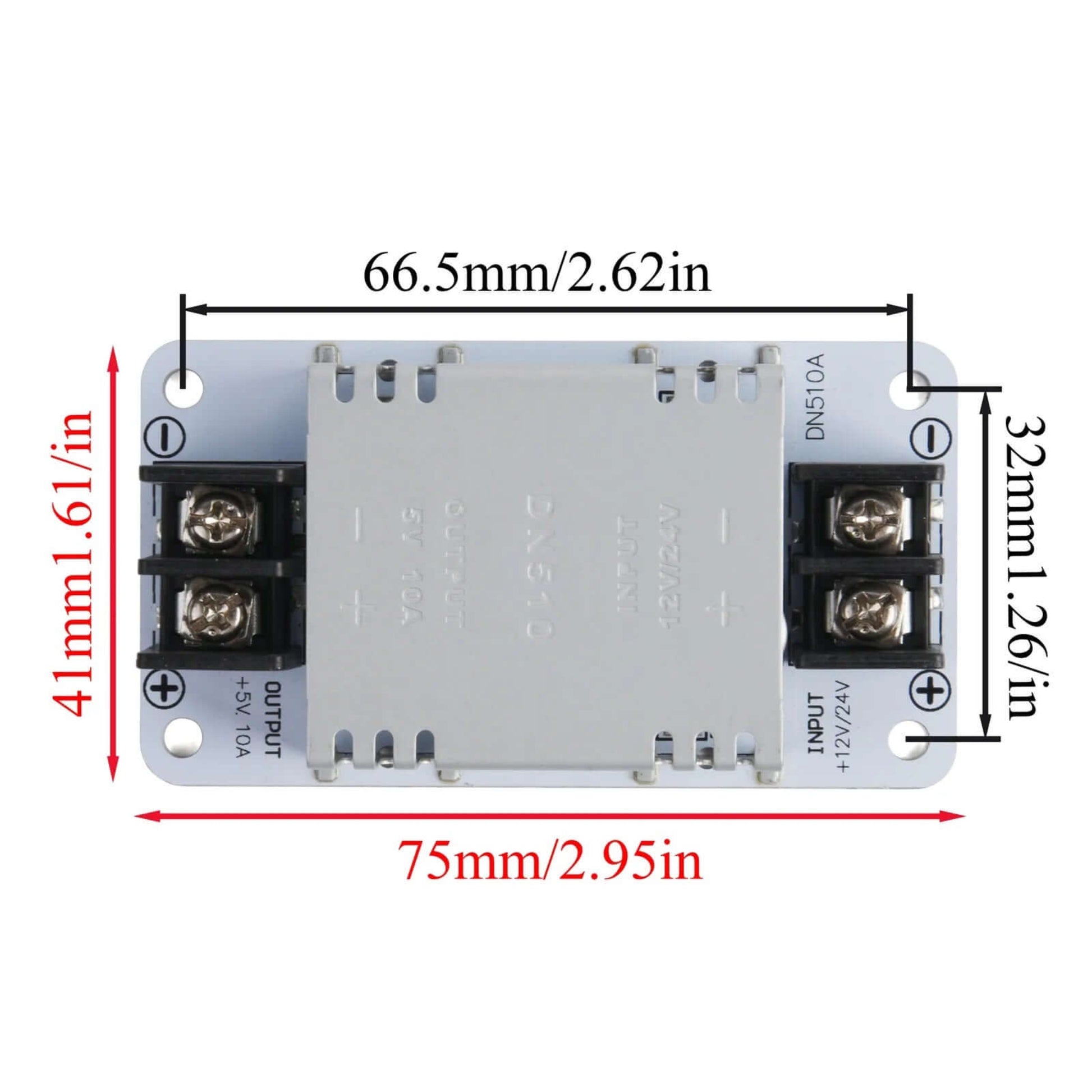

- Dimensions: 75 × 41 × 18 mm (2.95" × 1.61" × 0.71")
- Isolation: Non-isolated (input and output not isolated)
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: Can I use this to power a Raspberry Pi from my car battery?
A: Yes! The wide input range easily accepts a car's 12V alternator output, dropping it to a safe 5V. The 10A capacity provides more than enough power for a Raspberry Pi and several connected peripherals.
Q: Does this module require an external cooling fan?
A: Under normal operating conditions, no. It is designed for cooling by free air convection. However, please ensure it is installed in a well-ventilated area, away from enclosed heat pockets, to allow the passive cooling to work effectively.
Q: Are the input and output circuits isolated?

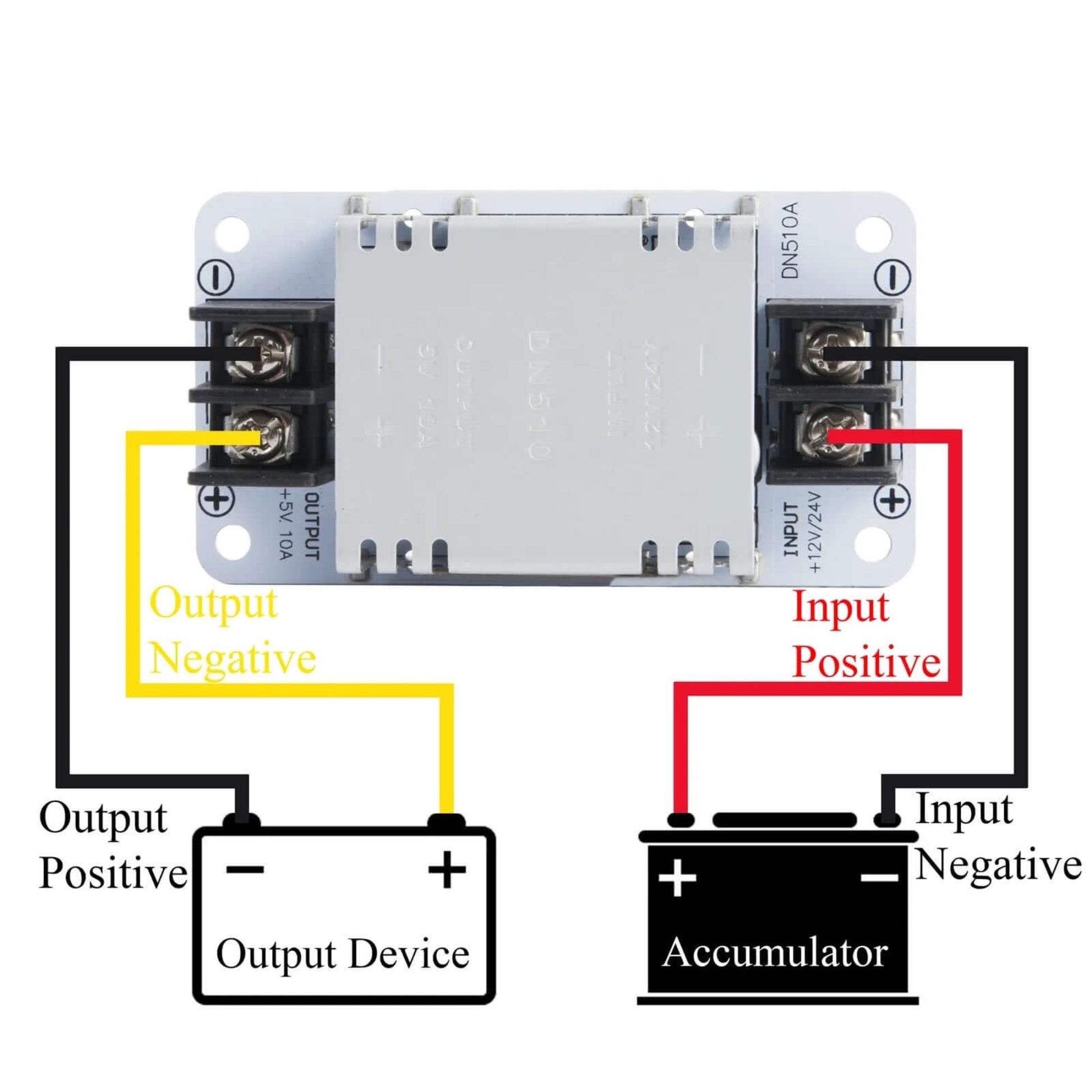

A: No, this is a non-isolated buck converter. Please ensure proper wiring and check positive/negative polarities strictly before powering on to avoid short circuits.
Target Users / Applications
Target Users / Applications
- Automotive Electricians: For integrating 5V accessories (dashcams, GPS, charging ports) into 12V/24V vehicles.
- Security & CCTV Installers: Providing stable power to local 5V cameras from central 12V/24V power distribution systems.
- DIY Makers & STEM Students: Powering microcontrollers (Arduino, Raspberry Pi) from higher voltage battery packs.
- Industrial Engineers: Powering meters, LED indicators, and instruments in control panels.
