12-24V to 5V 10A Power Module
$99.00
$99.00
Sold out

DC 12V-24V to 5V 10A Power Converter PCBA Module Auto Buck Regulator Step Down Voltage Supply For Car Accumulator



Type: DC Power Converter

Input Voltage: DC 12V-24V

Input Voltage Range: DC 10V-30V

Output Voltage: DC 5V

Output Current: 10A

Output Power: 50W

Operating Temperature: -40-85ᵒC

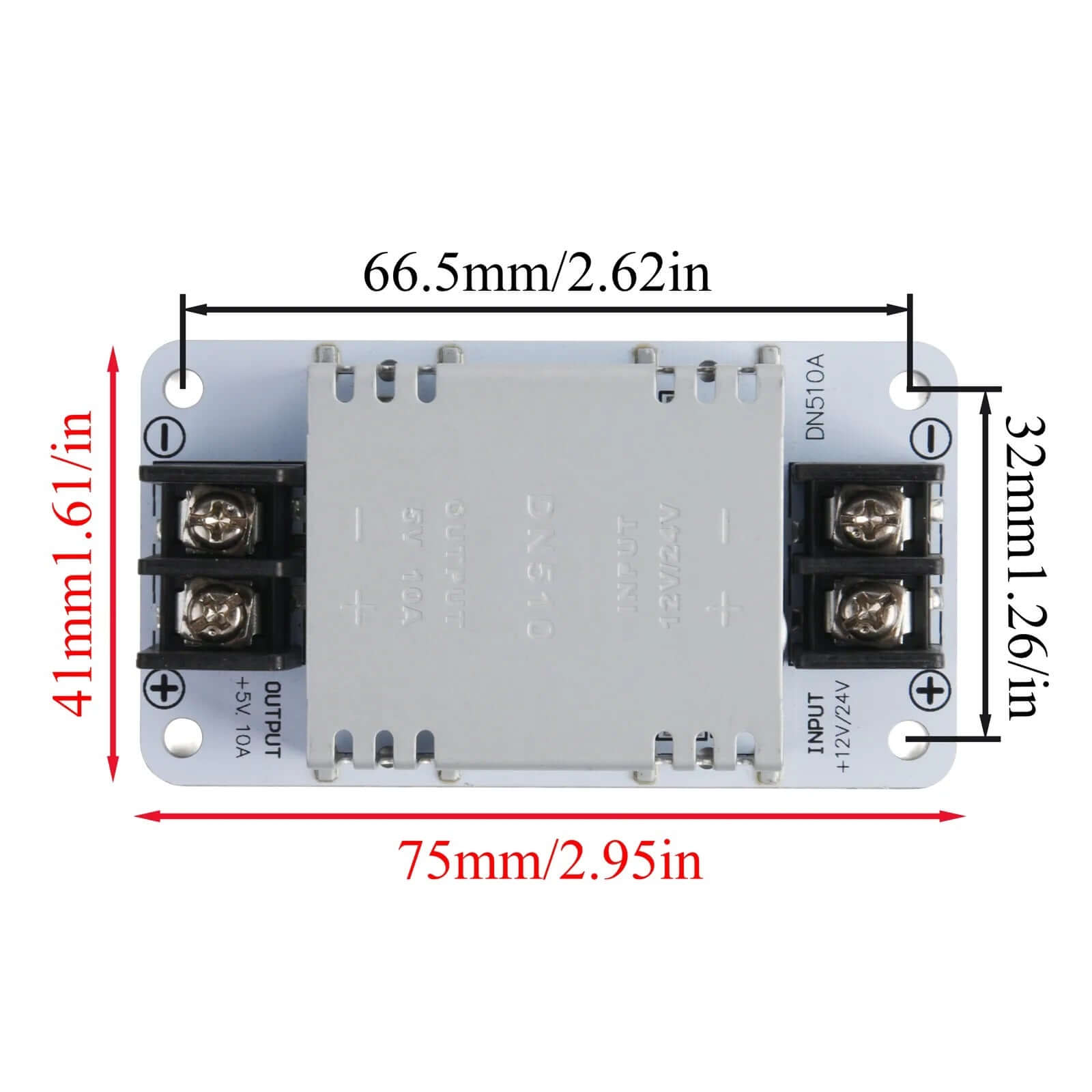

Size: 75mm*41mm*18mm(2.95in*1.61in*0.71in)

Feature

Non-isolated between input and output.

Cooling by free air convection.

Low voltage, Overload, and Over-temperature protection.

Widely used in automotive, surveillance systems, railway signals, medical equipment, instruments and meters, LED products, LED strips, cable TV

Precautions:

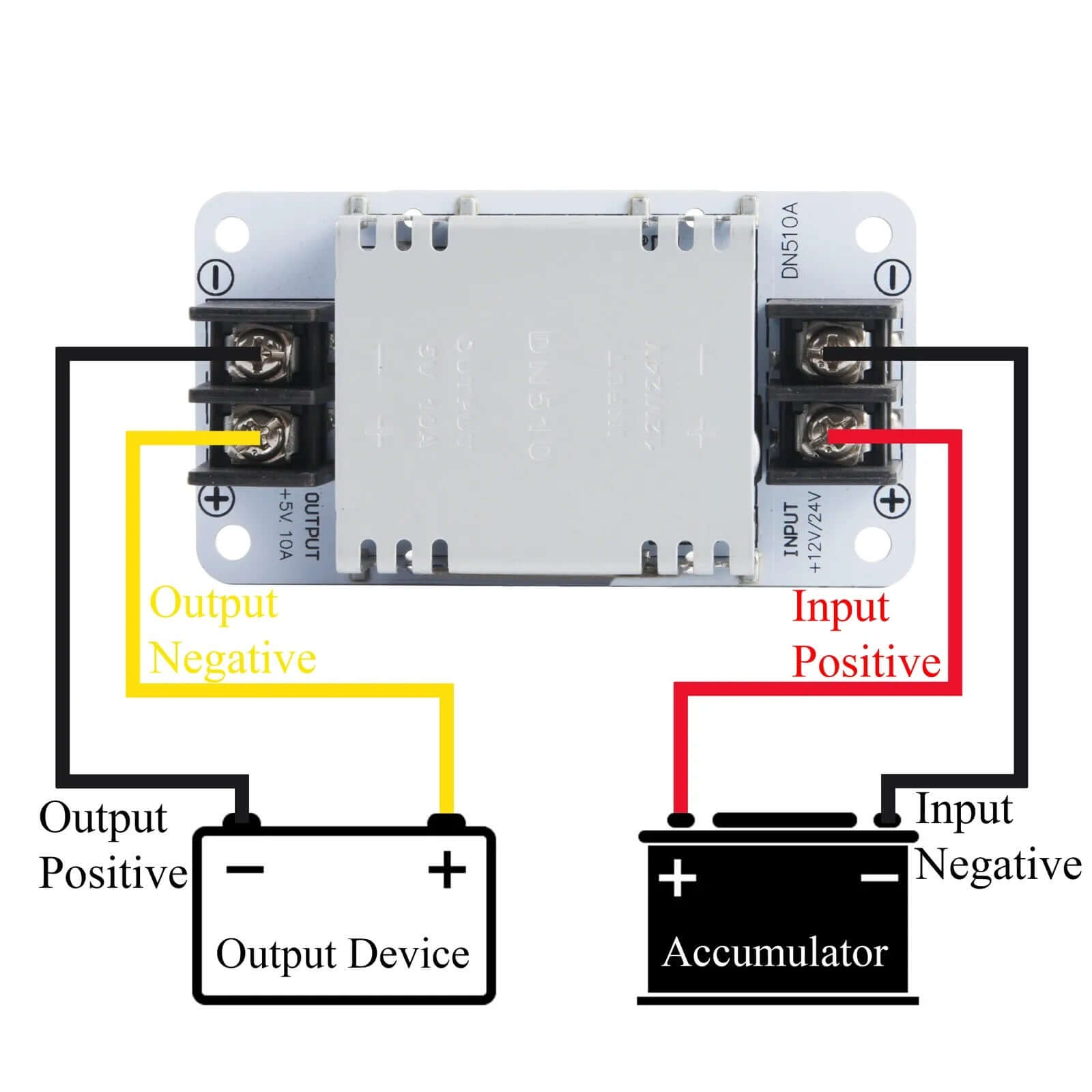

  1. Please wire and install correctly, and make sure the positive and negative polarities of the input and output are correct before powering on.
  2. The battery power supply at the input end must be within the input voltage range and have sufficient power to ensure the normal operation of the power converter.
  3. Please install it in an environment with good ventilation and heat dissipation to avoid over-temperature protection of the power converter due to heat accumulation.
