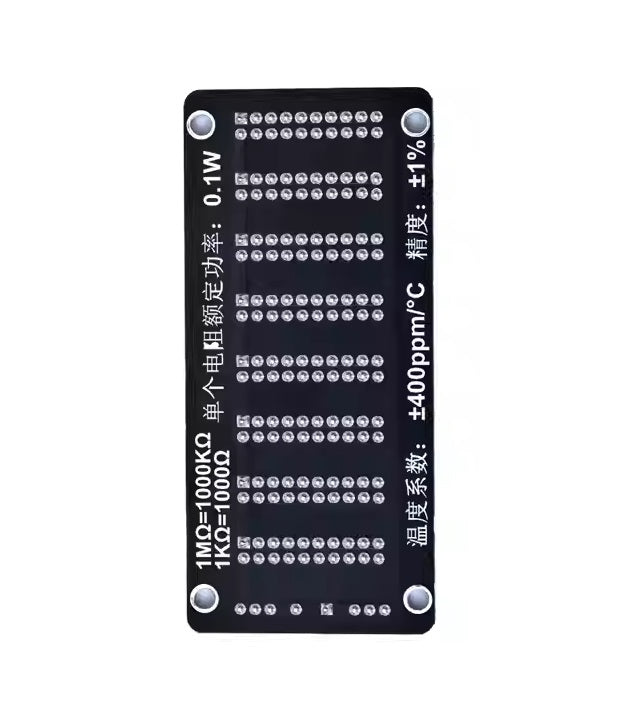

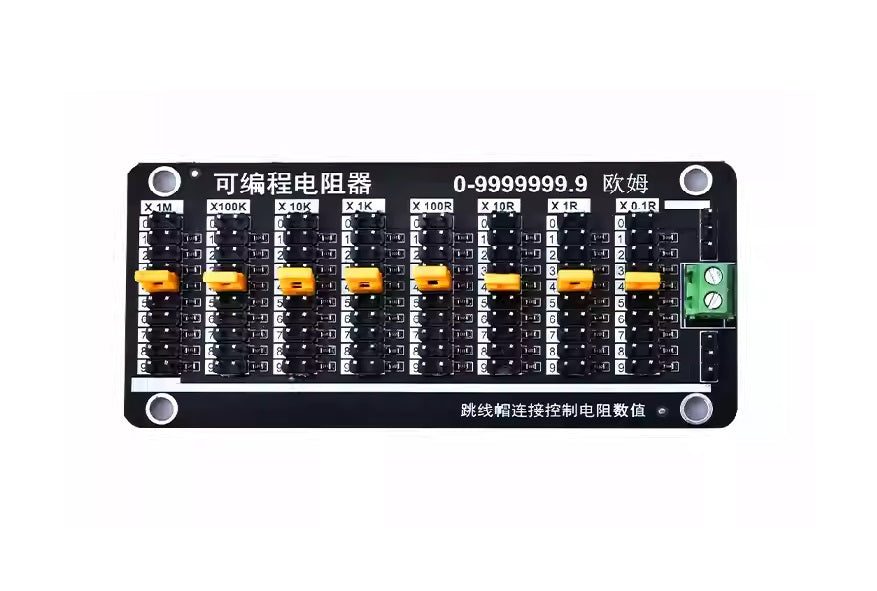

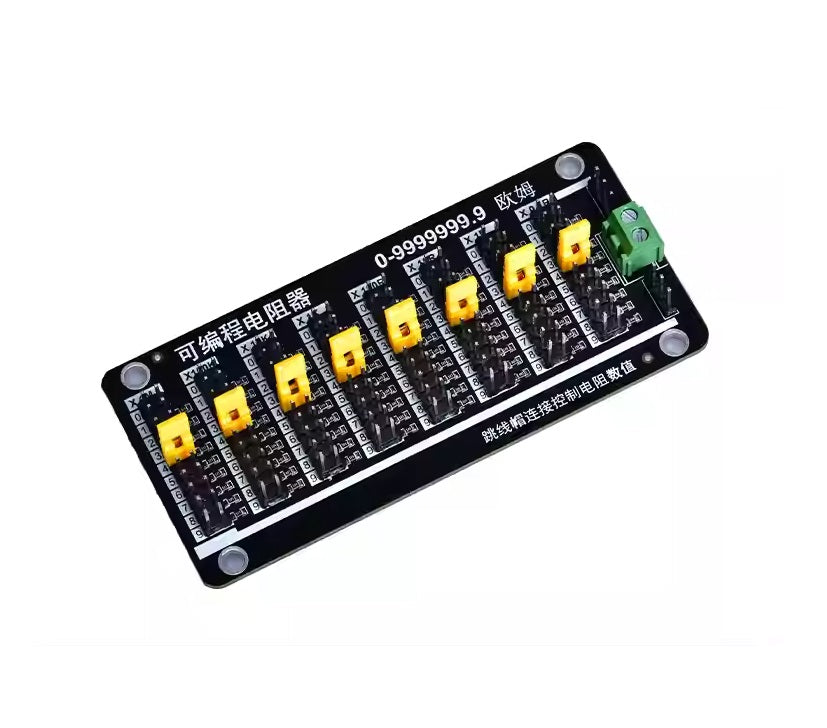

Program Adjustable SMD Resistor Module (0.1-999999Ω)
Program Adjustable SMD Resistor Module (0.1-999999Ω)
Couldn't load pickup availability
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
1R - 9999999R Programmable Adjustable SMD Resistor Slide Resistor Board Step Accuracy 1R 1% 1/2 Watt Module
Product parameter
Programmable resistor, voltage step through jumper cap, and then get accurate resistance value. Single resistance power: 0.1W
Single resistance accuracy: ±1% (some parts are ±0.5%)
Single resistance temperature coefficient: ±400ppm/°C (most accuracy is ±200ppm/°°C or more) Output range: 0.1R-9999999.9R
Scope of application
Replace low-power sliding rheostat;
·Switching power supply demo board, feedback resistance debugging; ·Op amp debugging, matching the required resistance;
Precautions
1. The board soldered with pin headers.
2. To use this module, please use it with a multimeter, and get the expected resistance by short-circuiting the jumper cap (due to the error of the resistance, it is not the resistance where the jumper cap is placed, so the difference requires the use of the multimeter)
