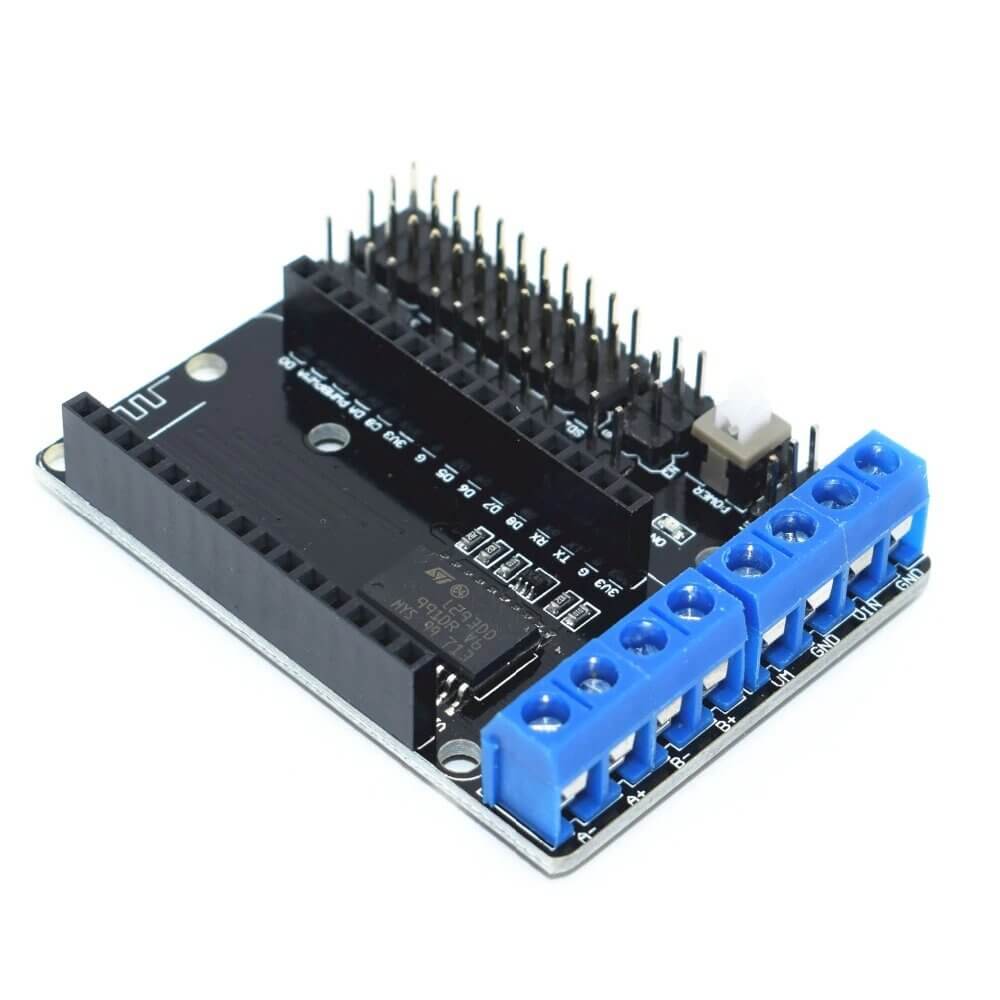

• ESP-12E Motor Shield Board for NodeMCU, L293D motor drive expansion module with GPIO and power connectors.

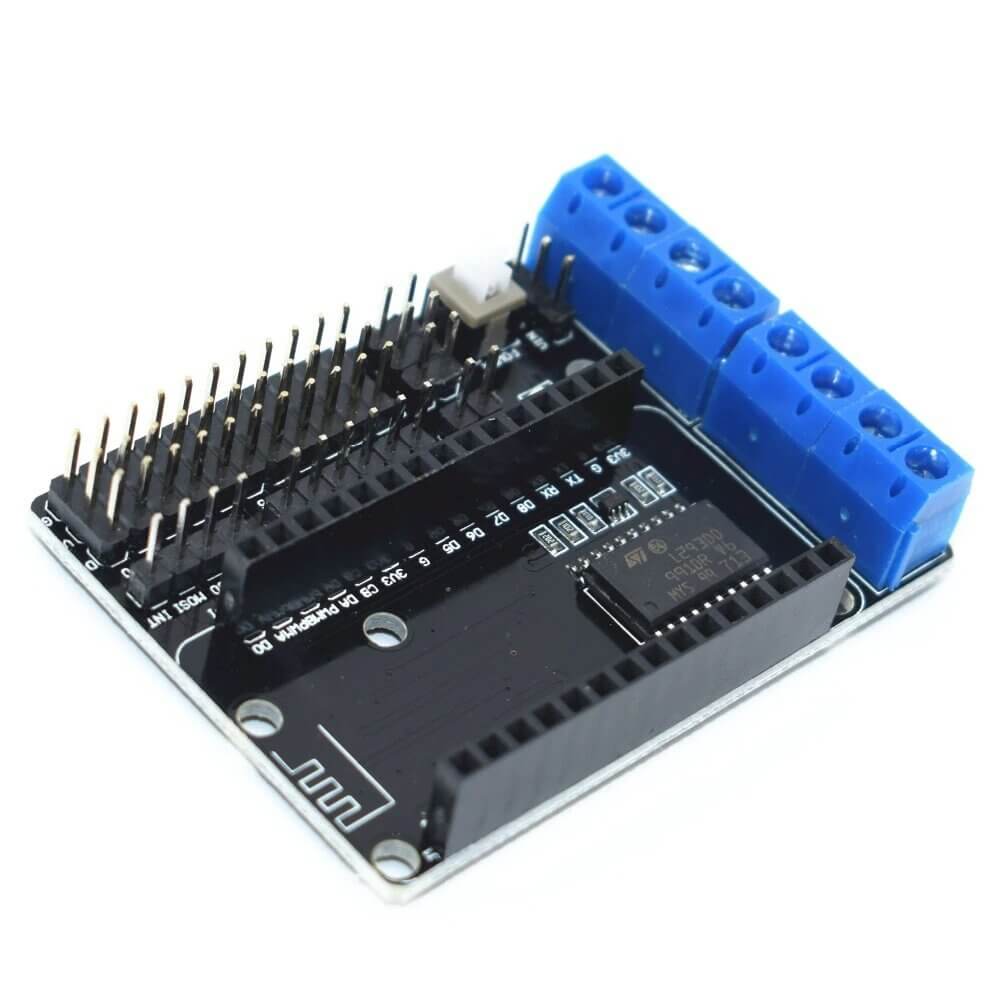

  • ESP-12E Motor Shield Board with L293D connectors for NodeMCU and ESP8266 DIY RC car projects.
1 2
5 sales

L293D Motor Drive Shield for NodeMCU ESP-12E ESP8266 WiFi Car

L293D Motor Drive Shield for NodeMCU ESP-12E ESP8266 WiFi Car

HK$25.00
HK$25.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

Unlock the mobility of your IoT projects with the ESP-12E Motor Shield. Built around the robust L293D driver chip, this expansion board is designed specifically for the NodeMCU ESP-12E Development Kit. It allows you to drive two DC motors directly while retaining access to all GPIO, SPI, and UART pins—perfect for building WiFi-controlled RC cars, smart robots, or home automation devices.

Key Features

  • Seamless Compatibility: Directly mounts the ESP-12E Dev Kit (NodeMCU). Note: Please align the antenna direction correctly when mounting.
  • Dual Motor Control: High-power L293D H-Bridge driver controls two DC motors simultaneously.
  • Full Pin Access: Expands all ESP-12E functional pins (SPI, UART, GPIO, AI) and 3.3V power for easy sensor integration.
  • Flexible Power Options: Supports separate power supplies for motors and logic, or a single power source via the onboard jumper (VIN/VM short).
  • Onboard Power Switch: Conveniently turn your project on/off without unplugging cables.

Technical Specifications

  • Driver Chip: L293D (Dual H-Bridge)
  • Motor Supply (VM): 4.5V – 36V
  • Control Supply (VIN): 4.5V – 9V (10V Max)
  • Driving Current: ≤1.2A per channel
  • Logic Current: ≤60mA
  • Control Pins:
    • Motor A: D1, D3
    • Motor B: D2, D4
  • Working Temperature: -25℃ to +125℃
  • Weight: Approx. 20g

Power Supply Guide

  • Single Power Source: Short the VM and VIN pins with the jumper block. Input voltage must be 4.5V – 9V.
  • Dual Power Source: Remove the jumper. Connect motor power (4.5V~36V) to VM and logic power (4.5V~9V) to VIN.
