Raspberry Pi AI Kit for Raspberry Pi 5

Features:

·         Contains a neural network inference accelerator capable of 13 tera-operations per second (TOPS)

·         Fully integrated into Raspberry Pi’s camera software stack

·         Thermal pad pre-fitted between module and HAT+ spreads heat across components, improving performance

·         Conforms to Raspberry Pi HAT+ specification

·         Supplied with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with Raspberry Pi Active Cooler in place

Raspberry Pi AI Kit

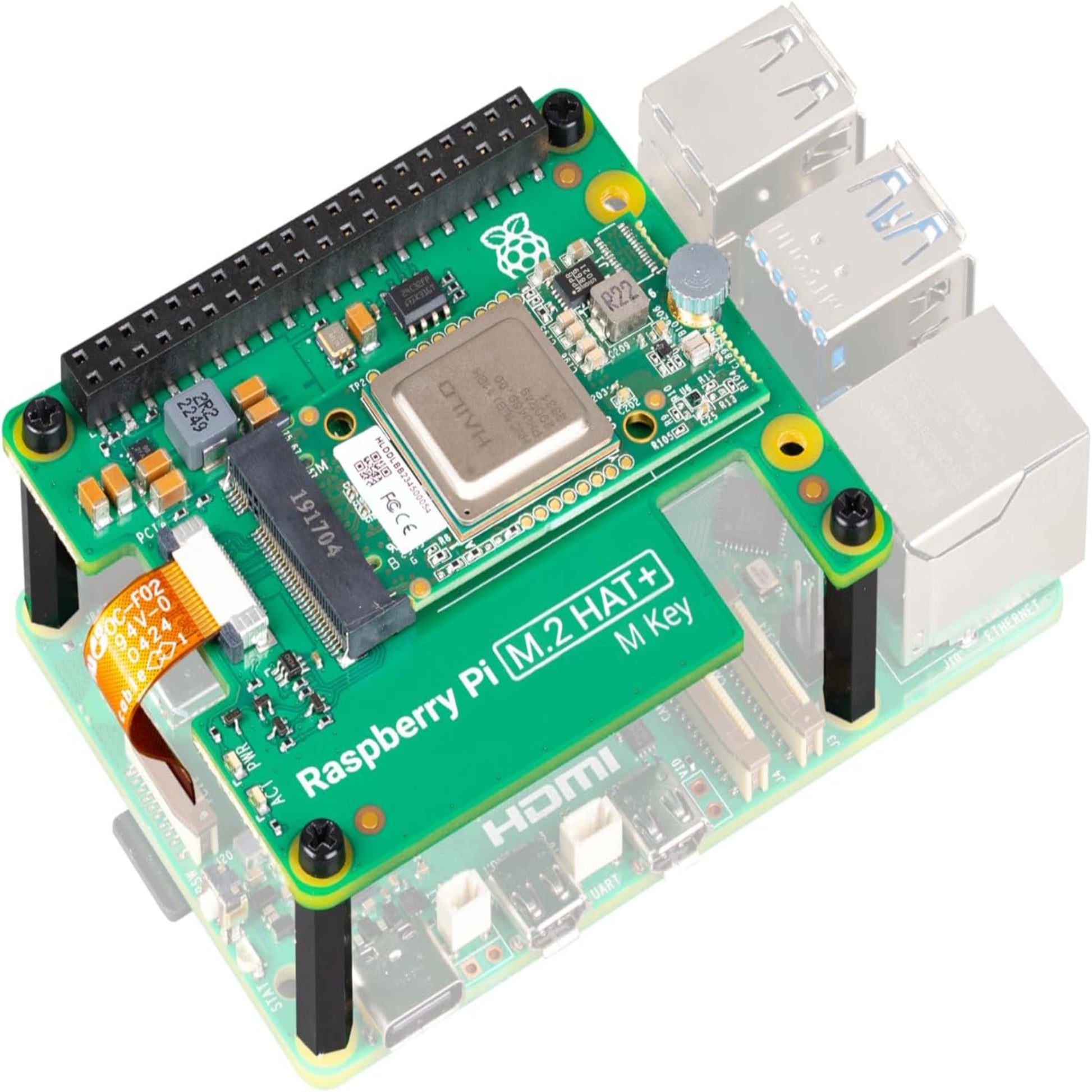

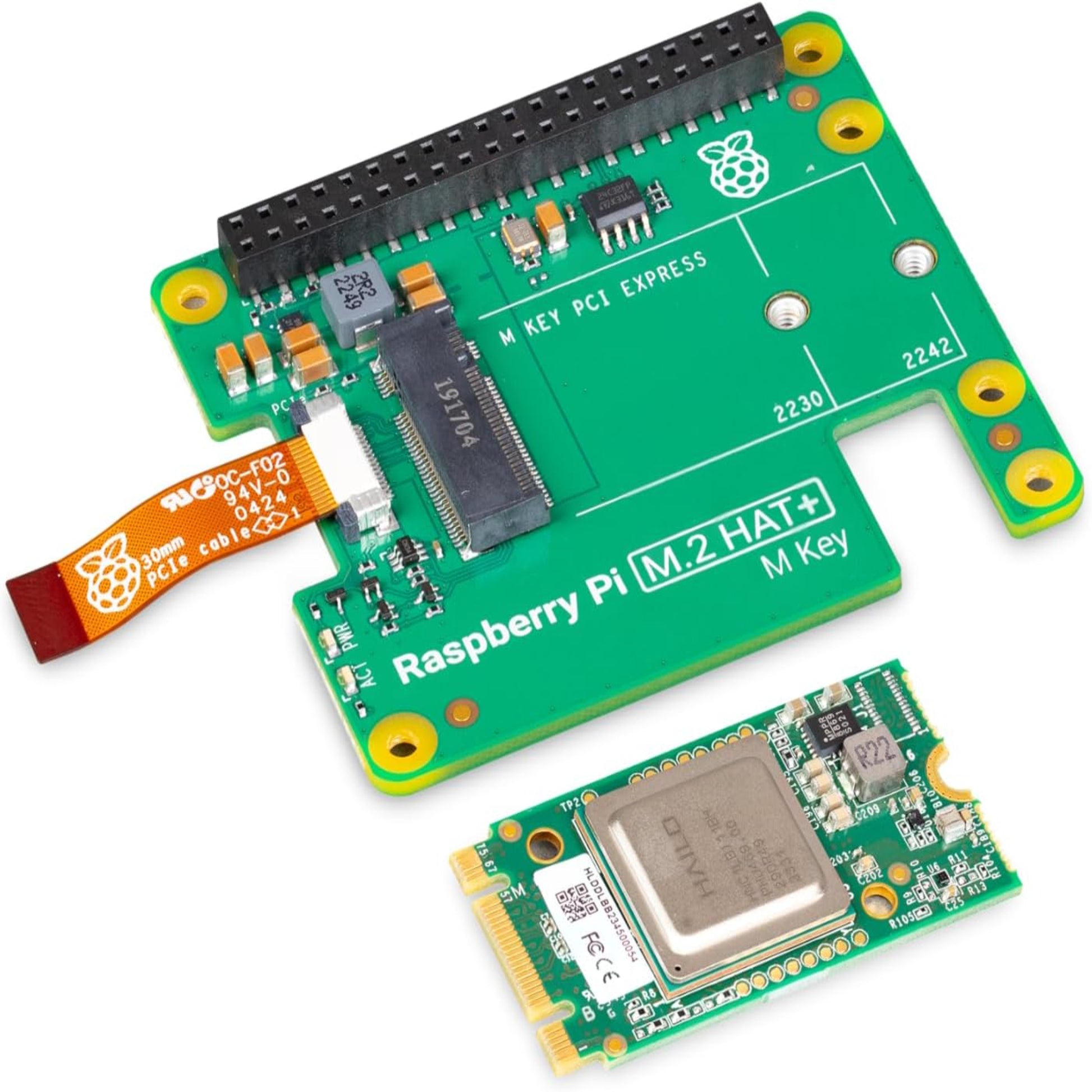

The Raspberry Pi AI Kit bundles the Raspberry Pi M.2 HAT+ with a Hailo AI acceleration module for use with Raspberry Pi 5. It provides an accessible, cost-effective, and power- efficient way to integrate high-performance AI.

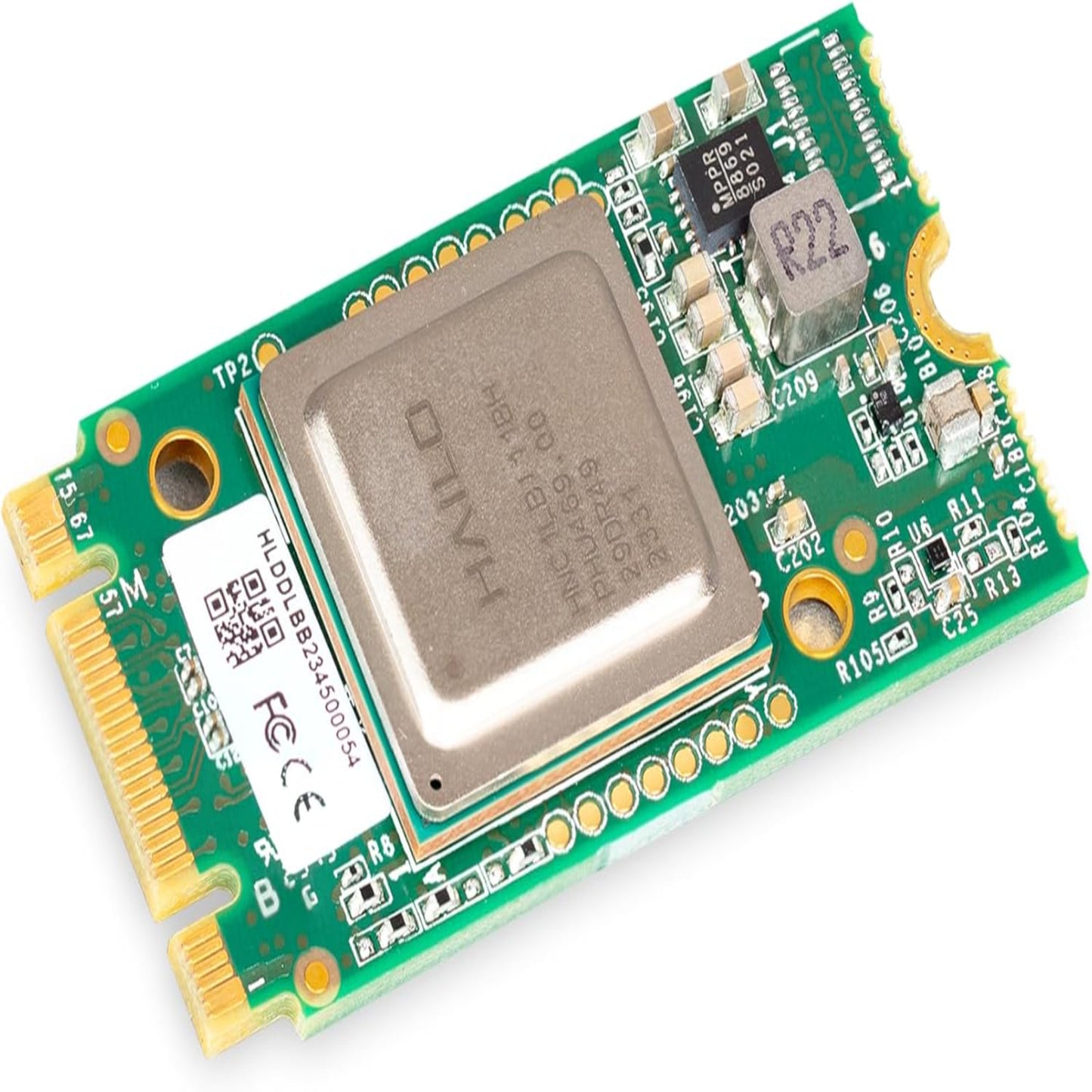

The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip. The module uses the M.2 2242 form factor, and comes pre-installed in the M.2 HAT+, to which it connects through an M key edge connector. The M.2 HAT+ communicates between the AI module’s M.2 interface and the Raspberry Pi 5’s PCIe 2.0 interface.
